SLESD0521D52RG ESD Protection Devices SOD-523
The SLESD0521D52RG is a state-of-the-art ESD (Electrostatic Discharge) protection device designed to provide robust defense for sensitive electronic components in a compact, efficient package. With a working voltage (VRWM) of 5V and a minimum breakdown voltage (VBR) of 9.4V, this device ensures reliable clamping of voltage transients, protecting circuits from damaging surges. It features a reverse leakage current (IR) of just 2μA, contributing to low power consumption and efficient operation. The clamping voltage (VC) of 14V offers strong protection against high-energy spikes, while the junction capacitance (CJ) of 3.5pF makes it suitable for high-frequency applications. Housed in a compact SOD-523 package, the SLESD0521D52RG is ideal for applications where space is at a premium.
Low Capacitance Bidirectional TVS/ESD Protection Diode
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD0521D52RG is a state-of-the-art ESD (Electrostatic Discharge) protection device designed to provide robust defense for sensitive electronic components in a compact, efficient package. With a working voltage (VRWM) of 5V and a minimum breakdown voltage (VBR) of 9.4V, this device ensures reliable clamping of voltage transients, protecting circuits from damaging surges. It features a reverse leakage current (IR) of just 2μA, contributing to low power consumption and efficient operation. The clamping voltage (VC) of 14V offers strong protection against high-energy spikes, while the junction capacitance (CJ) of 3.5pF makes it suitable for high-frequency applications. Housed in a compact SOD-523 package, the SLESD0521D52RG is ideal for applications where space is at a premium.
Features
● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● Peak power dissipation: 80W (8/20μs)
● Protects one directional I/O line
● Low clamping voltage
● Working voltages : 5V
● Low leakage current
● Low capacitance
Applications
● High Speed Line :USB1.0/2.0, VGA, DVI, SDI,
● Serial and Parallel Ports
● Notebooks, Desktops, Servers
● Projection TV
● Cellular handsets and accessories
● Portable instrumentation
● Peripherals
Name
Title
Description

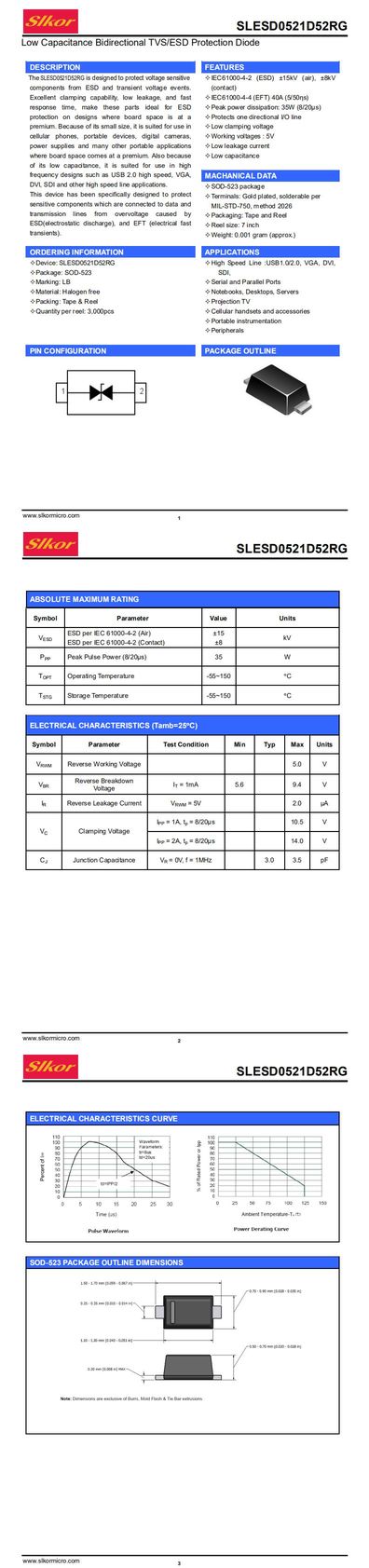

Datasheet
