FAST SWITCHING DIODE

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

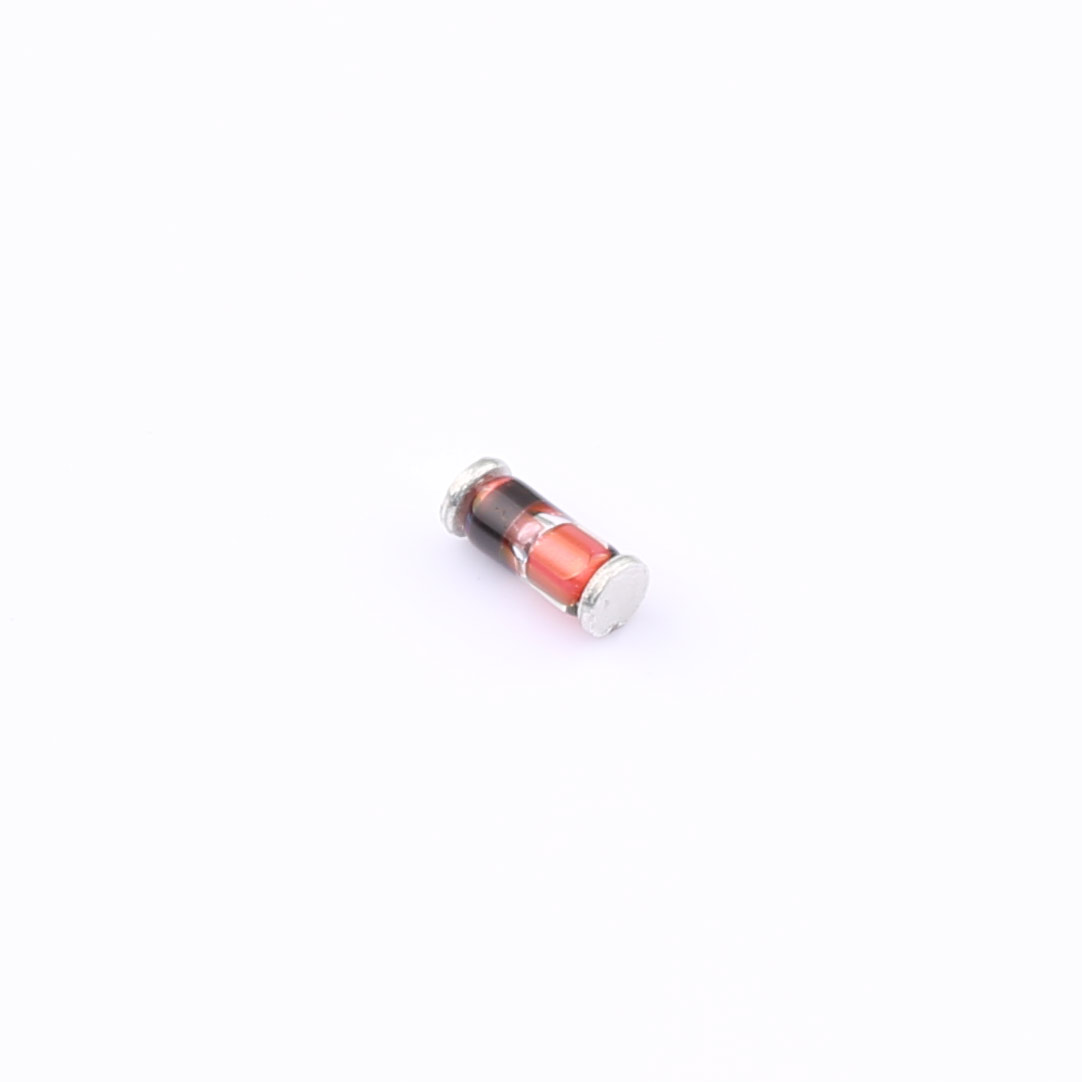

Our diode features a maximum reverse voltage (V_RM) of 60V and a forward voltage (V_F) of 1V. It is engineered with a reverse recovery time (t_rr) of just 50ns, ensuring swift operation and minimal signal delay. The diode is designed to handle extremely low reverse leakage current with a maximum rating of 100nA, making it ideal for precision applications. Housed in a compact LL-34 package, it offers reliable performance in a space-efficient form factor.

Features

● Fast Switching Device (TRR <50 nS)

● 400mW; Power Dissipation of 400mW

● High Stability and High Reliability

● Low reverse leakage

Applications

● Switching Power Supplies: Ideal for use in power conversion systems where rapid switching and low leakage are crucial.

● Signal Rectification: Perfect for rectifying high-frequency signals with minimal forward voltage drop and quick recovery.

● Protection Circuits: Effective in protecting sensitive components from voltage spikes and transients due to its high reverse voltage capability and low leakage.

● High-Speed Digital Circuits: Suitable for digital applications requiring fast switching speeds and minimal delay.
