Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

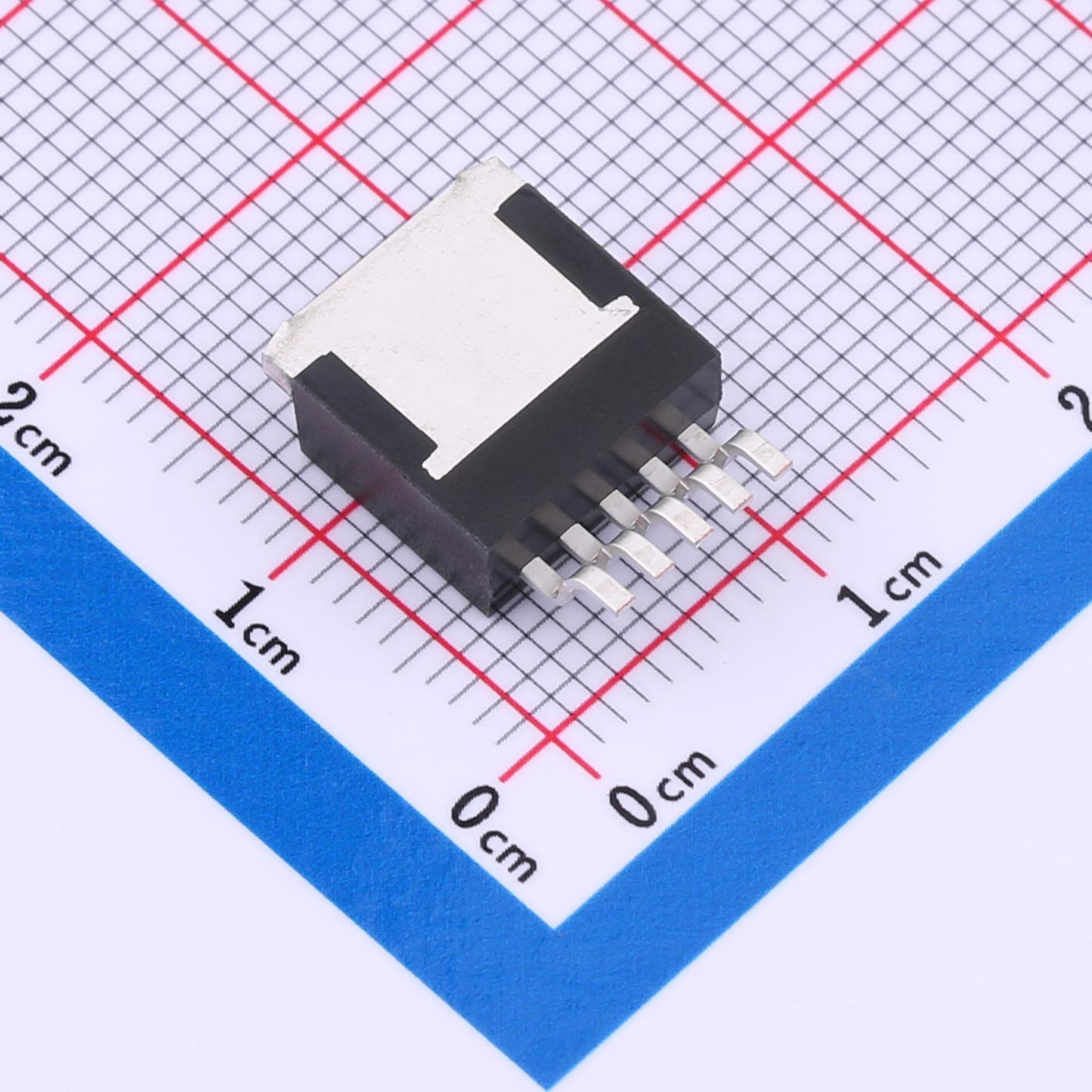

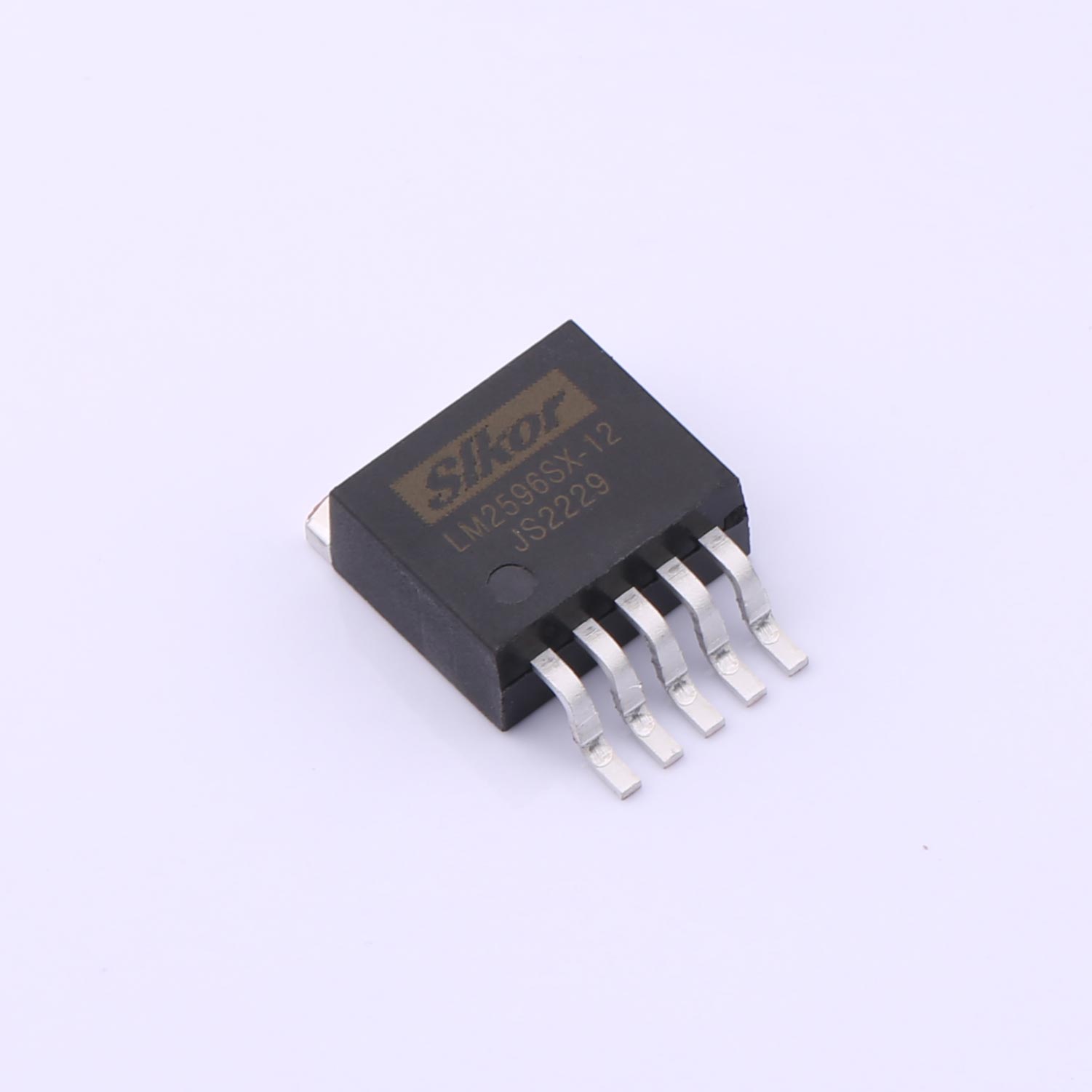

LM2596SX/LM2596HV is a fixed frequency PWM DCDCvoltage stabilizing power converter with fixed frequency of 150KHz. With the 3A output current driving ability, it has characteristics such as high efficiency, low ripple wave, high linear adjustment rate and load regulation. With the PWM modulation mode, the chip can adjust the  linear ranges of the duty ratio of 0-100%.

LM2596SX/LM2596HV has a built-in fixed frequency oscillator and a frequency compensation module, with simple use, and only a small number of external components and parts are needed. In addition, the chip has built-in functions such as enabling, over-temperature protection, over-current protection and stimulation over current protection with the hysteresis function. In condition of secondary over-current protection, the built-in downconversion function can reduce the working frequency from 150KHz to 50KHz.

Features

● Built-in over-temperature protection and over-current protection
● Built-in frequency compensation function
● High working efficiency, linear adjustment rate and load adjustment  rate

Applications

● LCD monitor, LCD TV
● Digital Frame
● TV set top box
● Modulator demodulators
● Various telephones and network equipment
