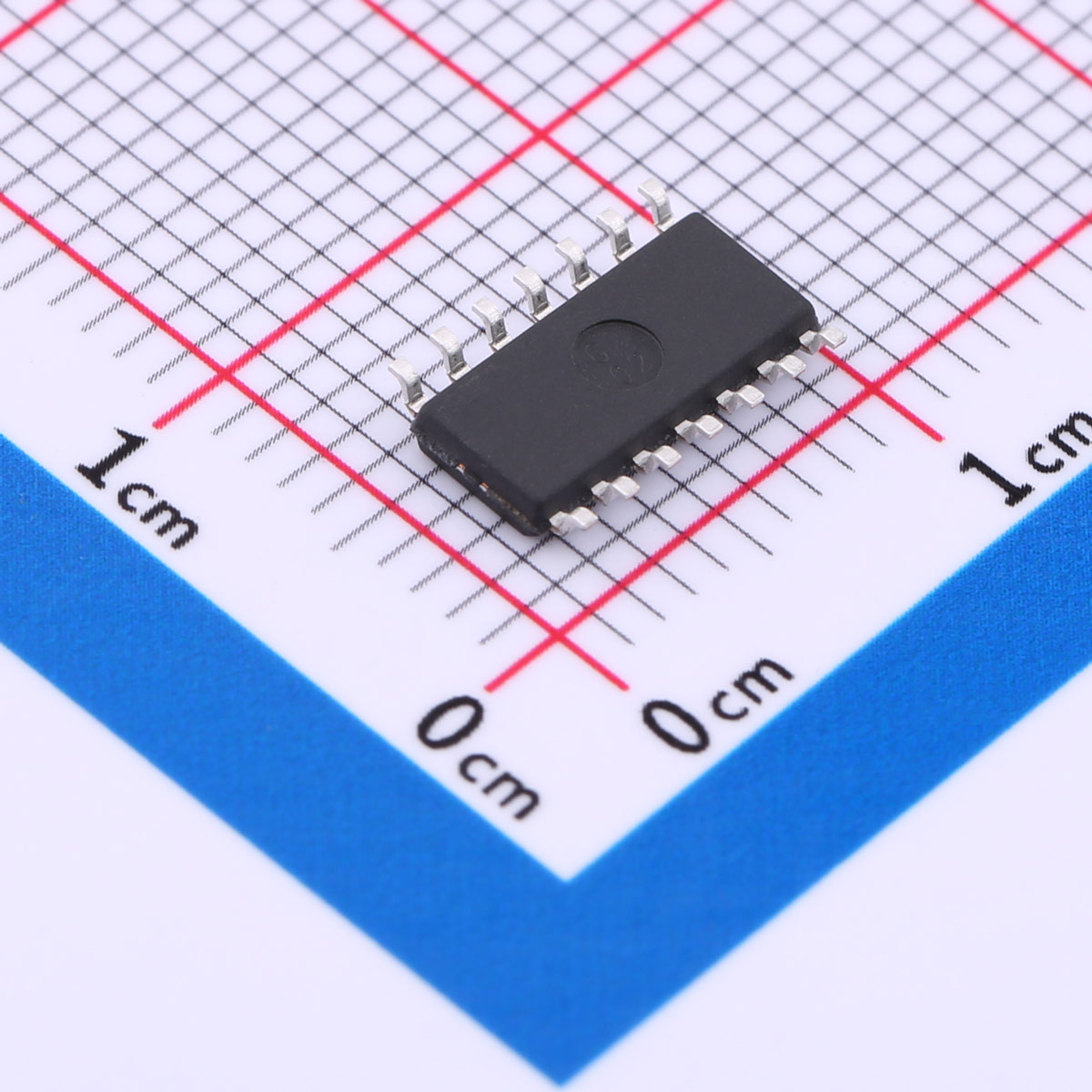

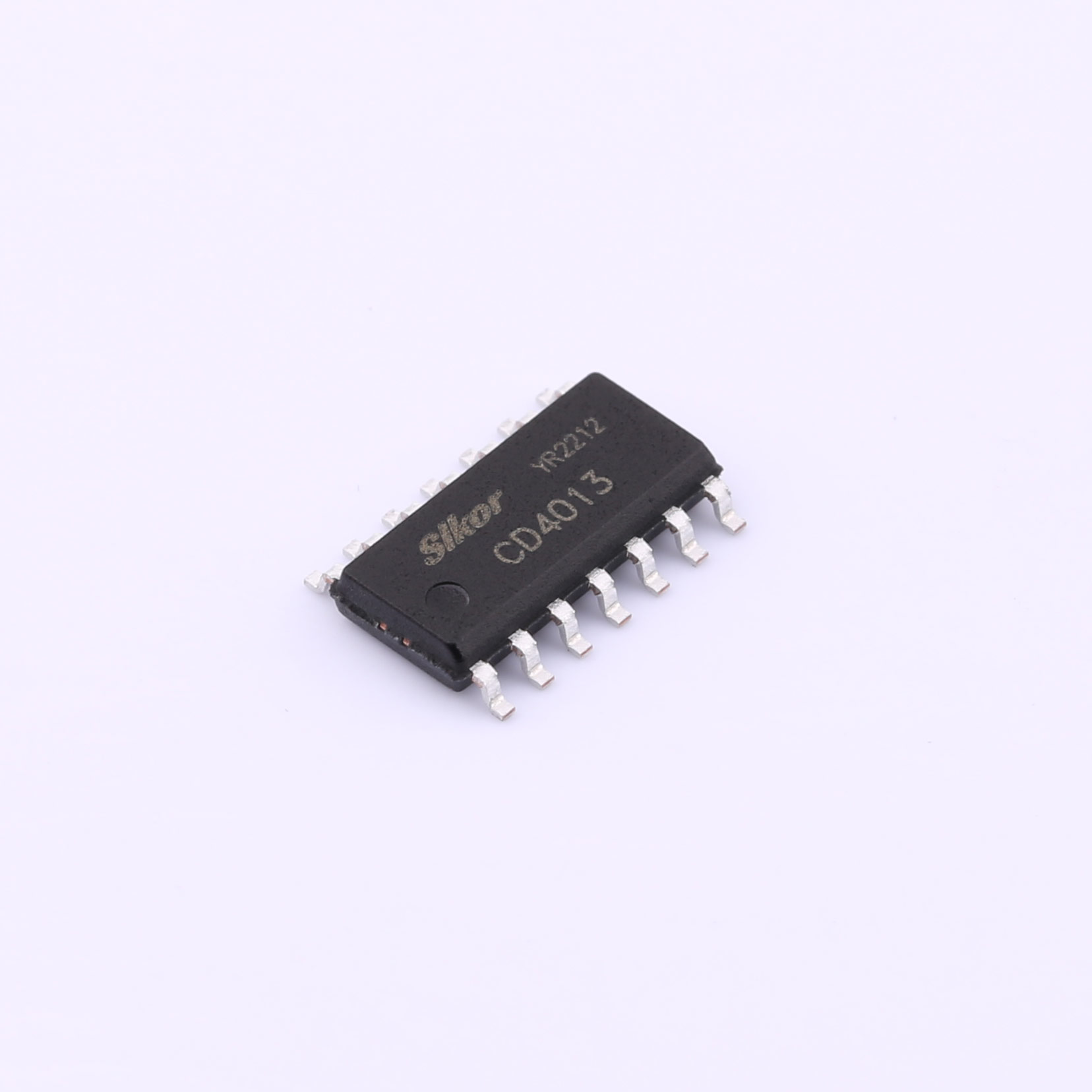

CD4013 Flip-Flop SOP-14
CD4013 is a dual D-type flip-flop, consisting of two identical, independent data-triggered flip-flops. Each flip-flop has independent data (D), set (SD), reset (CD), clock input (CP), and Q and Q' complementary outputs.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
CD4013 is a dual D-type flip-flop, consisting of two identical, independent data-triggered flip-flops. Each flip-flop has independent data (D), set (SD), reset (CD), clock input (CP), and Q and Q' complementary outputs.
This device can function as a shift register and, by connecting the Q output to the data input, can be used in counters and triggers. When triggered on the rising edge of the clock, the logic level applied to the D input is transferred to the Q output. Set and reset operations are asynchronous with respect to the clock and are activated by a high level on the set or reset line, respectively.
The recommended operating voltage (VDD) for CD4013 is between 3V and 15V. Input ports must be connected to VDD, VSS, or other input pins. Its main characteristics include:
● Wide clock rising and falling edges
● Fully static operation
● Operates under three reference voltages: 5v, 10v, and 15v
● Standard symmetric output characteristics
● Provides a wide temperature range: -40°c to +85°c
● Complies with jedec standard jesd13-b
● Applications include automation and industrial fields
● Ring counters
● Registers
● Fixed triggers
● Package type: Sop-14
Name
Title
Description

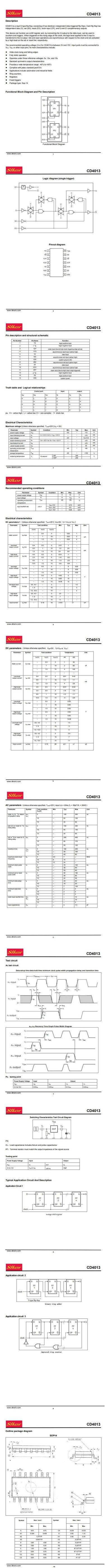

Datasheet
