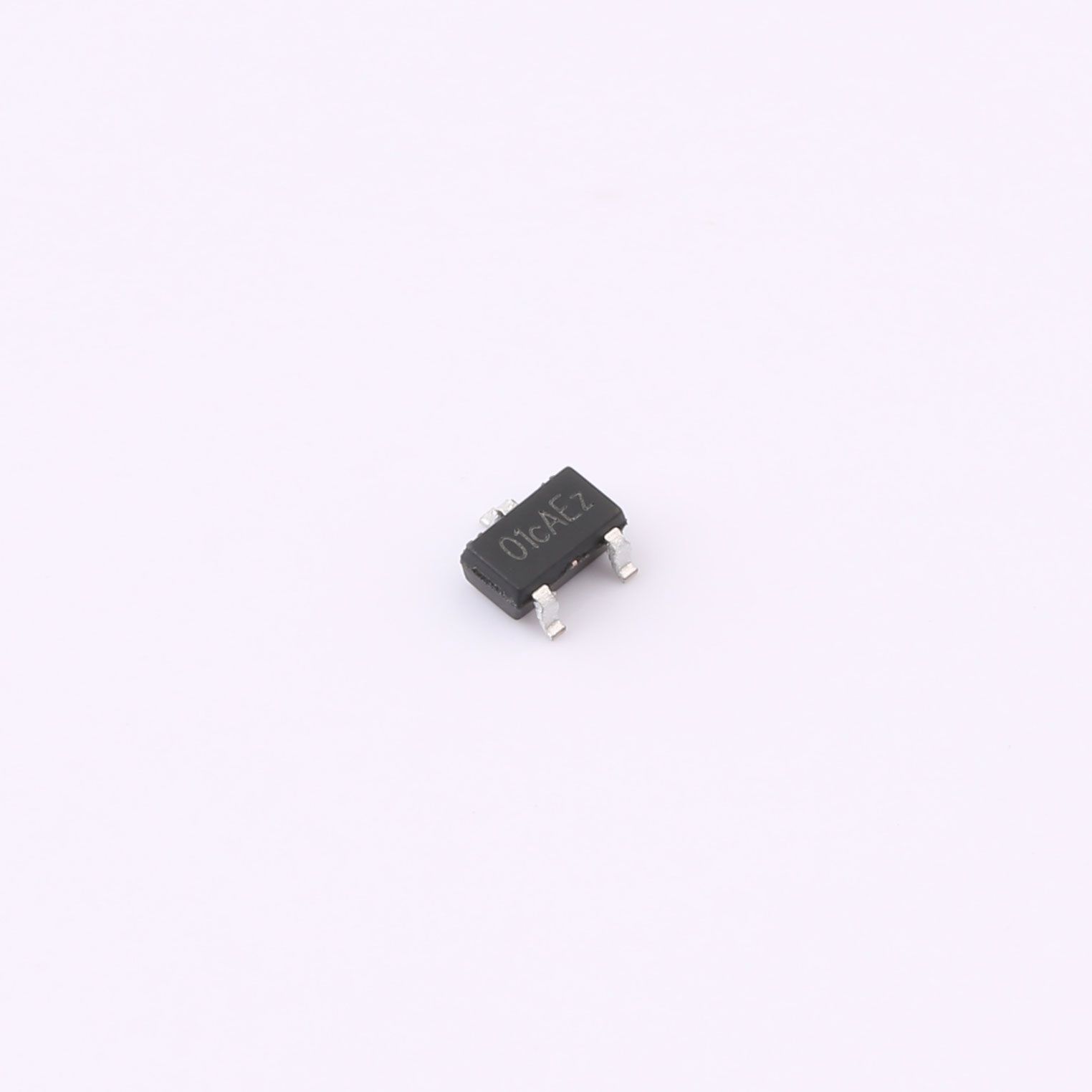

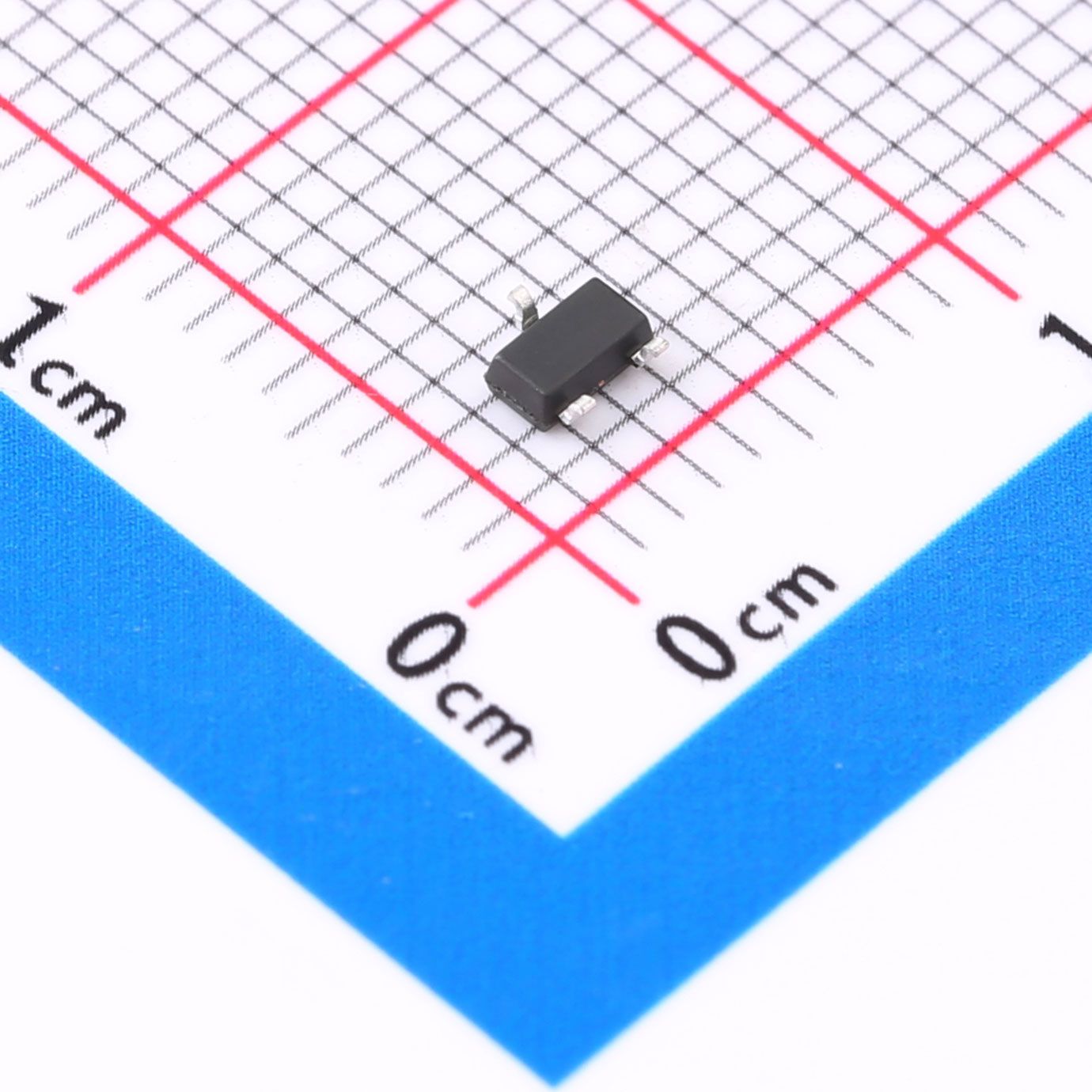

SL1303SC Hall Effect Sensor SOT-23-3L
SL1303SC is a high‑performance, ultra‑low‑power omnipolar TMR magnetic switch combining advanced TMR (Tunneling Magnetoresistance) and CMOS technology. It detects magnetic fields parallel to the package surface and responds to both N‑pole and S‑pole signals with high sensitivity and stability. Built‑in temperature compensation and clock control ensure reliable operation at minimal power consumption, ideal for battery‑powered and space‑constrained applications.
Description
SL1303SC is a high‑performance, ultra‑low‑power omnipolar TMR magnetic switch combining advanced TMR (Tunneling Magnetoresistance) and CMOS technology. It detects magnetic fields parallel to the package surface and responds to both N‑pole and S‑pole signals with high sensitivity and stability. Built‑in temperature compensation and clock control ensure reliable operation at minimal power consumption, ideal for battery‑powered and space‑constrained applications.
Our Advantages
- Industry‑leading ultra‑low power: 160nA @3.0V for extremely long battery life
- Advanced TMR technology for higher sensitivity and anti‑interference
- Omnipolar detection (N/S poles both trigger) for easy installation
- Ultra‑high sensitivity: 18Gs threshold detects weak magnetic fields
- Wide voltage range: 1.8V–5.5V supports low‑voltage systems
- High ESD: 8kV HBM for robust reliability
- Wide temperature: ‑40℃ to 125℃ for harsh environments
- Tiny SOT‑23‑3L package for compact designs
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Advanced TMR sensing element
- Ultra‑low average current: 160nA @3.0V (50Hz)
- Operating voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = ±18Gs
- Switching frequency: 50Hz
- CMOS push‑pull output
- Built‑in temperature compensation & clock control
- ESD HBM: 8kV
- Operating temperature: ‑40℃ ~ +125℃
- Package: SOT‑23‑3L
- RoHS compliant
Applications
- Water meters, gas meters, flow meters
- Non‑contact position & proximity detection
- Electronic locks & valve position sensing
- Laptop & tablet lid/flip detection
- TWS earbuds, mobile phones, smart wearables
- Low‑power industrial sensors
- Portable & battery‑powered consumer electronics
