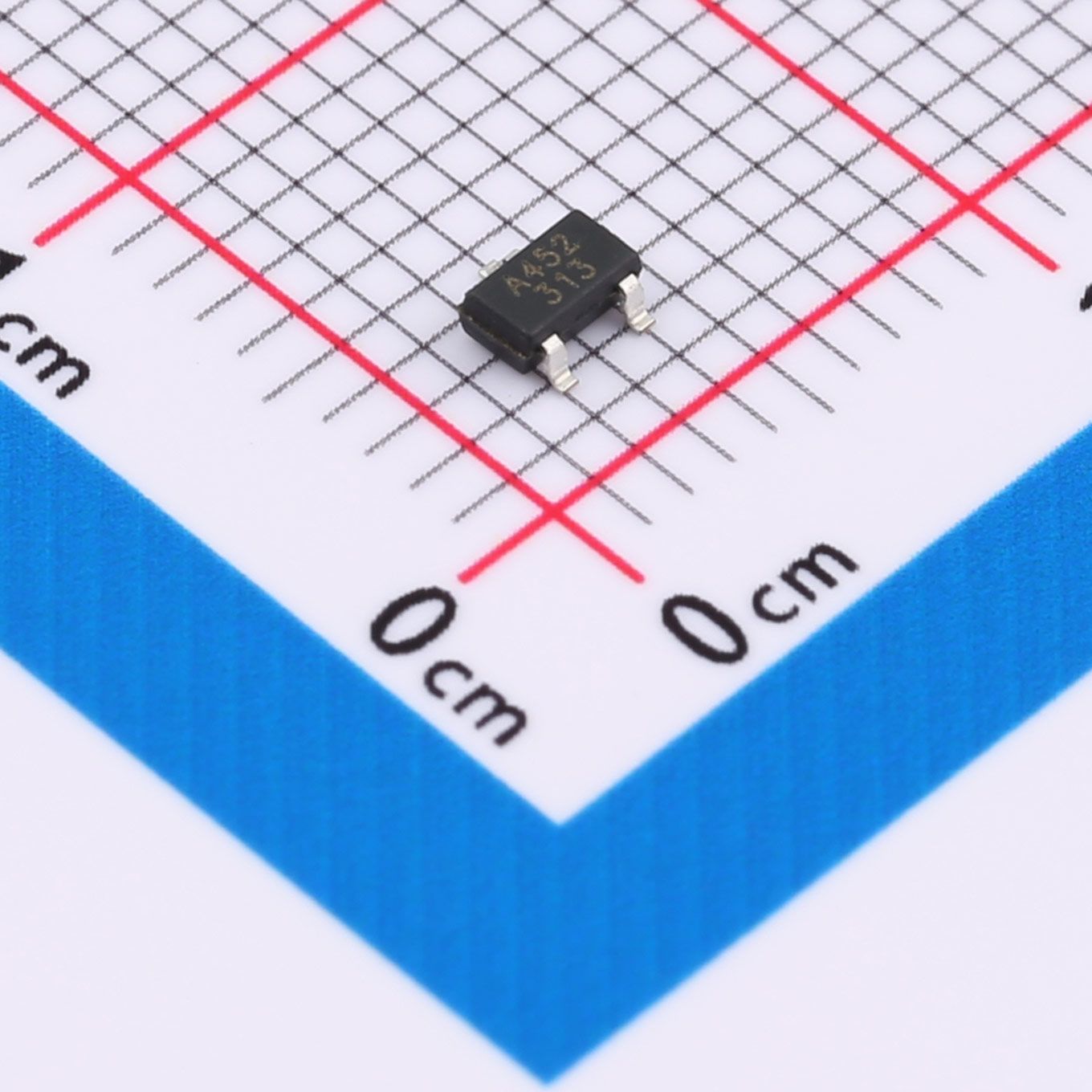

SL1303SE Hall Effect Sensor SOT-23-3L
SL1303SE is a high-sensitivity, ultra-low-power TMR (Tunneling Magnetoresistance) omnipolar magnetic switch. It integrates advanced TMR and CMOS technology to detect magnetic fields parallel to the package surface with omnipolar (N/S pole) response. Built-in temperature compensation and sleep-wake logic ensure stable, accurate detection at extremely low power, making it ideal for battery-powered and compact devices.
Description
SL1303SE is a high-sensitivity, ultra-low-power TMR (Tunneling Magnetoresistance) omnipolar magnetic switch. It integrates advanced TMR and CMOS technology to detect magnetic fields parallel to the package surface with omnipolar (N/S pole) response. Built-in temperature compensation and sleep-wake logic ensure stable, accurate detection at extremely low power, making it ideal for battery-powered and compact devices.
Our Advantages
- Ultra-low power: only 160nA @3.0V for maximum battery life
- Advanced TMR technology for superior sensitivity and stability
- Omnipolar detection (N/S poles both trigger) for easy installation
- Ultra-high sensitivity: ±7Gs threshold detects very weak magnetic fields
- Wide voltage range: 1.8V–5.5V for flexible system design
- High ESD: 8kV HBM for robust reliability
- Wide temperature: -40℃~125℃ for harsh environments
- Tiny SOT-23-3L package for space-constrained designs
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Advanced TMR sensing element
- Ultra-low average current: 160nA @3.0V (50Hz)
- Operating voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = ±7Gs
- Switching frequency: 50Hz
- CMOS push-pull output
- Built-in temperature compensation & clock control
- ESD HBM: 8kV
- Operating temperature: -40℃ ~ +125℃
- Package: SOT-23-3L
- RoHS compliant
Applications
- Water, gas, and heat meters
- Non-contact position & proximity detection
- Electronic locks and valve position sensing
- Laptop & tablet lid/flip detection
- TWS earbuds, mobile phones, smart wearables
- Low-power industrial sensors
- Portable and battery-powered consumer electronics
Name
Title
Description
Datasheet
Support
SL1633FU Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL2464-3 Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL1703SL Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL1703SU Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL1703TL Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL1703TU Hall Effect Sensor SOT-23-3L
Brand: slkor，
SL1703FH Hall Effect Sensor SOT-23-3L
Brand: slkor，

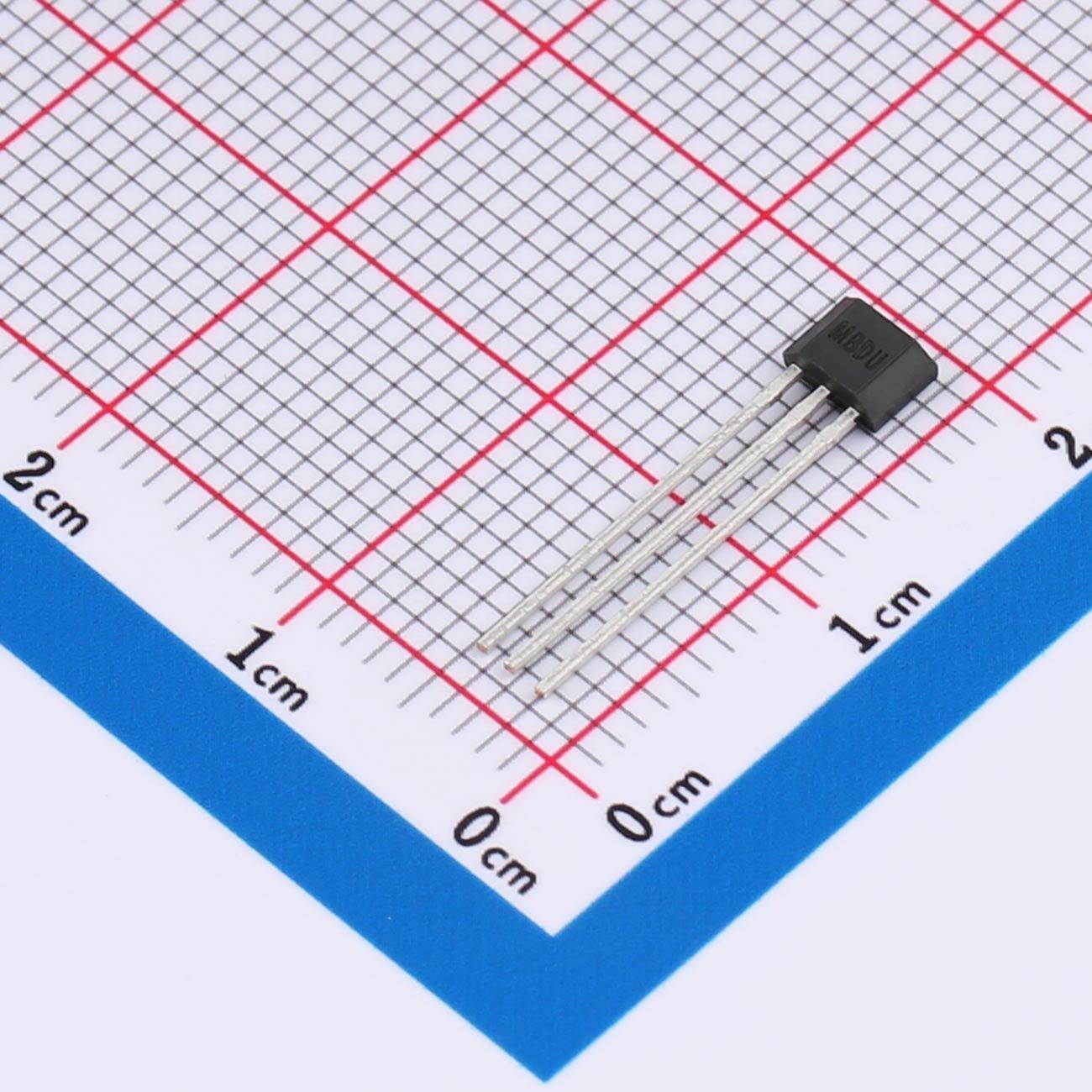

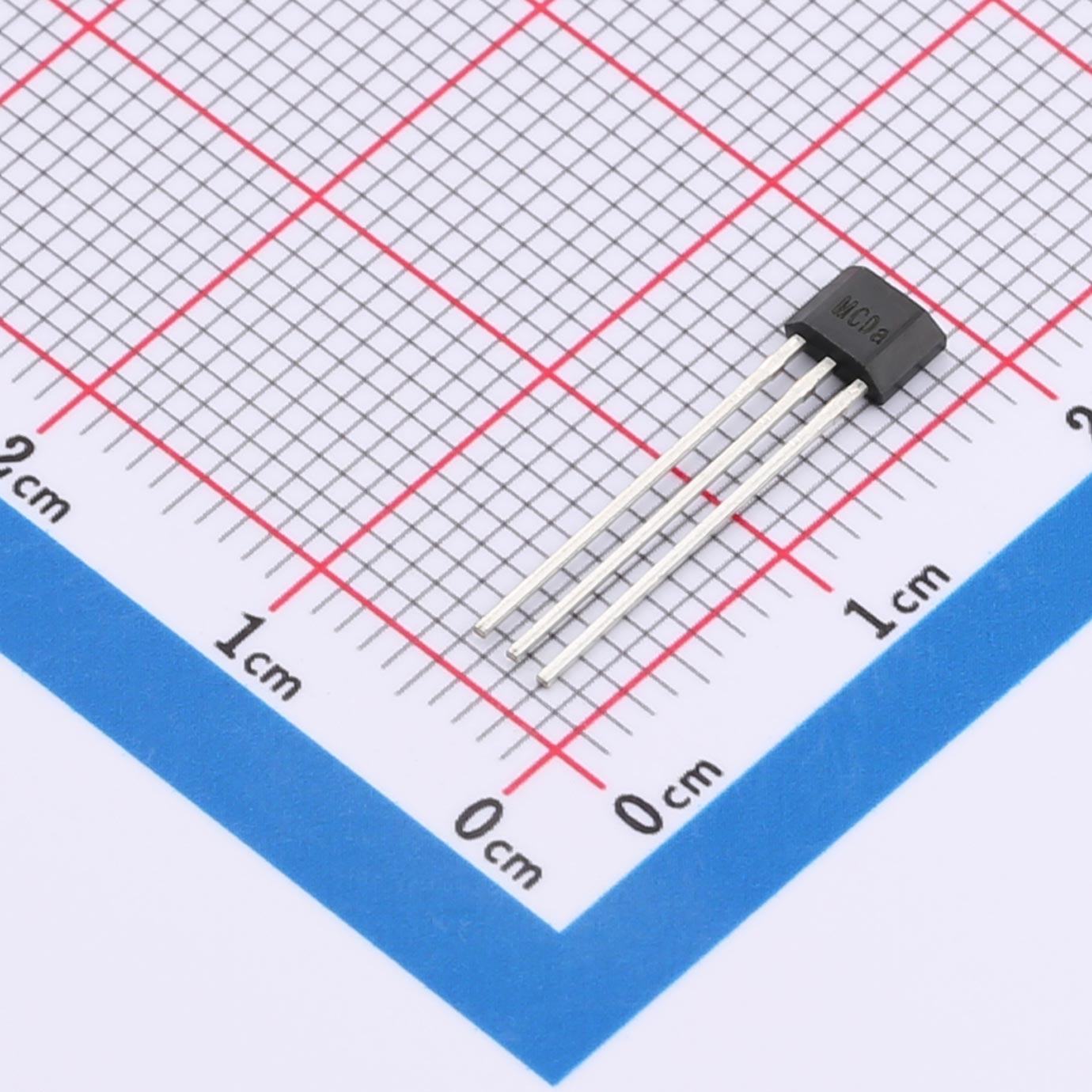

SL1709FH Hall Effect Sensor TO-92S
Brand: slkor，

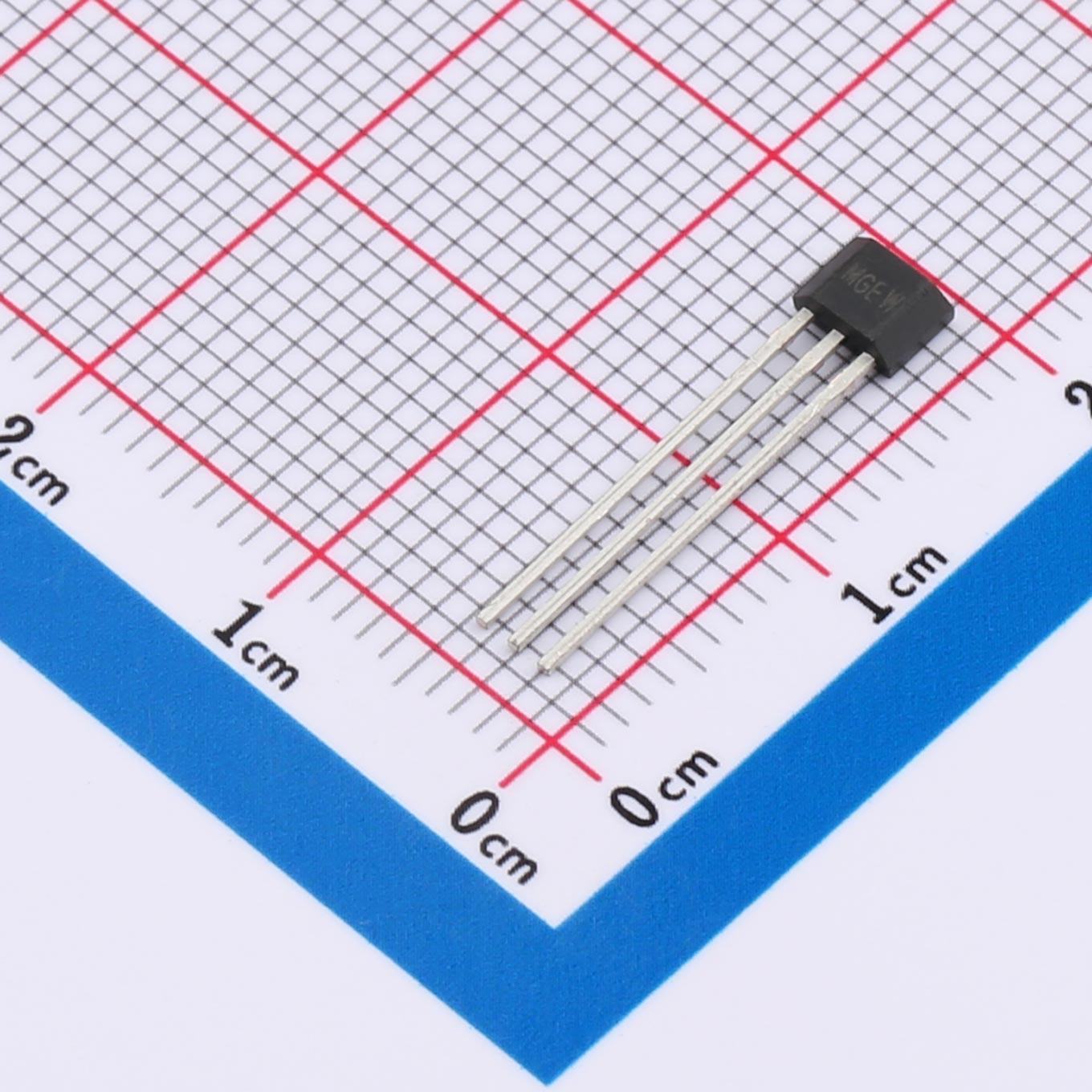

SL1709SL Hall Effect Sensor TO-92S
