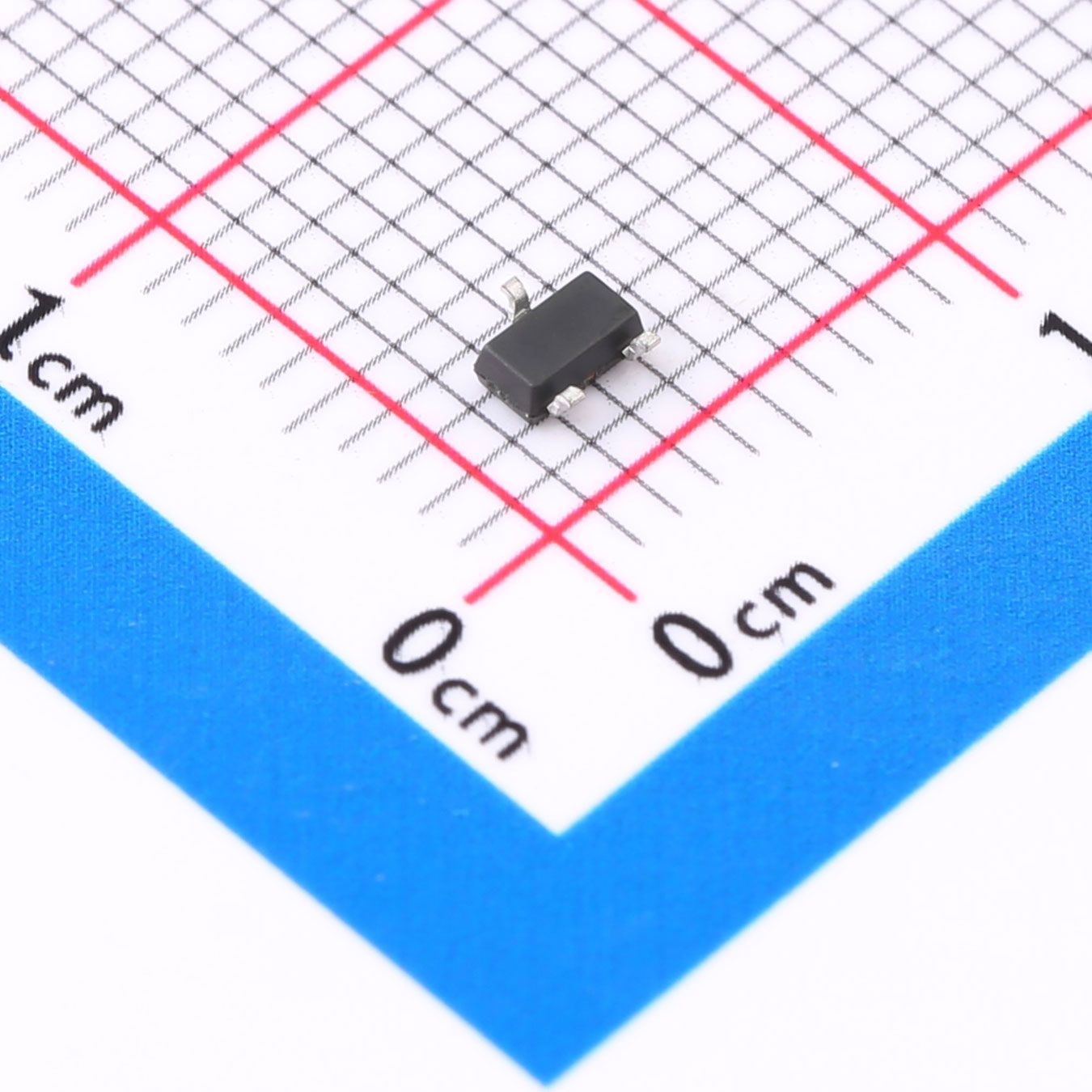

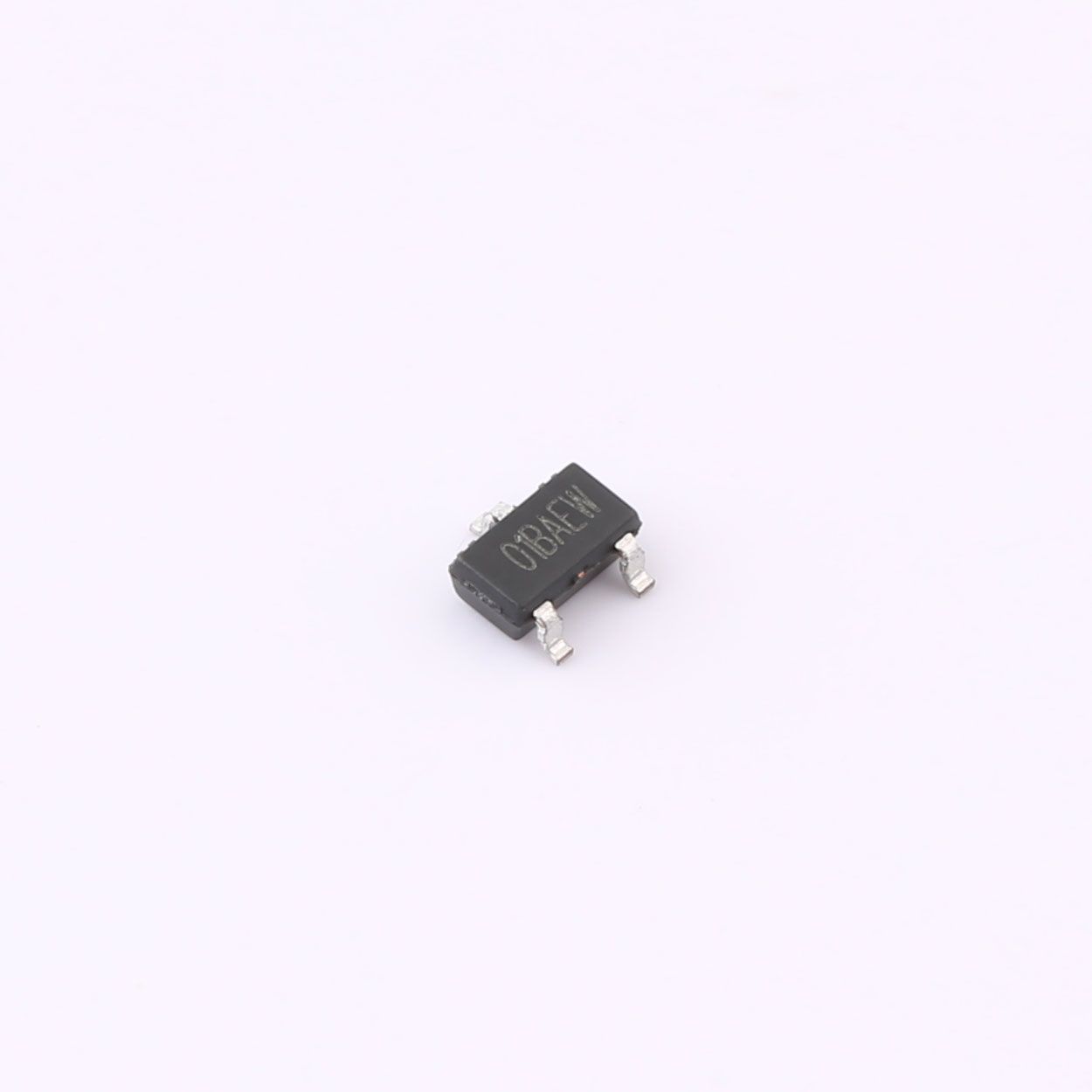

SL1303TB Hall Effect Sensor SOT-23-3L
SL1303TB is a high‑performance, continuous‑operating TMR (Tunneling Magnetoresistance) omnipolar magnetic switch. It integrates advanced TMR technology and CMOS circuitry to provide real‑time, stable magnetic detection for industrial and consumer electronics. It senses magnetic fields parallel to the package surface and responds to both N‑pole and S‑pole excitation, supporting uninterrupted operation while maintaining low power consumption.
Description
SL1303TB is a high‑performance, continuous‑operating TMR (Tunneling Magnetoresistance) omnipolar magnetic switch. It integrates advanced TMR technology and CMOS circuitry to provide real‑time, stable magnetic detection for industrial and consumer electronics. It senses magnetic fields parallel to the package surface and responds to both N‑pole and S‑pole excitation, supporting uninterrupted operation while maintaining low power consumption.
Our Advantages
- Continuous full‑time operation for real‑time response
- Advanced TMR technology for high sensitivity and stability
- Omnipolar detection (N/S poles both trigger) for easy installation
- 30Gs medium threshold for balanced sensitivity and anti‑interference
- Wide voltage range: 1.8V–5.5V for flexible system design
- Low continuous current: 1.9μA @3.0V
- High ESD protection: 8kV HBM for high reliability
- Wide temperature range: ‑40℃ to 125℃ for harsh environments
- Tiny SOT‑23‑3L package for space‑constrained designs
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Continuous operating mode
- Advanced TMR sensing element
- Supply current: 1.9μA @3.0V (continuous)
- Operating voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = ±30Gs
- Switching frequency: Continuous / 5kHz
- CMOS push‑pull output
- Built‑in temperature compensation
- ESD HBM: 8kV
- Operating temperature: ‑40℃ ~ +125℃
- Package: SOT‑23‑3L
- RoHS compliant
Applications
- Water meters, gas meters, and flow meters
- Non‑contact position & proximity detection
- Industrial counting and flow sensing
- Electronic locks and valve position detection
- Laptop & tablet lid/flip detection
- TWS earbuds, mobile phones, smart wearables
- Portable and battery‑powered consumer electronics
