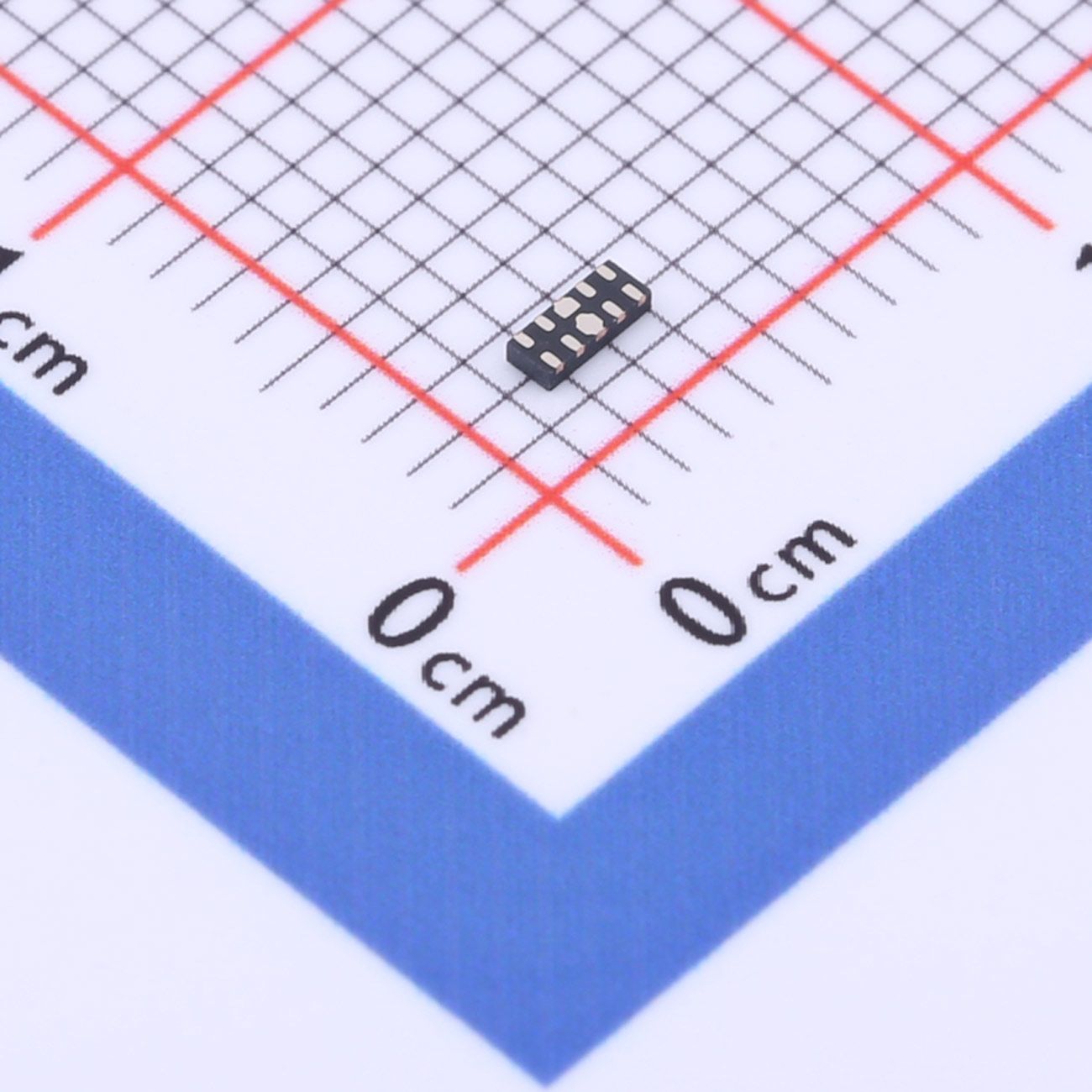

RCLAMP0524P Hall Effect Sensor DFN2510-10L
RCLAMP0524P is a 4-channel ultra-low capacitance ESD protection diode, specially designed for high-speed serial interface circuits that are sensitive to signal integrity. The device features ultra-low junction capacitance to minimize signal distortion for high-speed data transmission. It provides robust ESD surge protection complying with IEC 61000-4-2 standard. This chip adopts DFN2510 compact package form to save PCB layout space. When transient electrostatic surge occurs on I/O lines, the internal diode array will rapidly clamp excessive transient voltage to a safe level to shield backend circuits from damage. The component supports ±15 kV contact discharge and ±20 kV air-gap ESD protection. It is well-suited for USB, HDMI, DisplayPort, DVI, eSATA and other high-speed serial interface scenarios.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Overview
RCLAMP0524P is a 4-channel ultra-low capacitance ESD protection diode, specially designed for high-speed serial interface circuits that are sensitive to signal integrity. The device features ultra-low junction capacitance to minimize signal distortion for high-speed data transmission. It provides robust ESD surge protection complying with IEC 61000-4-2 standard. This chip adopts DFN2510 compact package form to save PCB layout space. When transient electrostatic surge occurs on I/O lines, the internal diode array will rapidly clamp excessive transient voltage to a safe level to shield backend circuits from damage. The component supports ±15 kV contact discharge and ±20 kV air-gap ESD protection. It is well-suited for USB, HDMI, DisplayPort, DVI, eSATA and other high-speed serial interface scenarios.
Product features
●Ultra-low capacitance -Typical I/O-to-GND capacitance: 0.5pF @ 0V bias,1 MHz -Typical I/O-to-I/O capacitance: 0.3pF @ 0V bias,1 MHz
●Reverse working voltage (VRWM): 5V
●Breakdown voltage (VBR): 6V (Min.) at IR=1 mA
●High ESD protection capability per IEC 61000-4-2 -Contact discharge: ±15 kV -Air discharge: ±20 kV
●Rated peak pulse current IPP: 5A (8/20 µs pulse)
●Low reverse leakage current IR: Max.1 µA @ VRWM=5V
●Clamping voltage VC: 8.5V(Typ.)@1A 8/20µs pulse;12V(Typ.)@5A 8/20µs pulse
●Package: DFN2510 (2.50 × 1.00 × 0.50 mm)
●Ambient operating temperature range: -55℃ ~ +125℃
●Storage temperature range: -55℃ ~ 150℃
Typical applications
●USB 2.0, USB 3.0 interfaces
●HDMI 1.3 /1.4, Display Port 1.3
●Unified Display Interface (UDI)
●Digital Visual Interface (DVI)
●eSATA port
●Various high-speed serial interfaces
Name
Title
Description
Datasheet
Support
SL-106C Hall Effect Sensor SSOT-4
Brand: slkor， Polarity： Omnipolar VDD(V)： 8V IDD(A)： 5mA Package： SSOT-4
SL-302B Hall Effect Sensor SSIP-4
Brand: slkor， Polarity： N Pole VDD(V)： 5V IDD(A)： 5mA Package： SSIP-4
SL-322B Hall Effect Sensor SSIP-4
Brand: slkor， Polarity： Omnipolar VDD(V)： 5V IDD(A)： 5mA Package： SSIP-4
SL1303SB Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 160nA Scanning frequency： -- Package： SOT-23-3L
SL1303SC Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 160nA Scanning frequency： 50Hz Package： SOT-23-3L
SL1303SD Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 160nA Scanning frequency： 50Hz Package： SOT-23-3L
SL1303SE Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 160nA Scanning frequency： 50Hz Package： SOT-23-3L
SL1303TA Hall Effect Sensor TO-92S
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 1.9uA Scanning frequency： 5KHz Package： TO-92S
SL1303TB Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 1.9uA Scanning frequency： 5KHz Package： SOT-23-3L
SL1303TC Hall Effect Sensor SOT-23-3L
Brand: slkor， Polarity： Omnipolar VDD(V)： 5.5V IDD(A)： 1.9uA Scanning frequency： 5KHz Package： SOT-23-3L
ShenzhenSLKORMicroSemiconCo., Ltd.
SLKOR's product lines include discrete devices, etc., diodes, transistors, power devices; and integrated circuit chips, etc., linear regulators, DC/ DC chips, interface chips, Hall sensors, ADCs, and BMS... We have years of accumulated technology on dedicated semiconductor.
