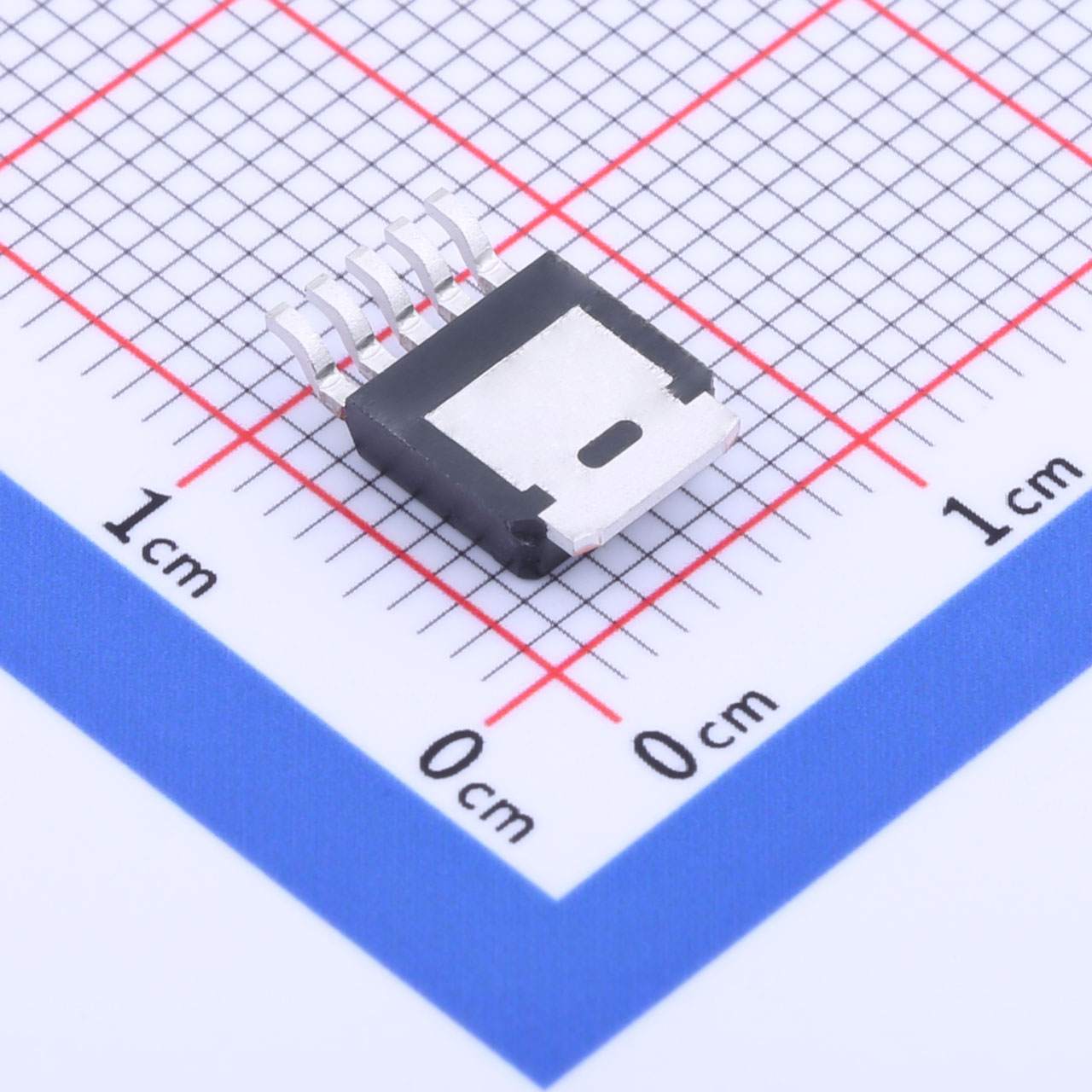

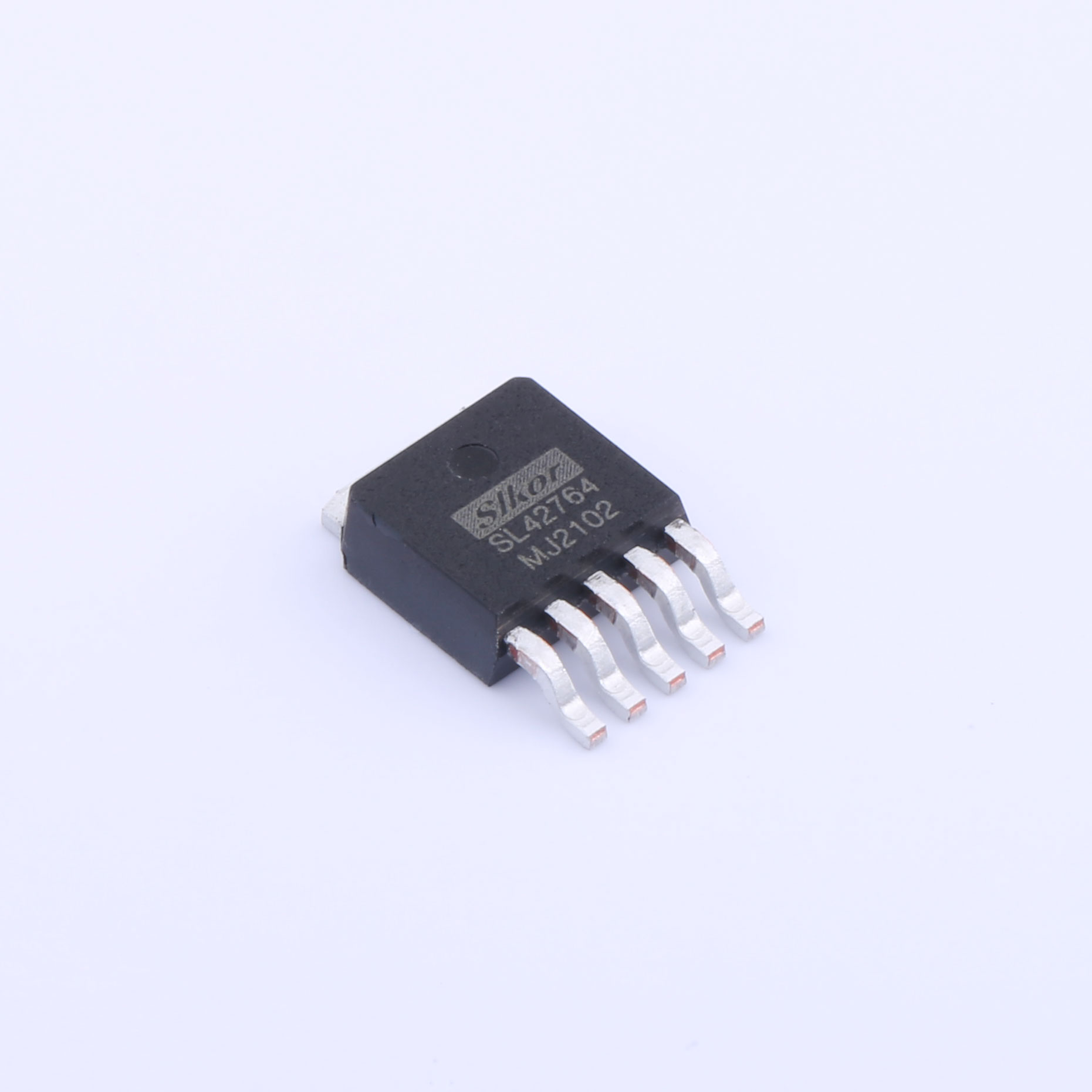

SL42764 Linear Voltage Regulators TO-252-5
SL42764 is a monolithic integrated low dropout voltage regulator, with load current as high as 400mA. With the ranges for input voltage of 5V-42V, it can provide output voltage with accuracy ranges of ±2%. The device is designed for application schemes for automobiles in severe environments. It is equipped with the overload, short circuit protection and overheating protection functions. SL42764 is also applicable to all the other application schemes in need of a stable voltage during 2.5V to 20V. With extremely low quiescent current, SL42764 is specially designed for applications in VBAT for a long term. In addition, when the cut-off of the device enables the input pin, the cut-off current is smaller than 10μA.
Description
SL42764 is a monolithic integrated low dropout voltage regulator, with load current as
high as 400mA. With the ranges for input voltage of 5V-42V, it can provide output voltage
with accuracy ranges of ±2%. The device is designed for application schemes for automobiles
in severe environments. It is equipped with the overload, short circuit protection and overheating protection functions.
SL42764 is also applicable to all the other application schemes in need of a stable voltage
during 2.5V to 20V.
With extremely low quiescent current, SL42764 is specially designed for applications
in VBAT for a long term. In addition, when the cut-off of the device enables the input pin,
the cut-off current is smaller than 10μA.
Features
● Shutdown currents less than 10uA
● The output voltage is adjustable, with accuracy ranges of ±2%.
● The output current is as high as 400mA.
?Very broad input voltage ranges: 5~42V
● Very low dropout voltage
● Output current limiting
● Overheating cut-off protection
● Reverse polarity protection
● temperature ranges: -40℃-125℃
● ROHS
Applications
● Embedded Systems: Ideal for providing stable power to microcontrollers, sensors, and memory chips in embedded systems.● Industrial Automation: Suitable for powering control circuits, sensors, and actuators in industrial automation applications.
● Telecommunications: Ensures reliable voltage regulation for communication modules, routers, and networking equipment.
● Automotive Electronics: Used in automotive applications such as dashboard instruments, LED lighting systems, and onboard sensors.
● Consumer Electronics: Powers components in devices like set-top boxes, printers, and gaming consoles.
