Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

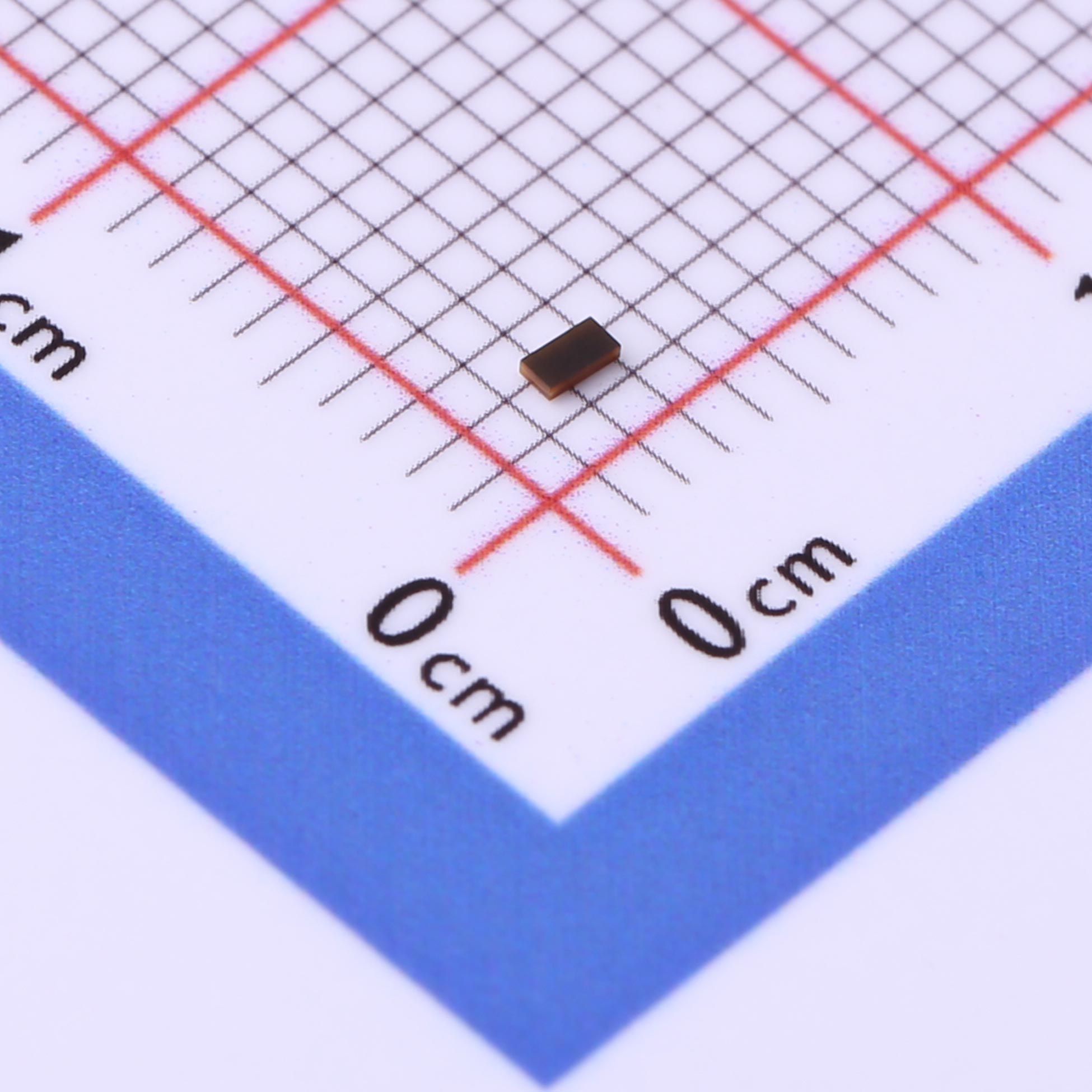

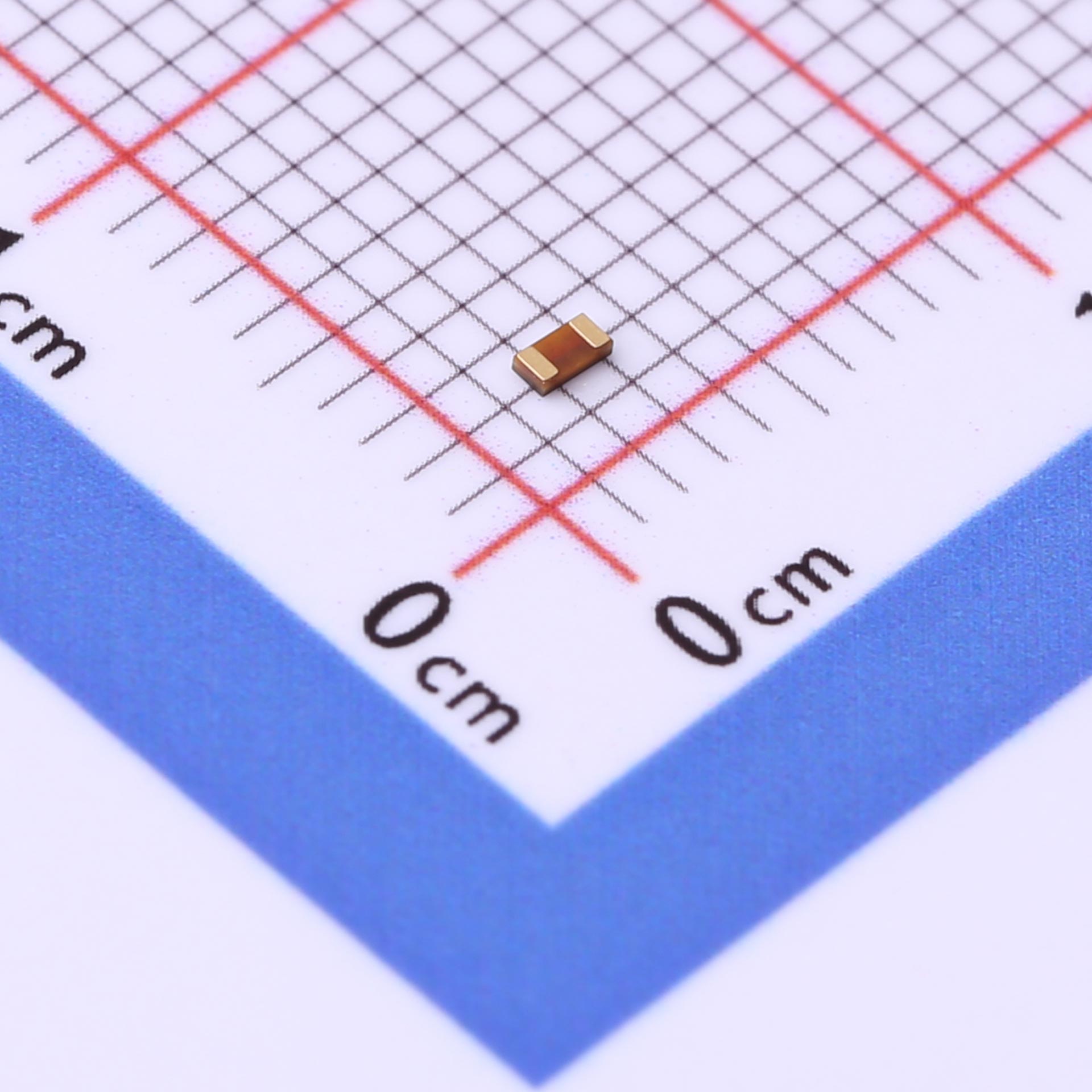

The SLPESD0603-07 is housed in a SATA package, offering excellent space efficiency and ease of integration into various electronic designs. It features an ultra-low reverse leakage current of 10nA, ensuring minimal power consumption during normal operation while providing robust protection during ESD events. With a clamping voltage of 40V, this diode effectively suppresses transient voltages, safeguarding sensitive components without compromising signal integrity. The ultra-low junction capacitance of 0.05pF minimizes signal distortion, making it suitable for high-speed data lines and RF applications.

Features
● Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).

● The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects.

● Only the on/off conditions need to be set for operation, making device design easy.

Applications

● Consumer Electronics: Protects USB ports, HDMI connectors, and audio/video interfaces in TVs, computers, and gaming consoles.

● Telecommunications: Guards Ethernet ports, RF antennas, and communication modules in routers, switches, and access points.

● Automotive Electronics: Ensures reliability in infotainment systems, CAN bus interfaces, and automotive sensors.

● Industrial Control: Safeguards PLCs, industrial sensors, and control systems from ESD damage.
