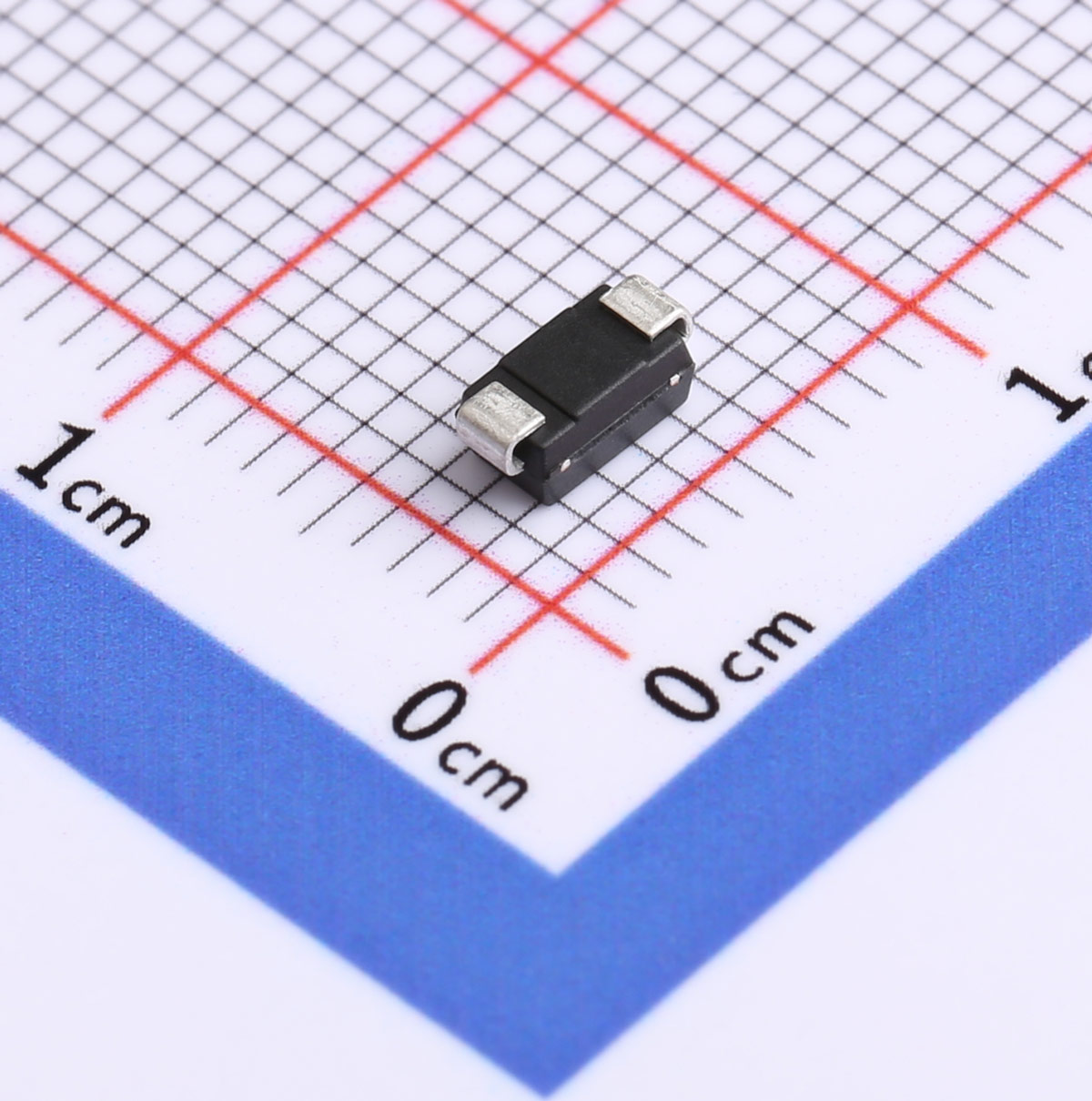

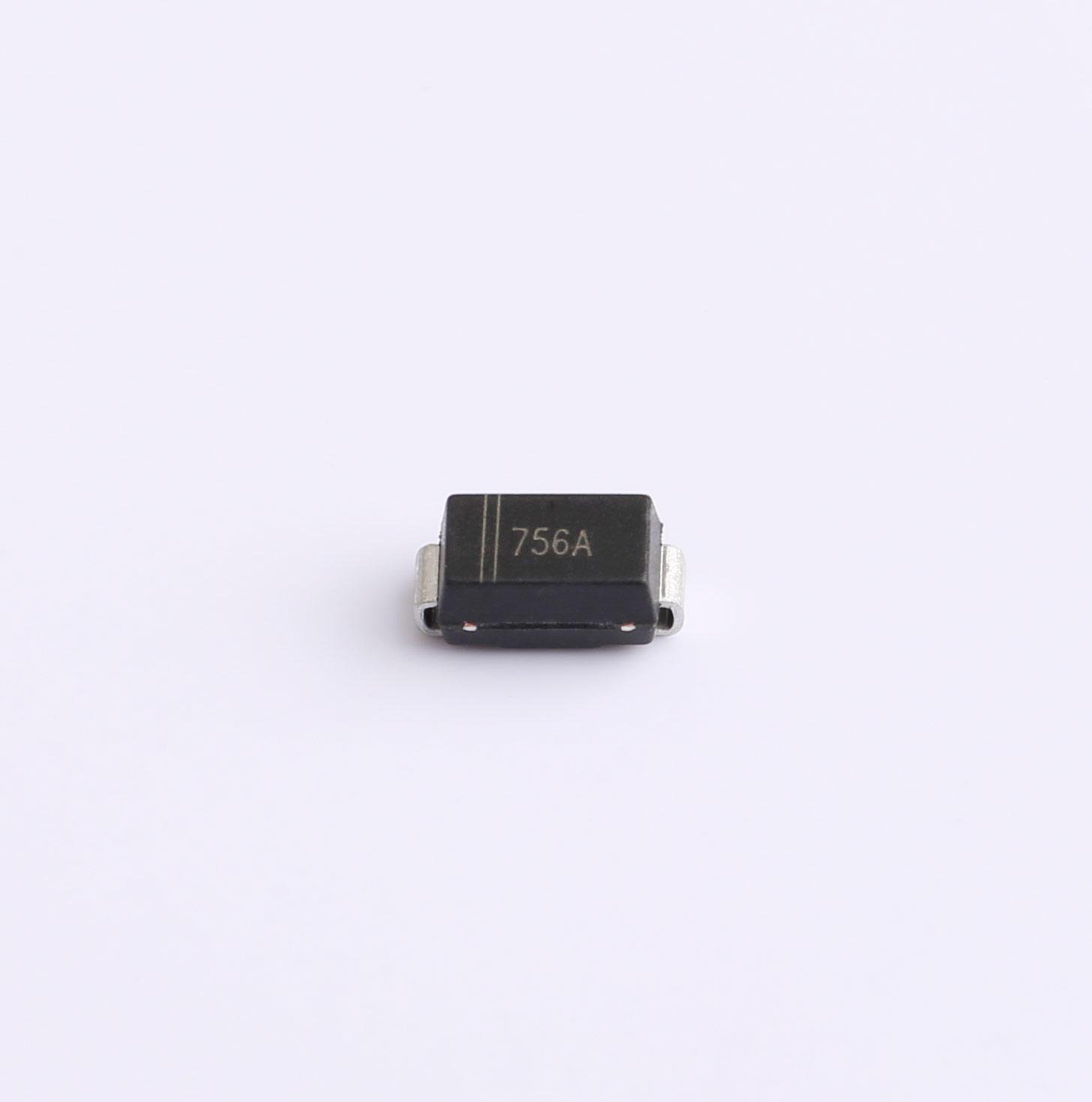

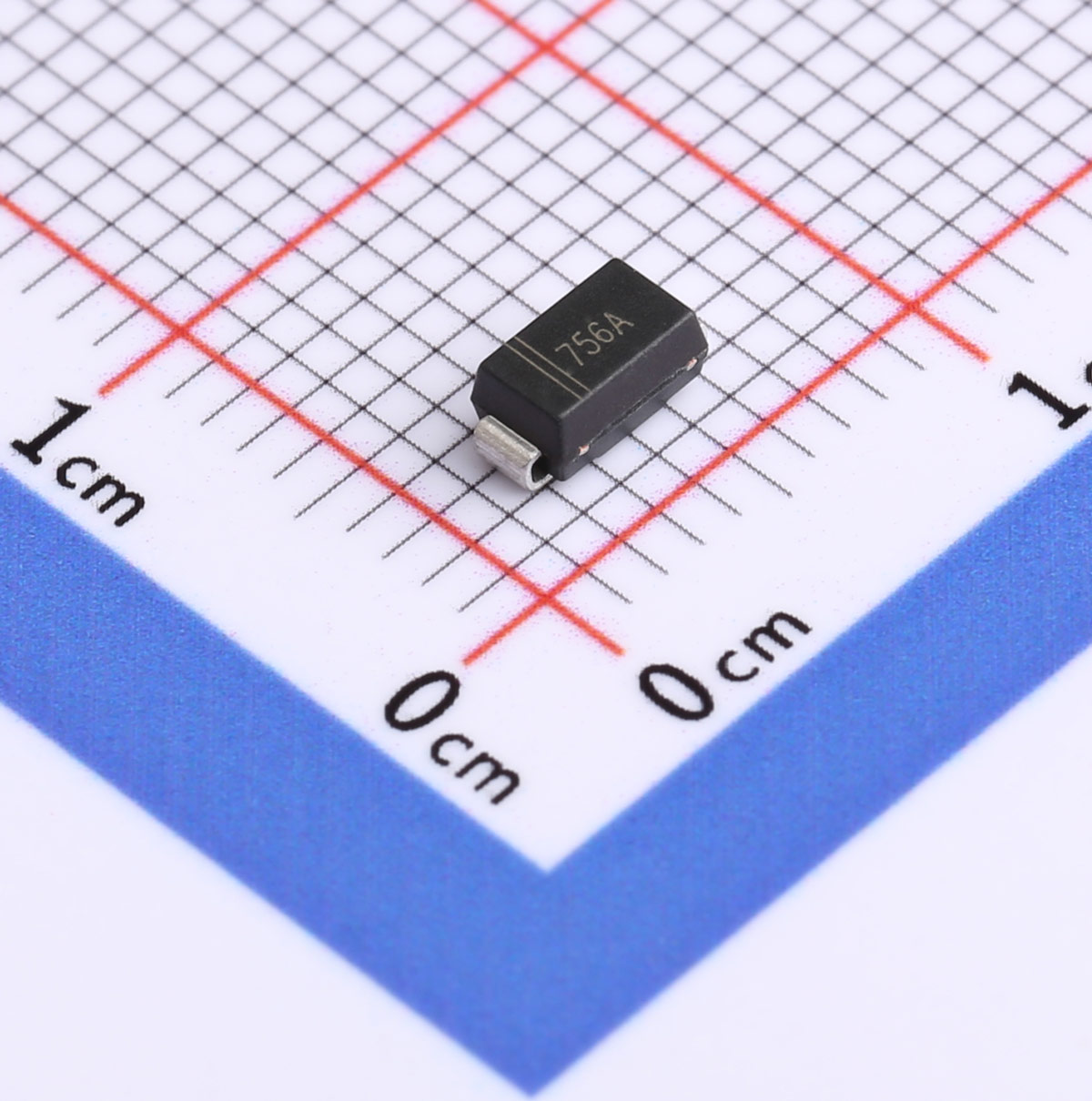

SMA Zener Diode 1SMA4756A

SMA Zener Diode 1SMA4756A

Product Overview

Slkor Zener Diode 1SMA4756A is an electronic component designed to deliver stable output voltage for a wide variety of electronic equipment requiring voltage stabilization. Featuring a nominal zener voltage of 47V, this component provides steady power supply and guarantees stable and reliable circuit operation.

Features and Functions

- Nominal zener voltage of 47V, ensuring stable output against input-voltage fluctuations. - Zener voltage ranges from 44.9V to 49.8V. Within this range, the zener diode maintains output-voltage stability and accommodates variations in input voltage. - Power rating: 1W, representing the maximum power that the diode can withstand. Exceeding this rating may cause device damage. - Reverse current (Ir): 1mA. Low reverse current reduces energy waste and device heat generation.

Applications

- Power supply voltage regulation: Zener diodes are commonly used in power circuits to stabilize output voltage, especially for low-power applications. - Electronic equipment protection: In certain circuits, zener diodes serve as over-voltage protection components to prevent excessive-voltage damage to other circuit parts. - Temperature compensation: Since the output voltage of zener diodes is strongly temperature-dependent, they can also be implemented in temperature-compensation circuits.

Product Advantages

- Stability: The zener diode maintains stable output voltage within a certain range even when input voltage fluctuates. - Cost-effectiveness: Compared with other voltage-regulating components, zener diodes generally feature lower cost and are suitable for cost-sensitive applications. - Compact form factor: Zener diodes come in small dimensions and fit circuit-board designs with miniaturization requirements.

Notes

- Maximum power rating: In circuit design, ensure the power dissipated by the zener diode does not exceed its rated value. Excess power may result in overheating or permanent device damage. - Thermal stability: The output voltage of a zener diode varies with temperature. Thermal performance of the regulator shall be taken into consideration for high-temperature operating environments. - Operating conditions: Operate the zener diode strictly within its specified operating limits and avoid exceeding absolute-maximum parameters.

About Slkor

Slkor is a manufacturer dedicated to supplying high-quality, high-performance semiconductor devices. Equipped with advanced technology and a rigorous quality-control system, the company delivers optimal solutions and technical support for customer designs.
