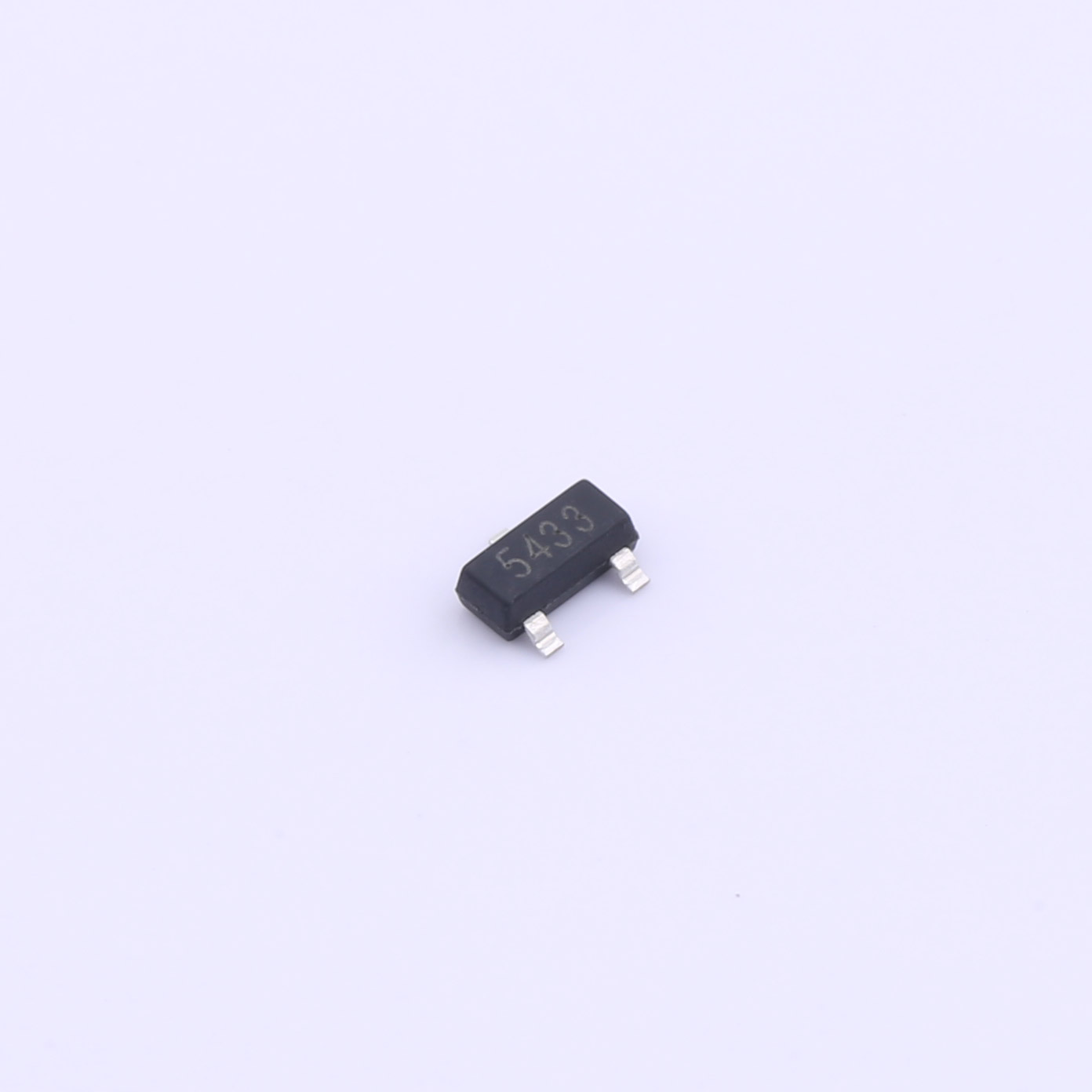

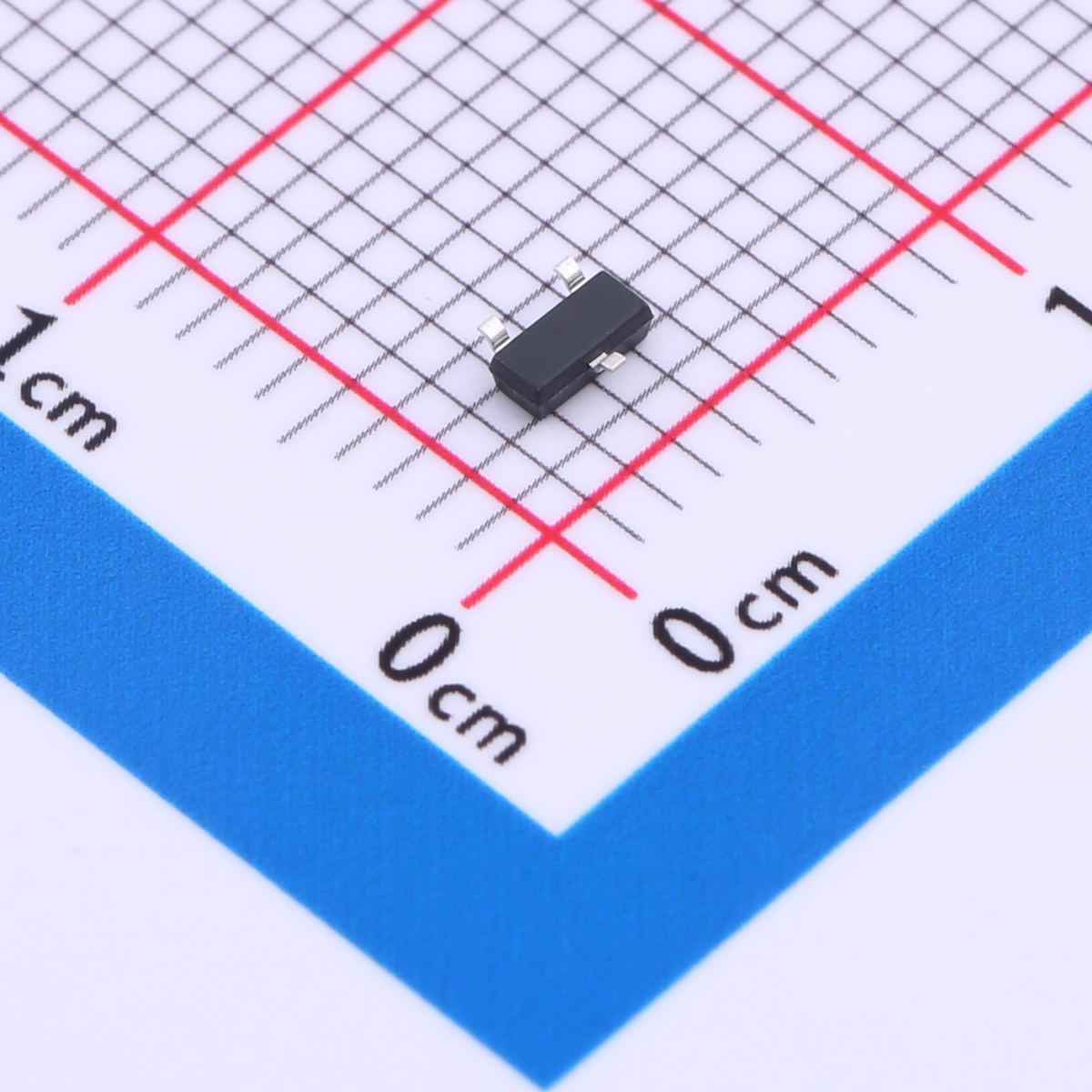

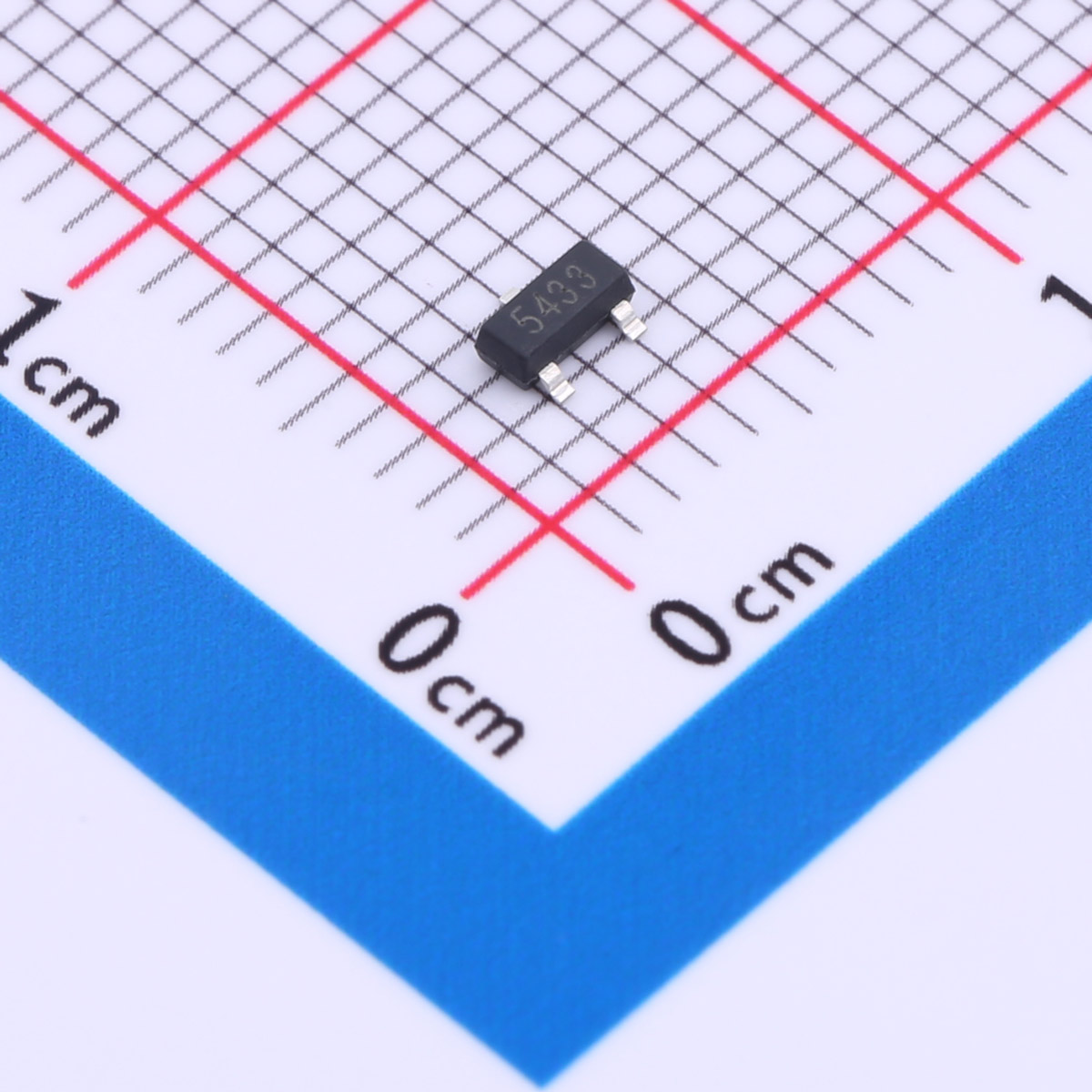

SL54M33SA Linear Voltage Regulators (LDO) SOT-23
The SL54 Series is a high input voltage,low quiescent current,low-dropout linear regulator able to provide 300mA load current.The LDO features very fast response against line voltage transient andload current transient,and ensures no overshoot voltage during theLDO start up and short circuit recovery.The device features integrated short-circuit and thermal shut down protection.
Description
lThe SL54 Series is a high input voltage,low quiescent current,low-dropout linear regulator able to provide 300mA load current.The LDO features very fast response against line voltage transient andload current transient,and ensures no overshoot voltage during theLDO start up and short circuit recovery.The device features integrated short-circuit and thermal shut down protection.
Features
lLow Quiescent Current:2.1uA
lHigh Input Voltage Rating:Up to 55V
lMaximum Output Current:350mA
lLow dropout:350mV @100mA
lHigh PSRR:85dB at 1KHz
lFixed Output Voltages:1.8V,2.8V,3V,3.3V,5V
lFast Transient Response
lCurrent Limiting Protection
lThermal Shutdown Protection
lAvailable Packages:SOT-23、SOT-23-3、SOT-89、SOT-23-5 and DFN1x1-4L Packages
Application
lBattery-Powered Equipment
lSmoke Detector and Sensor
lMicro Controller Applications
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
