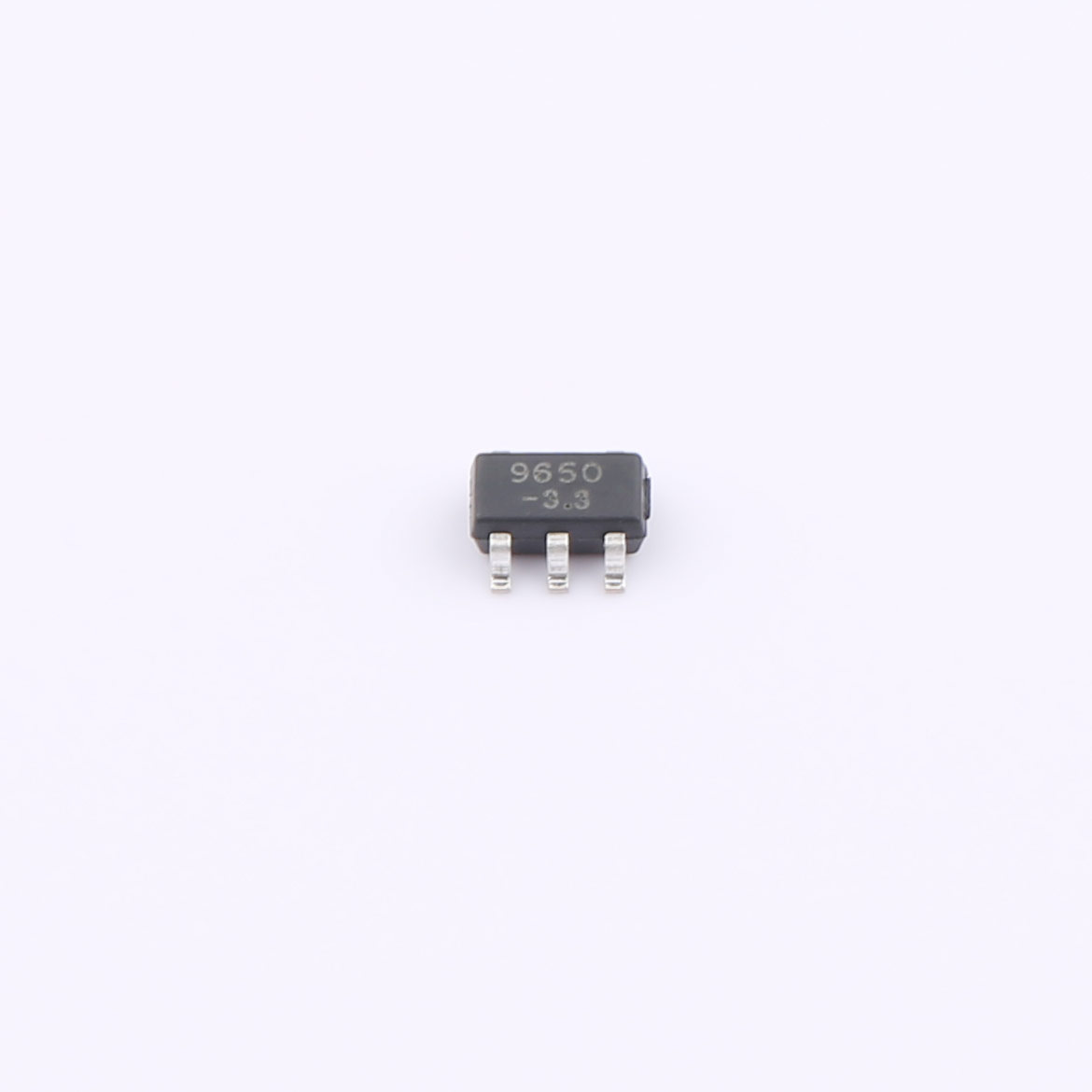

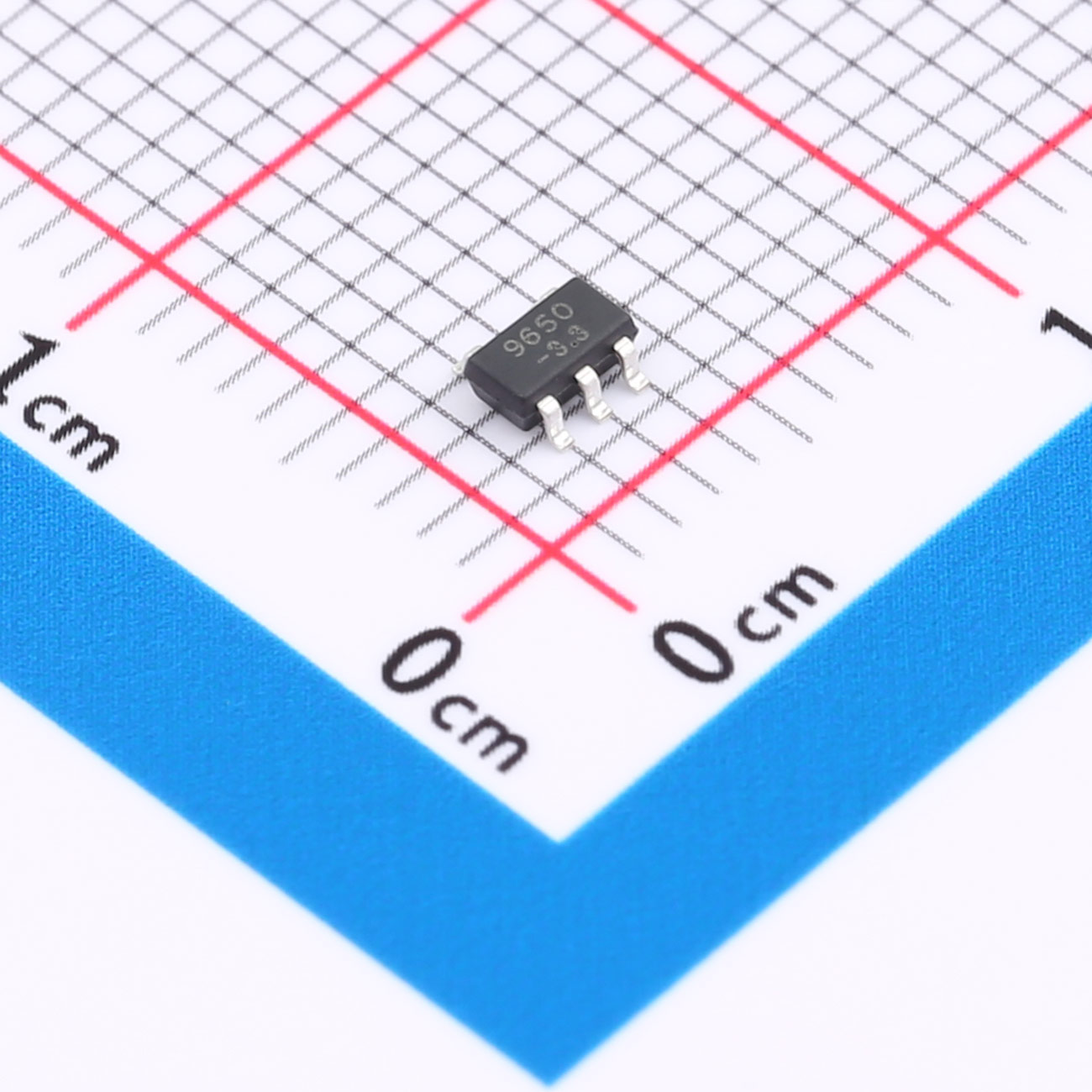

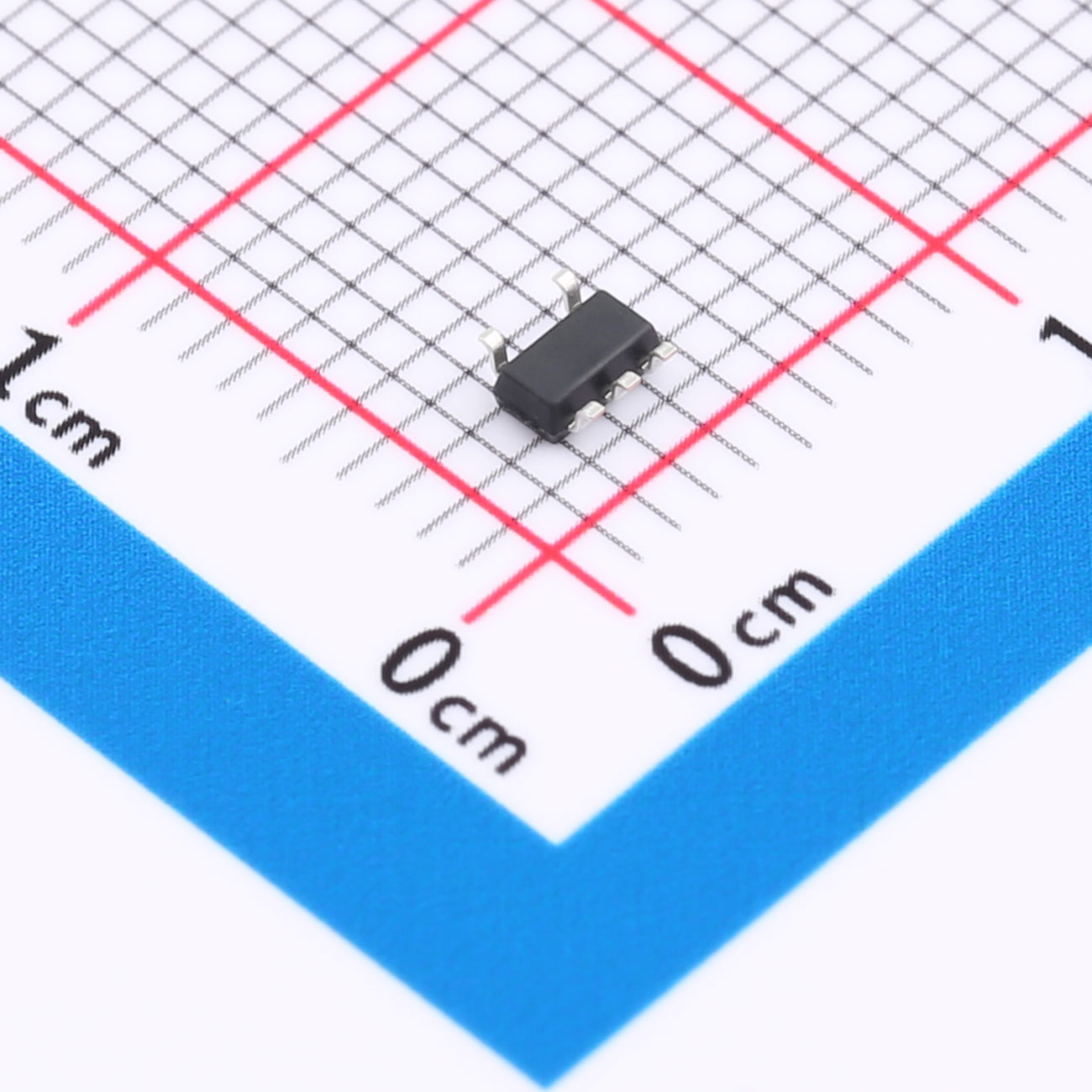

SL9650M33SE Low dropout Voltage Regulator (LDO) SOT-23-5
The SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications.SL9650 Series use advanced CMOS technology to achieve very low dropout voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current. Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1%(Adjustable Output).SL9650 Series provides full fault protection including current limit, short circuit protection and thermal shutdown protection.
Description
lThe SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications.SL9650 Series use advanced CMOS technology to achieve very low dropout voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current. Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1%(Adjustable Output).SL9650 Series provides full fault protection including current limit, short circuit protection and thermal shutdown protection.
Features
lFixed Output Voltages：
l0.7V,1.0V,1.2V,1.5V,1.8V,2.5V,2.8V,3.0V,3.3V,3.6V,Other output can be customized
lAdjustable Output from 0.6V to (VIN-Vdrop)
lMaximum Output Current:600mA
lInput Voltage Range:1.7V~7V
lLow Quiescent Current:50uA(Typ.)
lVery low dropout voltage：300mV@600mA(Vout=3.3V)
lHighly Accurate:±2%(Fixed Output) ±1%(Adjustable Output)
l0.02%/V Line Regulation
lAuto discharge function
l75dB PSRR @ 1KHz
l-40°C~125°C Wide Operating Temperature
l2000V HBM ESD
l150 °C Thermal Protection
Application
lBattery powered portable devices
lSmart phone, tablet
lHi resolution camera sensor power
lWireless modules
lRF,PLL,VCO clock power
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
