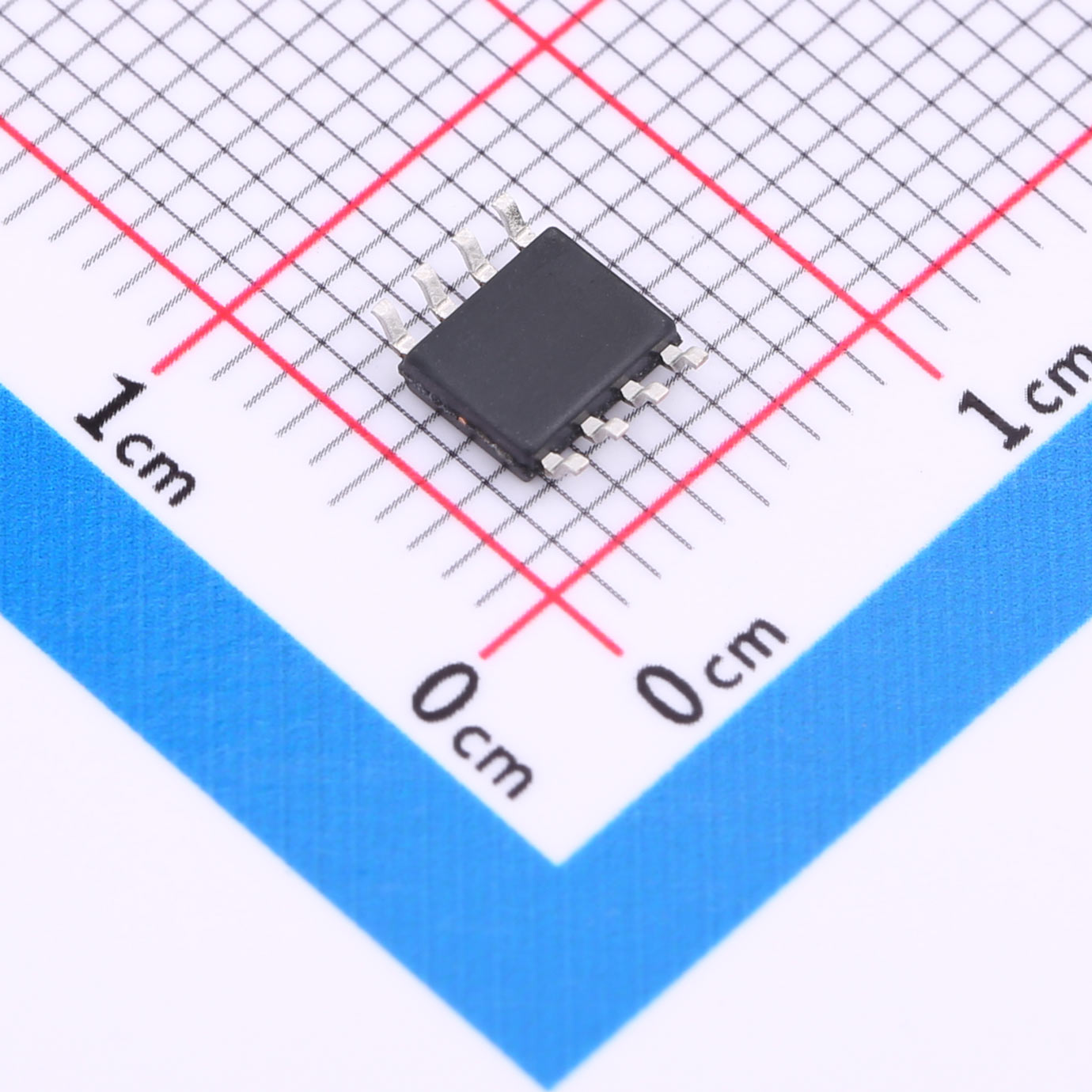

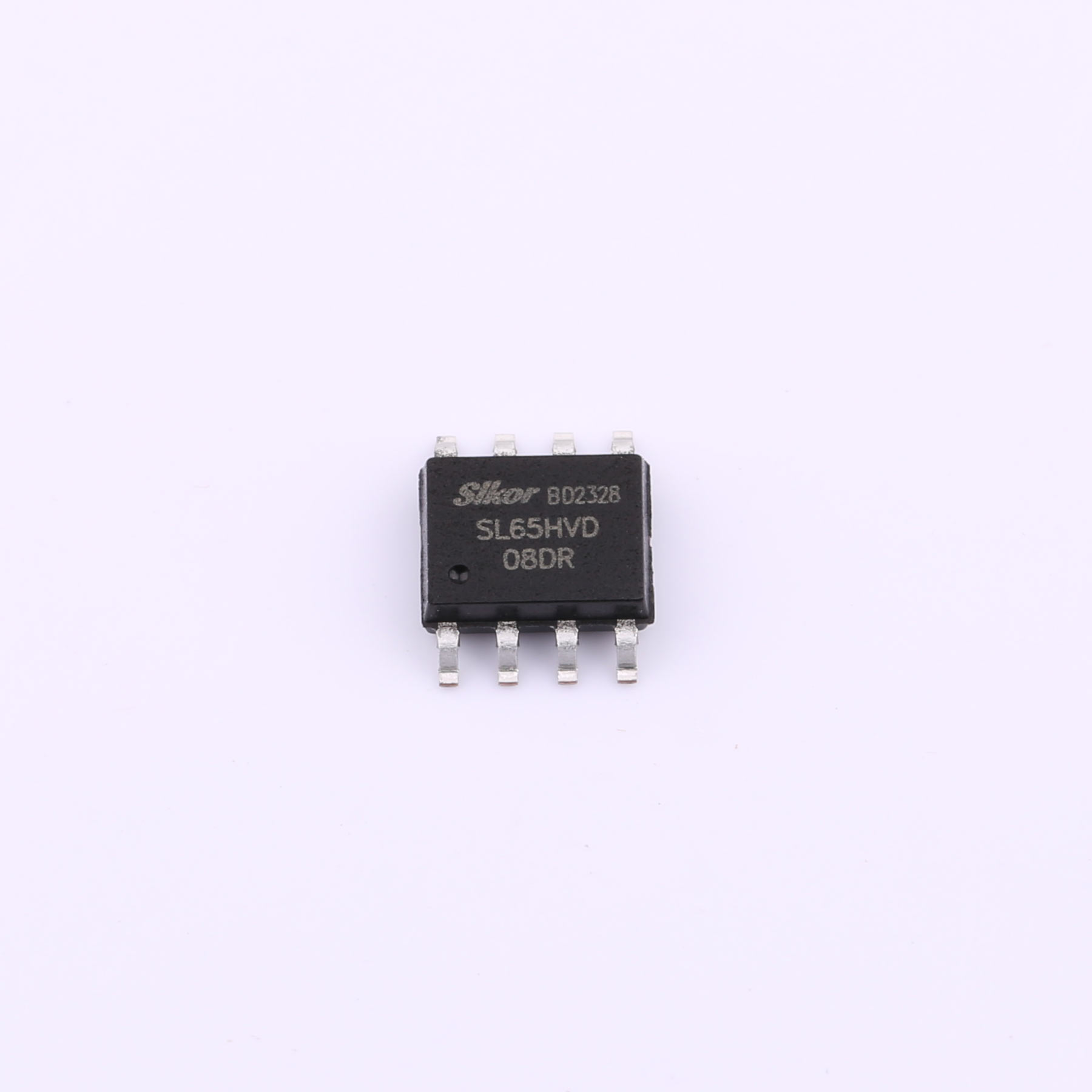

SL65HVD08DR RS485/RS422 Transceiver SOP-8
SL65HVD08 is a 3.0V~5.5V power supply, the contact discharge voltage of A/B is ±16kV, the fault protected voltage is ±15V, half-duplex, low power, RS485 Transceiver. SL65HVD08 fully meets the TIA/EIA-485 standard. SL65HVD08 includes a driver and a receiver, both of which can be enabled and disabled independently. When both are disabled, the driver and receiver outputs are high resistance state. SL65HVD08 has a 1/8-unit-load receiver input impedance, that allows up to 256 transceivers on the bus. The SL65HVD08 allowing error-free data transmission up to 10Mbps. SL65HVD08 has a working voltage range of 3.0V to 5.5V and has the functions of fail-safe, overtemperature protection, current-limiting protection and overvoltage protection.
3.3-5.5V Supply ±16kV ESd Protected 10Mbps, Half-duplex RS485/RS422 Transceiver
Description
l SL65HVD08 is a 3.0V~5.5V power supply, the contact discharge voltage of A/B is ±16kV, the fault protected voltage is ±15V, half-duplex, low power, RS485 Transceiver. SL65HVD08 fully meets the TIA/EIA-485 standard. SL65HVD08 includes a driver and a receiver, both of which can be enabled and disabled independently. When both are disabled, the driver and receiver outputs are high resistance state.
l SL65HVD08 has a 1/8-unit-load receiver input impedance, that allows up to 256 transceivers on the bus. The SL65HVD08 allowing error-free data transmission up to 10Mbps.
l SL65HVD08 has a working voltage range of 3.0V to 5.5V and has the functions of fail-safe, overtemperature protection, current-limiting protection and overvoltage protection.
Features
l 3V~5.5V power supply, half-duplex
l ESD protection for bus terminals: contact discharge ±16kV
l Bus fault tolerance and withstand voltage reach ±15V
l 1/8-unit-load, allows up to 256 transceivers on the bus
l Driver short-circuit out protection
l Overtemperature protection function
l Low power shutdown function
l Receiver open-circuit failure protection
l Strong anti-noise ability
l Integrated transient voltage suppression function
l Data transmission up to 10Mbps in an electric noise environment
