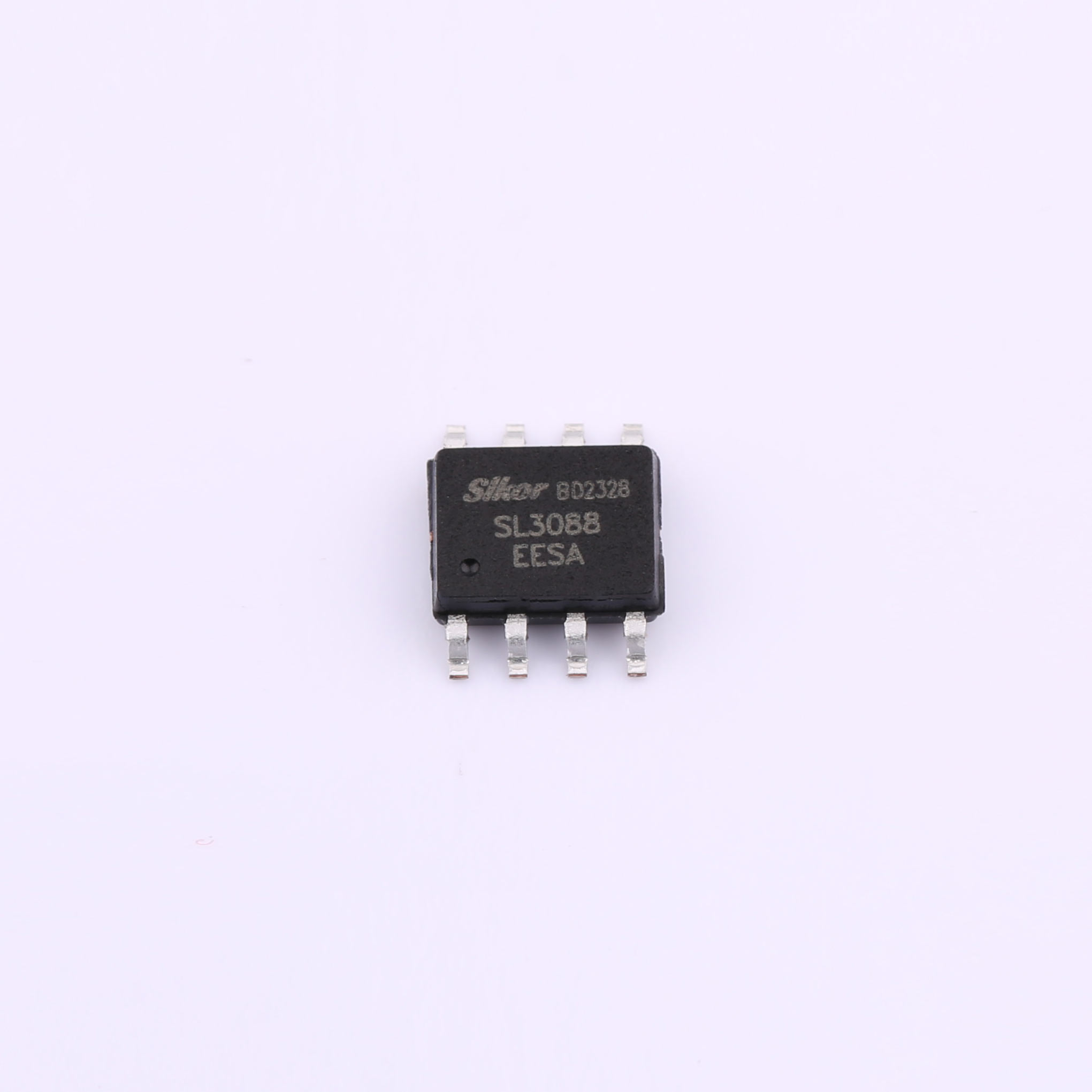

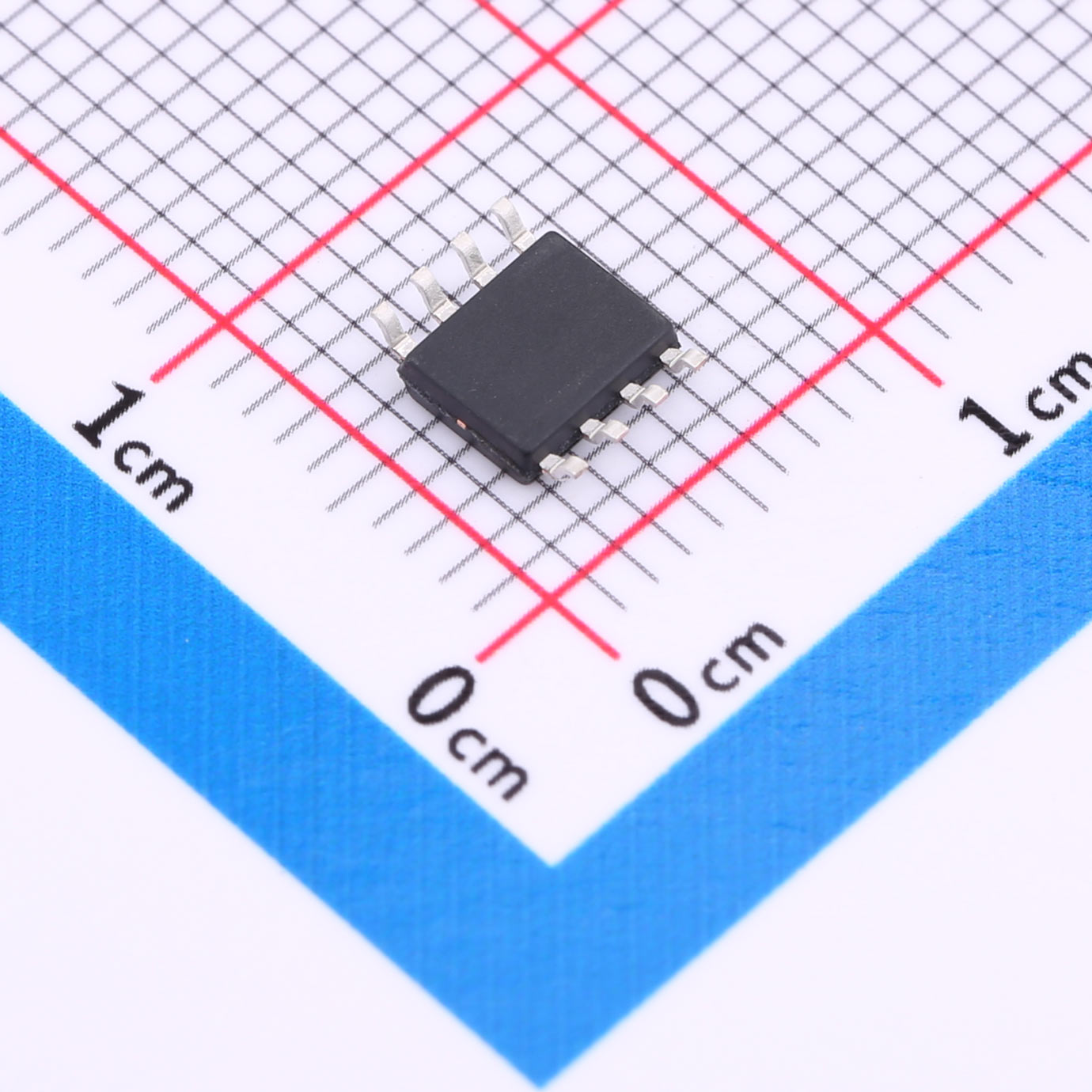

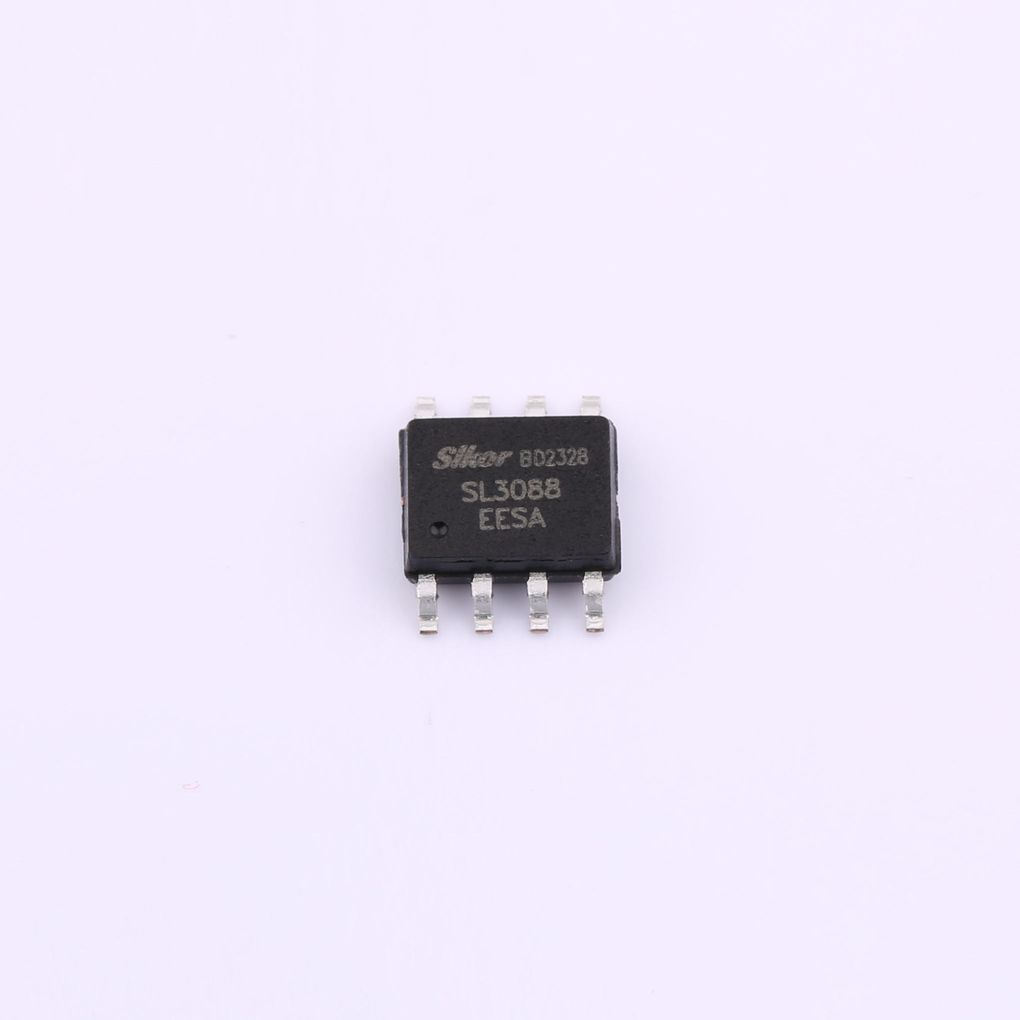

SL3088EESA RS485/RS422 Transceiver SOP-8
SL3088E is a RS -485 transceiver with 3.0V~5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA / EIA-485 standard.SL3088E includes a driver and a receiver, both of which can be enabled and closed independently.When both are disabled, both the driver and the receiver output are high resistance state.SL3088E has 1/8 load, which allows 256 SL3088E transceivers to be connected to the same communication bus. It can realize error-free data transmission up to 14Mbps. SL3088E has a working voltage range of 3.0~5.5V, and has the functions of fail-safe,current-limiting protection, over-voltage protection, etc.
3.0V-5.5V, 15kV HBM ESD-Protected, 14Mbps Half-Duplex RS485/RS422 Transcelver
Description
l SL3088E is a RS -485 transceiver with 3.0V~5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA / EIA-485 standard.
l SL3088E includes a driver and a receiver, both of which can be enabled and closed independently.When both are disabled, both the driver and the receiver output are high resistance state.
l SL3088E has 1/8 load, which allows 256 SL3088E transceivers to be connected to the same communication bus. It can realize error-free data transmission up to 14Mbps. SL3088E has a working voltage range of 3.0~5.5V, and has the functions of fail-safe,current-limiting protection, over-voltage protection, etc.
Features
l 3.0V~5.5V Wide Power Range, Half-Duplex
l ESD Protection for RS-485 I/O Pins ±15kV, Human Body Model
l Bus Fault Tolerance and Withstand Voltage Reach ±15V
l 1/8 Unit Load，Allow Up to 256 Transceivers on the Bus
l Driver Short-Circuit Output Protection
l Low Power Off Function
l Receiver Open-Circuit Failure Protection
l Strong Anti-Noise Ability
l Integrated Transient Voltage Suppression Function
l Data transmission up to 14Mbps in an electric noise environment
l Available in SOP8, DIP8, MSOP8/8μMAX/VSSOP8 and DFN3*3-8 packages
