Description:

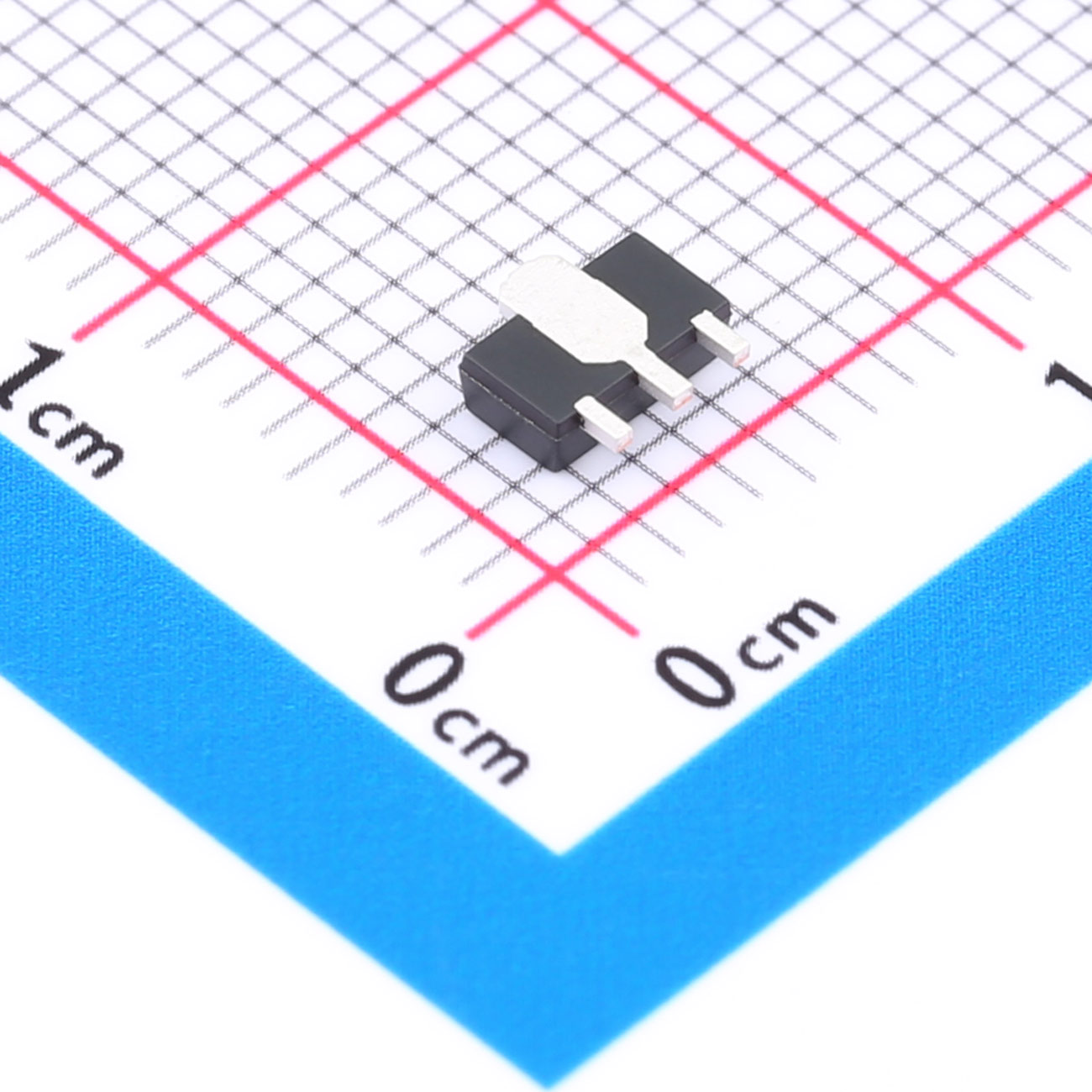

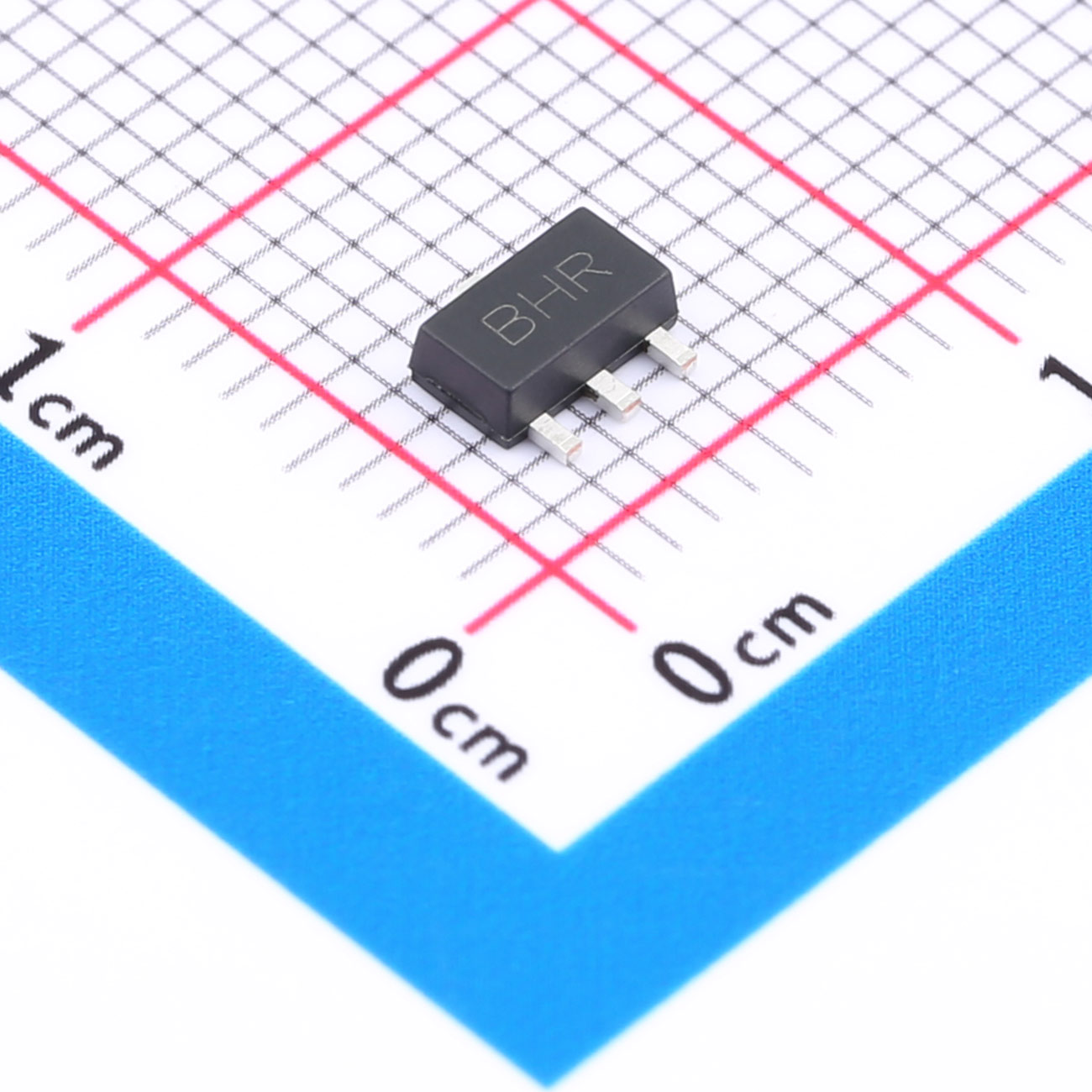

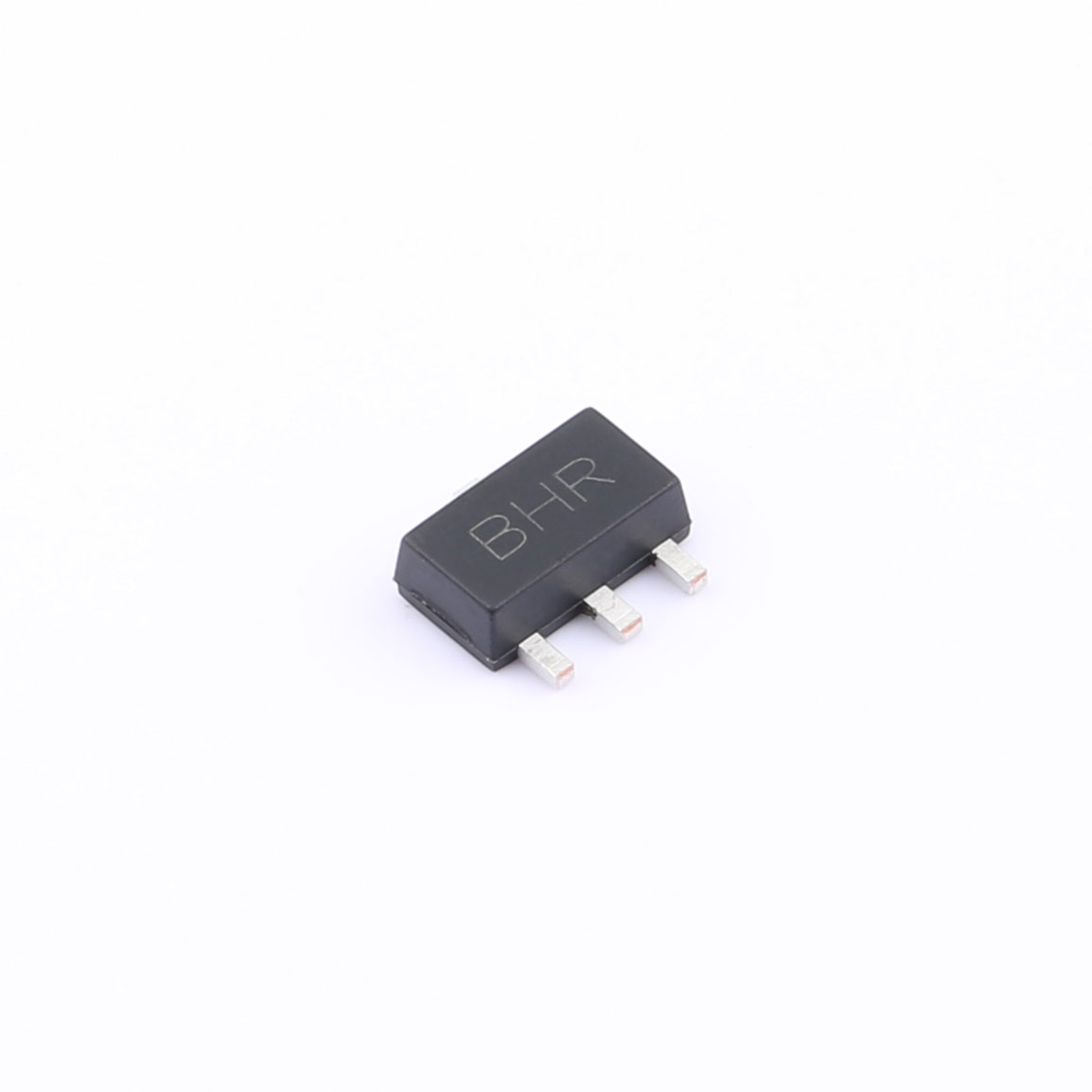

The 2SB1386-R PNP Digital Transistor is a versatile device optimized for high-current and high-frequency operations. With a maximum collector-emitter voltage (V_CE) of 20V and a continuous collector current (I_c) rating of 5A, it is well-suited for power amplification and switching applications. This transistor features a low saturation voltage (V_CE(sat)) of 0.35V at 4A collector current and 0.1A base current, ensuring minimal power loss and efficient performance.

FEATURES

Low VCE(sat).

● VCE(sat) = -0.35V (Typ.)

● (IC/IB = -4A / -0.1A)

● Excellent DC current gain

● Epitaxial planar type

● PNP silicon transistor

Application:

2SB1386-R PNP Digital Transistor is perfectly suited for a variety of electronic applications, including:

● Switching Circuits: Efficiently switch high currents with minimal power loss, making it suitable for power management and control systems.

● Amplification: Provide reliable and high-frequency amplification for audio, RF, and other signal processing applications.

● Power Supply Circuits: Enhance the performance of power supplies and regulators with its low saturation voltage and high current handling capabilities.

● Motor Control: Ideal for driving motors and other inductive loads in various industrial and consumer applications.
