Description

SL721 (single), SL722 (dual), SL723 (single with shutdown), and SL724 (quad) is a versatile operational amplifier with low noise, low voltage, and low power consumption, suitable for a wide range of applications. With an 11MHz gain-bandwidth product and 10V/μs slew rate, the S L7 21/2/3/4 are low-noise, low-voltage, low-power operational amplifiers with a power-down disable function that reduces supply current to less than 1μA. S L7 2 3 has a power- down disable function that reduces the supply current to less than 1 μA.

Designed to provide optimum performance in low-voltage, low-noise systems, the S L7 2 1/2/3/4 offer rail-to-rail output swing for large loads, an input common-mode voltage range that includes ground, and a maximum input offset voltage of 3.5 mV. The chips can be operated over the industrial temperature range of -40°C to +125°C, and have an operating supply voltage range of 2.3 V to 5.5 V. The S L7 2 1 package type has a gain bandwidth area and conversion rate of 10 V/μs, where supply current can be reduced to less than 1 μA.

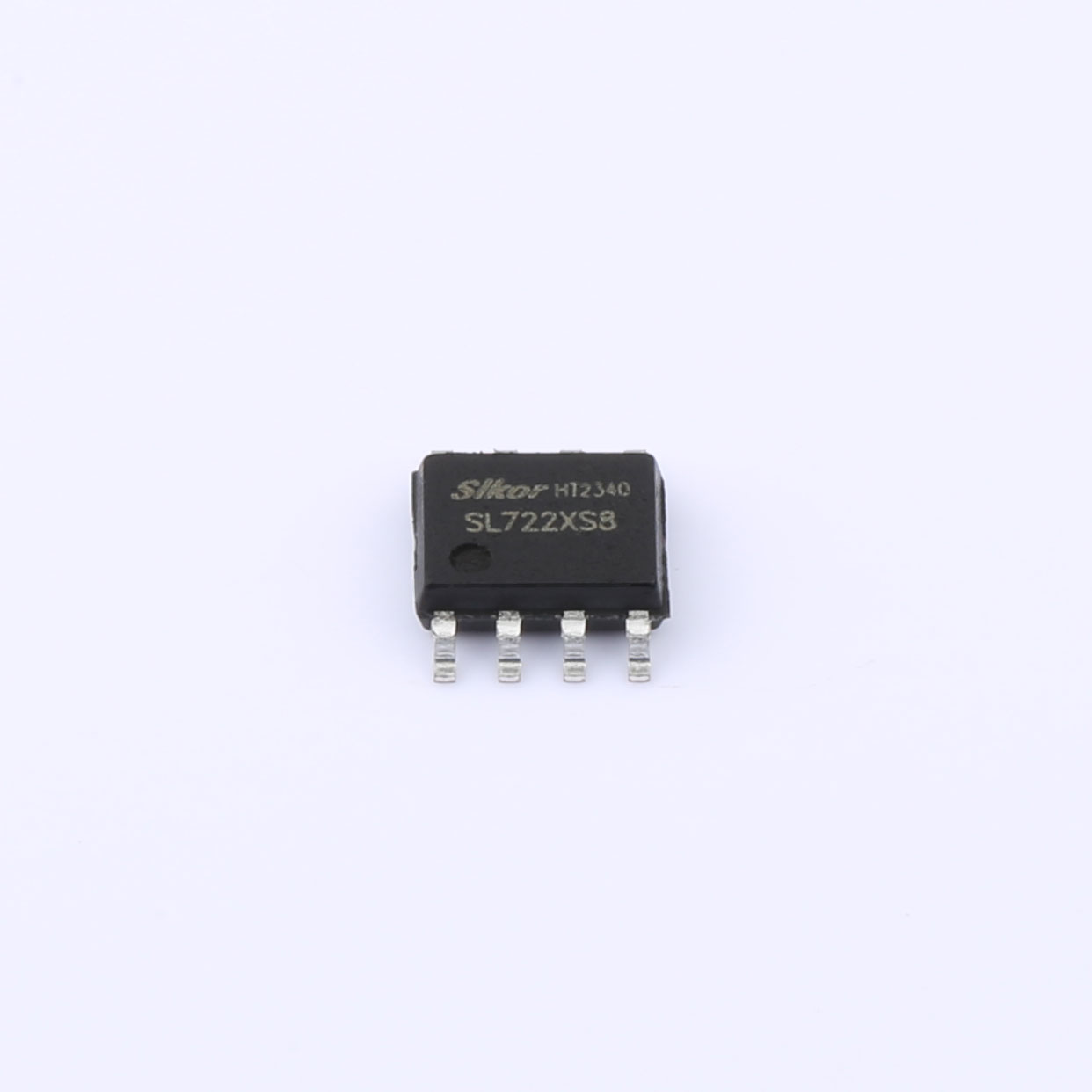

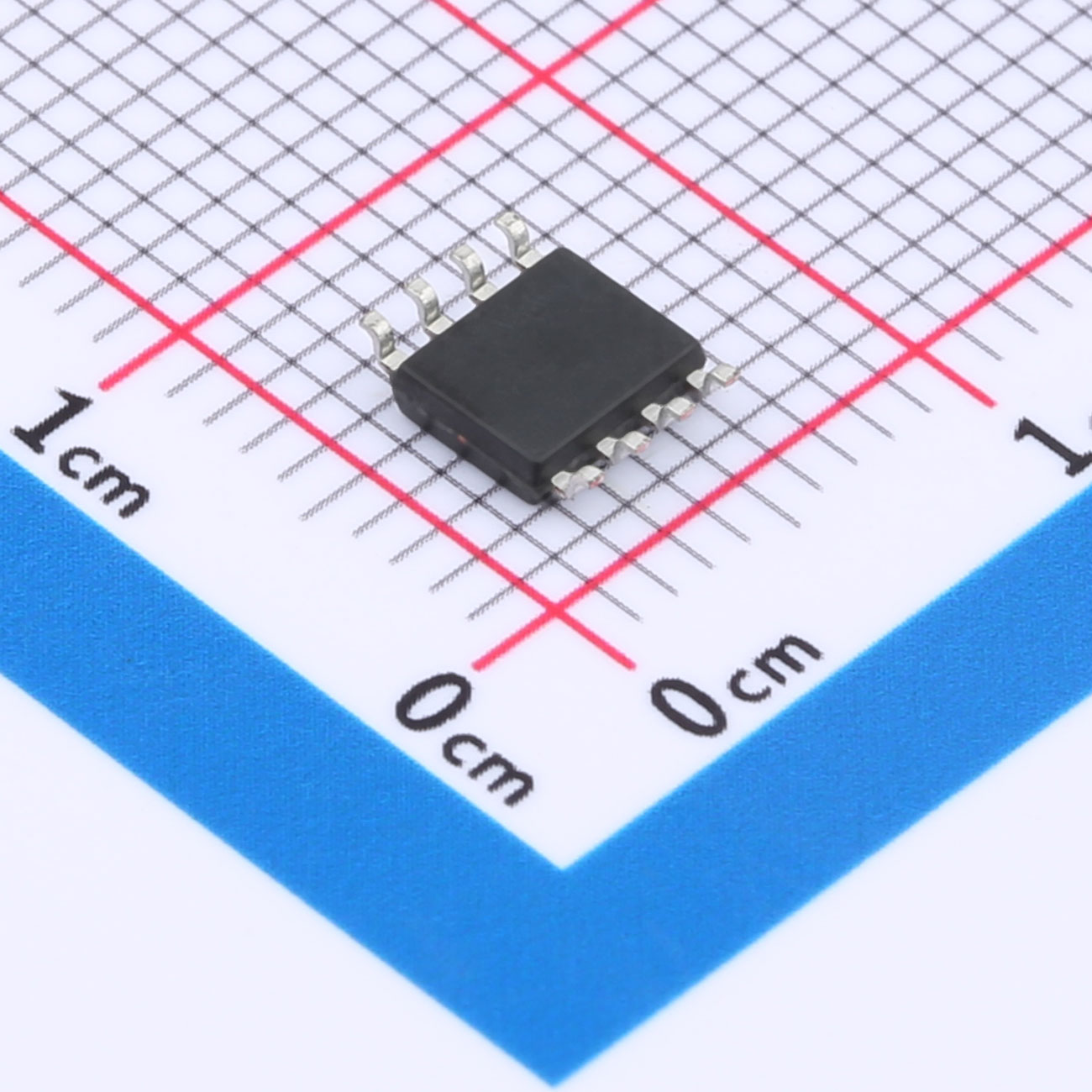

The package types of S L7 2 1 are mainly SC70-5, SOT23-5 and SOP-8, S L7 22 are mainly SOP-8, MSOP-8, TSSOP-8 and DFN2*2-8, SL723 are mainly SOT23-6 and SOP-8, S L724 are mainly SOP-14, TSSOP-14 and QFN-16.

Features

● High conversion rate: 10V/μs

● Gain bandwidth product: 11MHz

● Build-up time to 0.1%: 0.35μs

● Overload recovery time: 0.6μs

● Low noise: 12nV/ √Hz @ f=1kHz

● Input and output rail-to-rail -- Input voltage range: -0.1V to +5.6V (VS=5.5V)

● Quiescent Current: 1000μA(Typ.)

● Operating Voltage Range: +2.3V to +5.5V

● Operating Temperature Range: -40°C to +125°C

Applications

● Sensors

● Audio

● Active Filters

● A/D Converters

● Communication

● Test Equipment
