Description

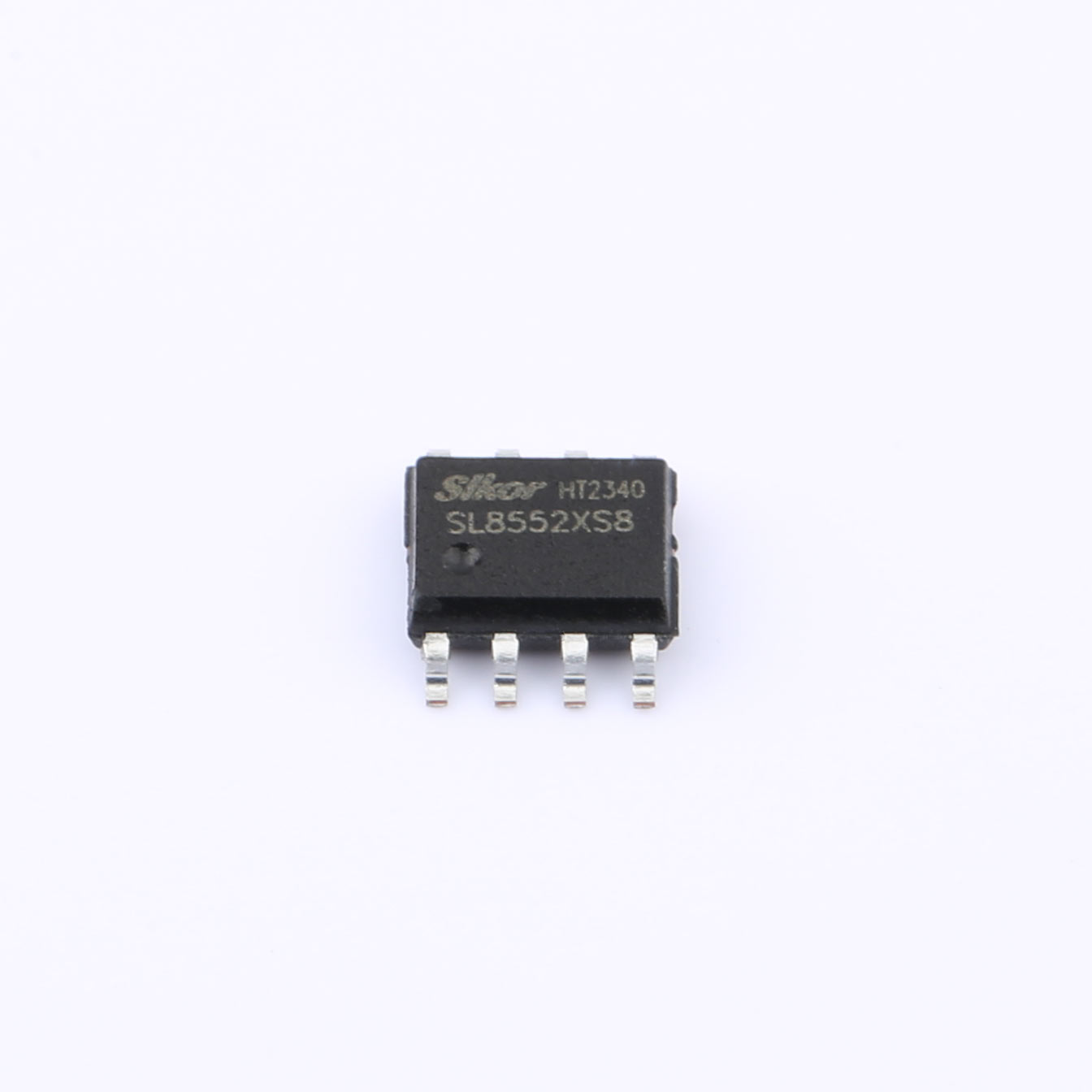

SL8551 (single), SL8552 (dual) and SL8554 (quad) are high-precision, rail-to-rail input and output operational amplifiers. The chip uses offset correction technology, so it has very low offset voltage (typical value 2μV), and the offset voltage hardly changes with temperature and time.

The chip supports single power supply and dual power supply. When powered by a single power supply, its power supply voltage range is +2.3V to +5.5V; when powered by a dual power supply, its power supply voltage range is ±1. 15V to ±2.75V. The package types of SL8551 are mainly SC70-5, SOT23-5, MSOP-8 and SOP-8. The package types of SL8552 are mainly MSOP-8 and SOP-8. The package type of SL8554 is mainly SOP-14. And the operating temperature range for all package types is -40℃ to 125℃.

Features

● Low offset voltage：2μV (typical value)

● Zero drift：0.03μv/℃

● Low noise：30nV/√Hz

   0.1Hz to10Hz ：noise0.55μVPP

● High DC accuracy：

   Open loop gain：135dB

   Power Supply Rejection Ratio (PSRR)：110dB

   Common Mode Rejection Ratio (CMRR)：110dB

● Gain bandwidth product：2MHz

● Quiescent current：220μA (typical value)

● Supply voltage range：±1. 15V to ±2.75V

● Input and output rail to rail

Applications

● Bridge amplifier

● Strain gauge

● Sensor applications

● Temperature measurement

● Electronic scale

● Medical devices
