Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

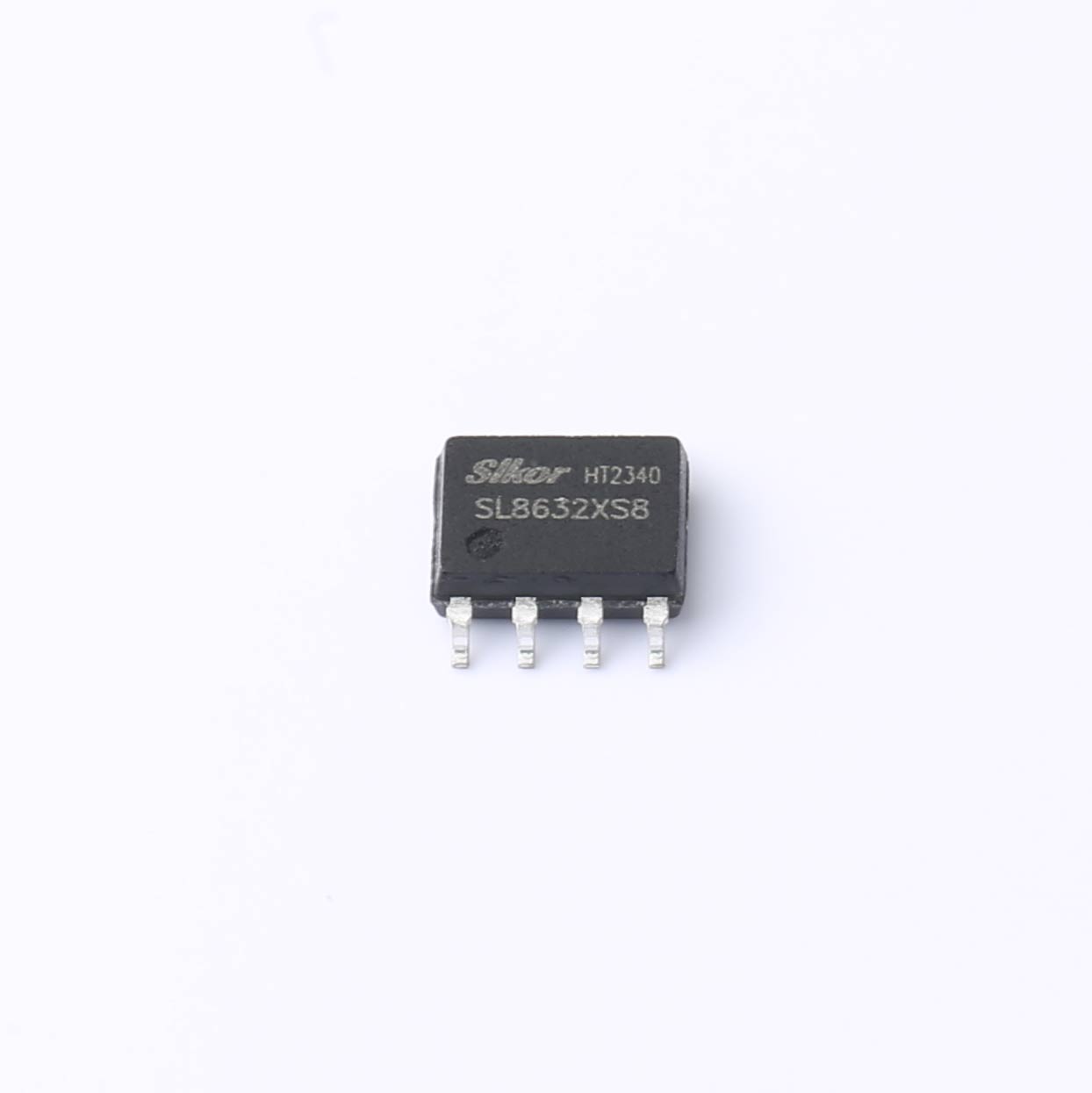

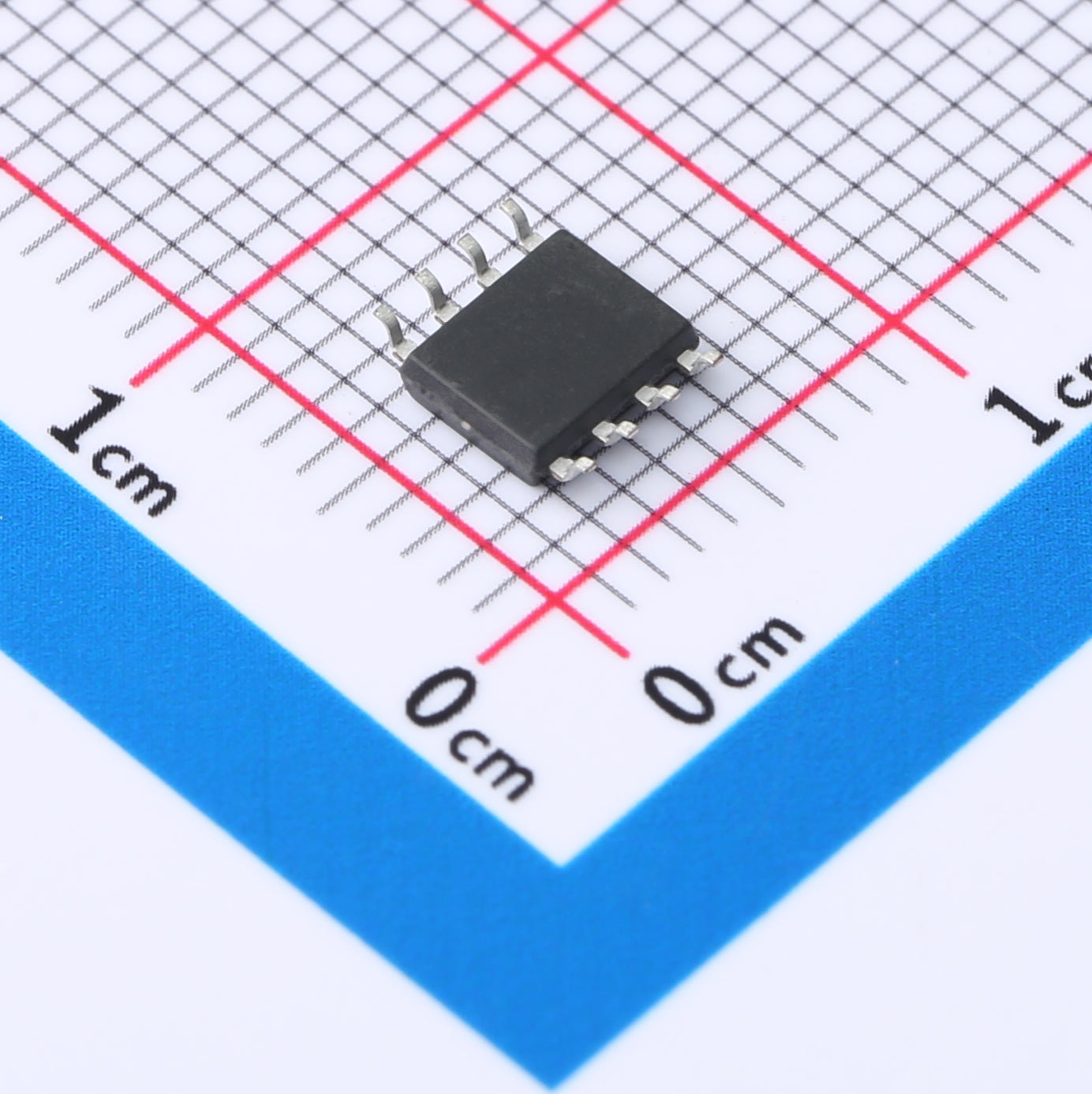

The SL8631 (single), SL8632 (dual), and SL8634 (quad) are low-noise, low-voltage, and micropower operational amplifiers. The SL863x family features 6.5MHz bandwidth, 4V/μs slew rate, and 480μA quiescent current per amplifier (5V supply voltage). The SL863x family of operational amplifiers can be designed into a wide range of applications. The SL863x operational amplifiers are designed to provide optimal performance for low-voltage and low-noise systems. Their input common-mode voltage range includes ground, and the maximum input offset voltage is 4.2mV. The SL863x can provide rail-to-rail output swing under heavy output loads. The SL863x family is suitable for single or dual supplies from +2.1V to +5.5V. All models are specified to operate over the extended industrial temperature range of -40℃ to +125℃. The SL8631 is available in 5-pin SC70 and SOT-23 packages. The SL8632 is available in 8-pin MSOP, DFN2*2, TSSOP, and SOP packages. The SL8634 is available in 14-pin TSSOP and SOP packages.

Features

●High conversion rate: 4V/μs

●Gain bandwidth product: 6.5MHz

●Low power: 480μA supply current per amplifier

●Settling time to 0.1% (2V step): 1μs

●Low noise: 20nV/√Hz@10kHz

●High gain: 103dB

●Low offset voltage: 4.2mV (maximum)

●Unity-gain stable

●Rail-to-rail input and output

  Input voltage range: -0.1V to +5.1V (5V supply voltage)

●Operating supply range: +2.1V to +5.5V

●Operating temperature range: -40°C to +125°C

Applications

●Photodiode and sensor interface

●Audio output

●Active filter

●Driving A/D converters

●Portable and battery-powered devices
