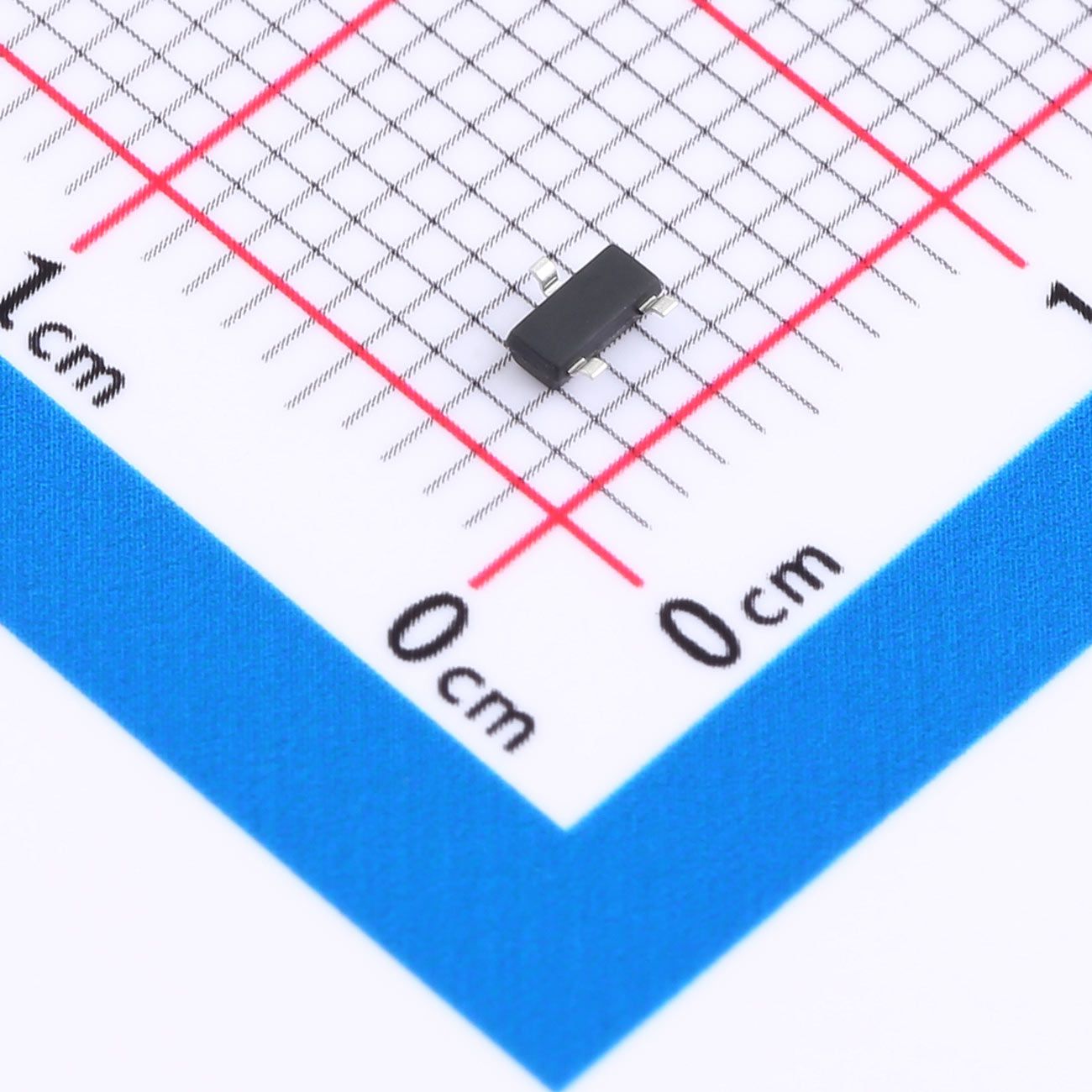

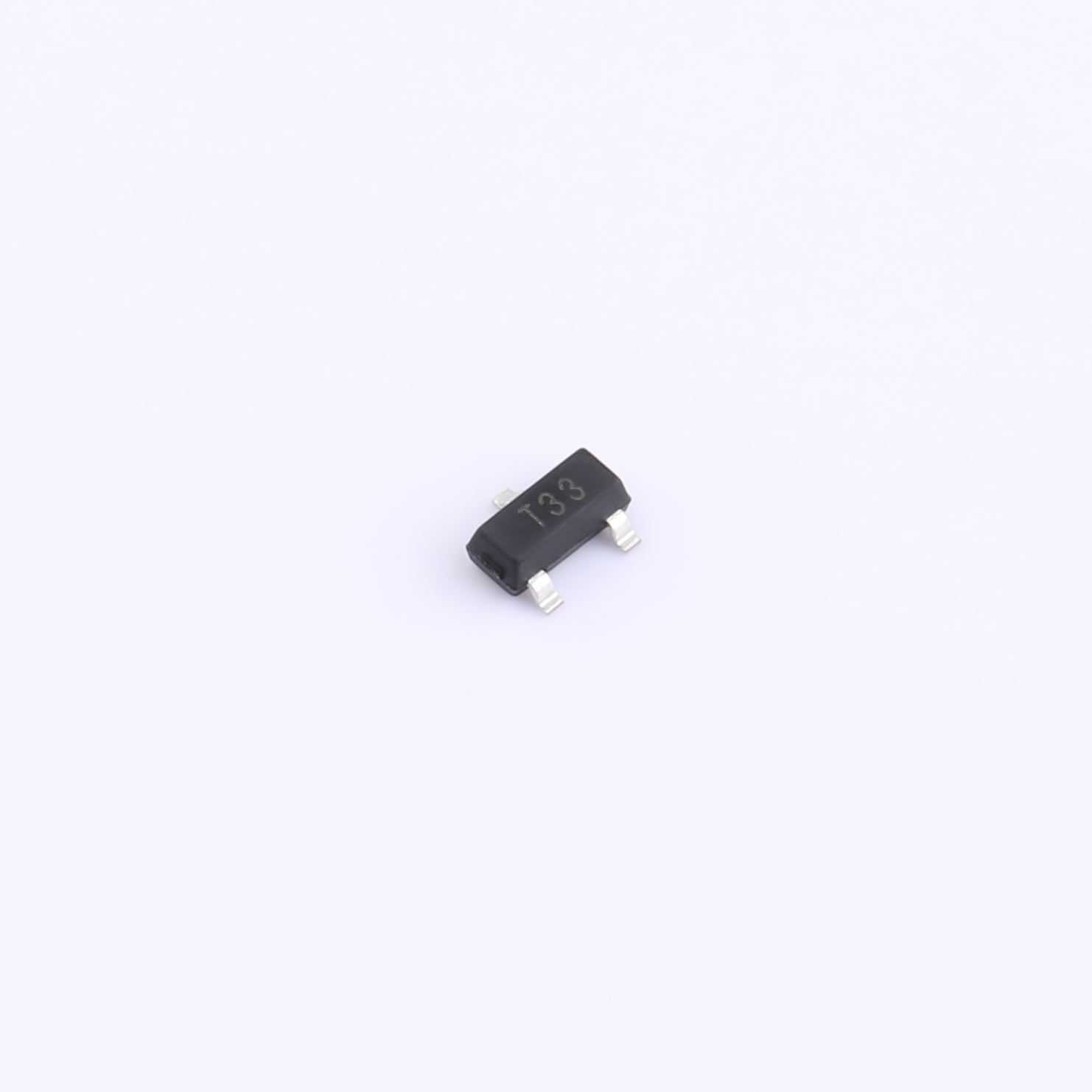

2SC2757 T33 NPN Bipolar Transistor SOT-23
2SC2757 is an NPN RF bipolar transistor designed for VHF band applications. It features low noise and high current‑gain bandwidth product, making it suitable for RF amplifier, local oscillator, and mixer circuits. Packaged in SOT‑23, it offers compact size and reliable RF performance in high‑frequency signal processing.
Our Advantages
- Ultra-high frequency performance with fT up to 1100MHz for VHF RF applications
- Low noise characteristic for clear signal amplification
- Multiple hFE binning options for precise circuit matching
- Miniature SOT‑23 package for compact RF module design
- Stable and consistent RF performance in high‑frequency circuits
- Tape‑and‑reel packaging ideal for automated SMT assembly
Description
2SC2757 is an NPN RF bipolar transistor designed for VHF band applications. It features low noise and high current‑gain bandwidth product, making it suitable for RF amplifier, local oscillator, and mixer circuits. Packaged in SOT‑23, it offers compact size and reliable RF performance in high‑frequency signal processing.
FEATURES
- NPN RF transistor
- Low noise
- High current‑gain bandwidth product: fT = 800–1100MHz
- SOT‑23 surface‑mount package
- hFE grading: T32(60–120), T33(90–180), T34(120–240)
- VCBO = 30V, VCEO = 15V, VEBO = 5V
- Continuous collector current: IC = 50mA
- Power dissipation: PC = 0.15W
- Junction temperature: −55℃ to +125℃
Applications
- VHF RF amplifiers
- Local oscillator circuits
- Mixer stages
- High‑frequency signal processing
- RF communication modules
- Portable wireless equipment
- VHF band transceiver systems
