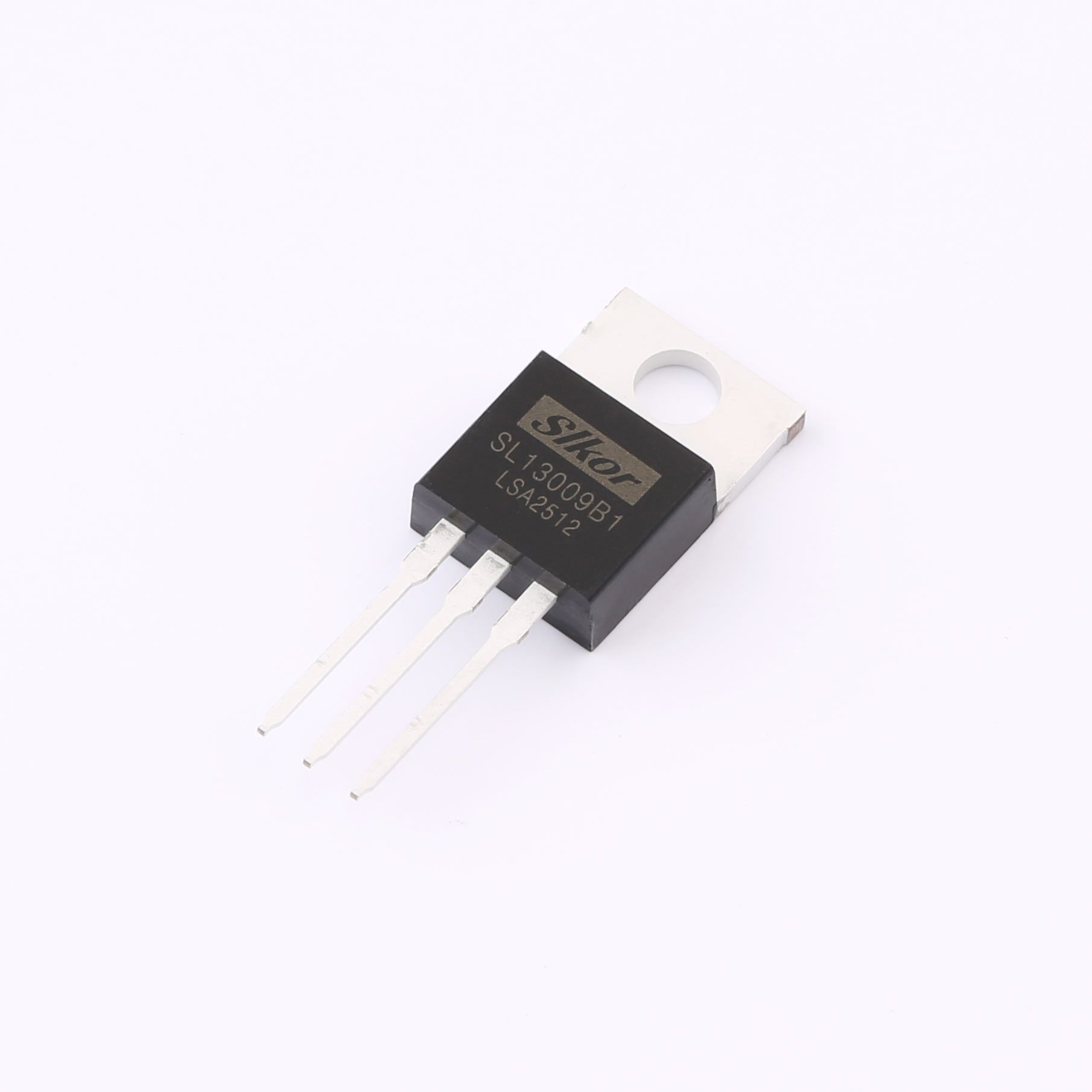

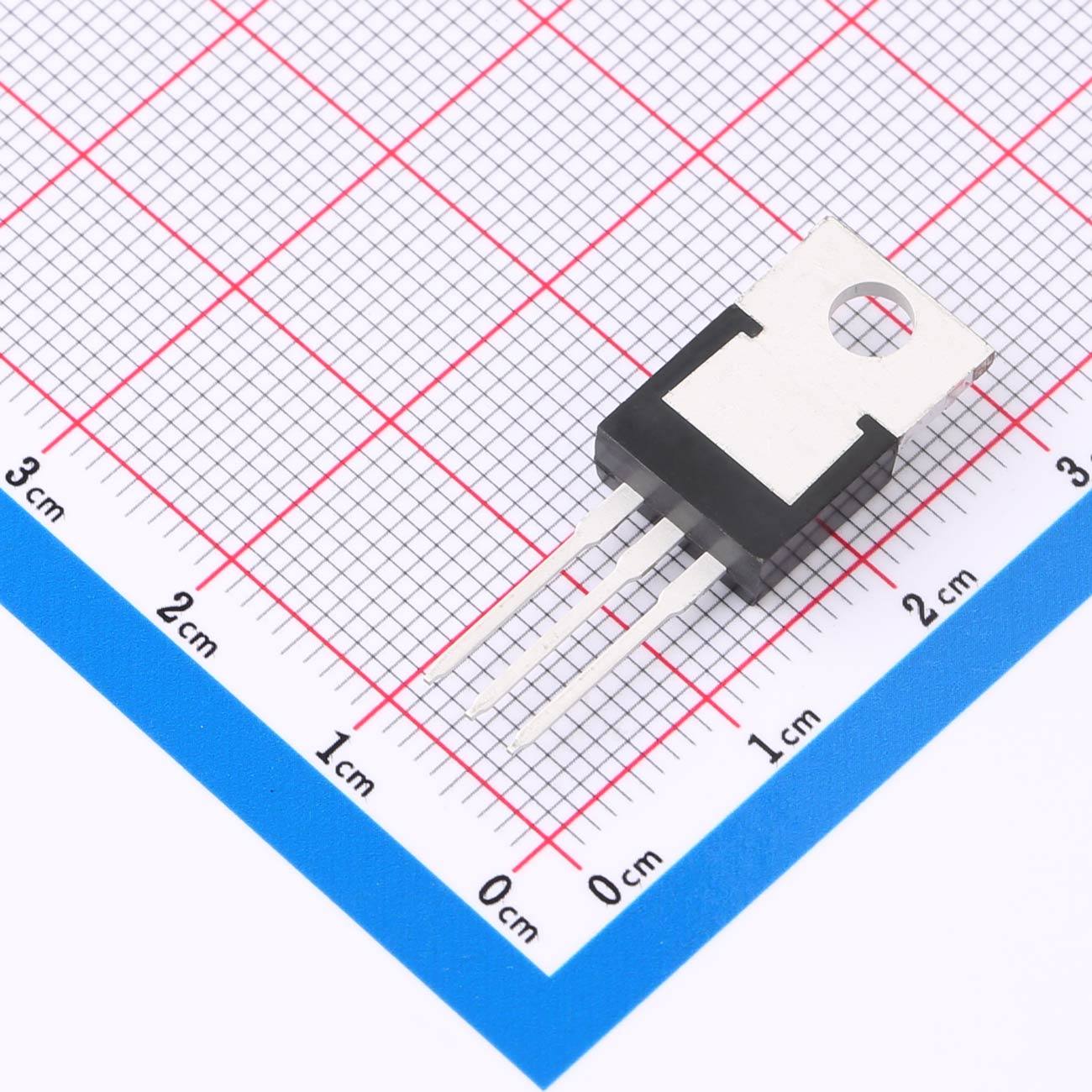

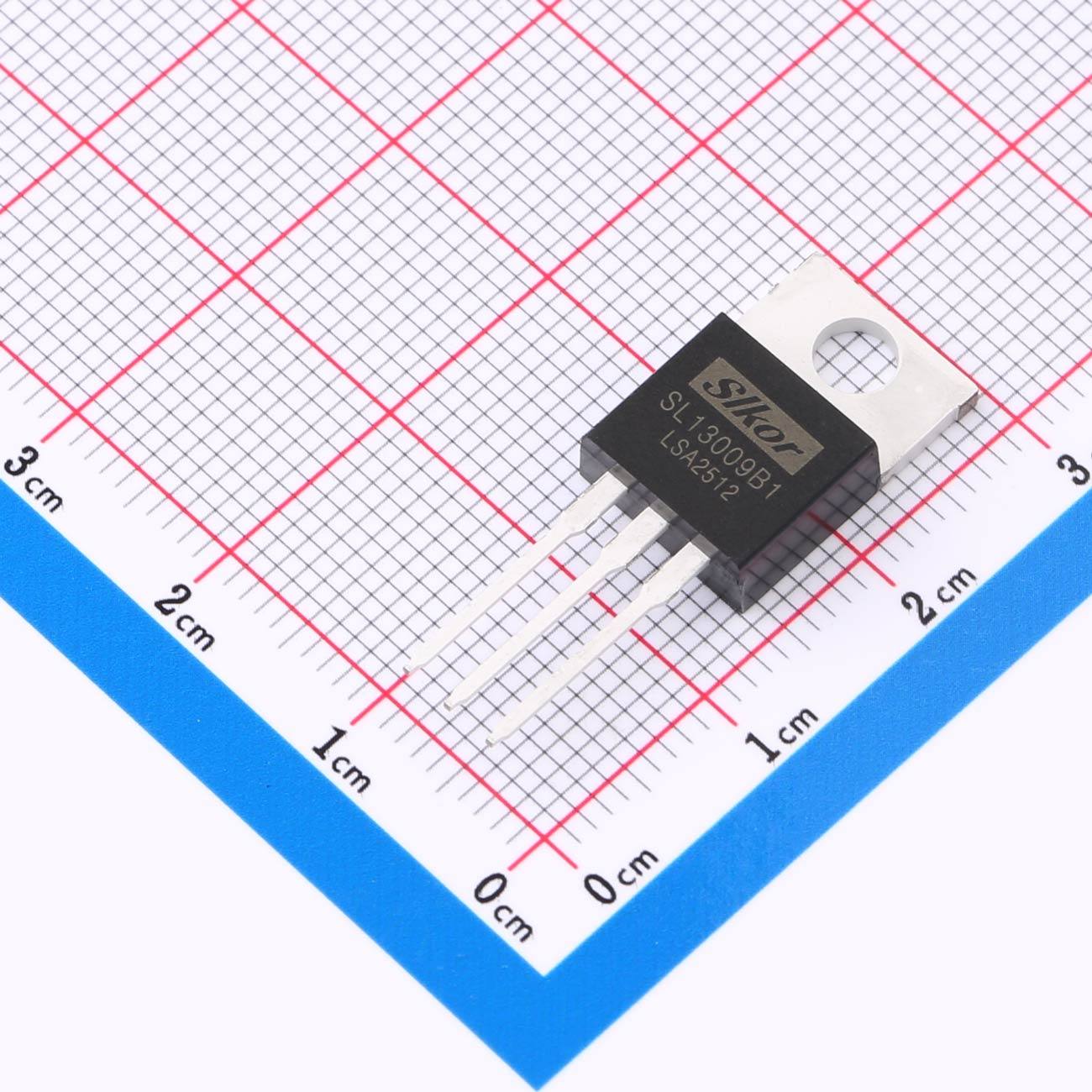

SL13009B1 NPN Bipolar Transistor TO-220AB
SL13009B1 series is a high‑voltage, high‑speed NPN power transistor designed for heavy‑duty switching applications. It offers 700V collector‑base voltage, 12A continuous current, and fast switching speed, widely used in switching regulators, motor control, and high‑power industrial circuits.
Our Advantages
- Ultra-high voltage & heavy‑duty current for industrial power systems
- High‑speed switching for high‑efficiency power conversion
- Multiple package options for flexible design & heat dissipation
- UL 94V‑0 flame‑retardant plastic for safety
- RoHS compliant & lead‑free for global markets
- Excellent thermal performance for long‑term reliability
- Wide temperature range for harsh environments
Description
SL13009B1 series is a high‑voltage, high‑speed NPN power transistor designed for heavy‑duty switching applications. It offers 700V collector‑base voltage, 12A continuous current, and fast switching speed, widely used in switching regulators, motor control, and high‑power industrial circuits.
FEATURES
- NPN high‑voltage high‑speed power transistor
- High voltage: VCBO = 700V, VCEO = 400V, VEBO = 9V
- Continuous collector current: IC = 12A
- High‑speed switching performance
- DC current gain: hFE = 25–35
- Power dissipation: Ptot = 100W (Tc=25℃)
- Transition frequency: fT = 4MHz (typ.)
- Low saturation voltage VCE(sat) ≤ 0.8V
- Operating temperature: −55℃ to +150℃
- UL 94V‑0, RoHS compliant, lead‑free
- Packages: TO‑220AB, TO‑220F, TO‑263, TO‑247, TO‑247S
Applications
- High‑speed power switching
- Switching regulators & power supplies
- Motor control & drive systems
- Industrial power control equipment
- Inverters & converters
- High‑voltage electronic control
- Heavy‑duty power modules
