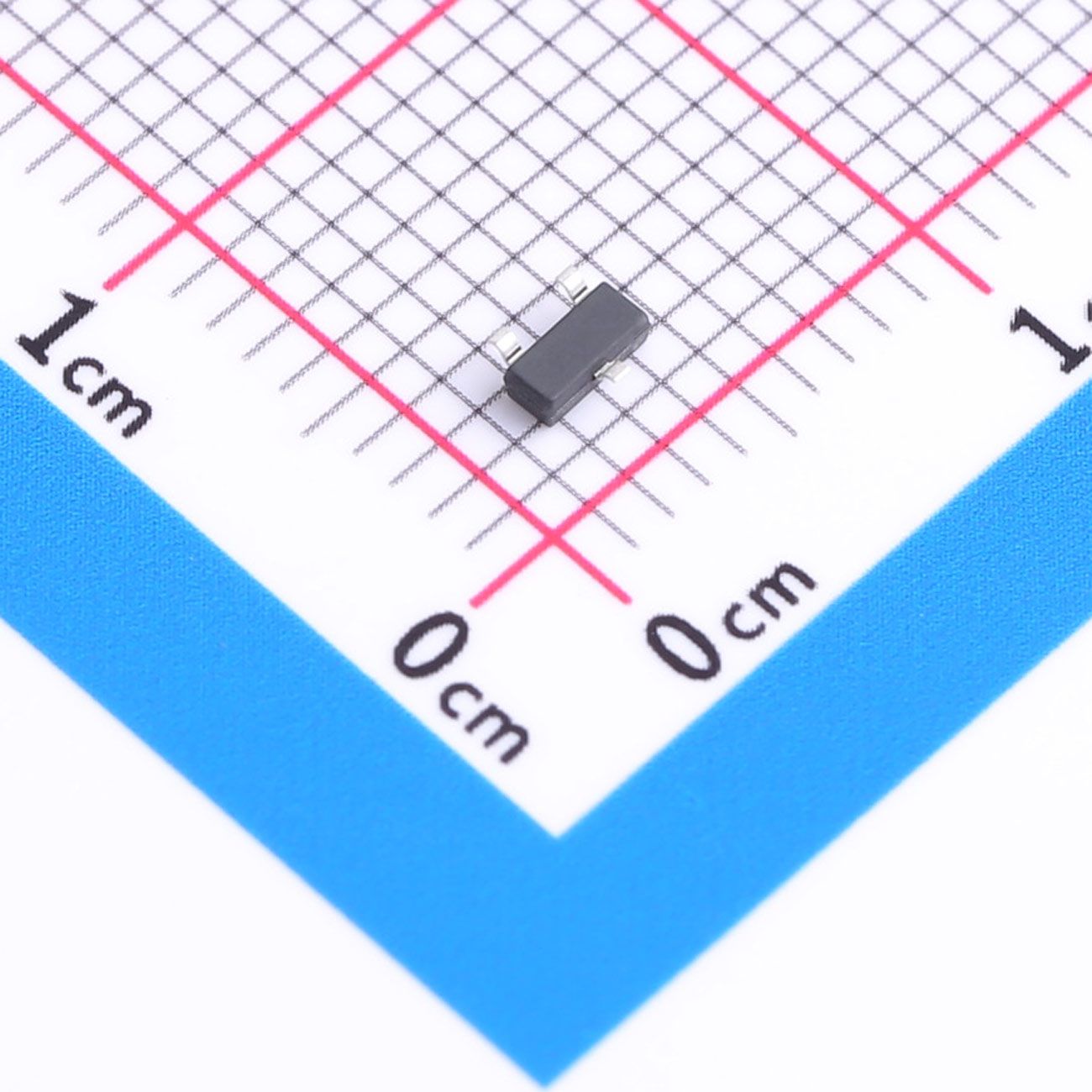

SL2188A28XG DC-DC Regulator SOT-23
SL2188 series is a CMOS, low-quiescent-current, PFM-type synchronous rectifier DC-DC boost converter. It features advanced low-noise design and high efficiency, making it ideal for battery-powered portable electronics. The SL2188A28XG model provides a fixed 2.8V output without CE enable control.
Our Advantages
- Ultra-low quiescent current (15μA typical) greatly extends battery life
- Low-noise PFM control reduces interference to surrounding circuits
- Wide input voltage from 0.9V works with 1–3 cell batteries
- High output accuracy ±2.5% ensures stable system performance
- Very simple external circuit, easy to design and mass-produce
- Multiple miniature packages fit compact portable devices
- Built-in synchronous rectifier for high conversion efficiency
Description
SL2188 series is a CMOS, low-quiescent-current, PFM-type synchronous rectifier DC-DC boost converter. It features advanced low-noise design and high efficiency, making it ideal for battery-powered portable electronics. The SL2188A28XG model provides a fixed 2.8V output without CE enable control.
FEATURES
- Ultra-low quiescent current: 15μA (typical)
- Input voltage range: 0.9V to 5V
- Fixed output voltage: 2.8V
- Output accuracy: ±2.5%
- Switching frequency: 250kHz (typical)
- Efficiency up to 80%
- Lx peak current: up to 1000mA
- Low-noise PFM control
- No CE enable pin (type A)
- Packages: SOT-23, SOT23-5, SOT89-3
- RoHS compliant
Applications
- 1–3 cell battery-powered devices
- LED flashlights, LED drivers, LED backlights
- Wireless mouse, keyboard, camera, PDA
- Mobile phones, handheld devices, electric toys
- Portable consumer and industrial electronics
