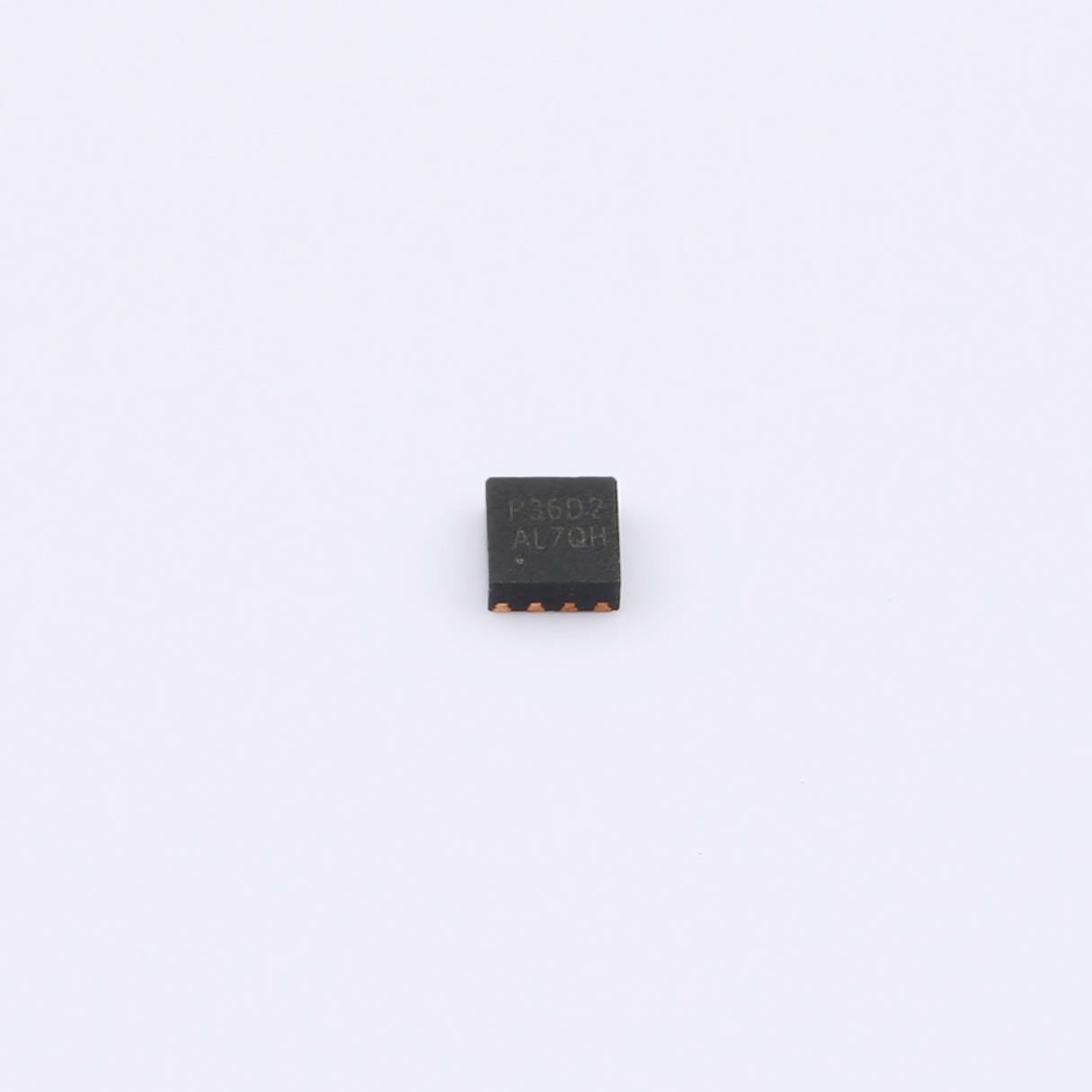

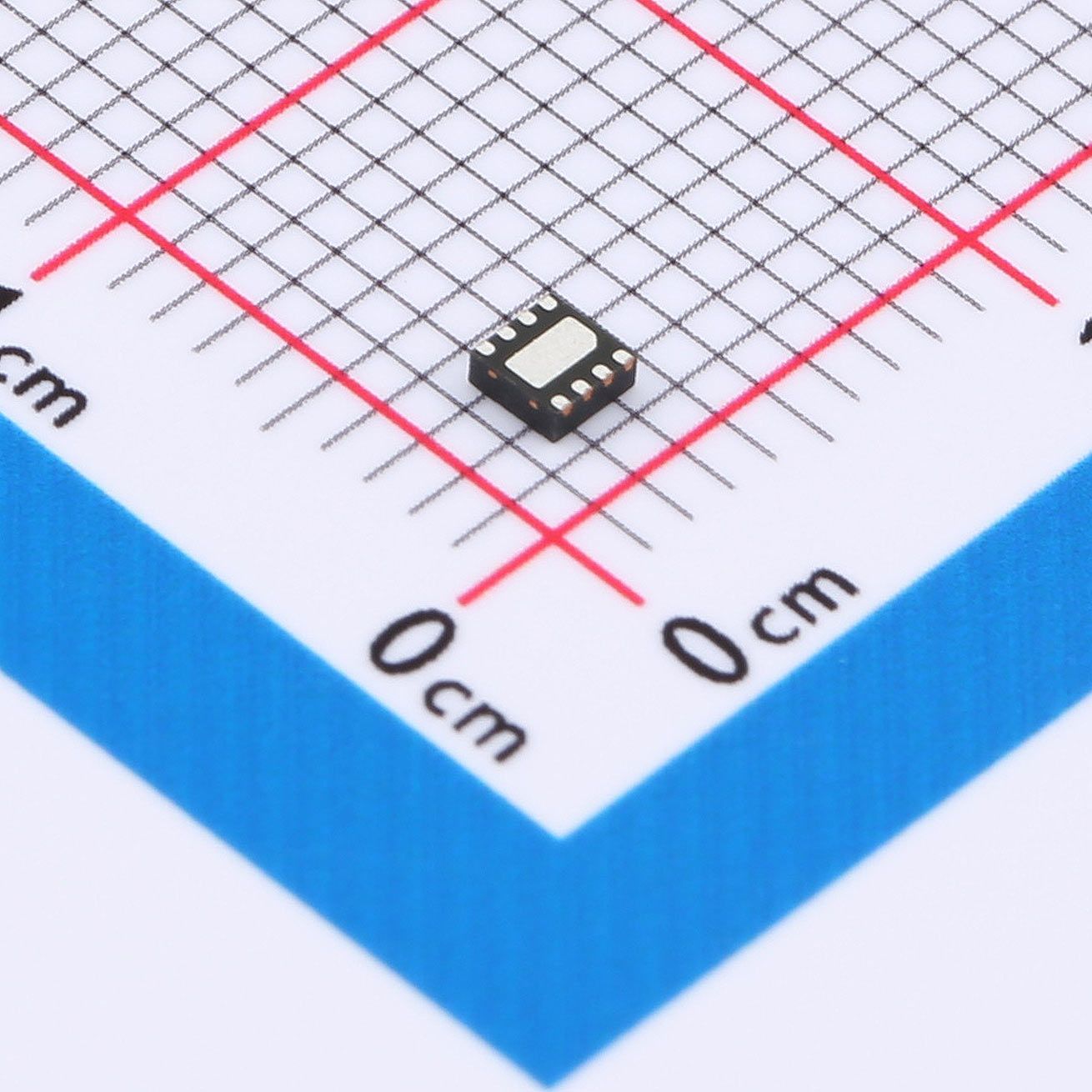

SL7136D2YF8 DC-DC Regulator DFN-8(2x2)
SL7136D2YF8 is a high‑efficiency synchronous rectification buck converter with internal low‑on‑resistance power switches. It operates from 2.5V to 5.5V input and delivers up to 3A continuous output current at 1.0MHz switching frequency. The DFN2×2‑8 package offers superior thermal performance, making it ideal for high‑power density portable electronics.
Our Advantages
- 3A high output current in ultra‑compact DFN2×2‑8 package
- Excellent thermal performance for high‑power applications
- 35μA ultra‑low quiescent current extends battery runtime
- 1MHz frequency minimizes inductor and capacitor size
- Optimized PWM/PFM for high efficiency across all loads
- Full protection suite enhances system reliability
- Built‑in Power Good (PG) indicator for system monitoring
Description
SL7136D2YF8 is a high‑efficiency synchronous rectification buck converter with internal low‑on‑resistance power switches. It operates from 2.5V to 5.5V input and delivers up to 3A continuous output current at 1.0MHz switching frequency. The DFN2×2‑8 package offers superior thermal performance, making it ideal for high‑power density portable electronics.
FEATURES
- Input voltage range: 2.5V – 5.5V
- Output current: up to 3A
- Switching frequency: 1.0MHz
- Quiescent current: 35μA (typical)
- Feedback reference: 0.6V
- Ultra‑low RDS(ON) internal switches
- Internal soft‑start
- Hiccup short‑circuit protection
- Input over‑voltage protection (OVP)
- 100% duty cycle for low dropout
- Thermal shutdown
- Power Good (PG) function
- Package: DFN2×2‑8
- RoHS & halogen‑free compliant
Applications
- Mobile phones, handheld game consoles
- Portable media players & digital cameras
- Set‑top boxes & battery‑powered equipment
- Electric toys and meters
- IoT & wireless communication modules
- High‑power density consumer electronics
