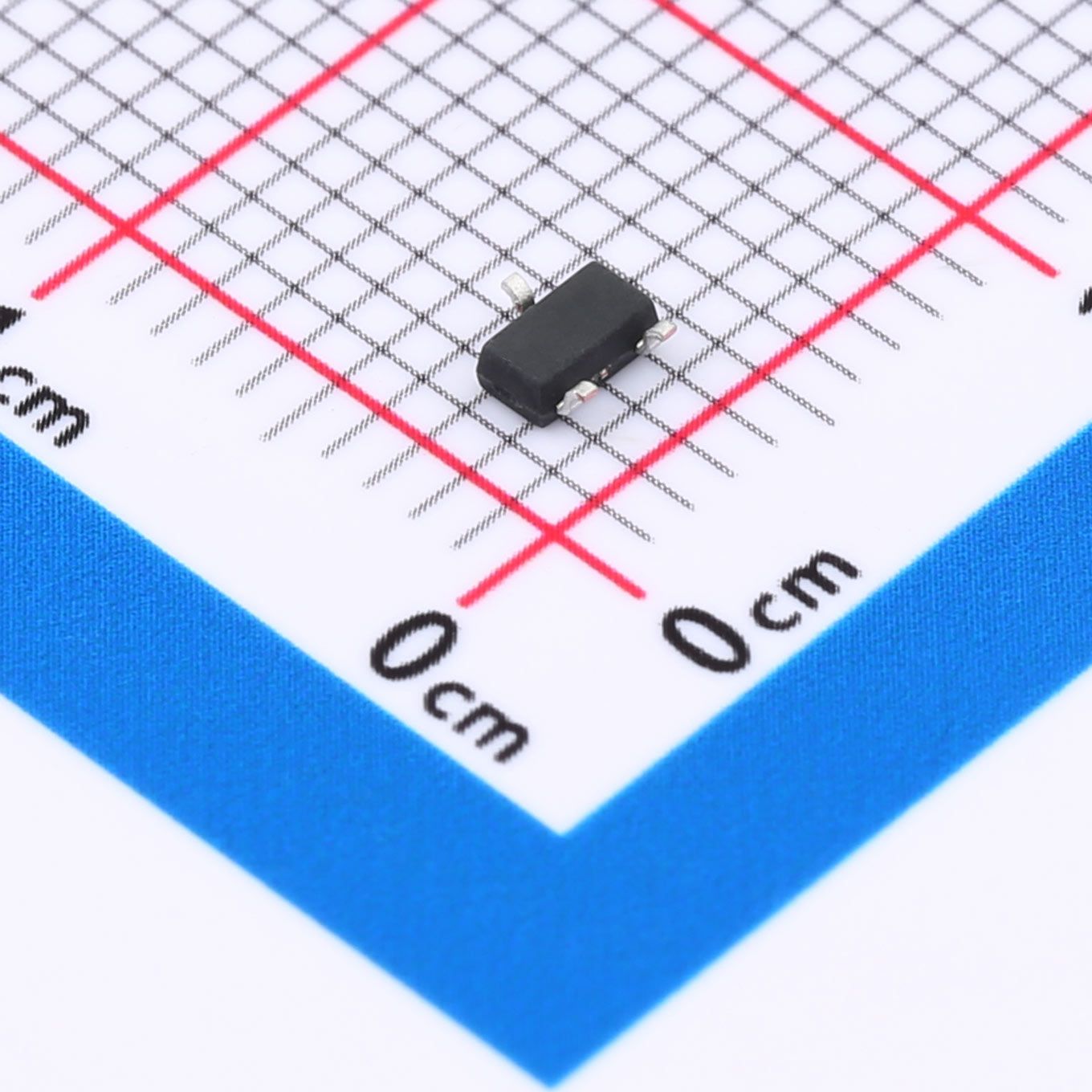

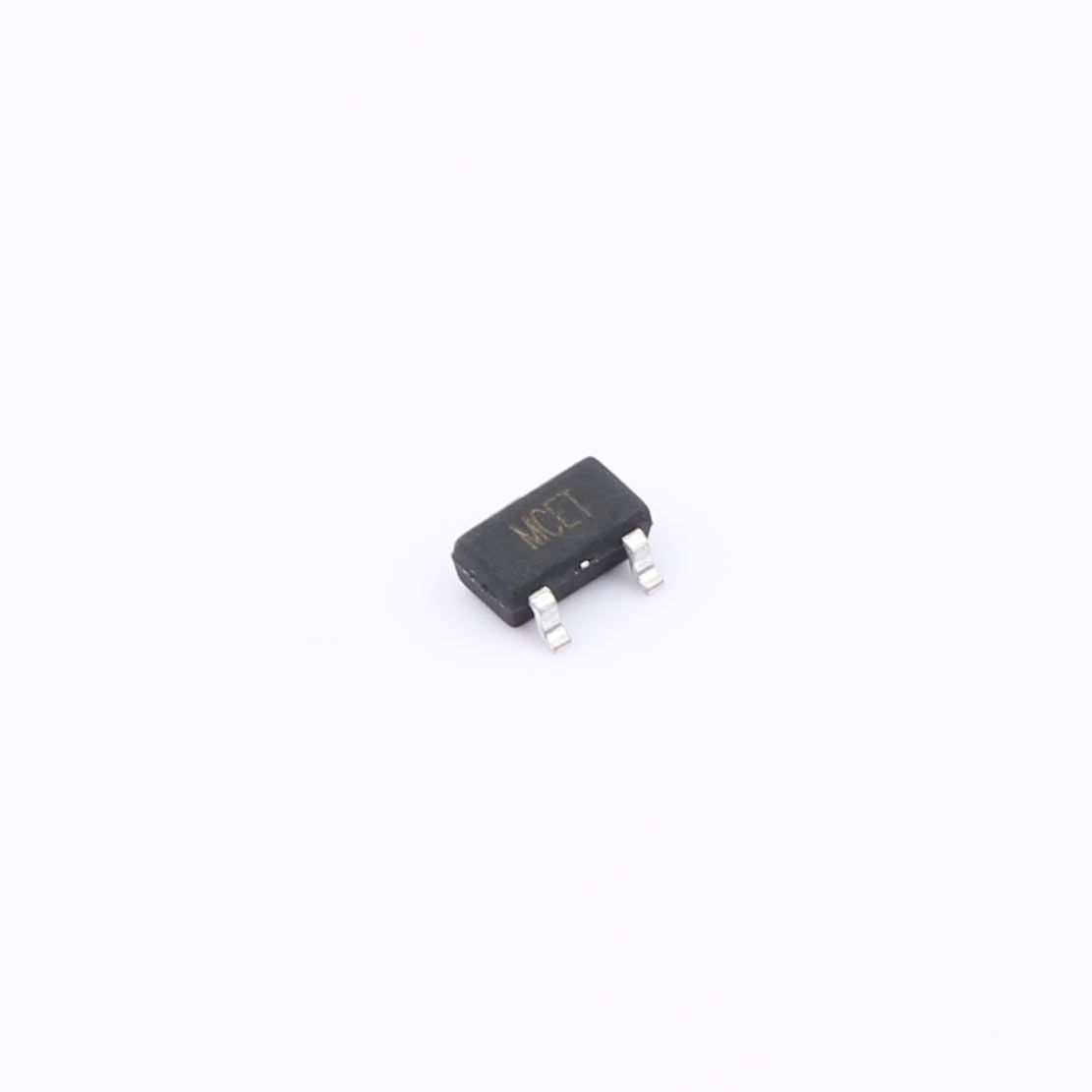

SL1703SU Hall Effect Sensor SOT-23-3L
SL1703SU is a high-performance, ultra-low-power omnipolar Hall-effect switch designed for compact and battery-powered systems. It detects both N-pole and S-pole magnetic fields with high sensitivity, using internal sleep-wake logic to maintain stable operation with minimal current consumption. It features CMOS push-pull output and multiple package options, ideal for low-power magnetic sensing applications.
Description
SL1703SU is a high-performance, ultra-low-power omnipolar Hall-effect switch designed for compact and battery-powered systems. It detects both N-pole and S-pole magnetic fields with high sensitivity, using internal sleep-wake logic to maintain stable operation with minimal current consumption. It features CMOS push-pull output and multiple package options, ideal for low-power magnetic sensing applications.
Our Advantages
- Industry-leading ultra-low power consumption down to 0.9μA at 1.8V
- Omnipolar detection: triggered by both N and S poles, easy installation
- Ultra-high sensitivity: 26Gs for weak magnetic field detection
- Wide voltage range supports low-voltage battery-powered devices
- Excellent 8kV ESD protection for high reliability
- Wide temperature range for harsh environments
- Small SOT-23-3L package for space-constrained designs
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Ultra-low average current: 0.9μA @1.8V (25Hz)
- Operating voltage: 1.8V ~ 5.5V
- High sensitivity: BOP = 26Gs (ultra-low threshold)
- Switching frequency: 25Hz
- CMOS push-pull output
- Built-in temperature compensation & clock control
- ESD HBM: 8kV
- Operating temperature: -40℃ ~ +125℃
- Package: SOT-23-3L
- RoHS compliant
Applications
- Laptop & tablet flip detection
- TWS earbuds, mobile phones, smart wearables
- Electronic locks & valve position sensing
- Water/gas meters, flow meters
- Non-contact position & proximity detection
- Low-power industrial & consumer electronics
