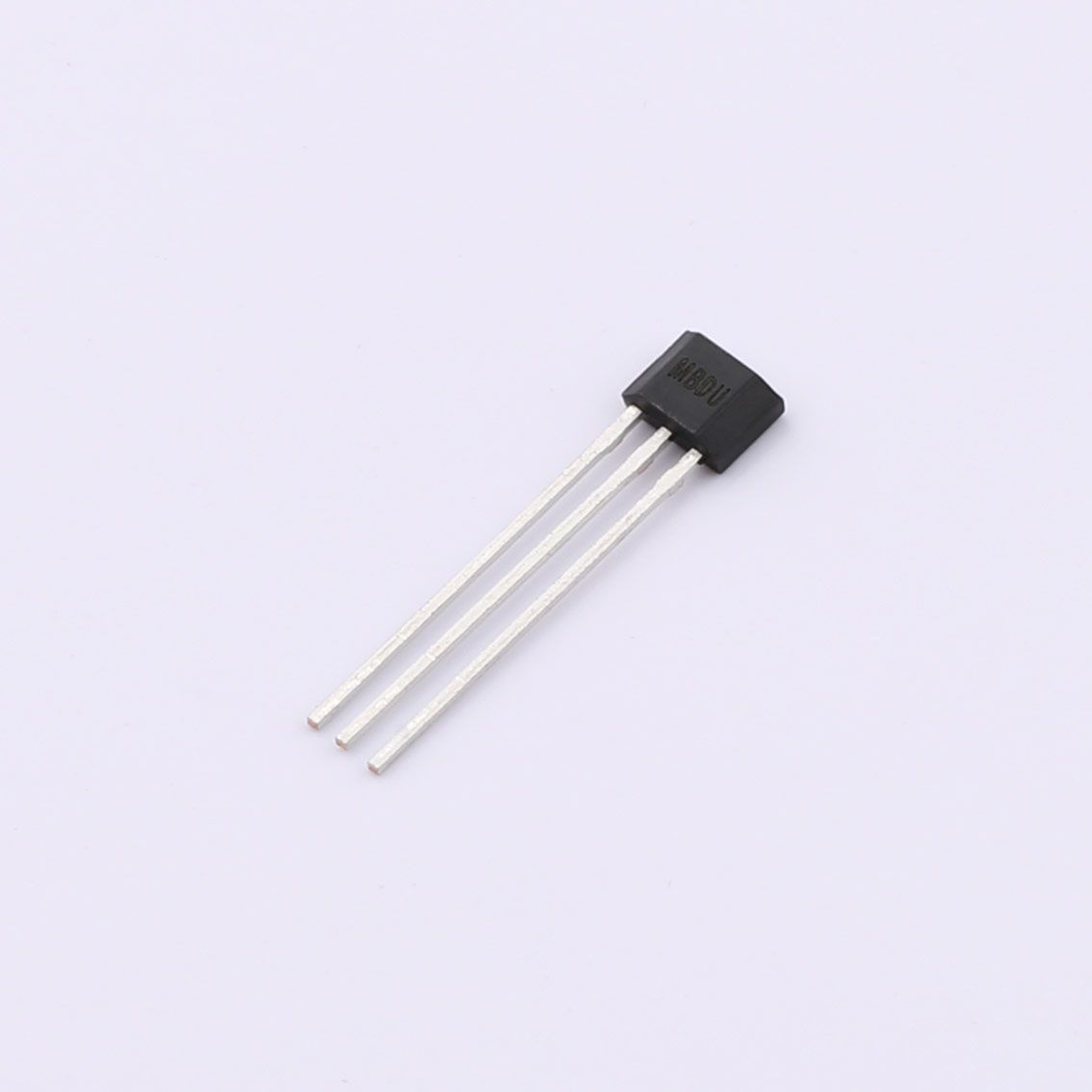

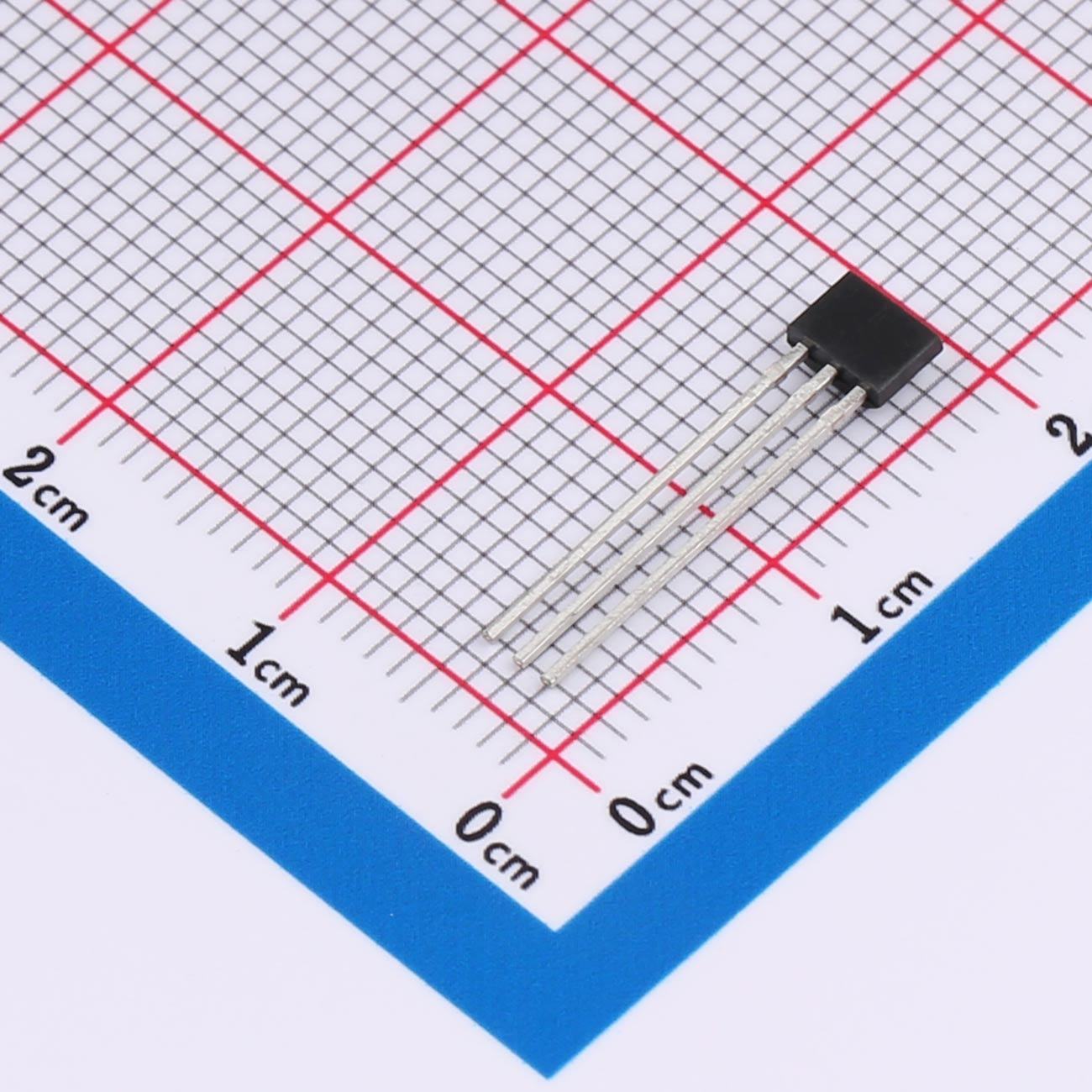

SL1709SL Hall Effect Sensor TO-92S
SL1709SL is a high-performance, ultra-low-power, omnipolar Hall-effect switch designed for battery-powered and space-constrained applications. It detects both N and S magnetic poles with stable sensitivity, using internal sleep-wake control and temperature compensation to maintain reliable operation with minimal power consumption. It features CMOS push-pull output and comes in a TO-92S through-hole package, ideal for manual assembly, testing, and industrial control.
Description
SL1709SL is a high-performance, ultra-low-power, omnipolar Hall-effect switch designed for battery-powered and space-constrained applications. It detects both N and S magnetic poles with stable sensitivity, using internal sleep-wake control and temperature compensation to maintain reliable operation with minimal power consumption. It features CMOS push-pull output and comes in a TO-92S through-hole package, ideal for manual assembly, testing, and industrial control.
Our Advantages
- Ultra-low power consumption: only 0.9μA at 1.8V, greatly extending battery life
- Omnipolar detection: triggered by both N and S poles, easy installation and alignment
- Wide operating voltage supports 1.8V–5.5V low-voltage battery systems
- High ESD protection up to 8kV HBM for improved reliability
- Wide temperature range (-40℃ to 125℃) for harsh environments
- Standard TO-92S package for easy soldering and maintenance
- Built-in temperature compensation ensures stable magnetic threshold
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Ultra-low supply current: 0.9μA @1.8V (25Hz)
- Operating voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = 36Gs (low threshold)
- Switching frequency: 25Hz
- CMOS push-pull output
- Built-in temperature compensation & wake-sleep logic
- ESD HBM: 8kV
- Operating temperature: -40℃ ~ +125℃
- Package: TO-92S
- RoHS compliant
Applications
- Laptop & tablet lid/flip detection
- TWS earbuds, mobile phones, smart wearables
- Electronic lock and valve position sensing
- Water meters, gas meters, flow meters
- Non-contact position & proximity detection
- Low-power industrial sensors
- Portable and battery-powered consumer electronics
