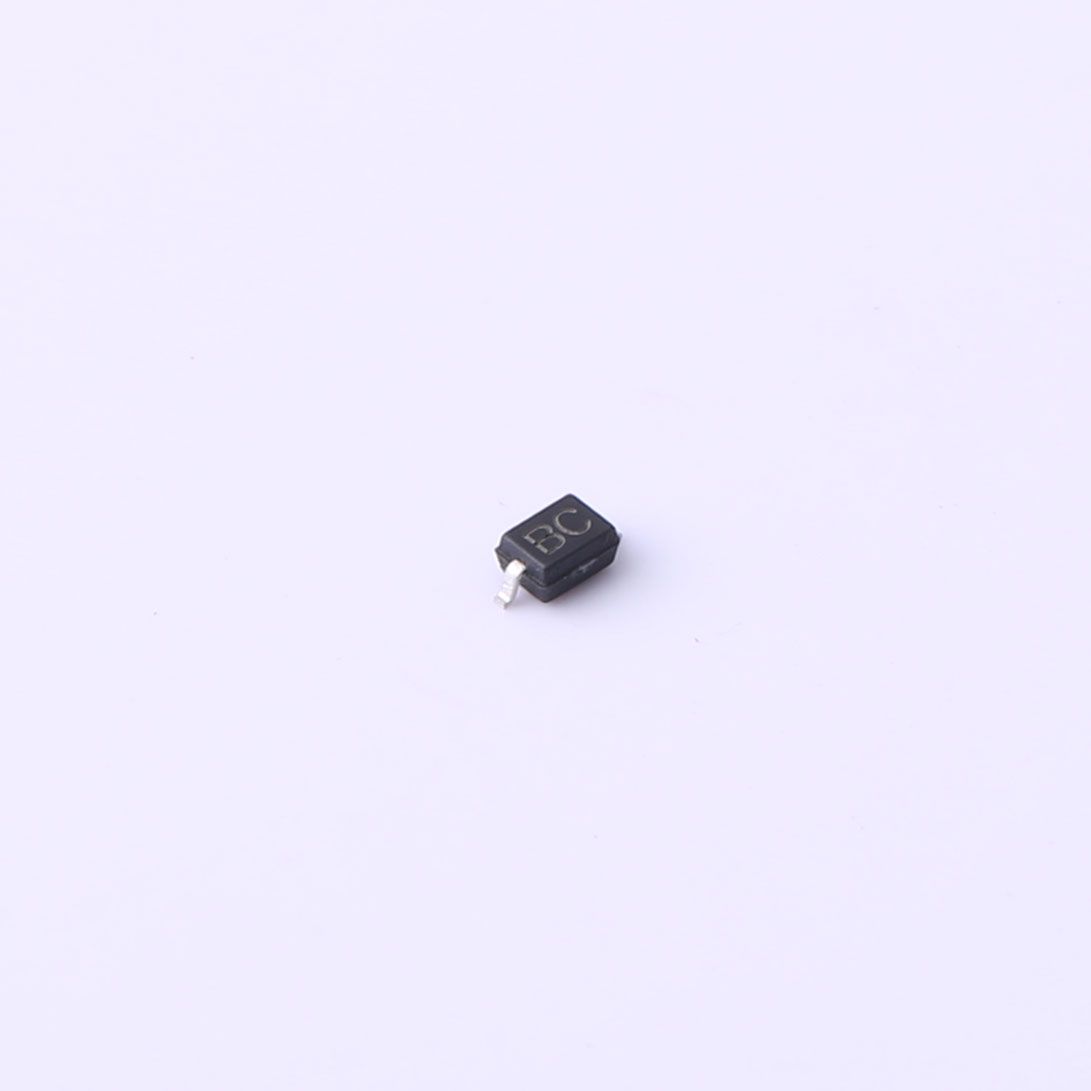

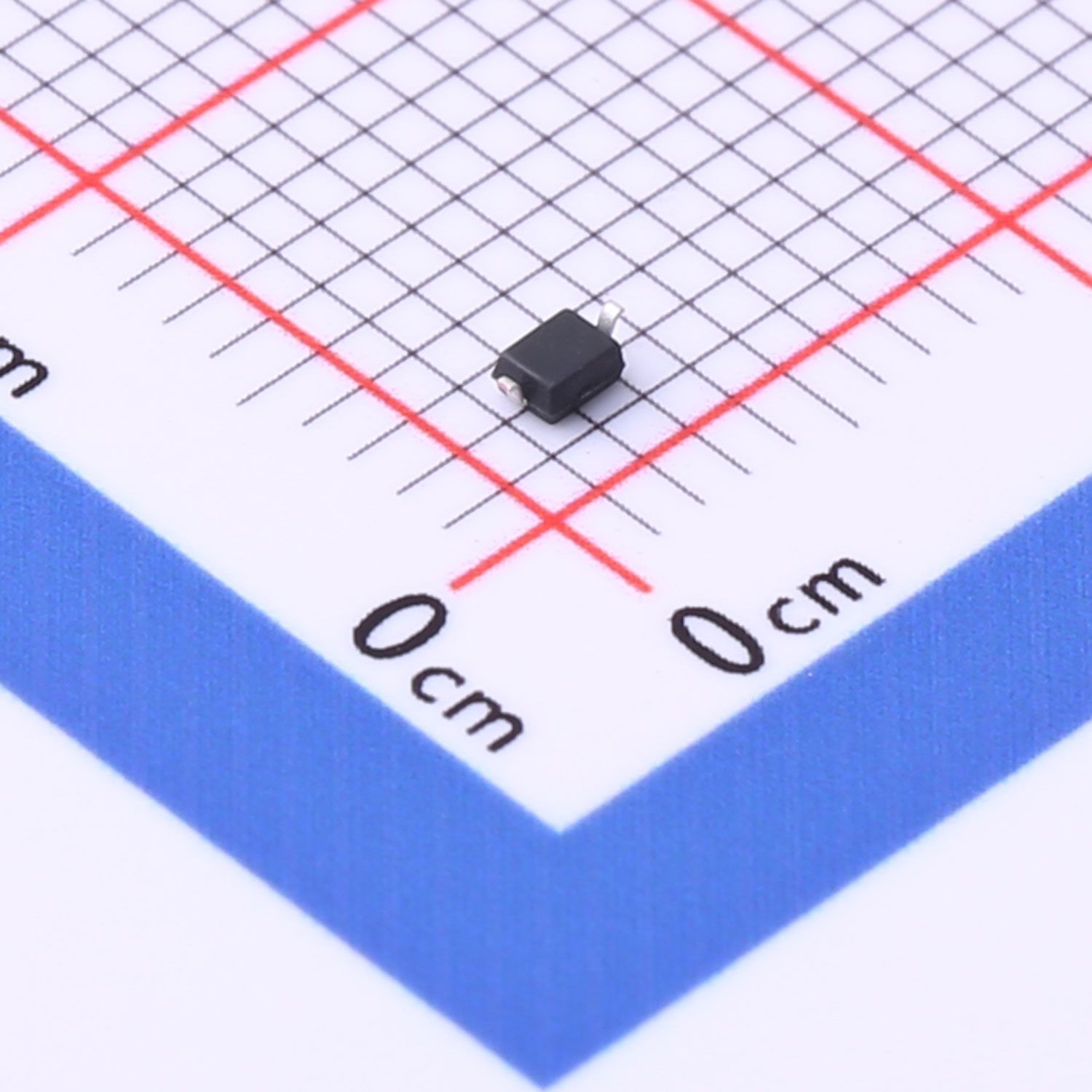

GBLC08CI ESD Protection Devices SOD-323
The GBLC08CI is a bidirectional ultra-low-capacitance transient-voltage-suppressor (TVS) array, packaged in compact SOD-323 surface-mount housing. It provides robust single-I/O-line protection against ESD, EFT and surge transients while preserving signal integrity for high-speed interfaces.
Description
The GBLC08CI is a bidirectional ultra-low-capacitance transient-voltage-suppressor (TVS) array, packaged in compact SOD-323 surface-mount housing. It provides robust single-I/O-line protection against ESD, EFT and surge transients while preserving signal integrity for high-speed interfaces.
Features
● Bidirectional single-channel I/O protection
● Ultra-low typical capacitance: 0.8pF
● Low leakage current
● Peak pulse power: 350W @8/20μs waveform
● Meets IEC 61000-4-2 ESD standard: ±15kV (air-discharge), ±8kV (contact-discharge)
● Complies with IEC 61000-4-4 EFT (40A, 5/50ns) and IEC 61000-4-5 lightning-surge (12A, 8/20μs)
● Low clamping voltage, fast response time < 1ns
● Working reverse voltage: 8.0V
● SOD-323 package with UL 94V-0 flammability rating
● High-temperature soldering capability: 260℃ /10 seconds
● Operating and storage temperature: -55℃ ~ +150℃
Applications
● Smartphone handsets and portable-device accessories
● USB high-speed interface protection
● Microprocessor-based electronic equipment
● Notebooks, desktops and servers
● Personal-digital assistants (PDAs)
● Portable instrumentation and peripheral modules
The GBLC08CI is a bidirectional ultra-low-capacitance transient-voltage-suppressor (TVS) array, packaged in compact SOD-323 surface-mount housing. It provides robust single-I/O-line protection against ESD, EFT and surge transients while preserving signal integrity for high-speed interfaces.
Features
● Bidirectional single-channel I/O protection
● Ultra-low typical capacitance: 0.8pF
● Low leakage current
● Peak pulse power: 350W @8/20μs waveform
● Meets IEC 61000-4-2 ESD standard: ±15kV (air-discharge), ±8kV (contact-discharge)
● Complies with IEC 61000-4-4 EFT (40A, 5/50ns) and IEC 61000-4-5 lightning-surge (12A, 8/20μs)
● Low clamping voltage, fast response time < 1ns
● Working reverse voltage: 8.0V
● SOD-323 package with UL 94V-0 flammability rating
● High-temperature soldering capability: 260℃ /10 seconds
● Operating and storage temperature: -55℃ ~ +150℃
Applications
● Smartphone handsets and portable-device accessories
● USB high-speed interface protection
● Microprocessor-based electronic equipment
● Notebooks, desktops and servers
● Personal-digital assistants (PDAs)
● Portable instrumentation and peripheral modules
