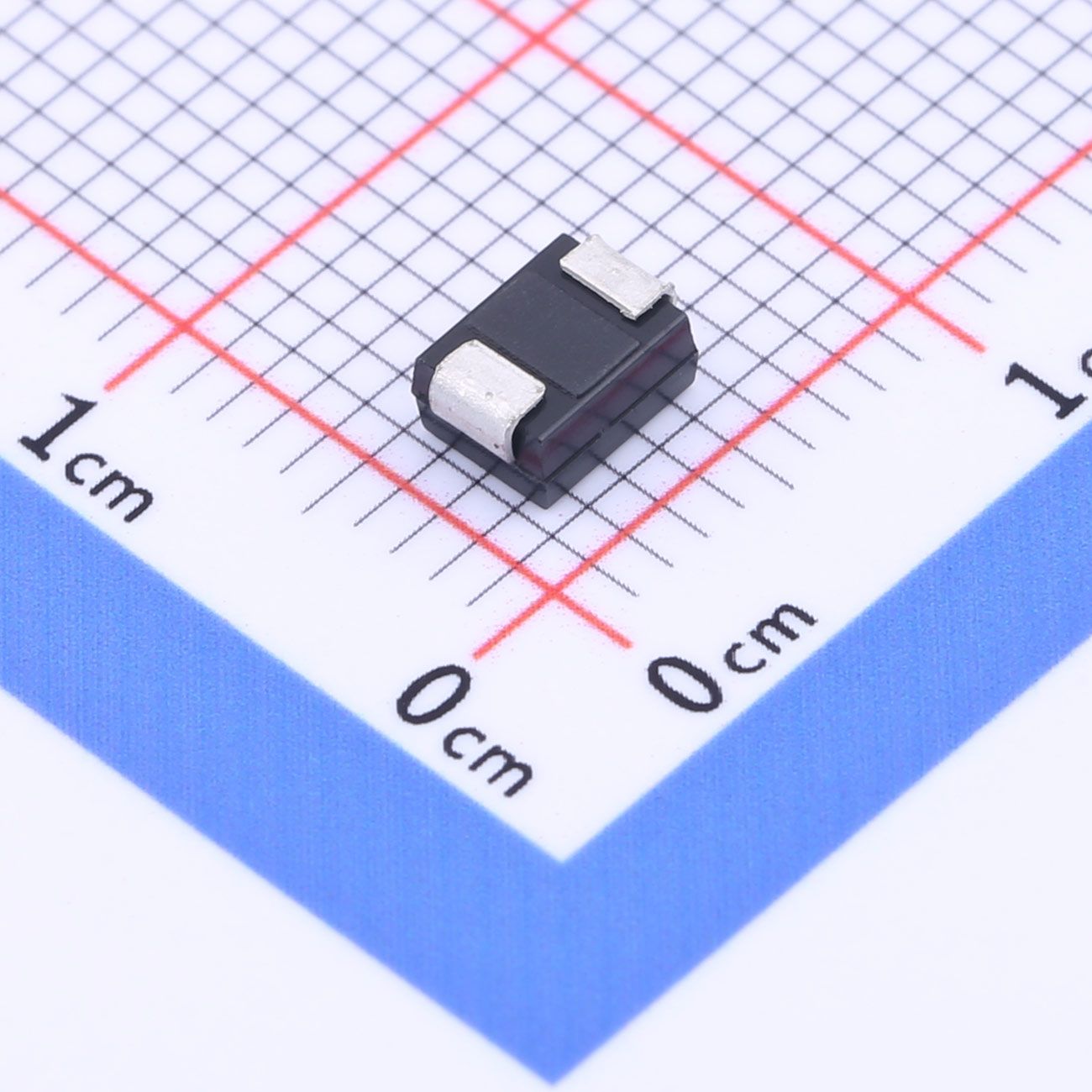

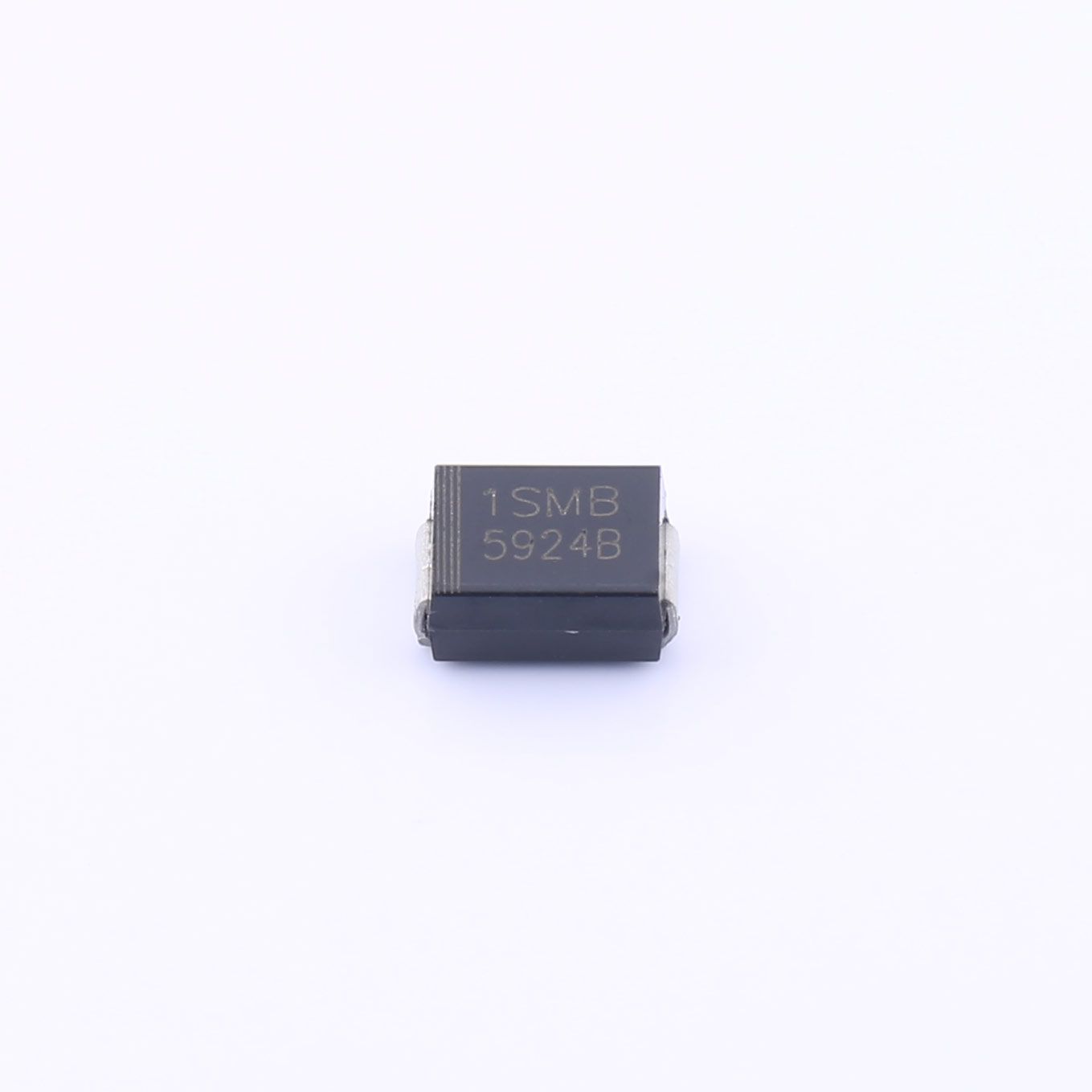

1SMB5924B Zener Diode SMB
The 1SMB5924B is a high-power Zener diode for voltage regulation and circuit-protection applications. It has a nominal Zener voltage of 9.1 V with a high power-handling capacity of 3 W. Featuring low reverse current and low impedance characteristics, it ensures circuit stability and reliability. Housed in an SMB package, it enables convenient PCB mounting.
Product Overview
The 1SMB5924B is a high-power Zener diode for voltage regulation and circuit-protection applications. It has a nominal Zener voltage of 9.1 V with a high power-handling capacity of 3 W. Featuring low reverse current and low impedance characteristics, it ensures circuit stability and reliability. Housed in an SMB package, it enables convenient PCB mounting.
Key Features
- Nominal Zener Voltage: 9.1 V - Power Rating: 3 W - Reverse Current: 5 μA @ 7 V - Zener Impedance: 4 Ω - Package: SMB
Product Advantages
- High Power-Handling Capacity: 3 W power rating to satisfy high-power circuit requirements.
- Excellent Stability: The 1SMB5924B delivers a stable 9.1 V output voltage to guarantee normal system operation.
- Low Reverse Current: Reverse current of 5 μA @ 7 V results in low current loss under normal operating conditions.
- Low Impedance: 4 Ω Zener impedance achieves reduced voltage fluctuation and current dissipation.
- Convenient Package: The SMB package with moderate dimensions allows easy installation on printed circuit boards.
Applications
- Power Supply Regulation: Suitable for various power supply circuits to provide stable 9.1 V output voltage. - Electronic Equipment Protection: Used in input-protection circuits of electronic devices to prevent damage caused by over-voltage and over-current. - Automatic Control Systems: Suitable for automatic control systems requiring stable reference voltage.
