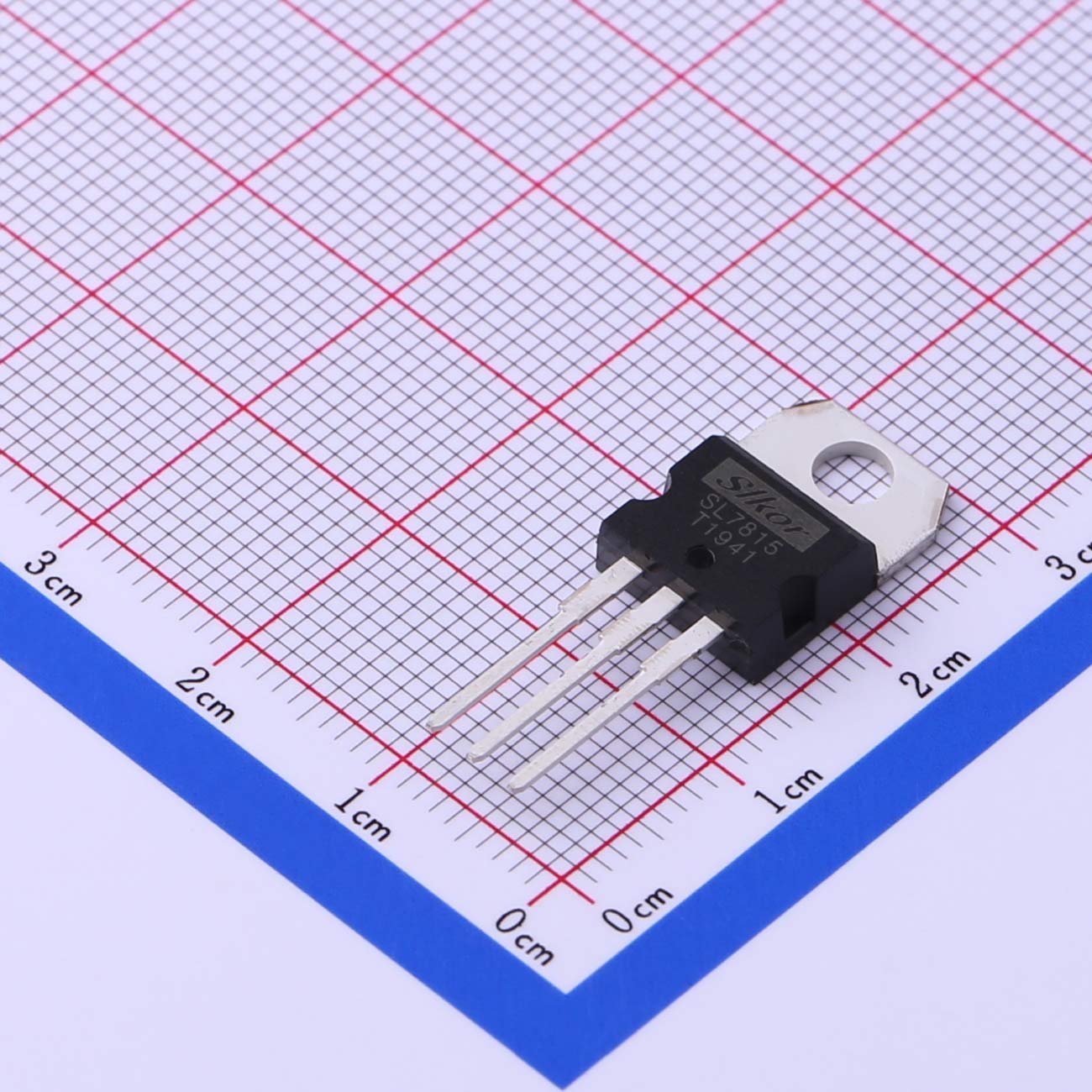

Slkor SL7815 Linear Regulator: 15V Output 1A TO‑220 Fixed Positive‑Output Voltage Regulator

SL7815 is a fixed positive-output linear regulator belonging to the SL7805-SL7824 series. It is packaged in TO-220 with maximum output current of 1 A and fixed 15 V DC output. The device integrates thermal-overload shutdown, short-circuit current limiting and output-transistor SOA protection. It delivers ripple-rejection performance for applications such as post-regulation for switching power supplies, microprocessor power supply and motherboard power circuits. This component is RoHS-compliant.

1. Core Product Parameters

1. Package Type: TO-220
2. Output Voltage: 15 V
3. Maximum Output Current: 1 A
4. Input Voltage Range: 17.5 V-30 V
5. Typical Dropout Voltage: 2.0 V
6. Maximum Quiescent Current: 8.0 mA
7. Typical Short-Circuit Output Current: 250 mA
8. Maximum Junction Temperature Rating: 150 ℃
9. Operating Temperature Range: -20 ℃ ~ 150 ℃
10. Storage Temperature Range: -55 ℃ ~ 150 ℃
11. Maximum Load Regulation of Output Voltage: 150 mV
12. Maximum Line Regulation of Output Voltage: 150 mV
13. RoHS Compliance: Yes

2. Key Product Features

1. Fixed 15 V output. This product series also covers multiple standard fixed-output levels ranging from 5 V to 24 V.
2. Maximum output current reaches 1 A to meet the requirements of medium-and-low-power DC power supply.
3. Built-in thermal-overload shutdown protection activates when junction temperature exceeds threshold to prevent thermal damage.
4. Integrated short-circuit current limiting function restricts output current under short-circuit conditions and reduces burnout risks.
5. Output-transistor safe-operating-area (SOA) protection prevents damage when the output transistor works beyond safe conditions.
6. Good ripple-rejection capability suppresses AC ripple interference from power input.
7. RoHS-compliant for electronic products requiring environmental certification.

3. Main Application Fields

1. High-efficiency linear regulated power supply for stable 15 V DC output.
2. Post-regulation for switching power supplies to improve output-voltage quality.
3. Power-supply circuits for microprocessors and their peripherals.
4. On-board power supply for computer motherboards and industrial control boards.
5. Internal 15 V power-supply circuits of various industrial equipment and instruments.

4. Engineering Design Recommendations

1. This device has dropout voltage. To guarantee regulation accuracy, input voltage shall be at least 2.0 V higher than output voltage. Input voltage shall never exceed the specified maximum rating.
2. Power dissipation occurs during operation. Proper heat sink must be fitted for TO-220 package according to actual power consumption. Sustained available output current depends heavily on heat-dissipation conditions.
3. Capacitors of recommended capacitance shall be fitted at input and output terminals to improve transient response and suppress oscillation. Refer to values suggested in datasheet.
4. Short-circuit protection is available, yet continuous long-term short-circuit operation is prohibited as it accelerates component aging.
5. Ambient and junction temperature shall stay within rated ranges. Derating is required for high-temperature working conditions.
6. Keep input-loop and output-loop traces as short as possible in PCB layout to minimize the impact of lead resistance on regulation performance.

5. Product Summary

SL7815 is a 1-A class fixed positive linear regulator with 15 V output in TO-220 package. It features comprehensive on-chip protection, stable output voltage and simple peripheral circuits. It is a widely-adopted component for traditional 15 V linear power-supply solutions. It is suitable for post-regulation of switching power supplies, microprocessor systems and industrial control boards. In practical engineering practice, proper thermal design and valid input-to-output dropout condition are essential to achieve full device performance.
