SLPESD3V3S1BA-N is a transient-voltage suppressor intended to protect voltage-sensitive electronic components against transient over-voltage shocks caused by Electro-Static Discharge (ESD), Cable Discharge Events (CDE) and Electrical Fast Transients (EFT). With excellent clamping performance, low leakage current and fast response speed, this component adopts the miniature SOD-523 surface-mount package for designs with limited PCB space, and provides over-voltage protection for single-channel I/O and data transmission lines. It is made of halogen-free material, supplied in 7-inch tape-and-reel packaging with 3000 pieces per reel, and compatible with high-volume SMT assembly processes.

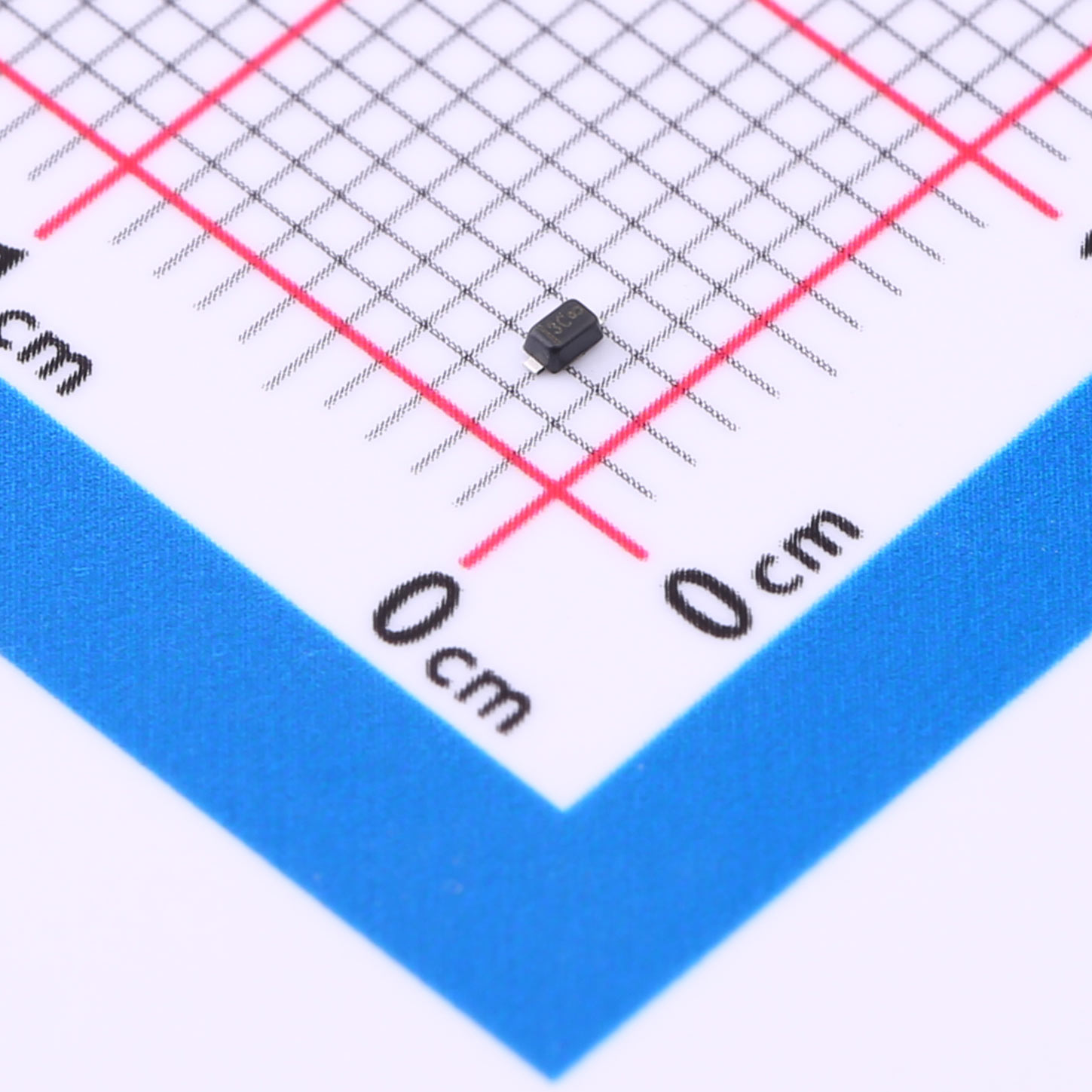

Slkor Electrostatic Discharge Diode SLPESD3V3S1BA-N product photo

1. Key Product Parameters

1. Package & Packaging: SOD-523 surface-mount package, halogen-free; 7-inch tape-and-reel, 3000pcs per reel; UL94V-0 flammability rating; capable of 260℃ / 10s high-temperature reflow soldering.
2. Electrical Voltage Parameters: Maximum reverse working voltage \(V_{RWM}\): 3.3V; minimum reverse breakdown voltage \(V_{BR}\): 3.6V @ \(I_T=1\mathrm{mA}\); maximum reverse leakage current: 1.0μA at 3.3V operating voltage.
3. Surge Withstand Capability: Peak pulse power reaches 60W under 8/20μs pulse waveform.
4. ESD Performance (IEC61000-4-2): ±30kV contact discharge, ±30kV air-gap discharge.
5. EFT Performance (IEC61000-4-4): 40A (5/50ns).
6. Clamping Voltage: Max 6.5V under 8/20μs at 1A peak pulse current; max 12.0V under 8/20μs at 5A peak pulse current; typical TLP clamping voltage: 9V.
7. Junction Capacitance: Maximum 16.5pF at zero-bias voltage and 1 MHz test frequency.
8. Temperature Range: Operating temperature: -40℃ ~ +150℃; storage temperature: -40℃ ~ +150℃.
9. Protection Channel: One single device protects one I/O signal line.

2. Core Product Features

1. High-level ESD Protection: Compliant with IEC61000-4-2 standard, offering ±30kV protection for both contact and air discharge; it also suppresses electrical fast transients defined by IEC61000-4-4.
2. Excellent Clamping Performance: It responds rapidly to transient over-voltage and clamps surge voltage to a low level to safeguard downstream sensitive semiconductors.
3. Low Leakage Current: Leakage current ≤1.0μA at rated 3.3V, featuring low static power consumption and suitable for battery-powered electronic products.
4. Low Junction Capacitance: Maximum 16.5pF, introducing minor distortion to high-speed data signals and suitable for various high-speed transmission interfaces.
5. Miniature Surface-mount Package: Compact SOD-523 footprint saves PCB space and supports miniaturized product designs.
6. Environmental-friendly & Process-compatible: Halogen-free material meets environmental requirements; supports 260℃ high-temperature reflow soldering for standard SMT manufacturing.
7. Single-channel Protection: One single device provides ESD and surge over-voltage protection for one I/O port.

3. Main Application Fields

• Mobile handsets and mobile accessories
• Microprocessor-centric electronic equipment
• Personal Digital Assistants (PDAs)
• Notebooks, desktop computers and servers
• Portable instrumentation
• Networking and telecommunication equipment
• Serial and parallel interfaces
• ESD protection for various peripheral interfaces

4. Engineering Design Recommendations

1. PCB Layout and Routing: Place the protection device as close as possible to the protected I/O connector to shorten signal traces. Keep ground-return traces short and wide to reduce parasitic inductance, so that transient energy can be diverted to ground quickly and clamping performance will not degrade.
2. High-speed Signal Evaluation: Since the device has intrinsic junction capacitance, evaluate the influence of maximum 16.5pF capacitance on signal integrity for high-speed signal lines to avoid signal attenuation and waveform distortion.
3. Power Derating: Derate peak pulse power according to the datasheet power-derating curve when ambient temperature is higher than 25℃. Full-power operation is forbidden under high-temperature conditions.
4. Voltage Matching Requirement: The maximum reverse working voltage is 3.3V. It shall only be used on 3.3V signal or power lines. Continuous DC voltage exceeding \(V_{RWM}\) will cause abnormal leakage or permanent device damage.
5. Application Limitations: This component is designed for short-time transient pulses such as ESD, CDE and EFT. It cannot sustain long-duration over-voltage, which will directly lead to device failure.
6. Soldering Control: The peak reflow temperature shall not exceed 260℃ and soldering duration shall be kept within 10 seconds to prevent thermal damage.

5. Product Summary

SLPESD3V3S1BA-N is a single-channel 3.3V transient-voltage suppressor packaged in SOD-523. It provides ±30 kV ESD protection with low leakage current, low junction capacitance and fast clamping response. Its small package is well-suited for high-density PCB layouts.

This component is mainly applied for ESD and transient over-voltage protection on 3.3V I/O ports and data transmission lines, widely used in consumer electronics, computers, telecommunication equipment and portable instruments. In practical engineering, close-to-connector placement, optimized grounding routing, proper voltage matching and high-temperature power derating are required to achieve full protective performance.
