SLPESD3V3S1BA-N Transient Voltage Suppressor
SLPESD3V3S1BA-N Transient Voltage Suppressor
Description
The SLPESD3V3S1BA-N is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
● IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● Peak power dissipation: 60W (8/20μs)
● Protects one I/O line
● Low clamping voltage
● Working voltages : 3.3V
● Low leakage current
Mechanical Data
● SOD-523 package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
● MSL1
Ordering Information
● Device: SLPESD3V3S1BA-N
● Package: SOD-523
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs
Applications
● Cell Phone Handsets andAccessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● Serial and Parallel Ports
● Peripherals
Name
Title
Description

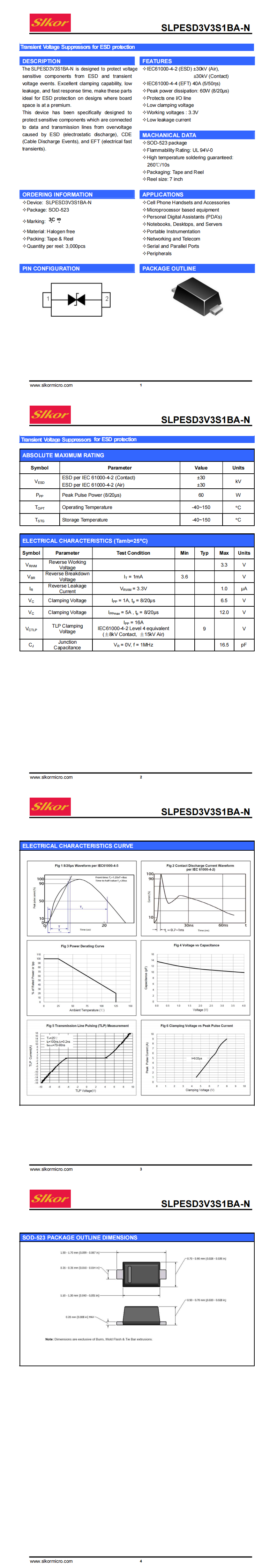

Datasheet
