Description

Features

• Ultra-high peak pulse power capacity: 5000W for 10/1000μs surge waveform
• Bidirectional design to suppress surges of both polarities without polarity restriction
• Low-profile SMC package with low inductance to minimize voltage overshoot during surge events
• Ultra-fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
• Ultra-low reverse leakage current: IR ≤ 1μA for all models with VRWM above 12V
• Excellent clamping performance to rapidly limit surge voltage within a safe range
• Molded plastic housing with UL94V-0 flame retardant grade, fully RoHS compliant
• Solder-plated terminals, solderable per MIL-STD-750 Method 2026 industrial standard
• Wide temperature tolerance: operating junction temperature -55℃ ~ +125℃; storage temperature -55℃ ~ +150℃
• Standard tape & reel packaging: 3000 pieces per 13-inch reel for automatic SMT production
• Core electrical parameters tested at 25℃ ambient temperature:


  VRWM=58.0V, VBR=64.40V~71.20V @ IT=1mA, IR≤1μA, VC=93.6V, IPP=53.42A

Our advantages

1. 5000W heavy surge endurance, much stronger than low-power SMA TVS, suitable for industrial heavy surge protection scenarios
2. Integrated bidirectional structure replaces two unidirectional TVS devices, simplifying PCB layout and reducing BOM cost
3. Low-inductance SMC body effectively restricts voltage spikes to prevent secondary damage to core electronic components
4. Picosecond-level ultra-fast response instantly dissipates ESD and lightning surge energy without delay
5. Microampere tiny leakage current cuts standby power consumption, ideal for battery-powered electronics
6. Slim compact outline saves PCB layout space, matching miniaturized thin product design requirements
7. RoHS-compliant flame-retardant plastic shell complies with global electronic safety and environmental regulations
8. Stable electrical performance under extreme high and low temperatures, adaptable to outdoor, automotive and harsh industrial environments
9. Uniform tape reel packaging supports fully automatic high-speed SMT assembly lines to boost production efficiency and lower labor cost

Mechanical Data

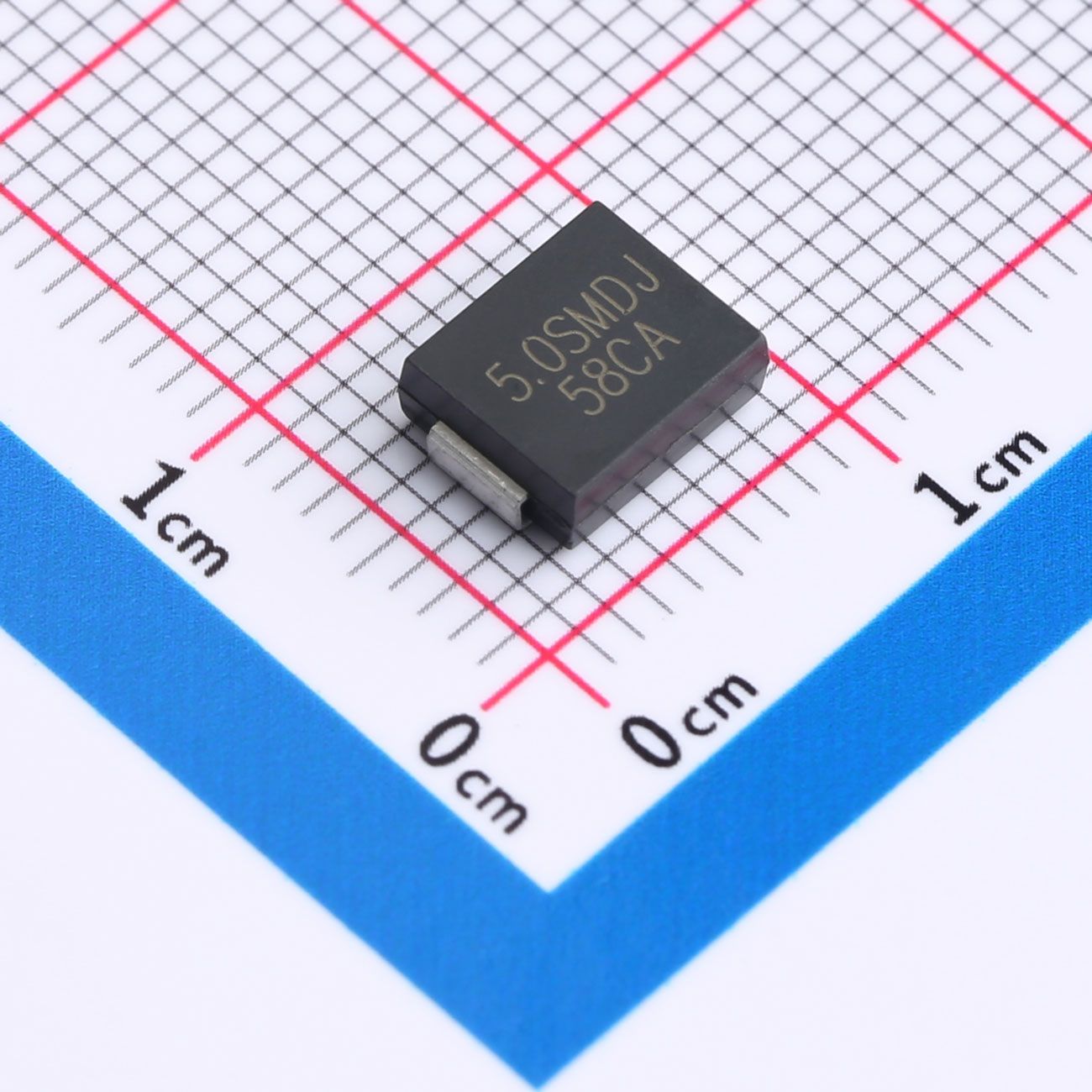

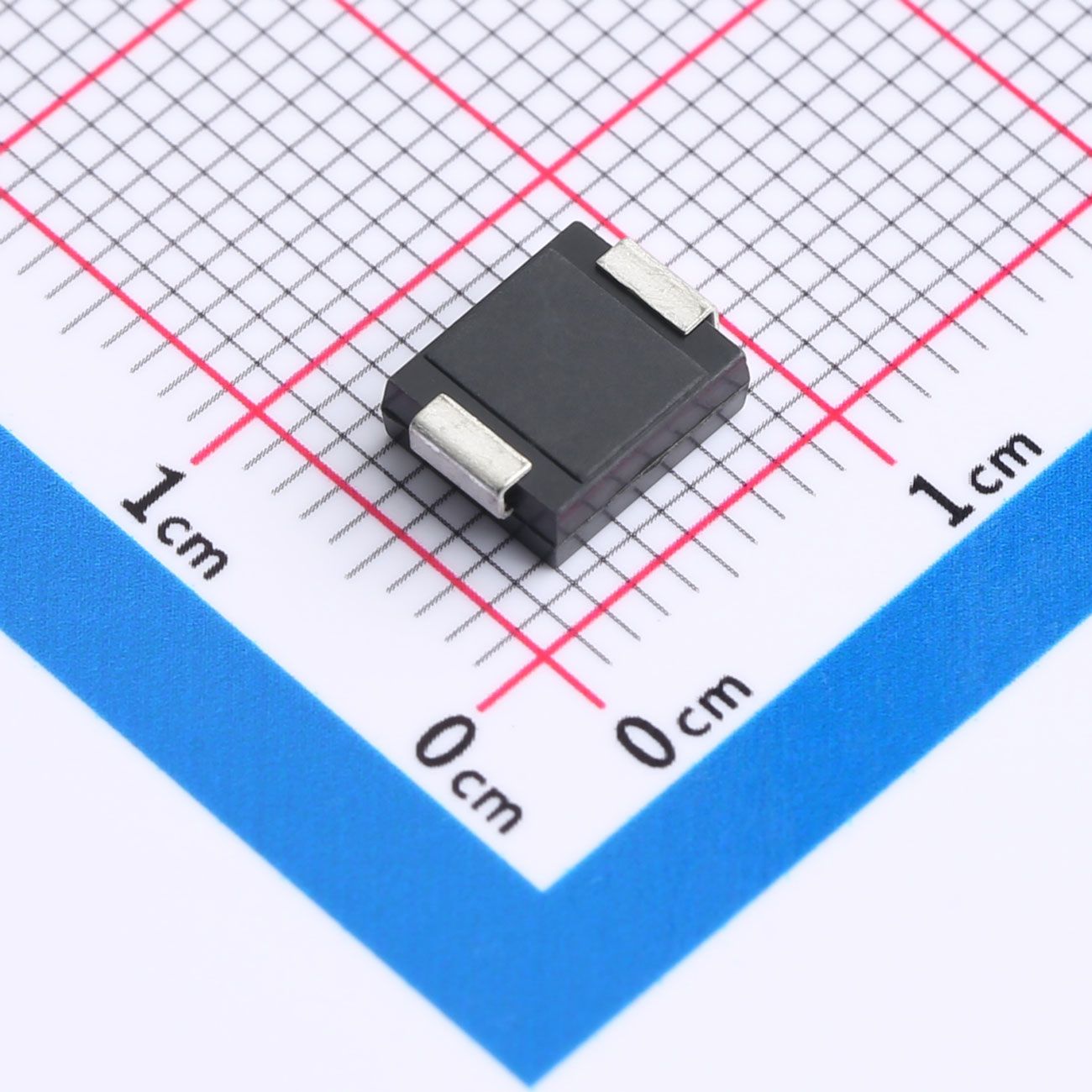

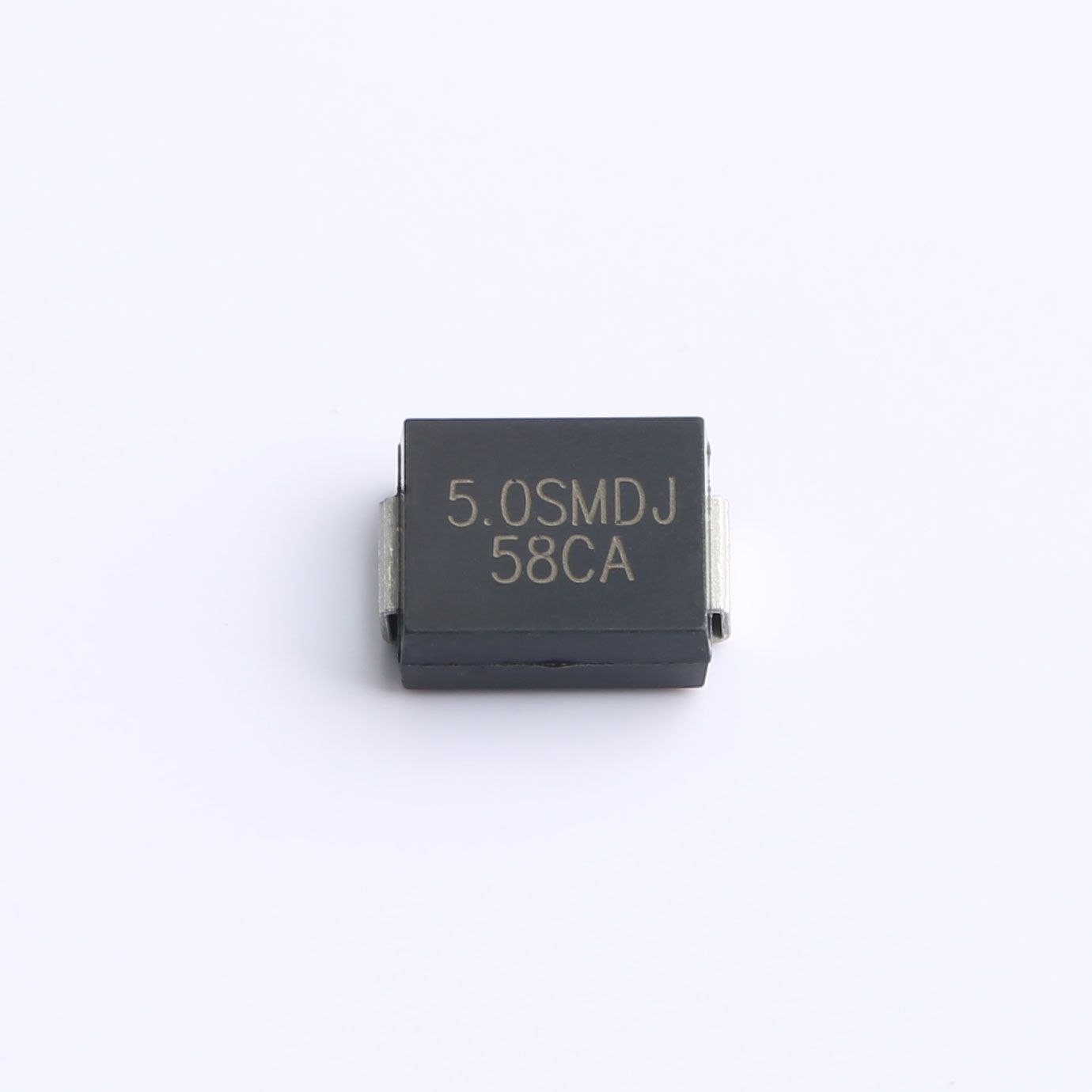

1. Package Type: SMC (DO-214AB), transfer molded plastic encapsulation
2. Case Property: UL94V-0 flame retardant, RoHS compliant
3. Terminal Treatment: Solder plated, compatible with standard soldering processes
4. Polarity Feature: Bidirectional model has no cathode color band marking limit
5. Approximate Single Unit Weight: 0.28g
6. Dimension Standard: Standard SMC maximum dimensions (unit: mm)
7. Packaging Specification: 3000 pieces per 13-inch tape reel
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature Range: -55℃ ~ +150℃

Applications

• Computer systems and peripheral equipment
• Household electrical appliances
• Video signal input interfaces
• Industrial control modules
• AC/DC switching power supplies
• Wired communication ports
• Automotive electronic control circuits
• Security monitoring devices
• Precision measuring instruments
