Description

Features

• High peak pulse power rating: 5000W for 10/1000μs surge waveform
• Unidirectional overvoltage suppression design for single-polarity circuit protection
• Low-profile SMC package with low inductance to reduce voltage overshoot during surges
• Ultra-fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
• Ultra-low reverse leakage current: IR ≤ 1μA for all models with VRWM above 12V
• Excellent voltage clamping performance to rapidly restrict surge voltage to a safe level
• Molded plastic housing with UL94V-0 flame retardant grade, fully RoHS compliant
• Solder-plated terminals, solderable in accordance with MIL-STD-750 Method 2026
• Wide temperature adaptability: operating junction temperature -55℃ ~ +125℃; storage temperature -55℃ ~ +150℃
• Standard tape & reel packaging: 3000 pieces per 13-inch reel for automated SMT assembly
• Core electrical parameters tested at 25℃ ambient temperature:


  VRWM=58.0V, VBR=64.40V~71.20V @ IT=1mA, IR≤1μA, VC=93.6V, IPP=53.42A

Our advantages

1. 5000W super high surge bearing capacity, far better protective performance than small SMA TVS, ideal for industrial heavy surge application scenarios
2. Low-inductance SMC package structure minimizes voltage spikes during transient pulses to avoid secondary chip damage
3. Picosecond-level ultra-fast response instantly absorbs ESD and lightning surge energy without delay
4. Microampere tiny leakage current greatly reduces standby power consumption, perfect for battery-powered electronic devices
5. Slim compact outline saves PCB layout space, matching the design requirements of miniaturized and thin electronic products
6. Flame-retardant RoHS plastic shell meets global electronic safety and environmental protection standards
7. Stable electrical characteristics under extreme high and low temperatures, suitable for outdoor, automotive and harsh industrial environments
8. Uniform tape reel packaging supports fully automatic high-speed SMT production lines to improve assembly efficiency and cut labor costs

Mechanical Data

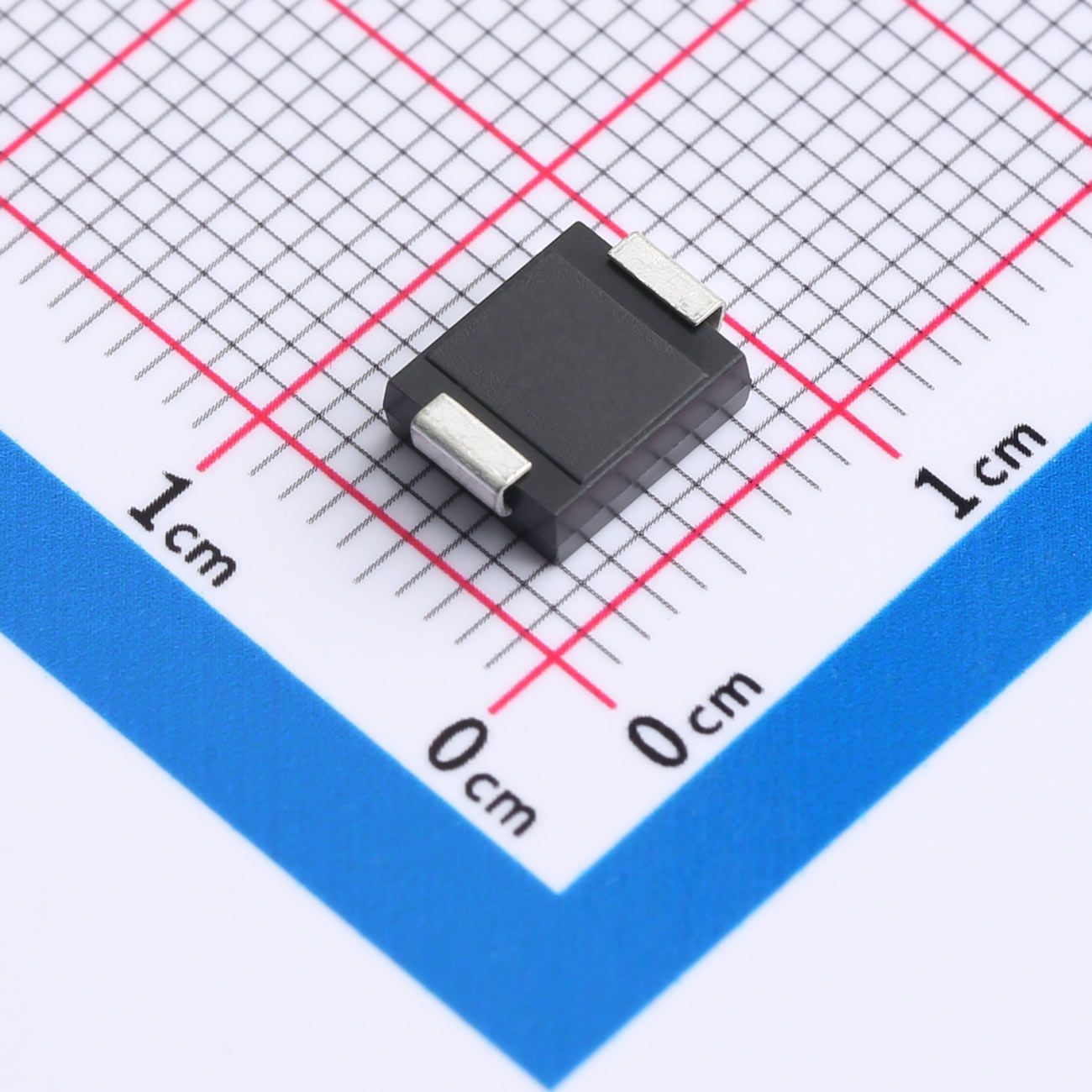

1. Package Type: SMC (DO-214AB), transfer molded plastic encapsulation
2. Case Performance: UL94V-0 flame retardant, RoHS compliant
3. Terminal Treatment: Solder plated, compatible with standard industrial soldering processes

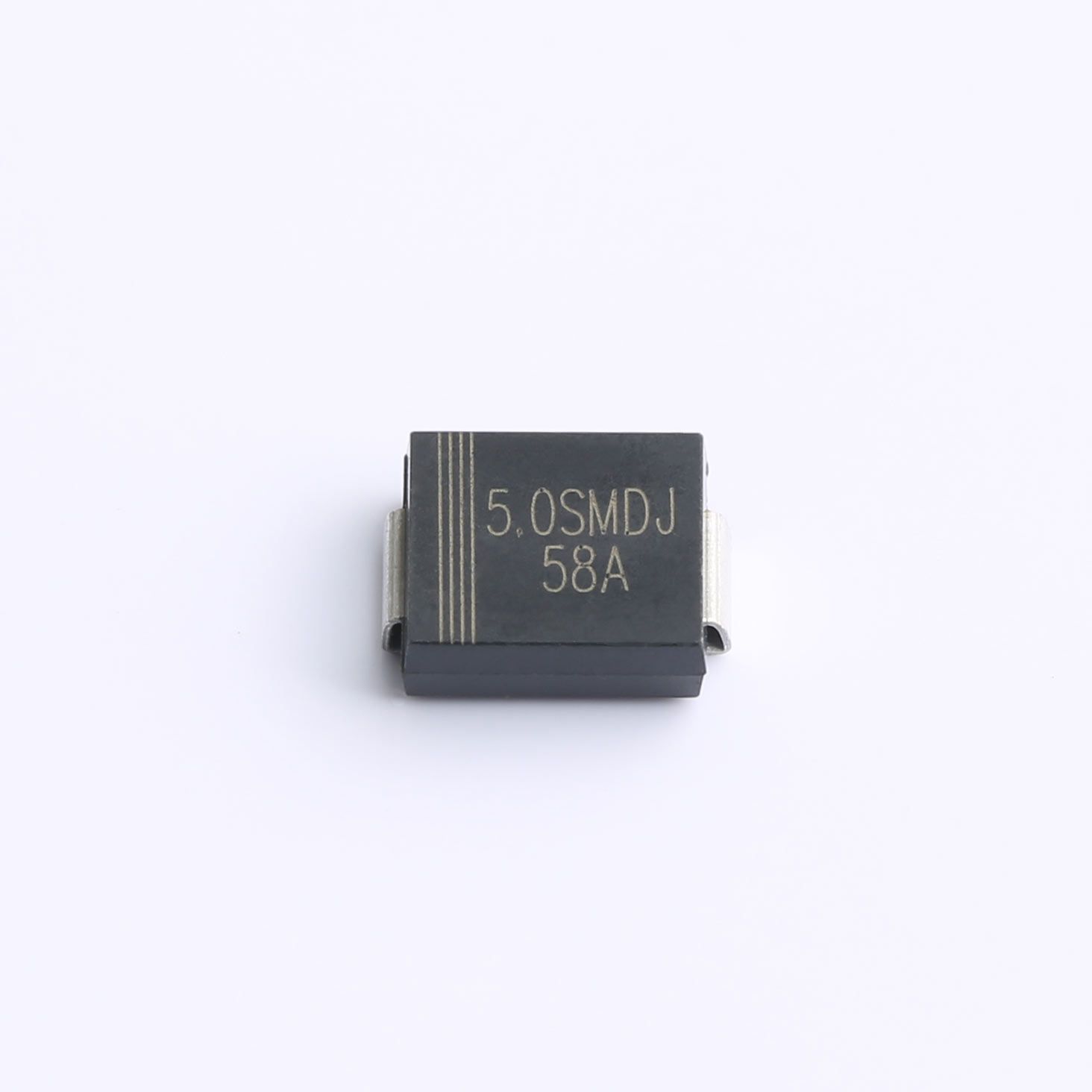

4. Polarity Mark: Color band printed on the body marks the cathode terminal (unidirectional model)
5. Approximate Single Weight: 0.28g
6. Dimension Standard: Standard SMC maximum dimensions (unit: mm)
7. Packaging Spec: 3000 pieces per 13-inch tape reel
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature Range: -55℃ ~ +150℃

Applications

• Computer systems and peripheral equipment
• Household electrical appliances
• Video signal input interfaces
• Industrial control modules
• AC/DC switching power supplies
• Wired communication ports
• Automotive electronic control units
• Security monitoring equipment
• Precision measuring instruments
