Description

Features

• Ultra-high peak pulse power: 5000W for 10/1000μs surge waveform
• Bidirectional structure to suppress surges of both positive and negative polarities without polarity limitation
• Low-profile SMC package with low inductance to reduce voltage overshoot during surge impact
• Ultra-fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
• Ultra-low reverse leakage current: IR ≤ 1μA for all models with VRWM above 12V
• Excellent voltage clamping capability to rapidly limit surge voltage to a safe range
• Molded plastic housing with UL94V-0 flame retardant grade, fully RoHS compliant
• Solder-plated terminals, solderable per MIL-STD-750 Method 2026 industry standard
• Wide temperature operating window: operating junction temperature -55℃ ~ +125℃; storage temperature -55℃ ~ +150℃
• Standard tape & reel packing: 3000 pieces per 13-inch reel for automated SMT assembly
• Core electrical parameters tested at 25℃ ambient temperature:


  VRWM=64.0V, VBR=71.10V~78.60V @ IT=1mA, IR≤1μA, VC=103.0V, IPP=48.55A

Our advantages

1. 5000W heavy surge load capacity, much stronger protective performance than small SMA TVS, suitable for industrial heavy surge protection scenarios
2. Single bidirectional TVS replaces two unidirectional devices, simplifying PCB layout and cutting BOM cost
3. Low-inductance SMC body effectively suppresses voltage spikes during transient pulses to avoid secondary component breakdown
4. Picosecond ultra-fast response instantly dissipates ESD and lightning surge energy with no delay
5. Microampere tiny leakage minimizes standby power consumption, ideal for battery-powered electronic products
6. Slim compact outline saves PCB layout space, meeting miniaturized thin equipment design requirements
7. RoHS-compliant flame-retardant plastic shell meets global electronic safety and environmental regulations
8. Stable electrical performance under extreme high and low temperatures, adaptable to outdoor, automotive and harsh industrial environments
9. Uniform tape reel packaging supports full-automatic high-speed SMT production lines to raise assembly efficiency and lower labor cost

Mechanical Data

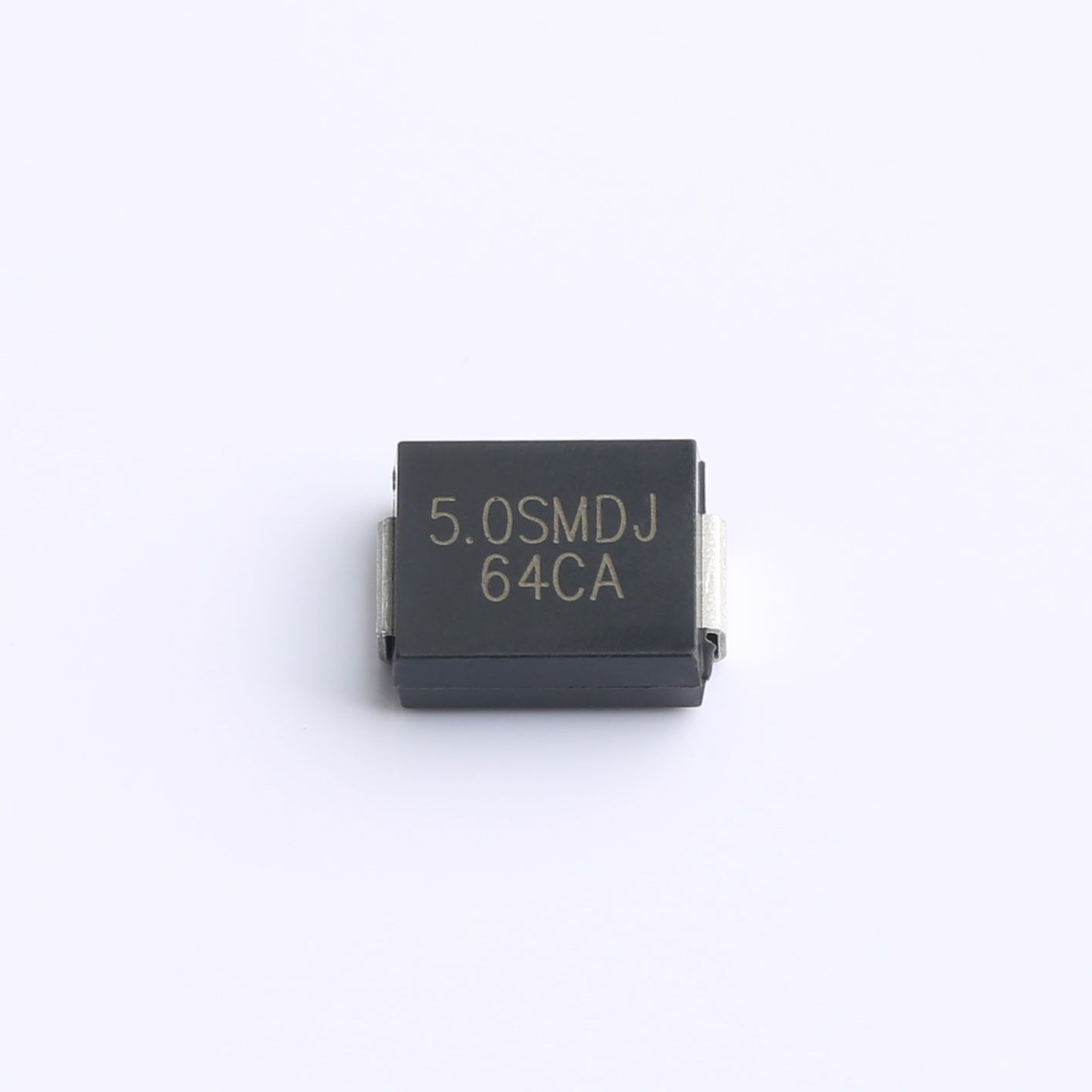

1. Package Type: SMC (DO-214AB), transfer molded plastic encapsulation
2. Case Property: UL94V-0 flame retardant, RoHS compliant
3. Terminal Treatment: Solder plated, compatible with standard industrial soldering processes
4. Polarity Feature: Bidirectional model without cathode color band identification limit
5. Approximate Single Weight: 0.28g

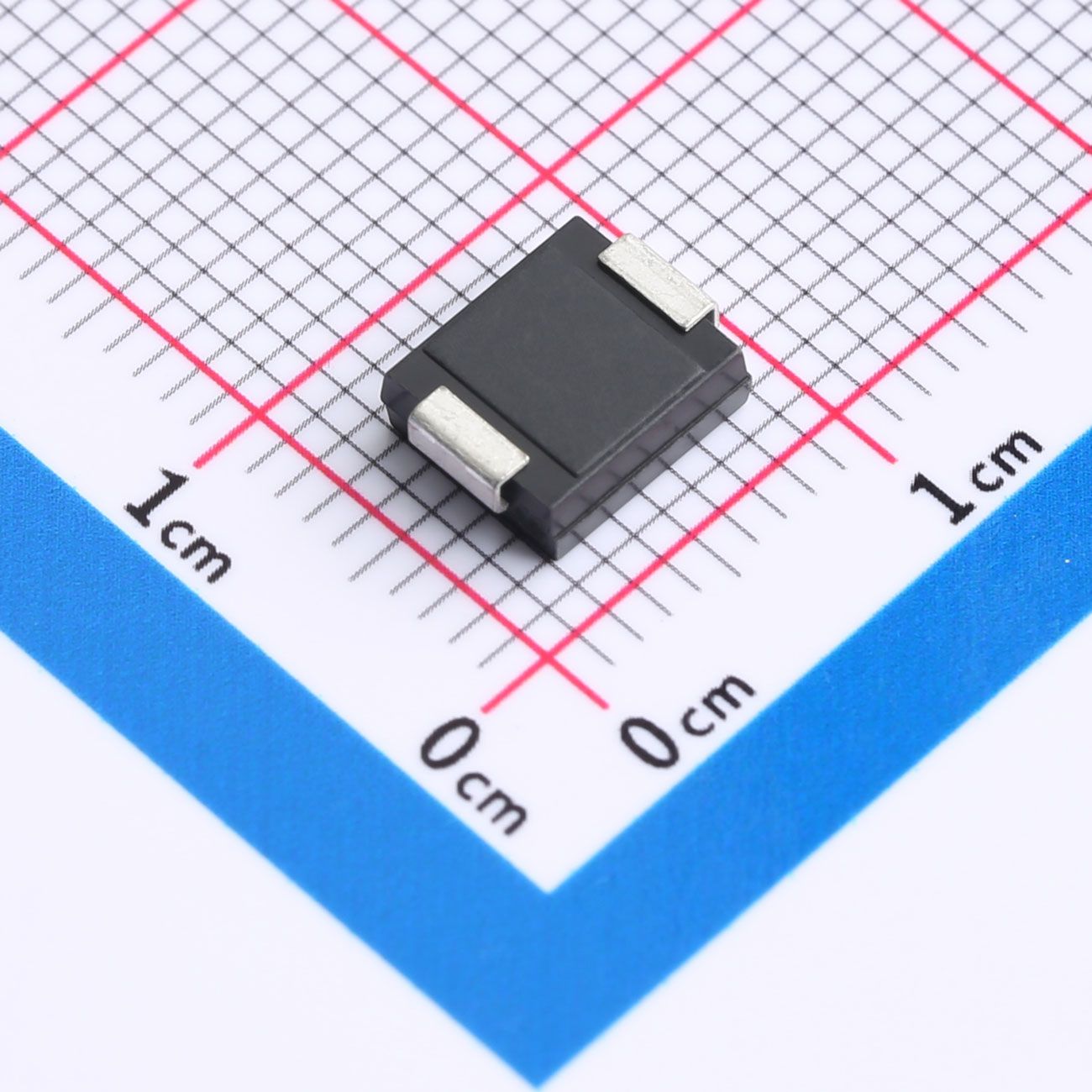

6. Dimension Standard: Standard SMC maximum dimensions (unit: mm)
7. Packaging Spec: 3000 pieces per 13-inch tape reel
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature Range: -55℃ ~ +150℃

Applications

• Computer systems and peripheral devices
• Household electrical appliances
• Video signal input interfaces
• Industrial control modules
• AC/DC switching power supplies
• Wired communication ports
• Automotive electronic control circuits
• Security monitoring equipment
• Precision measuring instruments
