Description

Features

• Ultra-high peak pulse power: 5000W for 10/1000μs surge waveform
• Bidirectional protection design to suppress surges of both polarities without polarity restriction
• Low-profile SMC package with low inductance to reduce voltage overshoot during surge impact
• Ultra-fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
• Ultra-low reverse leakage current: IR ≤ 1μA for all models with VRWM above 12V
• Excellent voltage clamping capability to rapidly limit surge voltage to a safe range
• Molded plastic housing with UL94V-0 flame retardant grade, fully RoHS compliant
• Solder-plated terminals, solderable in accordance with MIL-STD-750 Method 2026
• Wide temperature adaptability: operating junction temperature -55℃ ~ +125℃; storage temperature -55℃ ~ +150℃
• Standard tape & reel packaging: 3000 pieces per 13-inch reel for automated SMT assembly
• Core electrical parameters tested at 25℃ ambient temperature:


  VRWM=70.0V, VBR=77.80V~86.00V @ IT=1mA, IR≤1μA, VC=113.0V, IPP=44.25A

Our advantages

1. 5000W heavy surge bearing capacity, far superior to low-power SMA TVS, ideal for industrial heavy surge protection scenarios
2. Integrated bidirectional structure replaces two separate unidirectional TVS diodes, simplifying PCB layout and cutting BOM cost
3. Low-inductance SMC body effectively minimizes voltage spikes during transient pulses to avoid secondary chip damage
4. Picosecond-level ultra-fast response instantly clamps ESD and lightning surges without delay
5. Microampere tiny leakage current greatly reduces standby power consumption, perfect for battery-powered electronic products
6. Slim compact outline saves PCB layout space, matching miniaturized and thin product design requirements
7. RoHS-compliant flame-retardant plastic shell complies with global electronic safety and environmental protection standards
8. Stable electrical characteristics under extreme high and low temperatures, applicable to outdoor, automotive and harsh industrial environments
9. Standard tape reel packaging supports fully automatic high-speed SMT production lines to improve assembly efficiency and lower labor costs

Mechanical Data

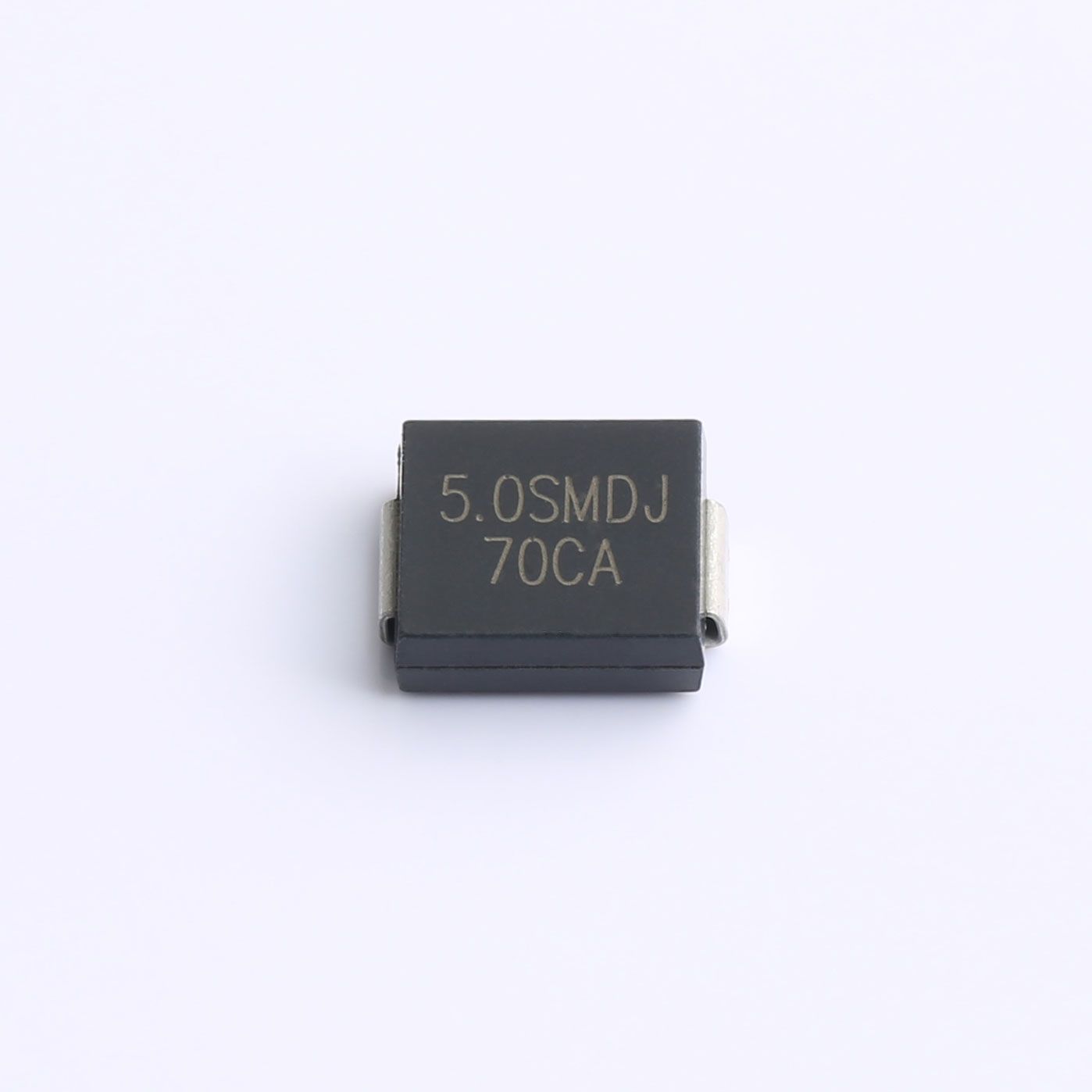

1. Package Type: SMC (DO-214AB), transfer molded plastic encapsulation
2. Case Performance: UL94V-0 flame retardant, RoHS compliant
3. Terminal Treatment: Solder plated, compatible with standard industrial soldering processes
4. Polarity Feature: Bidirectional model without cathode color band identification limit
5. Approximate Single Weight: 0.28g

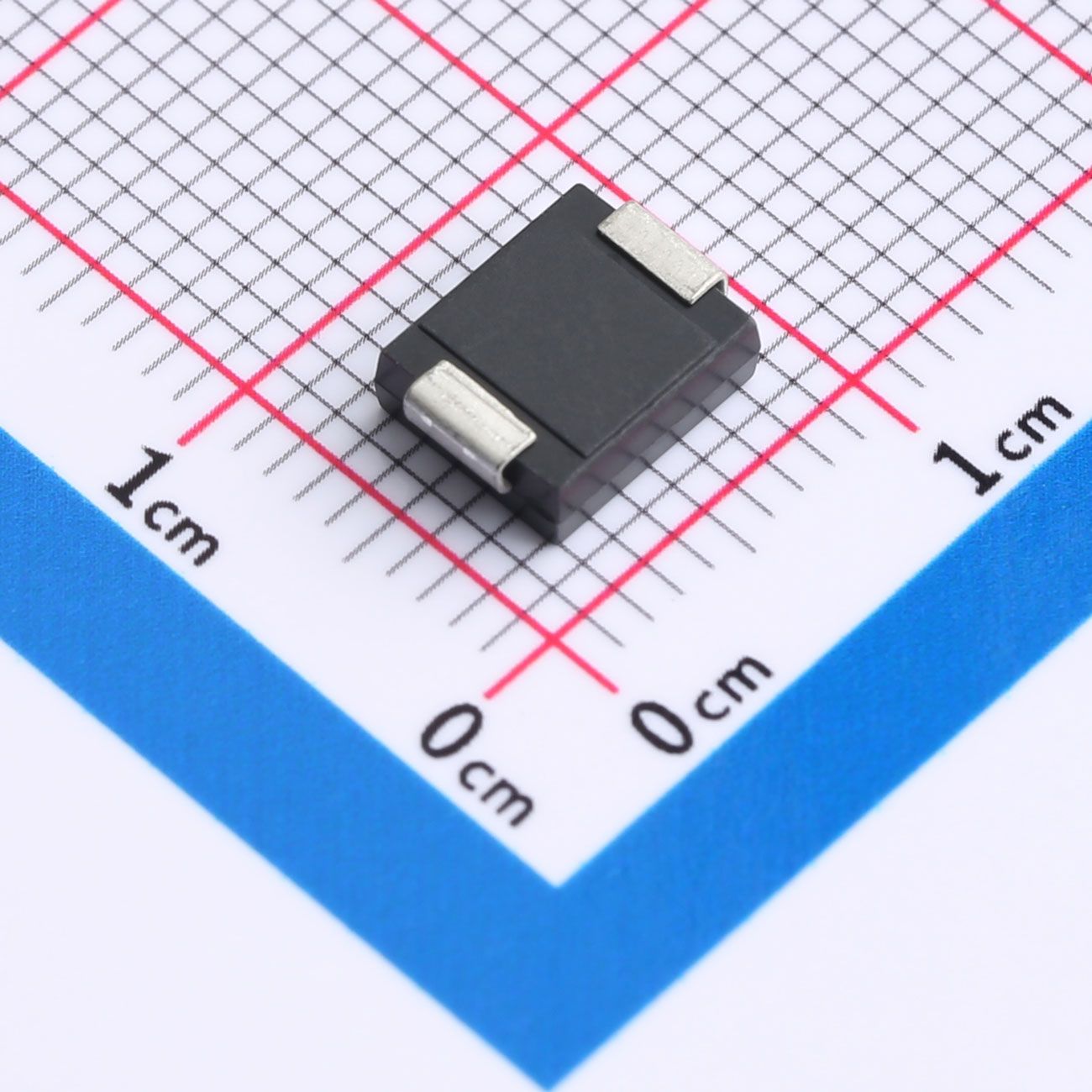

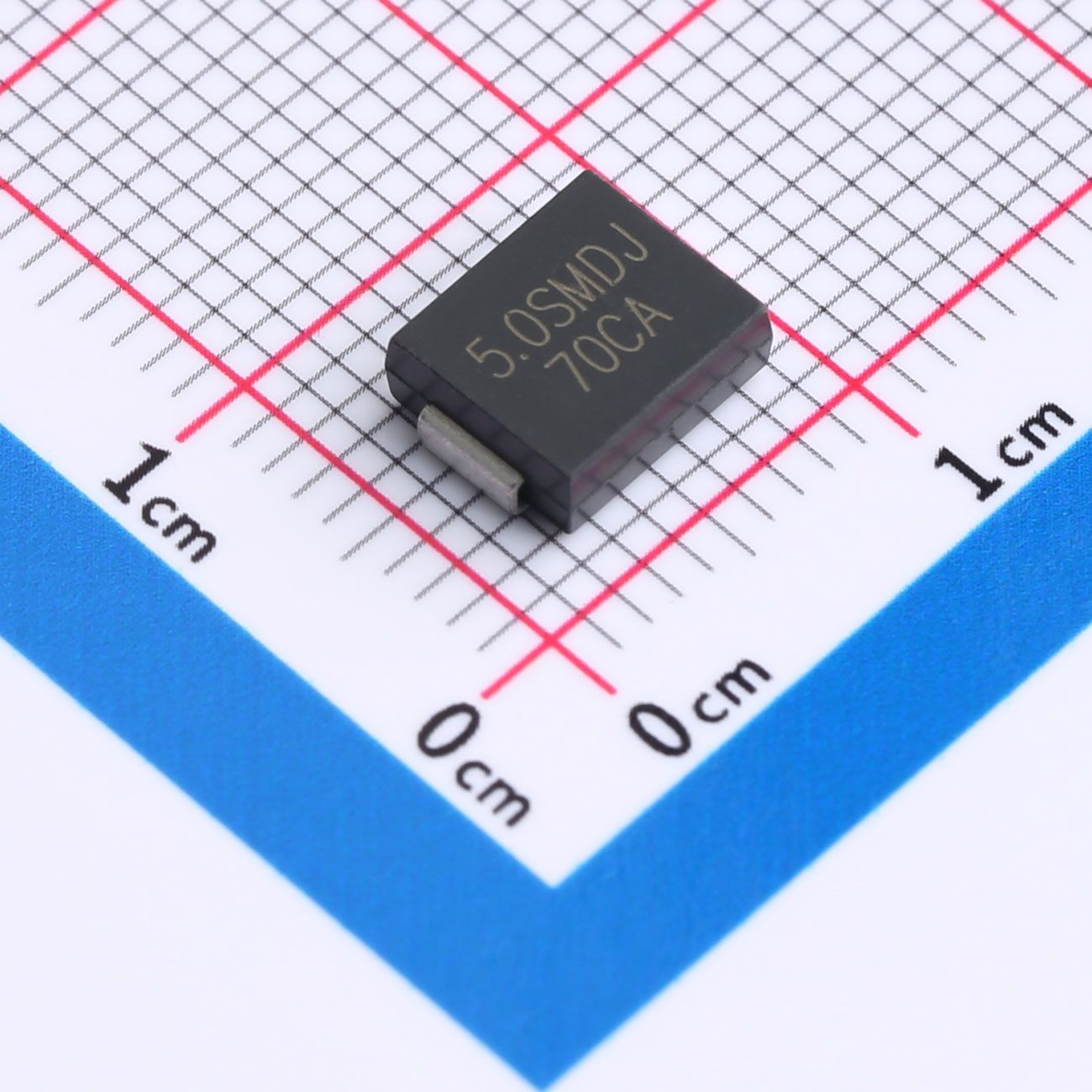

6. Dimension Standard: Standard SMC maximum dimensions (unit: mm)
7. Packaging Spec: 3000 pieces per 13-inch tape reel
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature Range: -55℃ ~ +150℃

Applications

• Computer systems and peripheral devices
• Household electrical appliances
• Video signal input interfaces
• Industrial control modules
• AC/DC switching power supplies
• Wired communication ports
• Automotive electronic control circuits
• Security monitoring equipment
• Precision measuring instruments
