Description

Features

• Ultra-high peak pulse power: 5000W for 10/1000μs surge waveform
• Bidirectional structure to suppress positive & negative surges without polarity limitation
• Low-profile SMC package with low inductance to restrain surge voltage overshoot
• Ultra-fast response time: typically less than 1.0ps from 0V to minimum breakdown voltage
• Ultra-low reverse leakage current (IR ≤ 1μA) for all models with VRWM above 12V
• Outstanding clamping capability to limit surge voltage to safe level rapidly
• Molded plastic housing with UL94V-0 flame retardant grade, fully RoHS compliant
• Solder-plated terminals, solderable per MIL-STD-750 Method 2026
• Wide temperature range: operating junction -55℃ ~ +125℃; storage -55℃ ~ +150℃
• Standard tape & reel packing: 3000pcs per 13-inch reel for automatic SMT production
• Core electrical parameters measured at 25℃ ambient temperature:


  VRWM=43.0V, VBR=47.80V~52.80V @ IT=1mA, IR≤1μA, VC=69.4V, IPP=72.05A

Our advantages

1. 5000W heavy surge bearing capacity, far stronger protection performance than small SMA TVS, suitable for industrial heavy surge occasions
2. One bidirectional TVS replaces two unidirectional devices, simplifying PCB layout and cutting BOM cost
3. Low-inductance body effectively reduces voltage spikes during transient pulses to avoid component secondary breakdown
4. Picosecond ultra-fast response instantly clamps ESD and lightning surge energy without delay
5. Microampere tiny leakage minimizes standby power consumption, ideal for battery-operated electronics
6. Slim compact SMC outline saves PCB space, matching miniaturized thin product design demands
7. RoHS flame-retardant shell complies with global electronic safety & environmental regulations
8. Stable electrical performance under extreme high/low temperature, adaptable to outdoor, automotive and industrial harsh environments
9. Uniform tape reel packaging supports full-automatic high-speed SMT lines to boost assembly efficiency and reduce labor cost

Mechanical Data

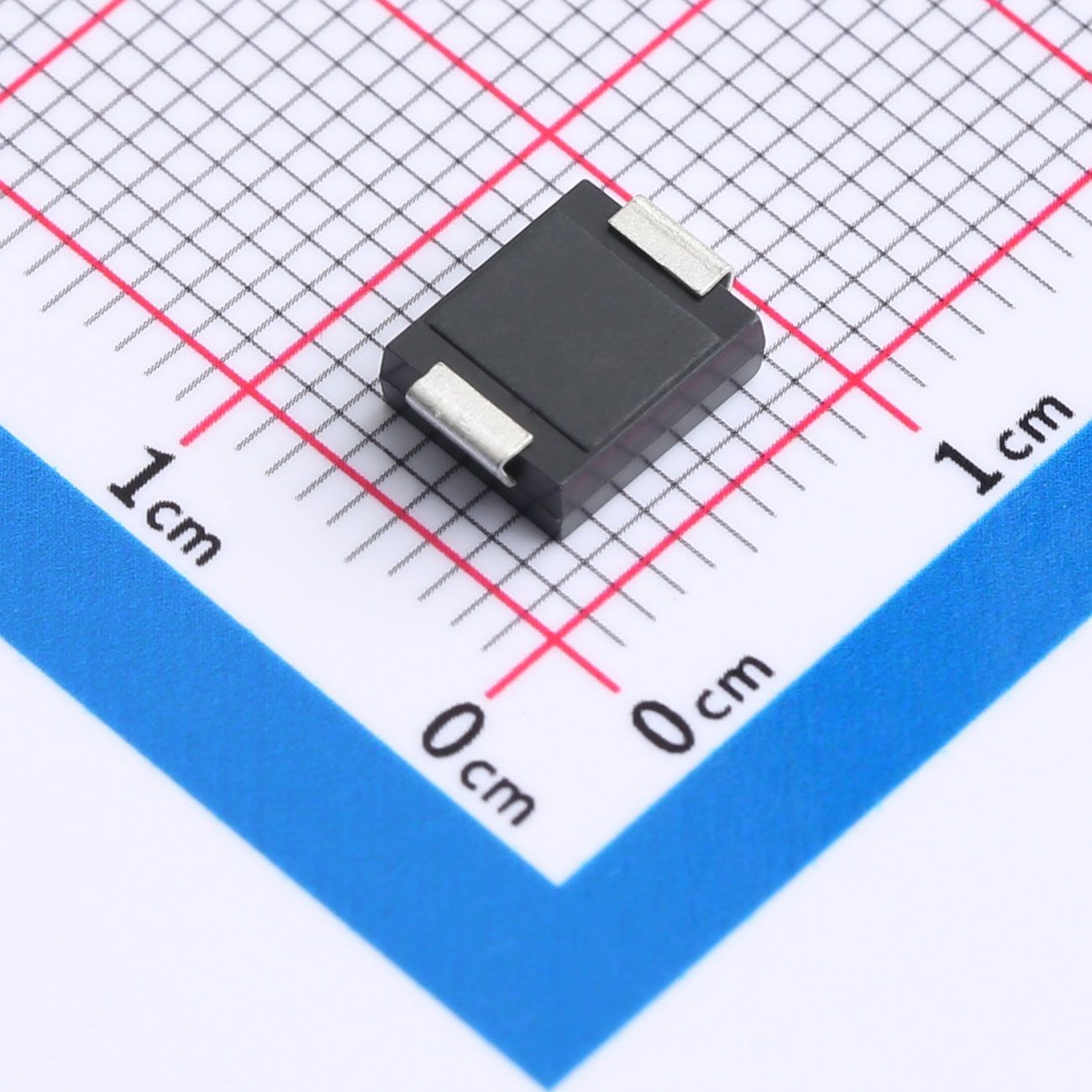

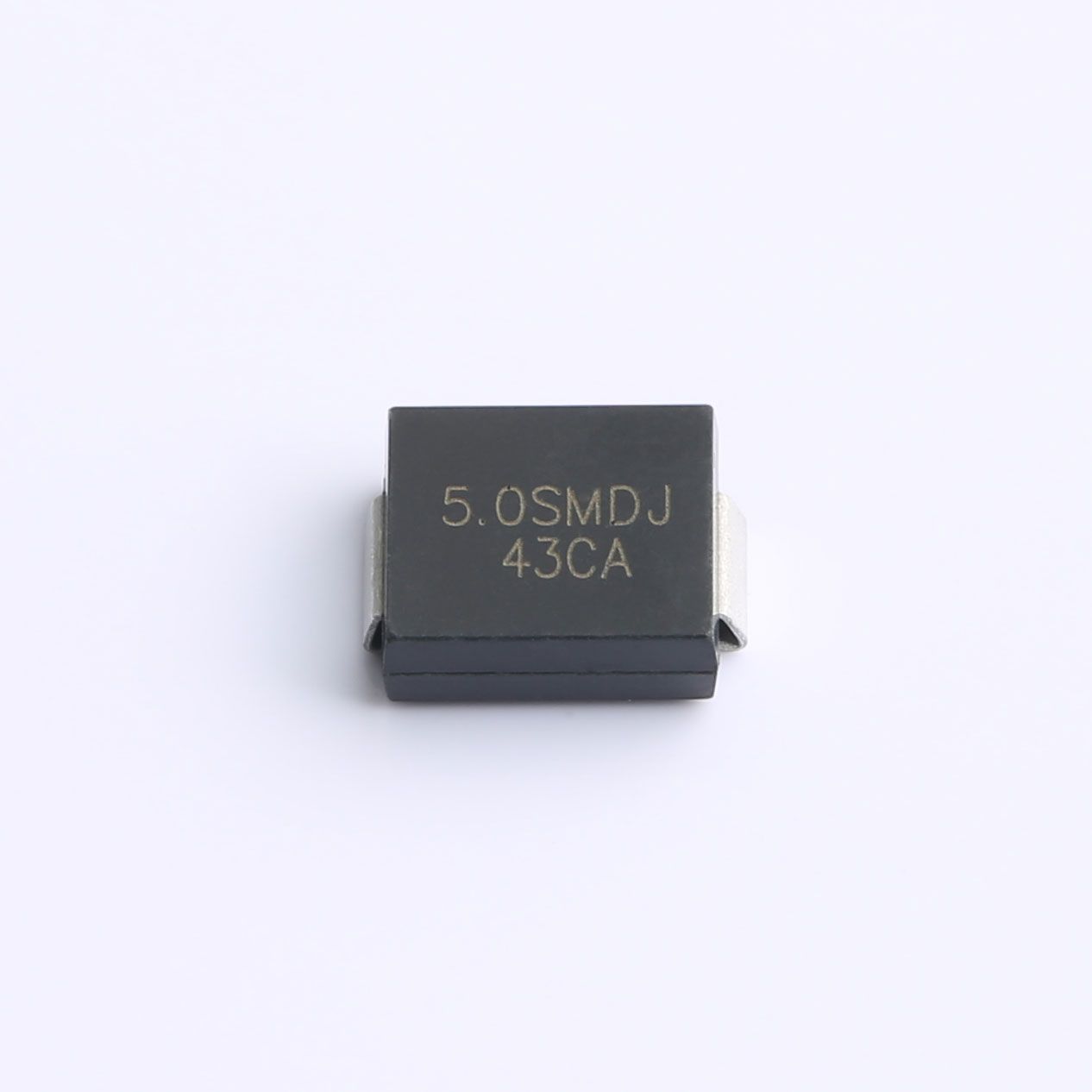

1. Package Type: SMC (DO-214AB), transfer molded plastic encapsulation
2. Housing Grade: UL94V-0 flame retardant, RoHS compliant
3. Terminal Treatment: Solder plated, compatible with standard industrial soldering processes
4. Polarity Note: Bidirectional model has no cathode color band identification requirement
5. Single Unit Weight: Approx. 0.28g
6. Dimension: Standard SMC maximum outline size (unit: mm)
7. Packaging Spec: 3000 pieces per 13-inch tape reel
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature Range: -55℃ ~ +150℃

Applications

• Desktop & notebook computer systems and peripherals
• Household electrical appliances
• Video signal input ports
• Industrial control modules
• AC/DC switching power supplies
• Wired communication equipment
• Automotive electronic control units
• Security monitoring devices
• Precision testing instruments
