SLPESD3V3S1BA-N is a single-channel transient-voltage-suppression device. It protects voltage-sensitive electronic components from transient over-voltage damage caused by Electro-Static Discharge (ESD), Cable Discharge Events (CDE) and Electrical Fast Transients (EFT). Featuring excellent clamping capability, low leakage current and fast response, this miniature SOD-523 surface-mount device is suitable for products with limited PCB space and provides over-voltage protection for single-channel I/O and data transmission lines. It adopts halogen-free material and is supplied in 7-inch tape-and-reel packaging with 3000 pieces per reel for high-volume SMT production.

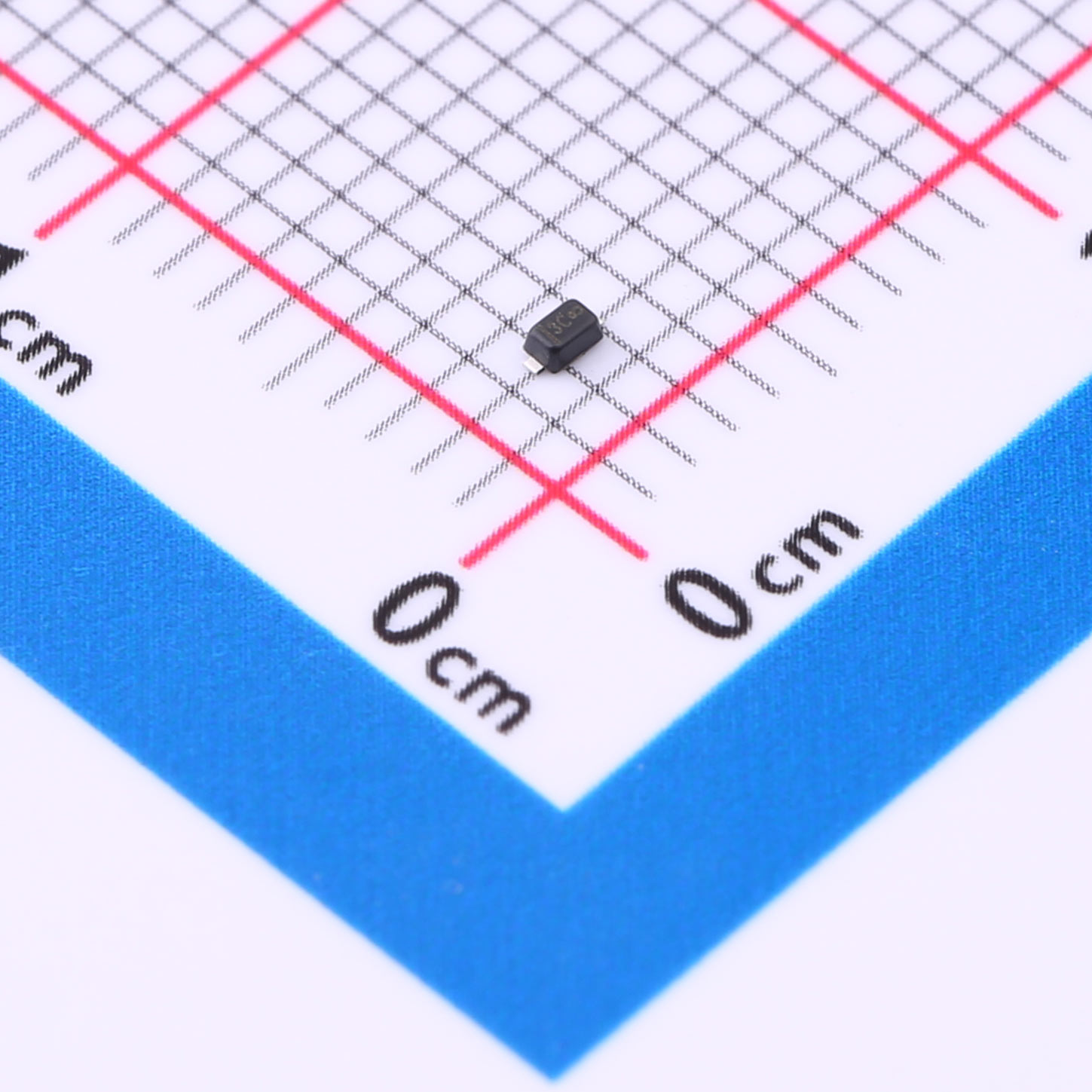

Slkor Electrostatic Discharge Diode SLPESD3V3S1BA-N product photo

1. Key Product Parameters

1. Package & Mechanical Specifications: SOD-523 surface-mount package, halogen-free; 7-inch tape-and-reel, 3000pcs per reel; UL94V-0 flammability rating; supports 260℃ / 10s high-temperature reflow soldering.
2. Electrical Voltage Parameters (Tamb=25℃): Maximum reverse working voltage \(V_{RWM}\): 3.3V; minimum reverse breakdown voltage \(V_{BR}\): 3.6V at \(I_T=1\mathrm{mA}\); maximum reverse leakage current: 1.0μA under rated 3.3V voltage.
3. Surge Power: Peak pulse power of 60W for 8/20μs pulse waveform.
4. ESD Rating (IEC61000-4-2): ±30kV contact discharge, ±30kV air-gap discharge.
5. EFT Performance (IEC61000-4-4): 40A (5/50ns).
6. Clamping Voltage: Max 6.5V under 8/20μs with 1A pulse current; max 12.0V under 8/20μs with 5A pulse current; typical TLP clamping voltage: 9V under IEC61000-4-2 Level 4 equivalent condition.
7. Junction Capacitance: Maximum 16.5pF at zero-bias and 1 MHz test frequency.
8. Temperature Parameters: Operating temperature: -40℃ ~ +150℃; storage temperature: -40℃ ~ +150℃.
9. Protection Channel: One single device protects one I/O signal line.

2. Core Product Features

1. High-grade ESD Resistance: Complies with IEC61000-4-2, providing ±30kV protection for both contact and air discharge, and offers suppression for IEC61000-4-4 electrical fast transients.
2. Good Clamping Performance: It rapidly clamps surge voltage to a low level when transient surges occur, effectively protecting downstream sensitive chips.
3. Low Leakage Current: Leakage current is limited within 1.0μA at rated operating voltage with low static power consumption, ideal for battery-powered equipment.
4. Low Junction Capacitance: Maximum 16.5pF with minor interference to high-speed signals, applicable for data and high-speed transmission interfaces.
5. Miniature Surface-mount Package: Compact SOD-523 footprint saves PCB space for miniaturized electronic products.
6. Environmental-friendly & Process-compatible: Halogen-free material meets environmental requirements and is compatible with standard SMT reflow soldering processes.
7. Single-channel Protection: One device realizes ESD and surge over-voltage protection for one I/O port.

3. Main Application Fields

• Mobile handsets and accessories
• Microprocessor-based electronic equipment
• Personal Digital Assistants (PDAs)
• Notebook computers, desktop computers and servers
• Portable instrumentation
• Networking and telecommunication equipment
• Serial ports and parallel ports
• Protection for various peripheral interfaces

4. Engineering Design Recommendations

1. PCB Layout and Routing: Place the device as close as possible to the protected I/O connector to shorten signal paths. Keep ground-return traces short and wide to reduce parasitic inductance, ensuring fast diversion of surge energy to ground and preventing clamping performance degradation.
2. High-speed Signal Evaluation: Due to intrinsic junction capacitance, evaluate the impact of maximum 16.5pF capacitance on signal integrity for high-speed signal lines to avoid signal attenuation and waveform distortion.
3. Power Derating: Derate peak pulse power according to the datasheet derating curve when ambient temperature exceeds 25℃. Full-power operation is prohibited under high-temperature conditions.
4. Operating-voltage Matching: The \(V_{RWM}\) of this device is 3.3V, intended only for 3.3V signal or power circuits. Continuous DC voltage shall not exceed the maximum reverse working voltage; otherwise leakage will rise and permanent device damage may occur.
5. Surge Condition Note: The device is designed only for short-duration transient pulses such as ESD, CDE and EFT. It cannot withstand sustained over-voltage which will cause direct device failure.
6. Soldering Process Control: The peak reflow temperature shall not exceed 260℃ and soldering time shall be limited within 10 seconds to avoid thermal damage.

5. Product Summary

SLPESD3V3S1BA-N is a single-channel 3.3V transient-voltage suppressor in SOD-523 package. It delivers ±30kV ESD protection with advantages of low leakage current, low junction capacitance and fast clamping response. Its small footprint fits high-density PCB layouts.

This component is mainly used for ESD and transient over-voltage protection of 3.3V I/O interfaces and data transmission lines, widely adopted in consumer electronics, computers, telecommunication and portable instruments. Proper component placement, grounding routing, voltage matching and high-temperature power derating are required in engineering practice to obtain full protective performance.
