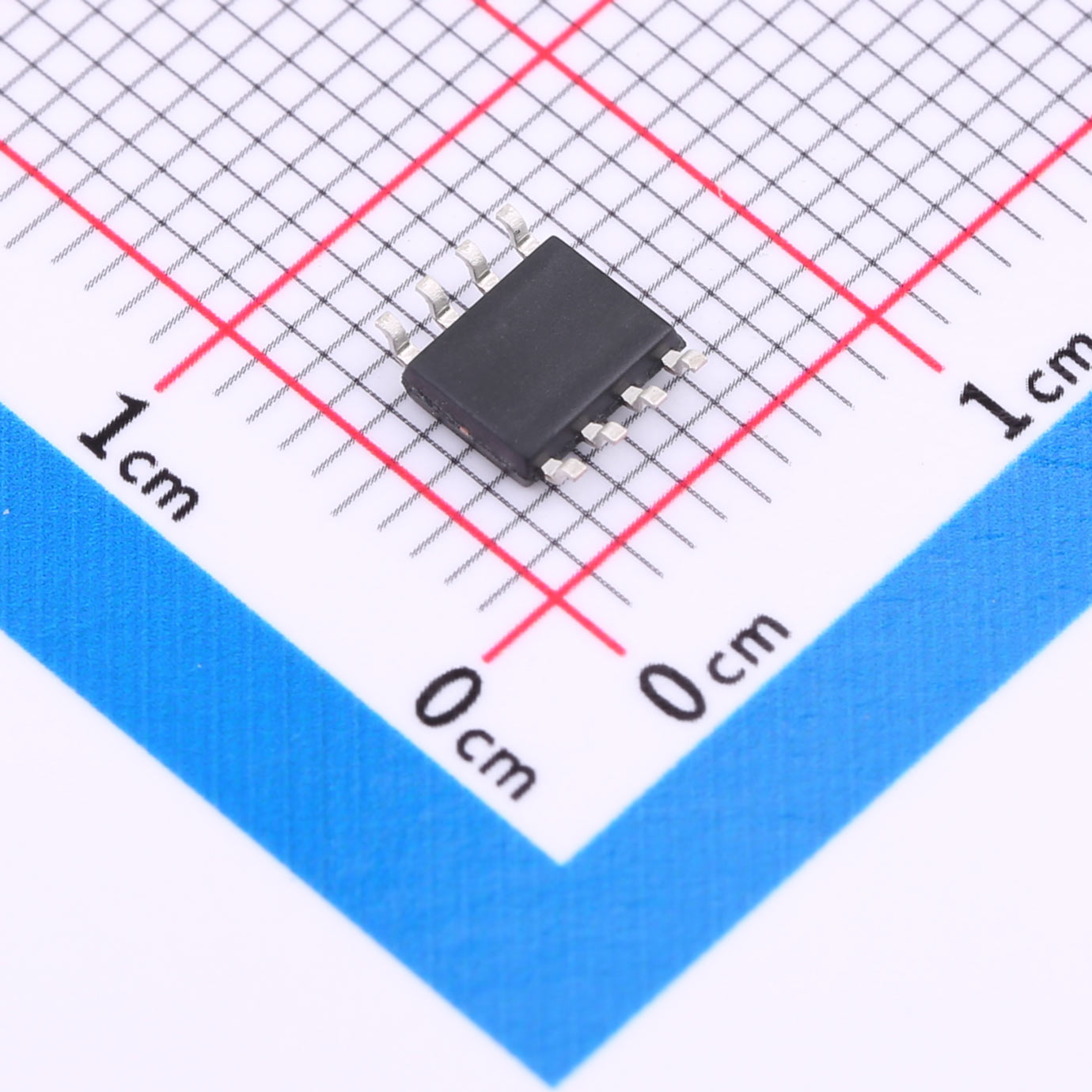

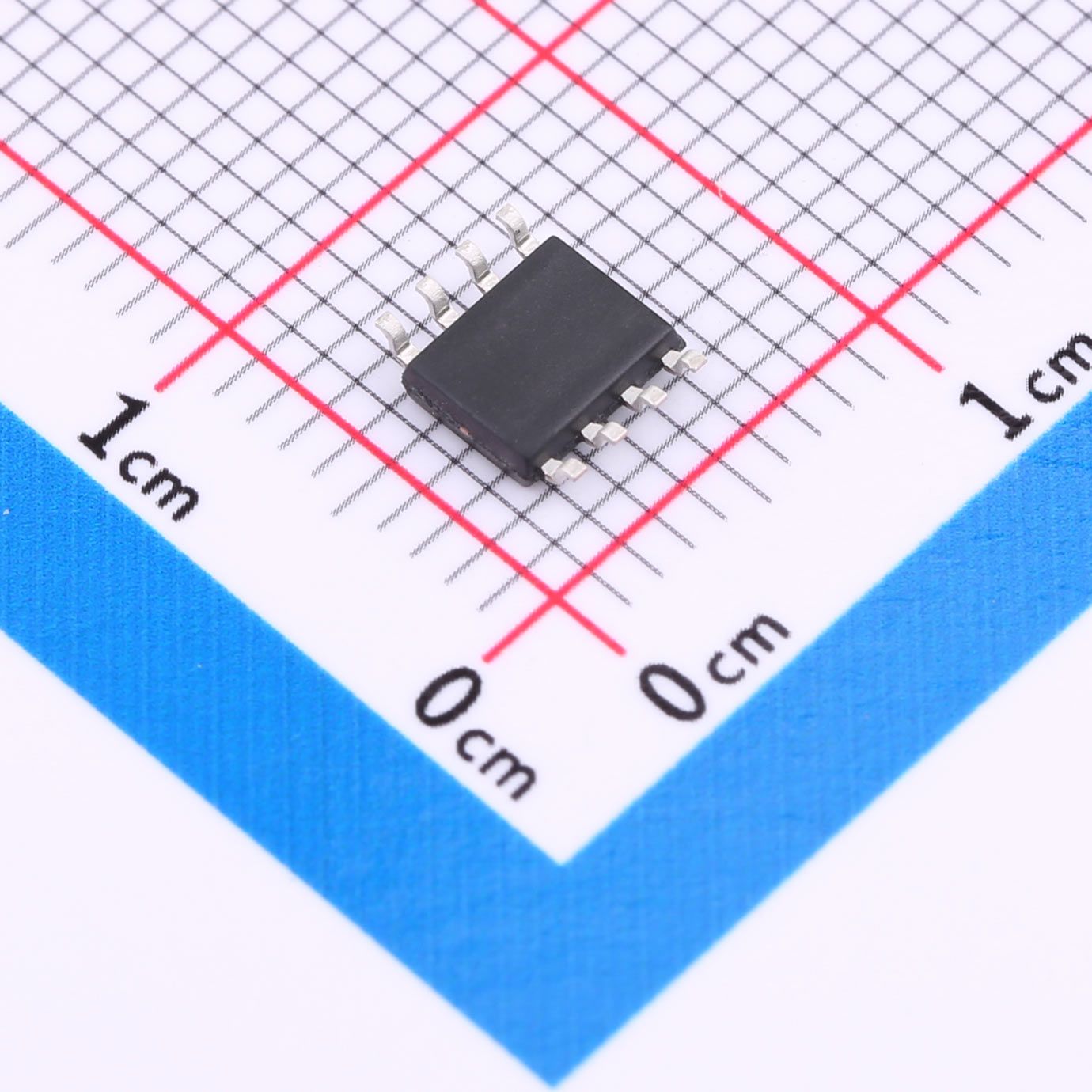

SL65HVD230DR CAN Transceiver SOP-8
The SL65HVD230 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is designed for use with the 3.3V μPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. It is used in Industrial Automation, Control, Sensors and Drive Systems, Motor and Robotic Control, Building and Climate Control (HVAC), Telecom and Basestation Control and Status. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.
3.3V, High ESD Protected ,1Mbps High Speed CAN Transceiver
Description
l The SL65HVD230 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is designed for use with the 3.3V μPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. It is used in Industrial Automation, Control, Sensors and Drive Systems, Motor and Robotic Control, Building and Climate Control (HVAC), Telecom and Basestation Control and Status. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.
Features
l Operates with a single 3.3 V Supply
l Compatible With ISO 11898-2 Standard
l Bus Pin ESD Protection Exceeds ±15 kV HBM
l High Input Impedance Allows for Up to 120 Nodes
l Adjustable Driver Transition Times for Improved Emissions Performance
l Low Current Standby Mode 650μA typical
l Designed for Data Rates up to 1 Mbps
l Thermal Shutdown Protection
l Open Circuit Fail-Safe Design
l Glitch Free Power Up and Power Down Protection for Hot Plugging Applications
Name
Title
Description

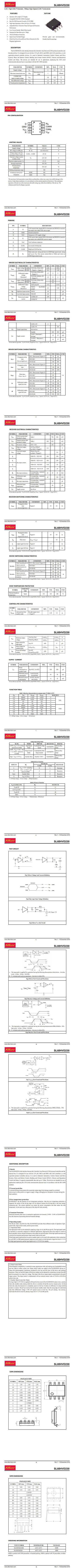

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
