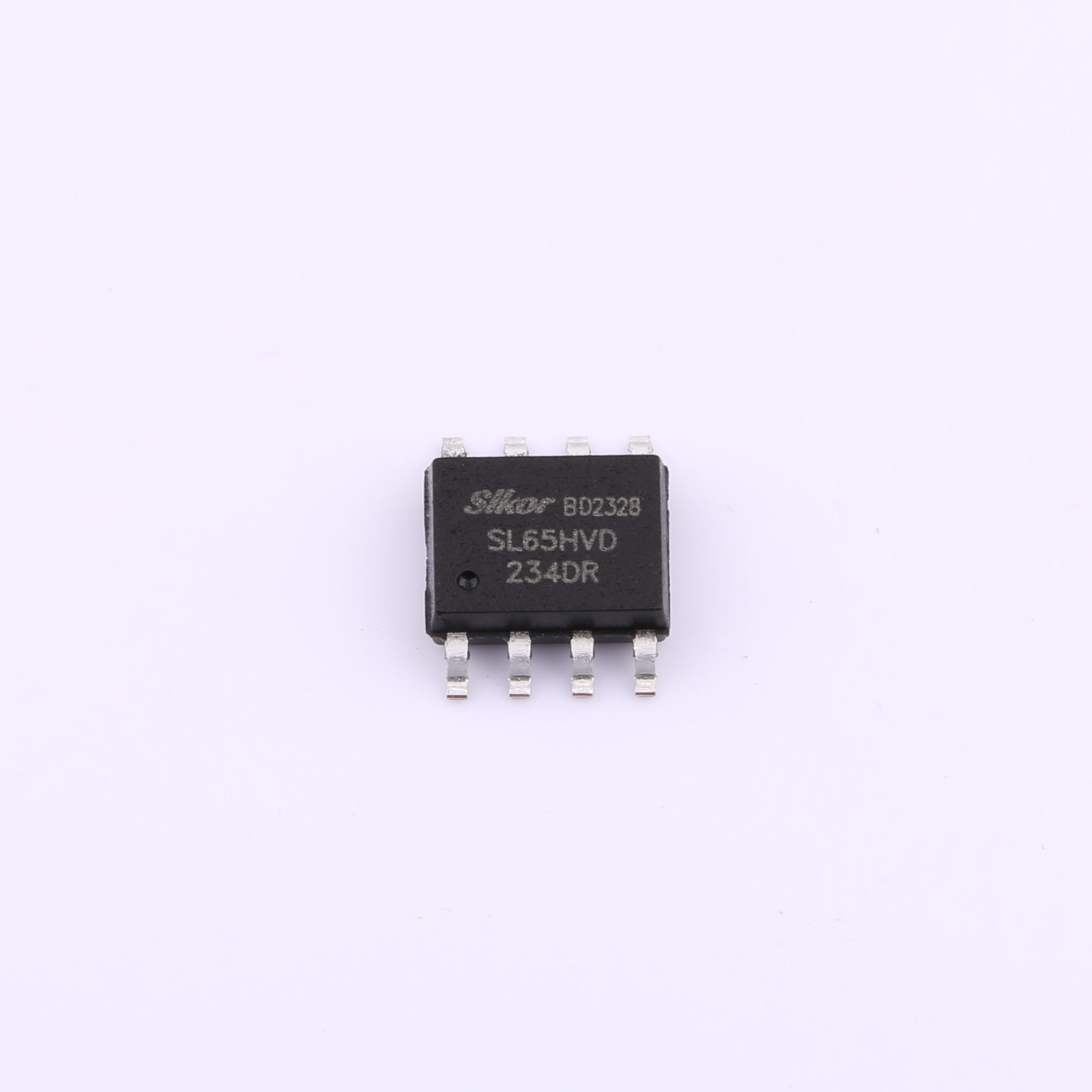

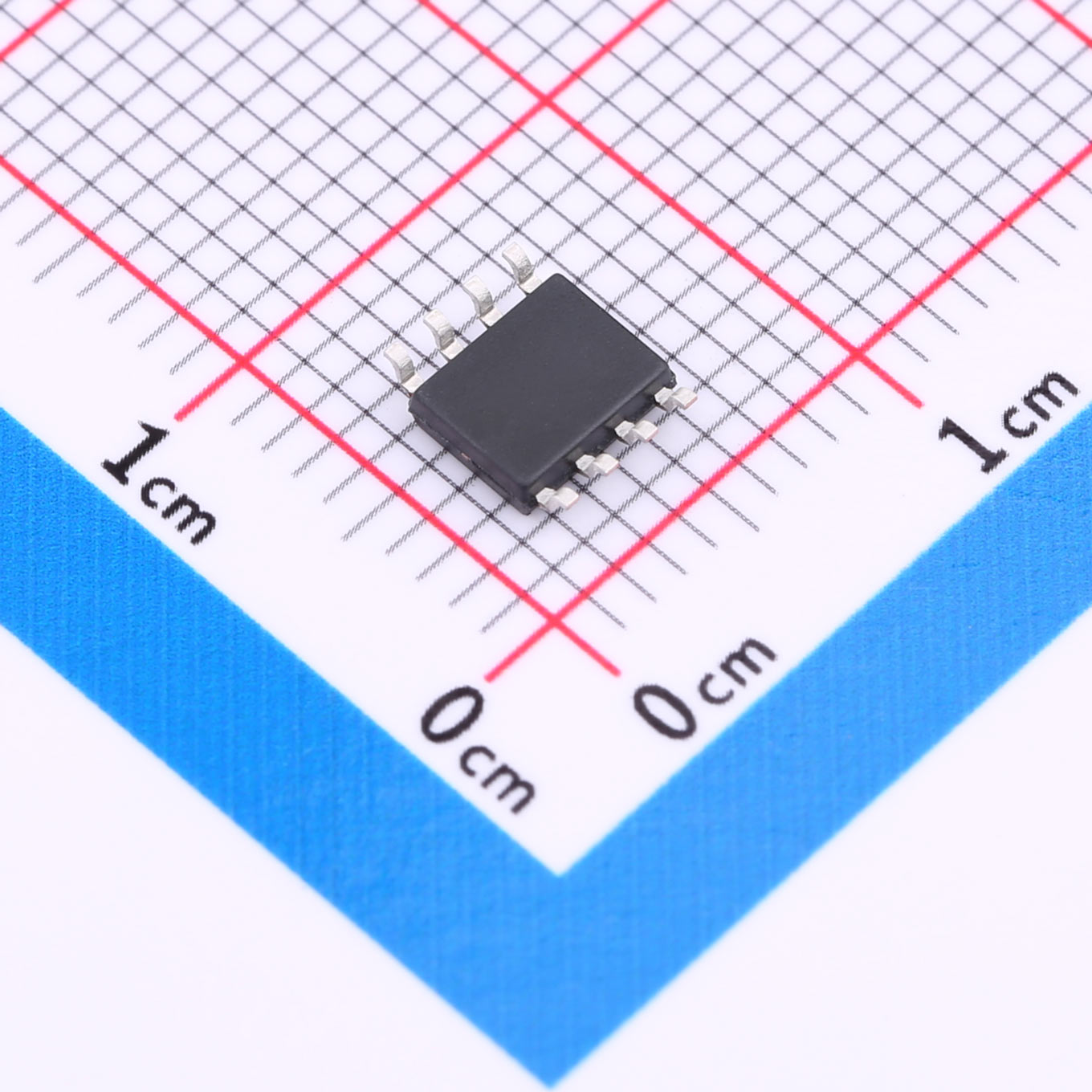

SL65HVD234DR CAN Transceiver SOP-8
Alternative equivalent for Texas Instruments SN65HVD234DR | Slkor SL65HVD234DR CAN Transceiver
3.3V, Very Low Power sleep Mode, High Speed CAN Transceiver
Description
l The SL65HVD234 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is designed for use with the 3.3V μPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. It is used in industrial automation, control, sensors and drive systems, motor and robotic control, building and climate control (HVAC), telecom and base station control and status. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.
Features
l Operates with a single 3.3V supply
l Compatible with ISO 11898-2 standard
l Bus pin ESD protection exceeds ±16kV HBM
l High input impedance allows for up to 120 nodes
l Adjustable driver transition times for improved emissions performance
l Low current standby mode: 370μA typical
l Very low current sleep mode: 50nA typical
l Designed for data rates up to 1Mbps
l Thermal shutdown protection
l Open circuit fail-safe design
l Glitch free power up and power down protection for hot plugging applications
Name
Title
Description

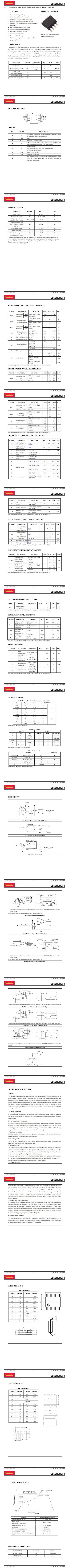

Datasheet
