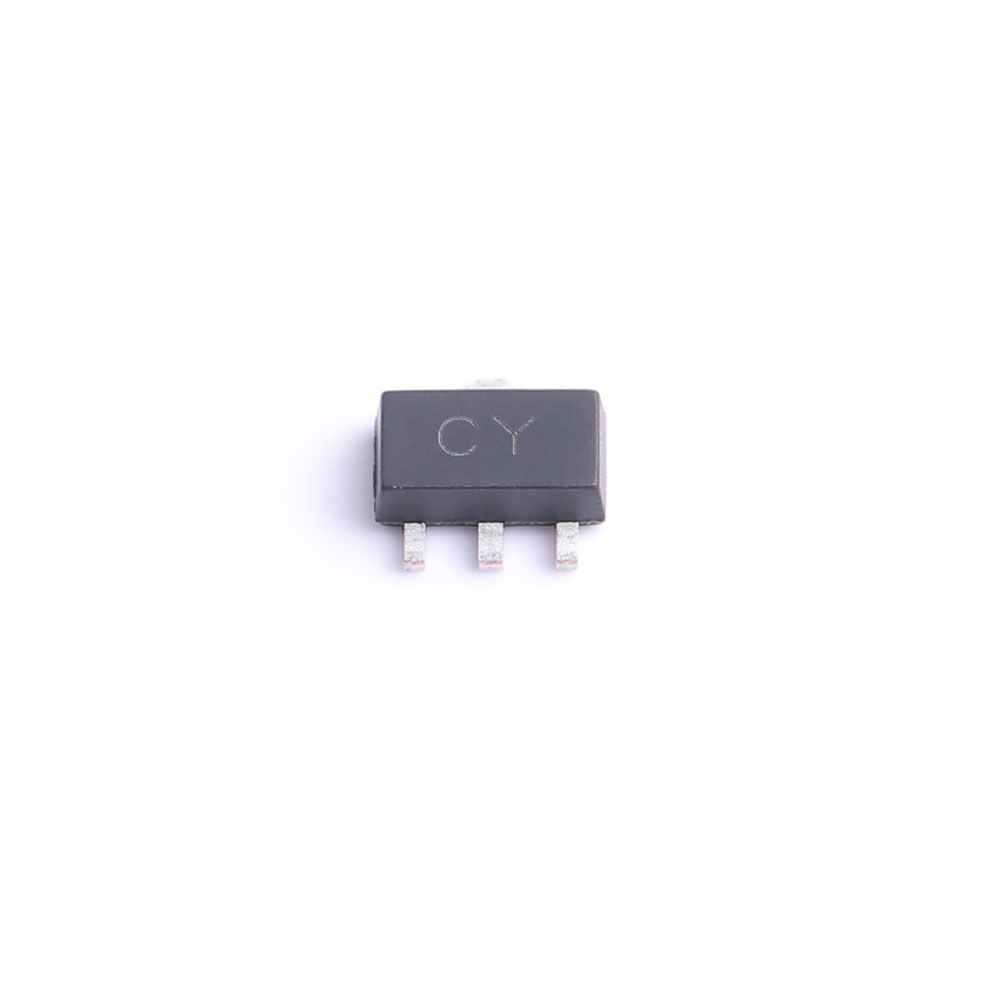

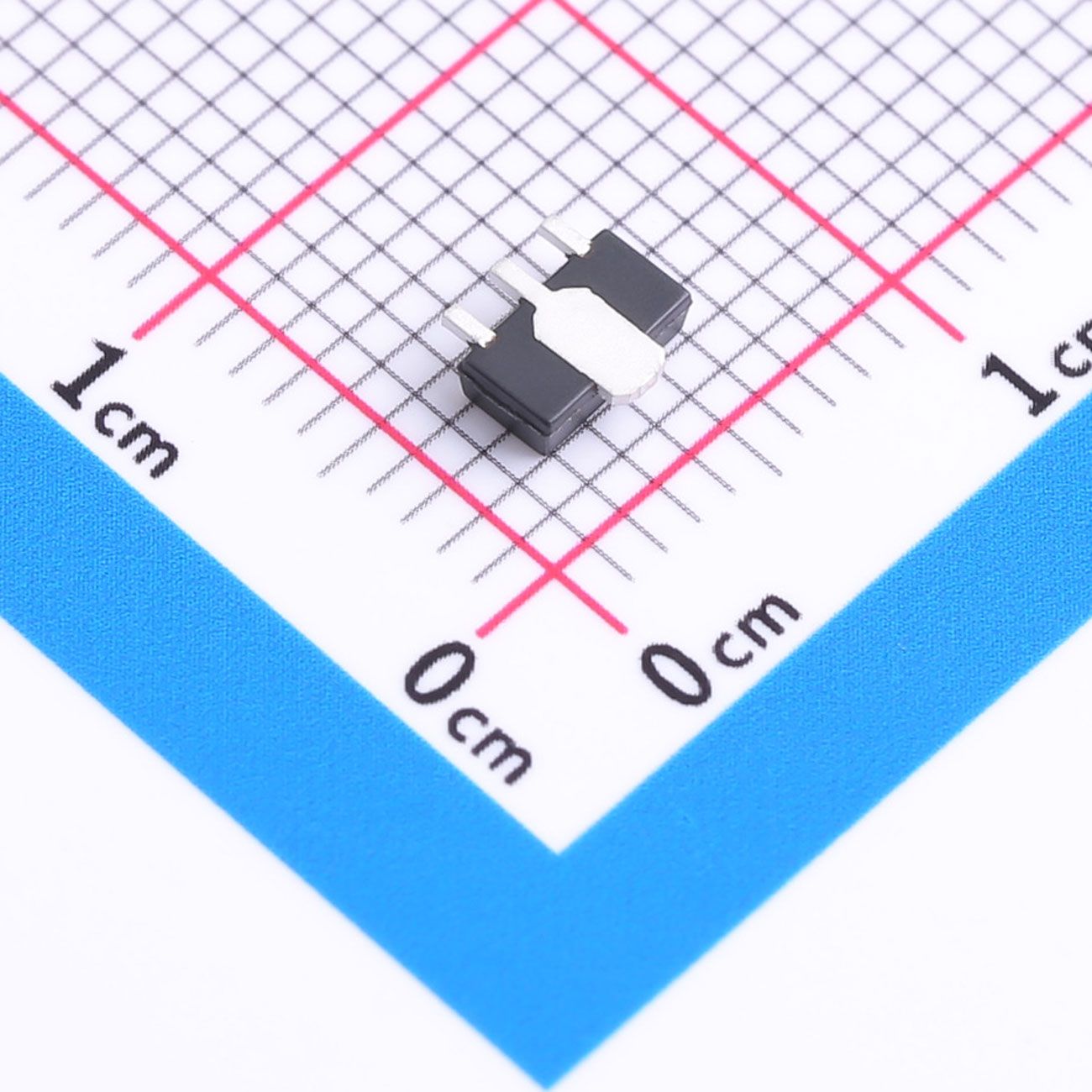

2SC2881-Y PNP Bipolar Transistor SOT-89
2SC2881 is an NPN high‑voltage silicon transistor in a small flat SOT‑89 package. It features high voltage, high transition frequency, and excellent DC current gain. It is complementary to 2SA1201 and widely used in high‑voltage amplification, signal driving, and switching circuits.
Our Advantages
- High voltage rating up to 120V for stable high‑voltage circuit operation
- High transition frequency for fast switching and amplification
- Compact SOT‑89 flat package with good thermal performance
- Dual hFE binning (O/Y) for flexible circuit matching
- Complementary with 2SA1201 for push‑pull design
- Wide temperature range for industrial and consumer applications
- Stable electrical characteristics and high reliability
Description
2SC2881 is an NPN high‑voltage silicon transistor in a small flat SOT‑89 package. It features high voltage, high transition frequency, and excellent DC current gain. It is complementary to 2SA1201 and widely used in high‑voltage amplification, signal driving, and switching circuits.
FEATURES
- NPN high‑voltage transistor
- Small flat SOT‑89 package
- High voltage: VCBO = VCEO = 120V
- High transition frequency: fT = 120MHz (typ.)
- Complementary to 2SA1201
- hFE grades: O(80–160), Y(120–240)
- Continuous collector current: IC = 800mA
- Power dissipation: PC = 500mW
- Junction / storage temperature: −55℃ to +150℃
Applications
- High‑voltage signal amplification
- Audio equipment and driver circuits
- Power supply control and regulation
- Industrial control modules
- Consumer electronics
- Lighting driver circuits
- General‑purpose high‑voltage switching
