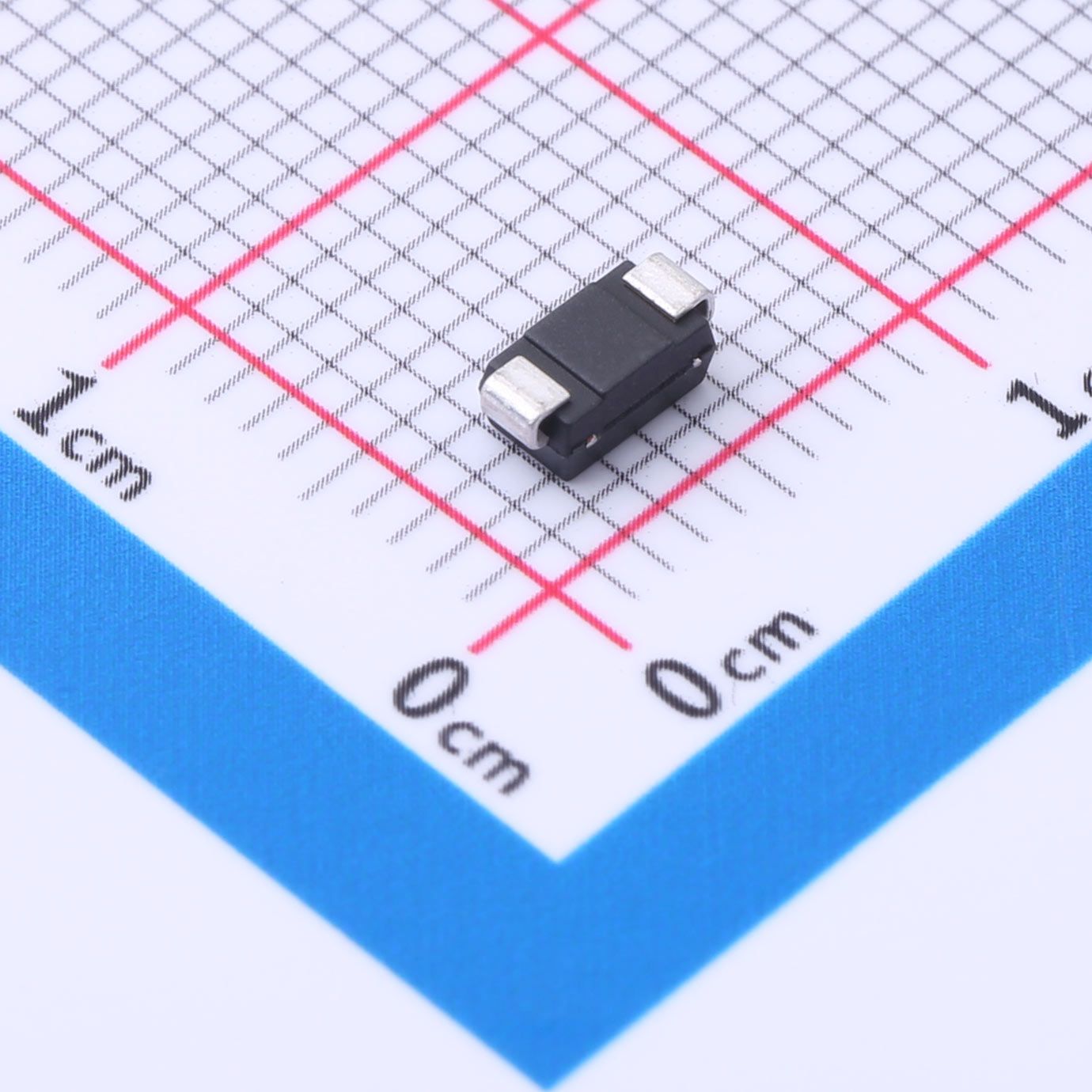

ES2G Fast Recovery Rectifier Diode SMA
The ES2G is an ultra-fast recovery diode manufactured by Slkor, supplied in a discrete package. This diode is suitable for power supplies and electronic equipment requiring fast reverse recovery and low reverse current.
Product Overview
The ES2G is an ultra-fast recovery diode manufactured by Slkor, supplied in a discrete package. This diode is suitable for power supplies and electronic equipment requiring fast reverse recovery and low reverse current.
Key Features
- Diode Configuration: Discrete – suitable for standalone operation or parallel connection.
- DC Reverse Voltage (Vr): 400V – delivers high reverse voltage withstand capability.
- Average Rectified Current (Io): 2A – offers moderate rectified current handling capacity.
- Forward Voltage (Vf): 1.25V @ 2A – forward voltage measured at 2A current.
- Reverse Current (Ir): 5µA @ 400V – low reverse current to help improve energy efficiency.
- Reverse Recovery Time (trr): 35ns – provides fast reverse recovery performance.
- Operating Junction Temperature (Tj): -55℃ ~ +150℃ – supports a wide operating temperature range.
Applications
- Power Electronics
- Switching Power Supplies
- Power Adapters
- Power Converters
- Automotive Electronics
Performance Advantages
- High Reverse Voltage Withstand Capability: 400V reverse voltage rating for medium-voltage applications.
- Moderate Rectified Current Handling Capacity: 2A average rectified current to meet general current requirements.
- Low Forward Voltage: 1.25V @ 2A forward voltage helps reduce power consumption.
- Low Reverse Current: 5µA @ 400V reverse current for improved energy efficiency.
- Fast Reverse Recovery Time: 35ns reverse recovery time for superior fast recovery performance.
Name
Title
Description
Datasheet
Support
ES1DF Fast Recovery Rectifier Diode SMAF
Brand: slkor， VRRM(V)： 200V IO(A)： 1A VF(V)： 1V IR(A)： 5μA trr(ns)： 35ns Package： SMAF
ES1GF Fast Recovery Rectifier Diode SMAF
Brand: slkor， VRRM(V)： 400V IO(A)： 1A VF(V)： 1.25V IR(A)： 5μA trr(ns)： 35ns Package： SMAF
ES2G Fast Recovery Rectifier Diode SMC
Brand: slkor， VRRM(V)： 400V IO(A)： 2A VF(V)： 1.25V IR(A)： 5uA trr(ns)： 35ns Package： SMA
ES2GF Fast Recovery Rectifier Diode SMAF
Brand: slkor， VRRM(V)： 400V IO(A)： 1A VF(V)： 1.25V IR(A)： 5μA trr(ns)： 35ns Package： SMAF
ES2JF Fast Recovery Rectifier Diode SMAF
Brand: slkor， VRRM(V)： 600V IO(A)： 1A VF(V)： 1.68V IR(A)： 5μA trr(ns)： 35ns Package： SMAF
ES2JW Fast Recovery Rectifier Diode SOD-123FL
Brand: slkor， VRRM(V)： 600V IO(A)： 2A VF(V)： 1.7V IR(A)： 5μA trr(ns)： 35ns Package： SOD-123FL
ES2M Fast Recovery Rectifier Diode SMA
Brand: slkor， VRRM(V)： 1000V IO(A)： 2A VF(V)： 1.7V IR(A)： 5μA trr(ns)： 75ns Package： SMA
ES3DC Fast Recovery Rectifier Diode SMC
Brand: slkor， VRRM(V)： 200V IO(A)： 3A VF(V)： 1.25V IR(A)： 5μA trr(ns)： 35ns Package： SMC
F1D Ultra Fast Recovery Diode SOD-123FL
Brand: slkor， VRRM(V)： 200V IO(A)： 1A VF(V)： 1.3V IR(A)： 5.0mA trr(ns)： 150ns Package： SOD-123FL
F1J Ultra Fast Recovery Diode SOD-123FL
Brand: slkor， VRRM(V)： 600V IO(A)： 1.0A VF(V)： 1.3V IR(A)： 5.0mA trr(ns)： 250ns Package： SOD-123FL
