Description

The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an essential component designed to protect sensitive electronic circuits from transient voltage spikes and surges in both directions. Featuring a V_RWM (Working Peak Reverse Voltage) of 48V, this diode effectively clamps transient voltages that exceed its breakdown voltage (V_BR), which ranges from 53.3V (minimum) to 58.9V (maximum). With an ultra-low reverse leakage current (I_r) of 1μA, it ensures minimal power dissipation during normal operation. Capable of handling peak pulse currents (I_pp) of up to 19.4A and transient power dissipation (P_pp) of 1500W for 10/1000μs pulses, this diode offers robust protection for a variety of electronic applications.

Features

● 1500W peak pulse power capability at 10/1000μs waveform

● For surface mounted applications to optimize board space

● Glass passivated chip junction

● Halogen free and RoHS compliant

Mechanical Data

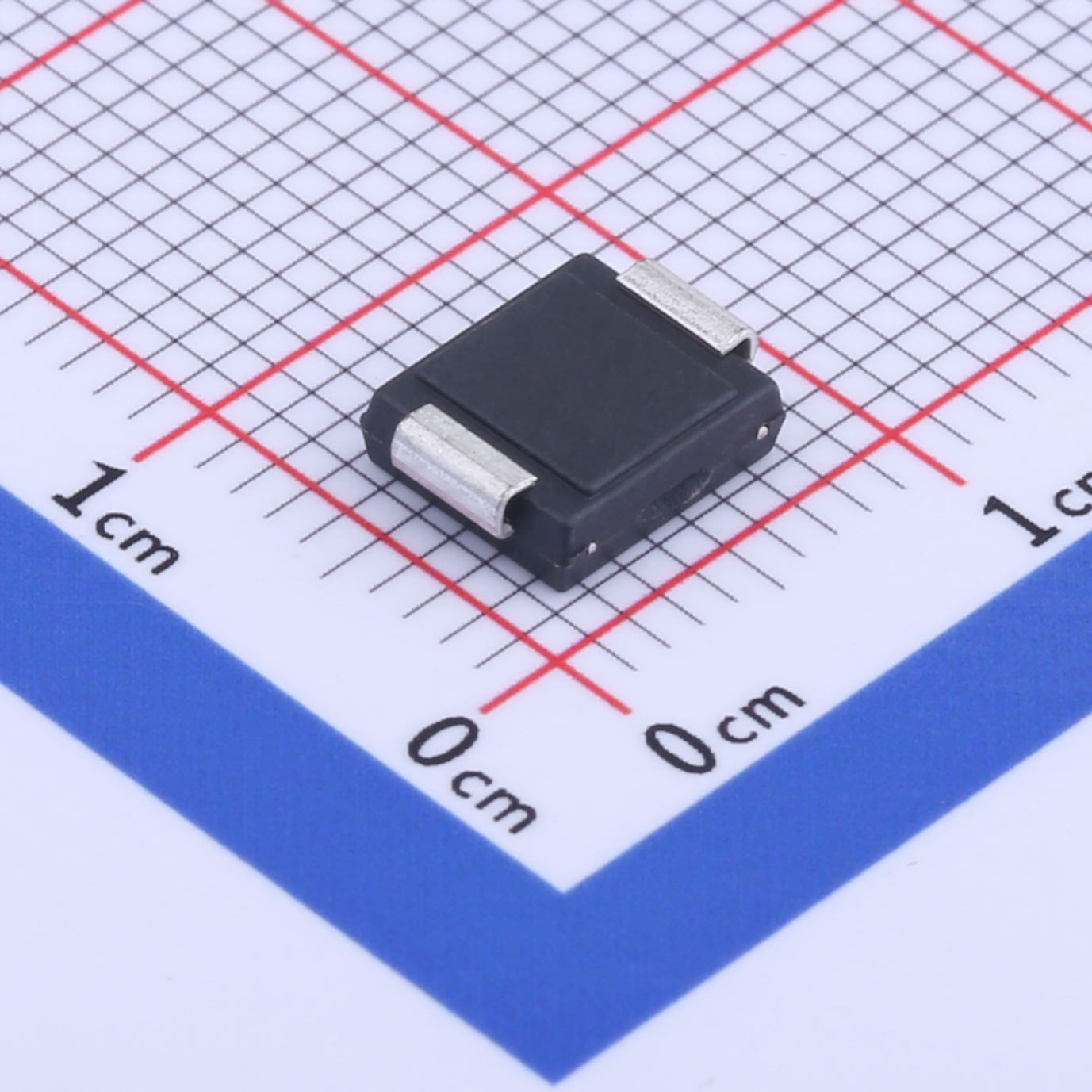

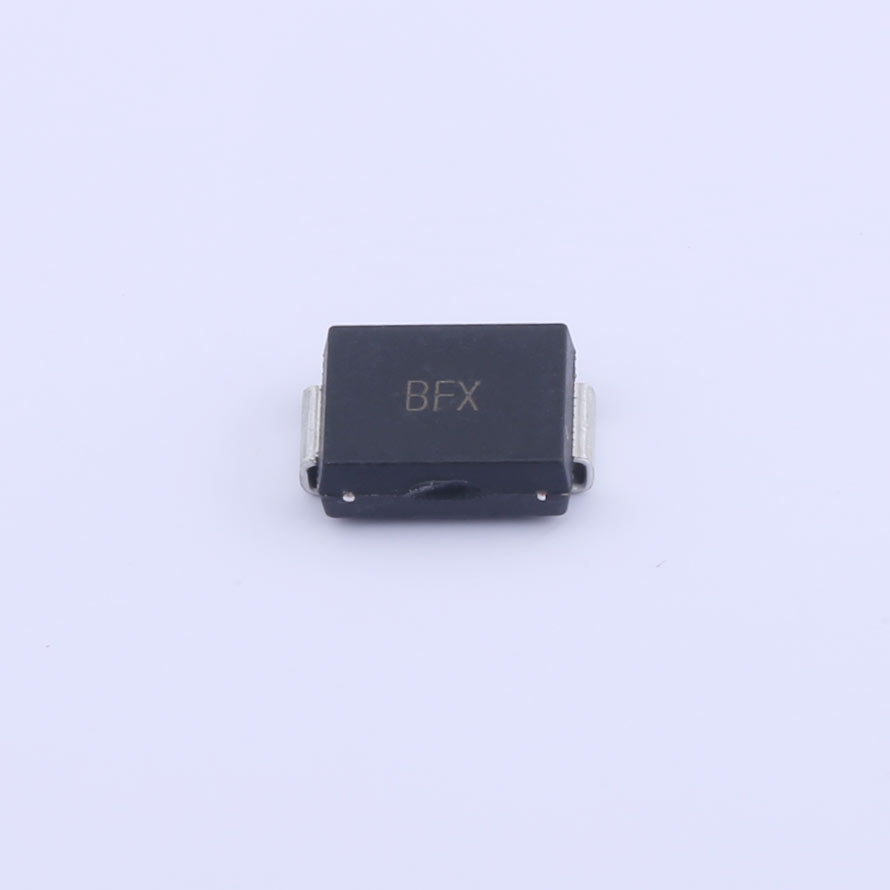

● Case: SMC

● Terminals: Solderable per MIL-STD-750, Method 2026

● Approx. Weight: 0.22g (0.0077oz)

Applications

● Telecommunications

● Automotive Electronics

● Industrial Automation

● Consumer Electronics.

● Power Supplies
