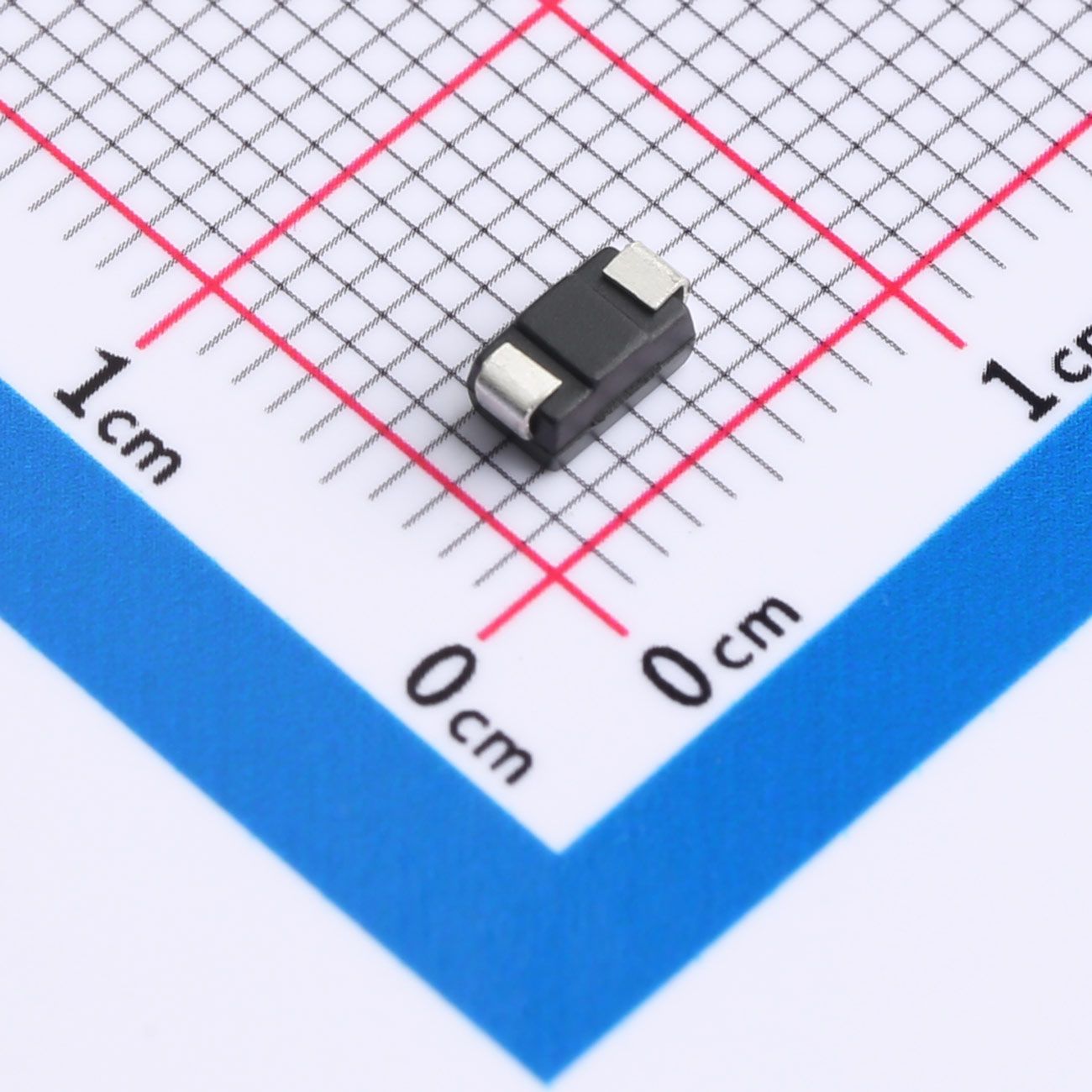

P4SMA18A TVS Diode SMA(DO-214AC)
P4SMA18A is unidirectional 400W surface mount TVS diode in SMA/DO-214AC package. It safeguards sensitive electronic components against ESD, lightning surge and transient overvoltage for diversified electronic equipment.Features
Description
P4SMA18A is unidirectional 400W surface mount TVS diode in SMA/DO-214AC package. It safeguards sensitive electronic components against ESD, lightning surge and transient overvoltage for diversified electronic equipment.
Features
- Unidirectional surge protection, peak pulse power:400W(10/1000μs)
- VRWM:15.3V; VBR:17.1~18.9V@1mA; IR≤1μ[email protected]; [email protected]
- Glass passivated/planar chip, ultra-fast response＜1ps
- Excellent clamping performance, low inductance compact body
- Reflow soldering resistant up to 260℃/10s
Our advantages
- High 400W surge absorption capacity for robust surge suppression
- Super fast clamping speed effectively protect precision ICs
- Ultra-low leakage current saves standby power consumption
- Low inductance design minimizes signal distortion
- Standard SMA package compatible with automatic SMT production
Mechanical Data
- Package: SMA(DO-214AC), green flame retardant plastic encapsulation
- Marking band for cathode identification, weight≈0.07g
- Operating & storage temperature: -55℃ ~ +150℃
- Packing: 12mm carrier tape & reel
Applications
Automotive electronics, consumer products, industrial control, telecom equipment, aerospace device, AC-DC power source, RS232/RS485 signal lines and various I/O interfaces.
