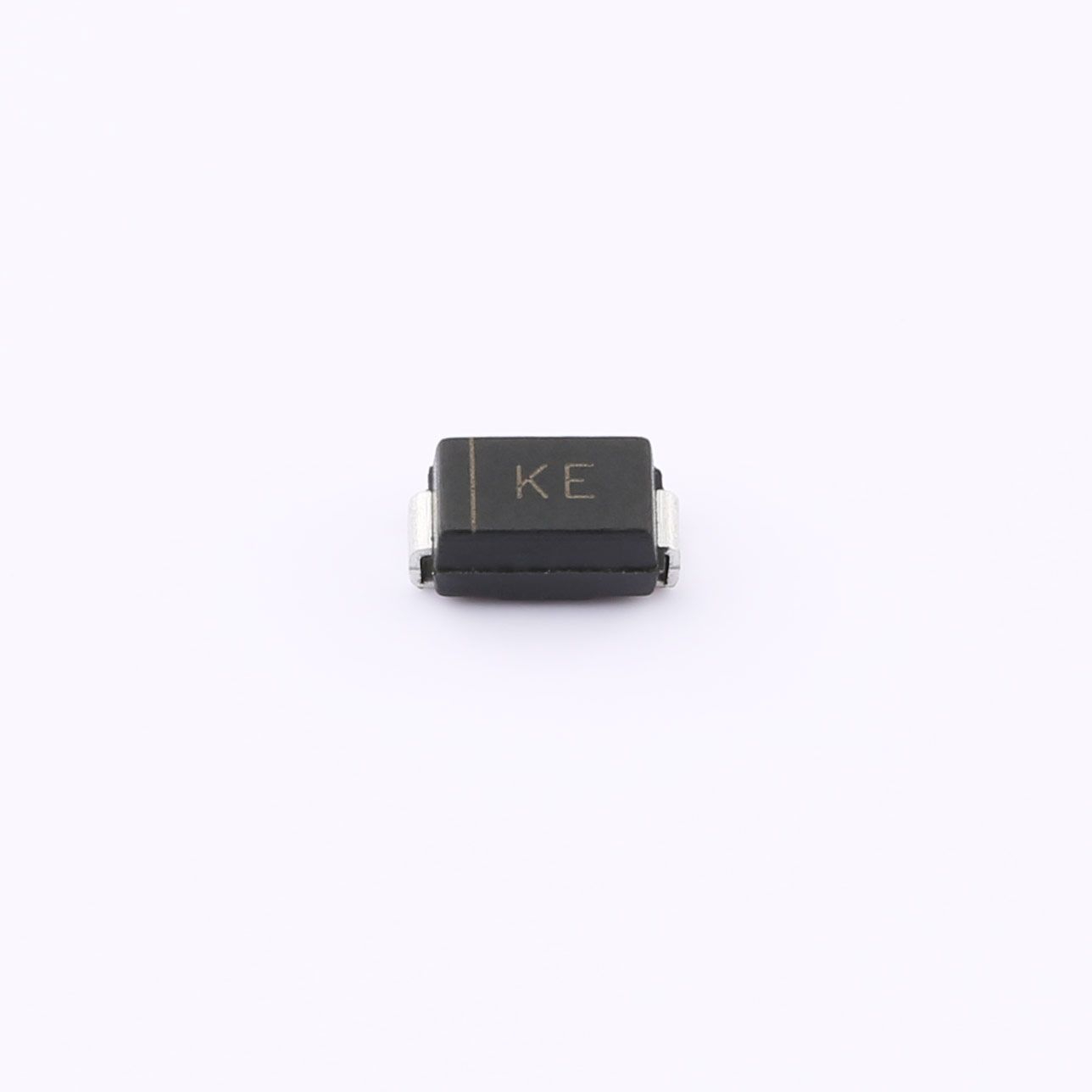

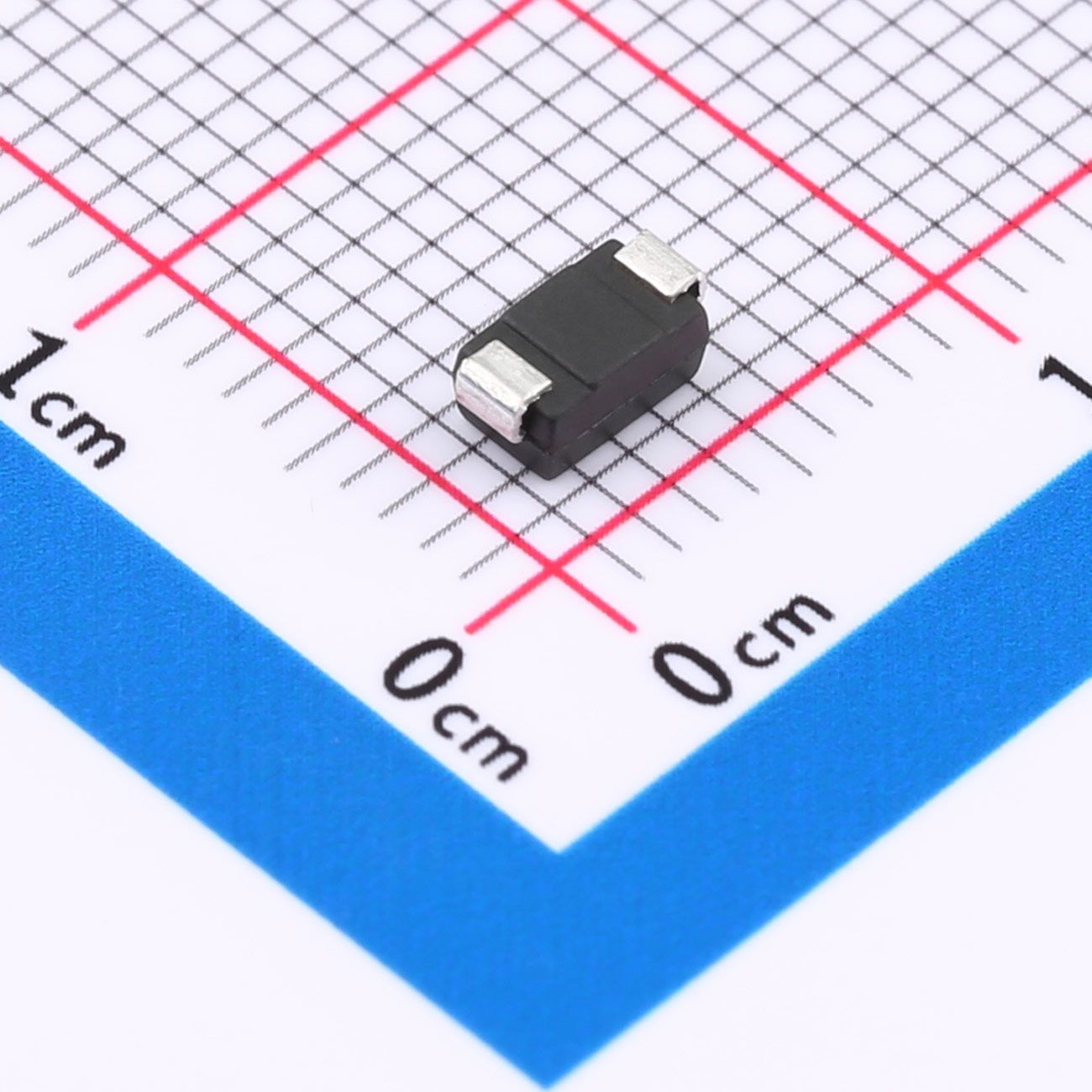

SMA6J5.0A TVS Diode SMA
SMA6J5.0A is a unidirectional 600W surface‑mount transient voltage suppressor (TVS) in the SMA (DO‑214AC) package. It is designed to protect sensitive circuits and components against voltage spikes, ESD, and lightning‑induced surges, providing reliable overvoltage protection in various electronic systems.
Description
SMA6J5.0A is a unidirectional 600W surface‑mount transient voltage suppressor (TVS) in the SMA (DO‑214AC) package. It is designed to protect sensitive circuits and components against voltage spikes, ESD, and lightning‑induced surges, providing reliable overvoltage protection in various electronic systems.
Features
- Unidirectional protection
- Peak pulse power: 600W (10/1000μs)
- Reverse Working Voltage (VRWM): 5.0V
- Breakdown Voltage (VBR): 6.4V (min) – 7.0V (max) @10mA
- Reverse Leakage (IR): ≤800μA @5.0V
- Clamping Voltage (VC): 9.2V @Ipp=65.3A
- Glass‑passivated chip
- Fast response time
- Excellent clamping capability
- Low reverse leakage
- RoHS compliant
Our advantages
- High surge capability (600W), offers strong protection
- Low clamping voltage, safeguards low‑voltage ICs
- Fast response, suppresses transients instantly
- SMA package, robust and widely compatible
- Low leakage, reduces static power consumption
- RoHS compliant, environmentally friendly
Mechanical Data
- Package: SMA (DO‑214AC)
- Case: Molded plastic, UL 94V‑0
- Lead finish: Solderable
- Operating temperature: −55℃ ~ +150℃
Applications
- Consumer electronics
- Industrial control systems
- Automotive electronics
- Power supplies
- Communication equipment
- I/O ports and signal lines
