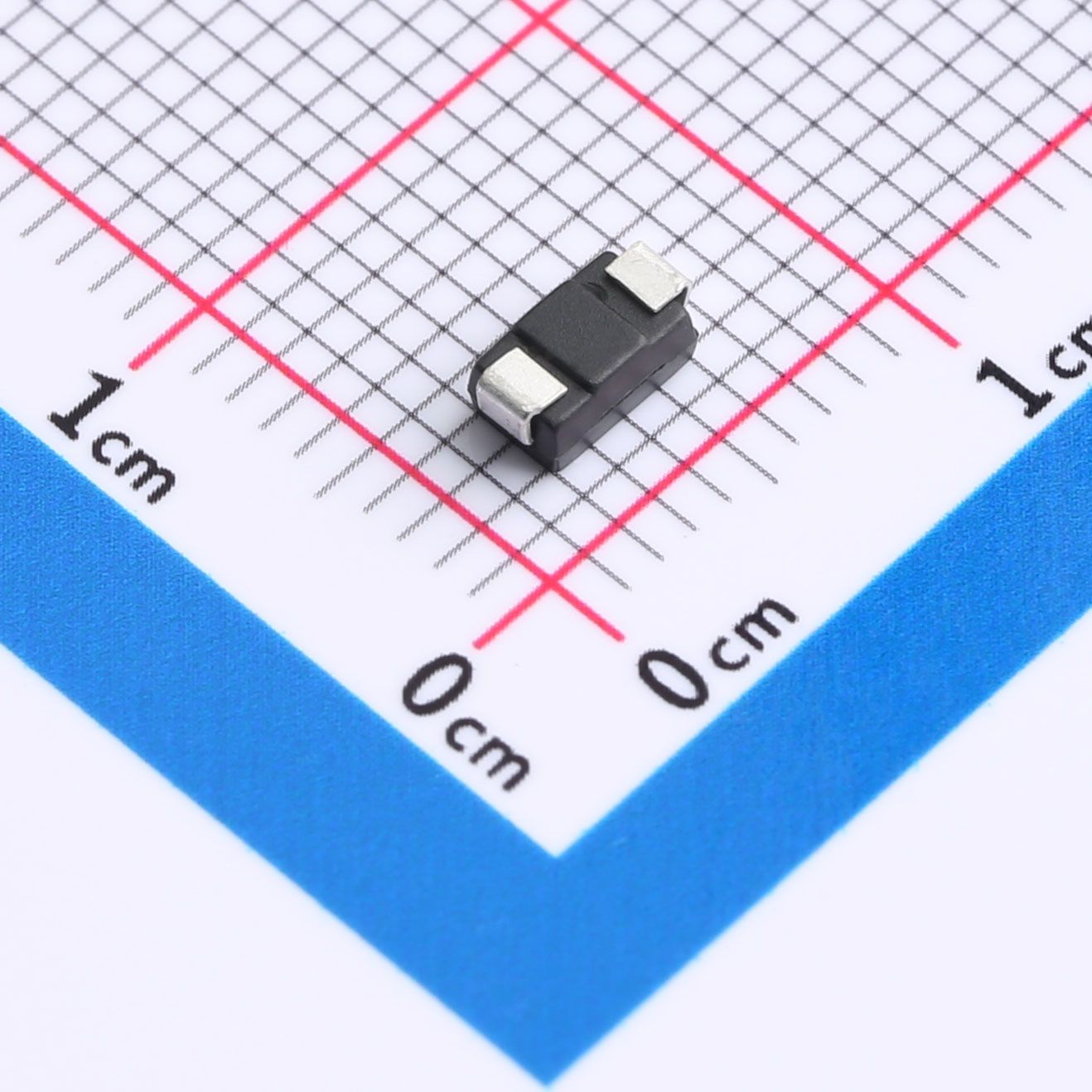

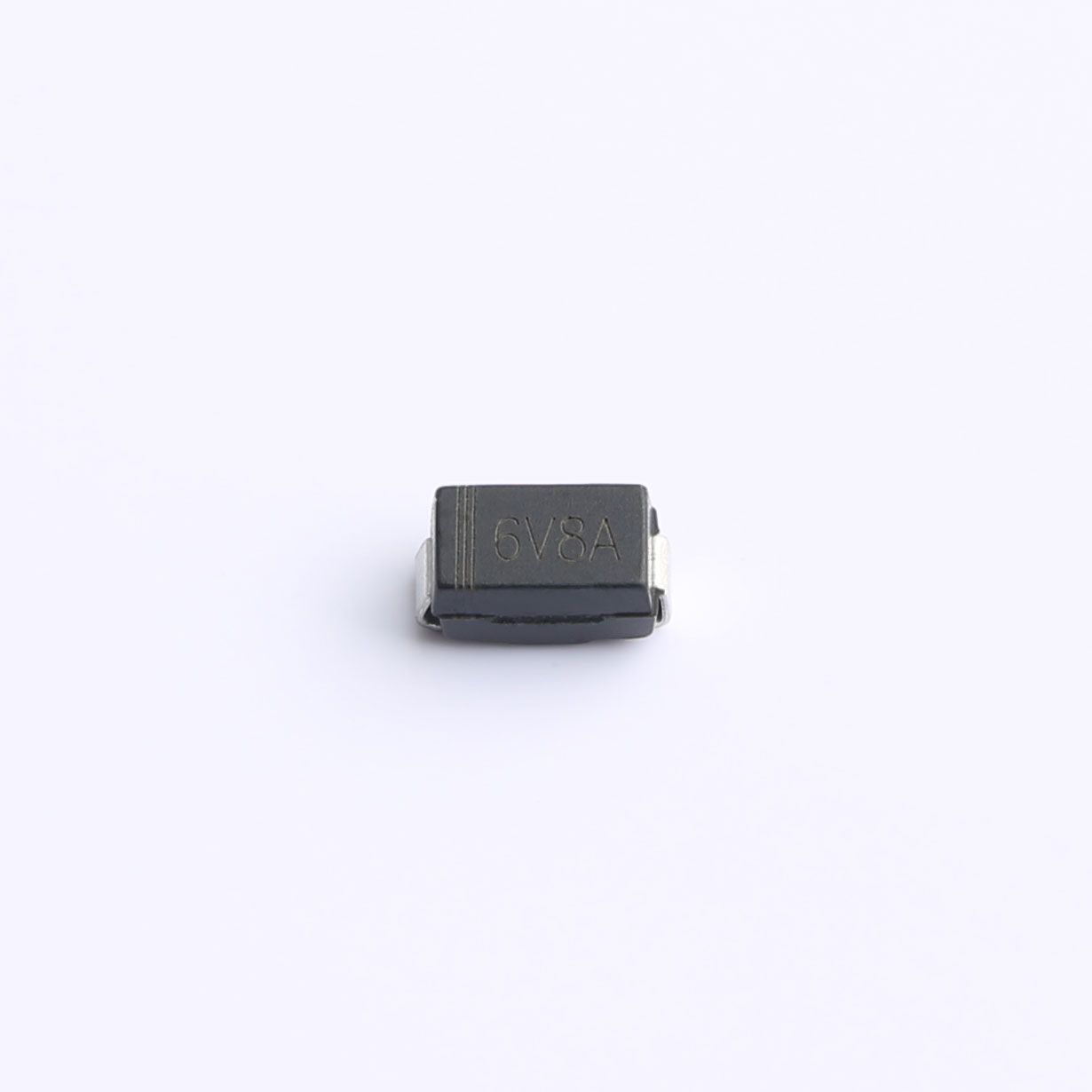

P4SMA6.8A TVS Diode SMA(DO-214AC)
P4SMA6.8A is a unidirectional 400W surface‑mount transient voltage suppressor (TVS) in the SMA (DO‑214AC) package. It is designed to protect sensitive electronic circuits and components from voltage spikes, ESD, and lightning‑induced transients, offering reliable overvoltage protection for a wide range of general‑purpose applications.
Description
P4SMA6.8A is a unidirectional 400W surface‑mount transient voltage suppressor (TVS) in the SMA (DO‑214AC) package. It is designed to protect sensitive electronic circuits and components from voltage spikes, ESD, and lightning‑induced transients, offering reliable overvoltage protection for a wide range of general‑purpose applications.
Features
- Unidirectional protection
- Peak pulse power: 400W (10/1000μs)
- Reverse Working Voltage (VRWM): 5.8V
- Breakdown Voltage (VBR): 6.45V (min) – 7.14V (max) @10mA
- Reverse Leakage (IR): ≤100μA @5.8V
- Clamping Voltage (VC): 10.5V @Ipp=39.0A
- Glass‑passivated / planar junction
- Fast response time: <1.0ps
- Excellent clamping capability
- Low inductance, low‑profile package
- High‑temperature soldering: 260℃/10s
Our advantages
- High surge handling (400W), delivers strong transient protection
- Fast response (<1.0ps), suppresses voltage spikes instantly
- Low clamping voltage, safeguards low‑voltage ICs
- Low inductance, minimizes parasitic effects
- SMA package, robust and widely compatible
- Wide application range, ideal for general‑purpose protection
Mechanical Data
- Package: SMA (DO‑214AC)
- Case: Molded green compound
- Polarity: Color band indicates cathode
- Weight: ~0.07g
- Operating/storage temperature: −55℃ ~ +150℃
Applications
- Consumer electronics
- Automotive electronics
- Industrial control systems
- Telecommunication equipment
- Aerospace devices
- AC/DC power supplies
- I/O interfaces
- Low‑frequency signal lines (RS232, RS485)
