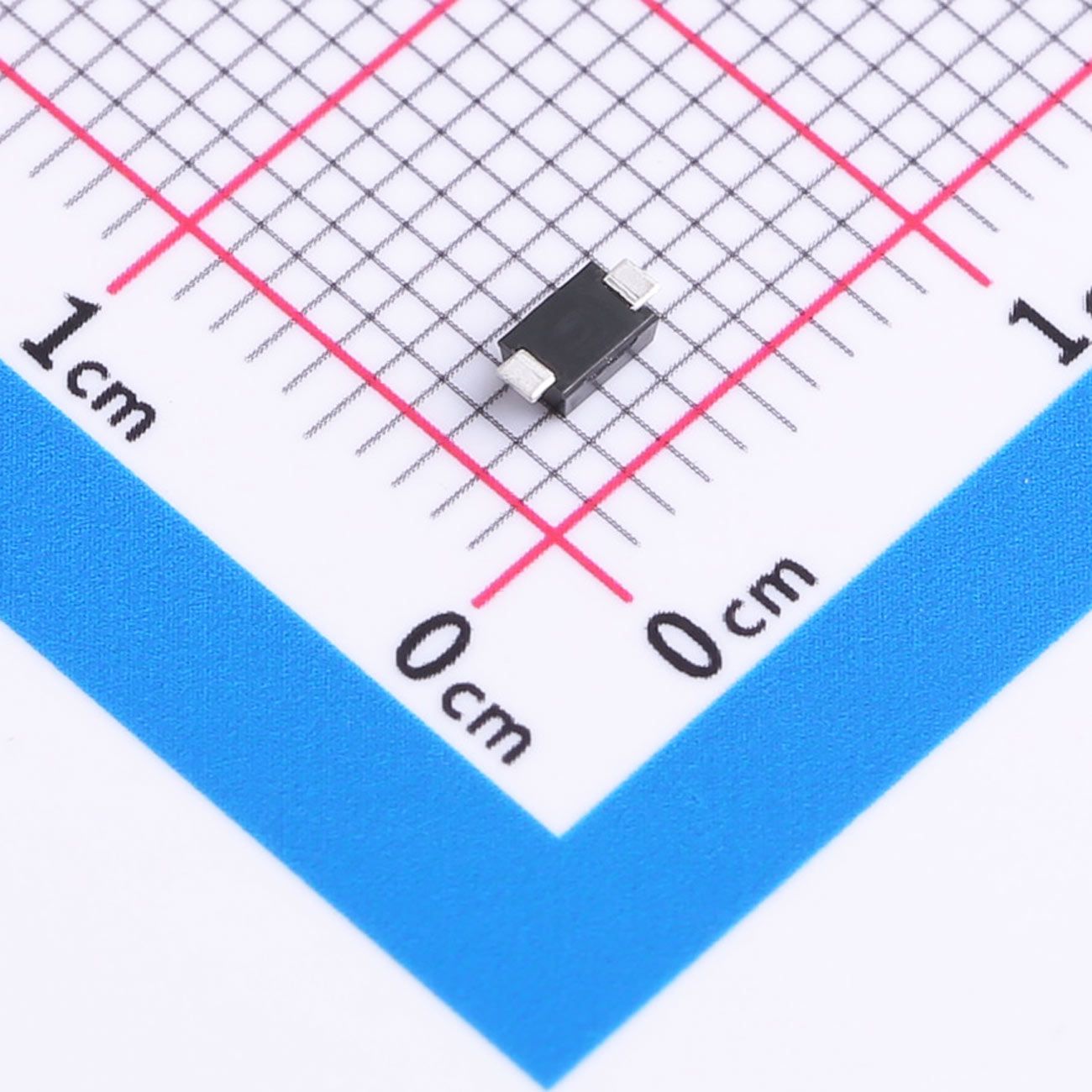

SMF11A Transient Protection Diode SOT-23
SMF11A is a unidirectional surface-mount transient voltage suppressor (TVS) diode, packaged in the compact SOD-123FL. It is designed to protect sensitive electronic components and circuits from voltage spikes, ESD, and transient surges, offering reliable overvoltage protection for various low-to-medium voltage applications.
Description
SMF11A is a unidirectional surface-mount transient voltage suppressor (TVS) diode, packaged in the compact SOD-123FL. It is designed to protect sensitive electronic components and circuits from voltage spikes, ESD, and transient surges, offering reliable overvoltage protection for various low-to-medium voltage applications.
Features
- Unidirectional protection
- Reverse Working Voltage (VRWM): 11V
- Breakdown Voltage (VBR): 12.2V (min) – 13.5V (max) @1mA
- Low leakage current: ≤2.5μA @11V
- Clamping Voltage (VC): 18.2V @Ipp=11.0A
- Peak pulse power: 200W (10/1000μs)
- Low incremental surge resistance, excellent clamping capability
- High-temperature soldering: 260℃/10s
- RoHS compliant
Our advantages
- Compact SOD-123FL package, ideal for space-constrained designs
- Excellent clamping performance, effectively suppresses voltage surges
- Low leakage, minimal power consumption
- High surge tolerance, reliable protection
- Surface-mount type, easy for automated assembly
- RoHS compliant, environmentally friendly
Mechanical Data
- Package: SOD-123FL
- Polarity: Color band indicates cathode
- Dimensions (mm): A:3.58–3.72; B:2.72–2.78; C:1.77–1.83
- Weight: ~0.02g
- Mounting position: Any
Applications
- Consumer electronics
- Industrial control circuits
- Communication devices
- Automotive electronics
- Power supply modules
- Signal lines and I/O ports
Name
Title
Description
Datasheet
Support
SMA6J5.0A TVS Diode SMA
Brand: slkor，
SMA6J5.0CA TVS Diode SMA
Brand: slkor，
P4SMA6.8A TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA6.8CA TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA15A TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA15CA TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA16CA TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA18A TVS Diode SMA(DO-214AC)
Brand: slkor，
P4SMA18CA TVS Diode SMA(DO-214AC)
Brand: slkor，

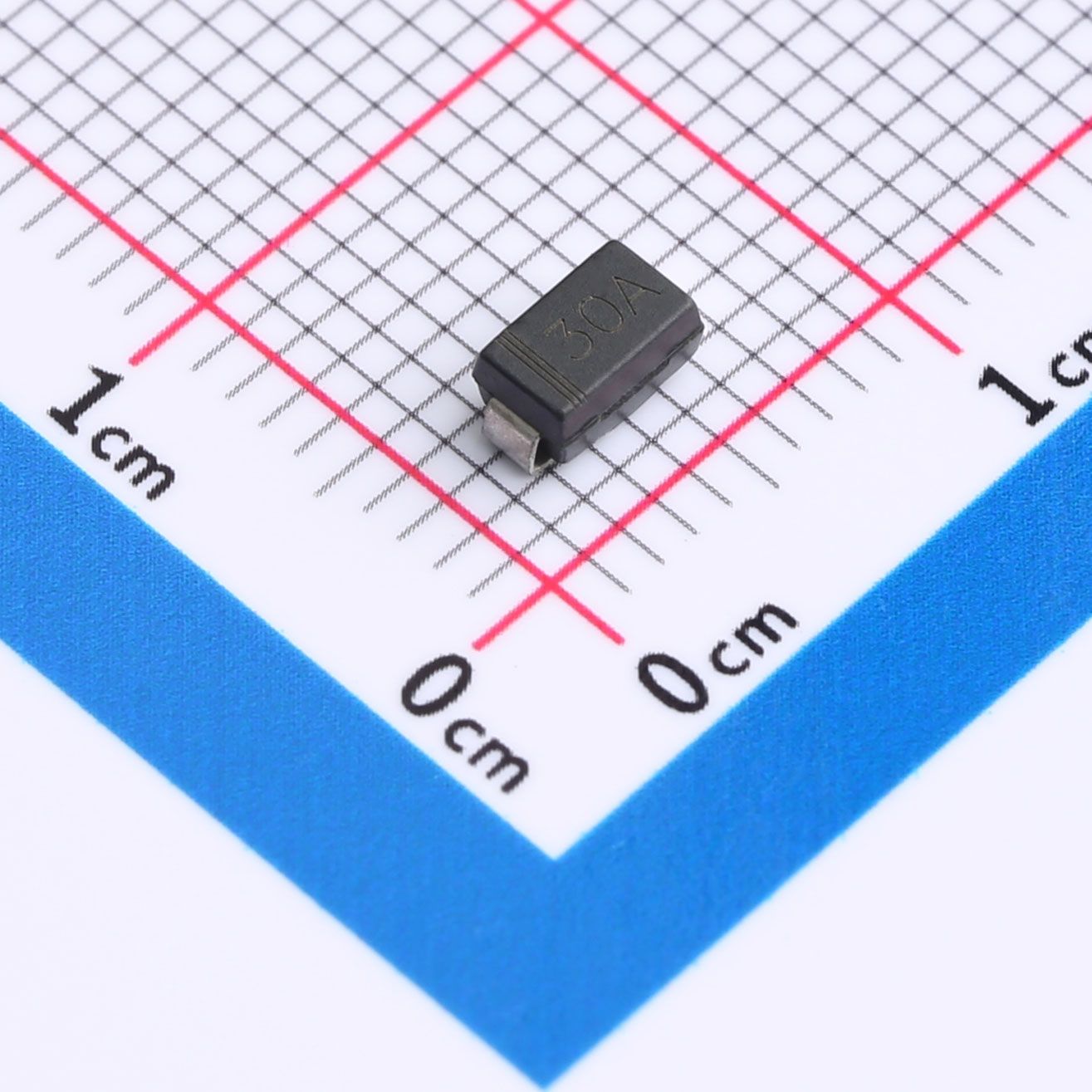

P4SMA30A TVS Diode SMA(DO-214AC)
