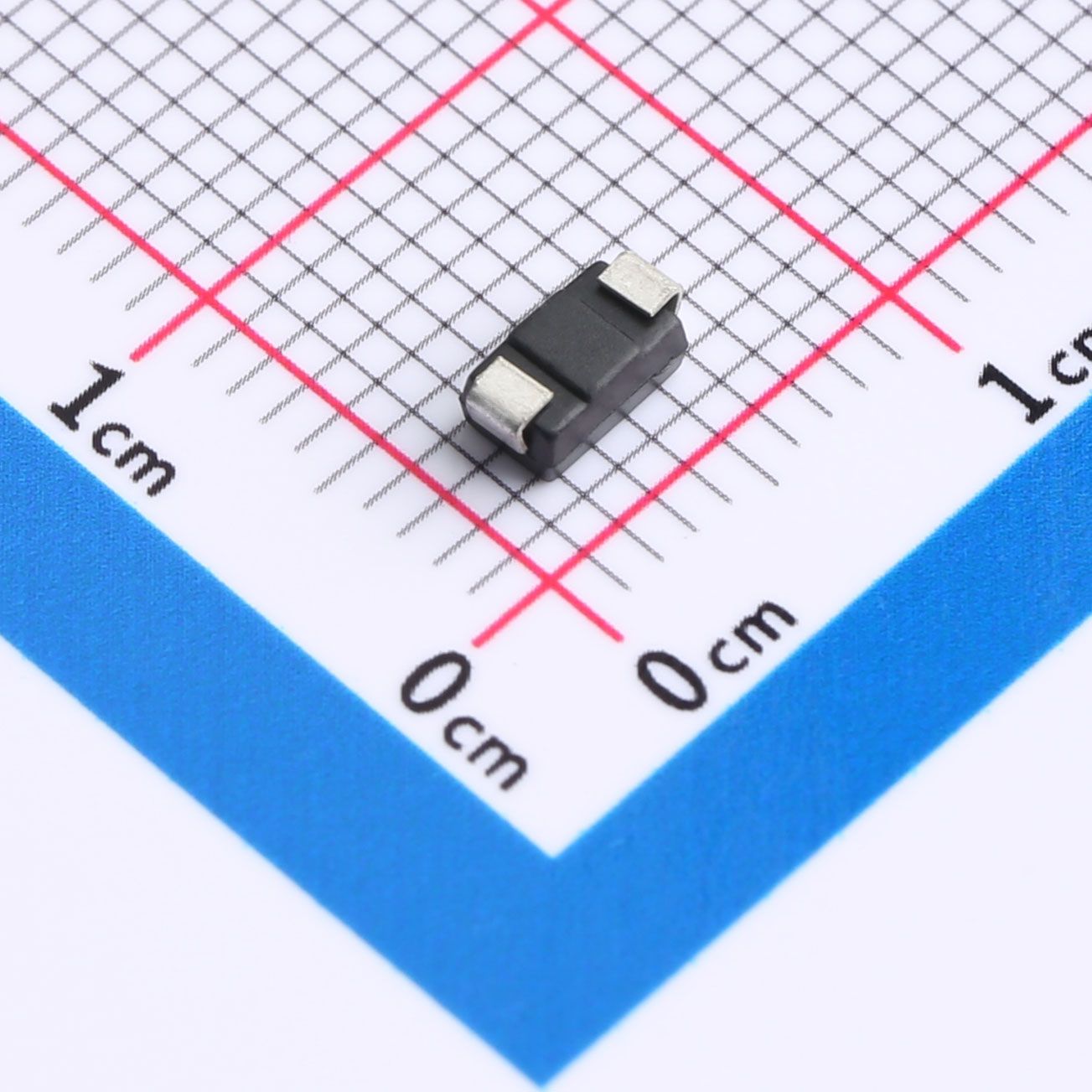

P4SMA30A TVS Diode SMA(DO-214AC)
P4SMA30A is unidirectional 400W surface mount TVS diode in SMA/DO-214AC package. It protects electronic circuitry against ESD, surge and transient overvoltage for diversified electronic equipment.
Description
P4SMA30A is unidirectional 400W surface mount TVS diode in SMA/DO-214AC package. It protects electronic circuitry against ESD, surge and transient overvoltage for diversified electronic equipment.
Features
- Unidirectional surge protection, peak pulse power:400W @10/1000μs
- VRWM:25.6V; VBR:28.5~31.5V@1mA; IR≤1μ[email protected]; [email protected]
- Glass passivated/planar chip, response＜1ps
- Excellent clamping, low inductance compact outline
- Resist 260℃/10s high temp soldering
Our advantages
- 400W high surge absorption for reliable circuit safeguard
- Ultra-fast clamping shields precision electronic components
- Ultra-low leakage reduces idle power consumption
- Low inductance avoids signal distortion on signal lines
- Standard SMA footprint fits automatic SMT production
Mechanical Data
- Package:SMA(DO-214AC), green flame retardant plastic housing
- Color band marks cathode, single weight≈0.07g
- Operating temperature: -55℃ ~ +150℃
- Packaged with 12mm carrier tape & reel
Applications
Automotive electronics, consumer goods, industrial controls, telecom equipment, aerospace products, AC-DC power supply, I/O ports, RS232/RS485 signal circuits.
