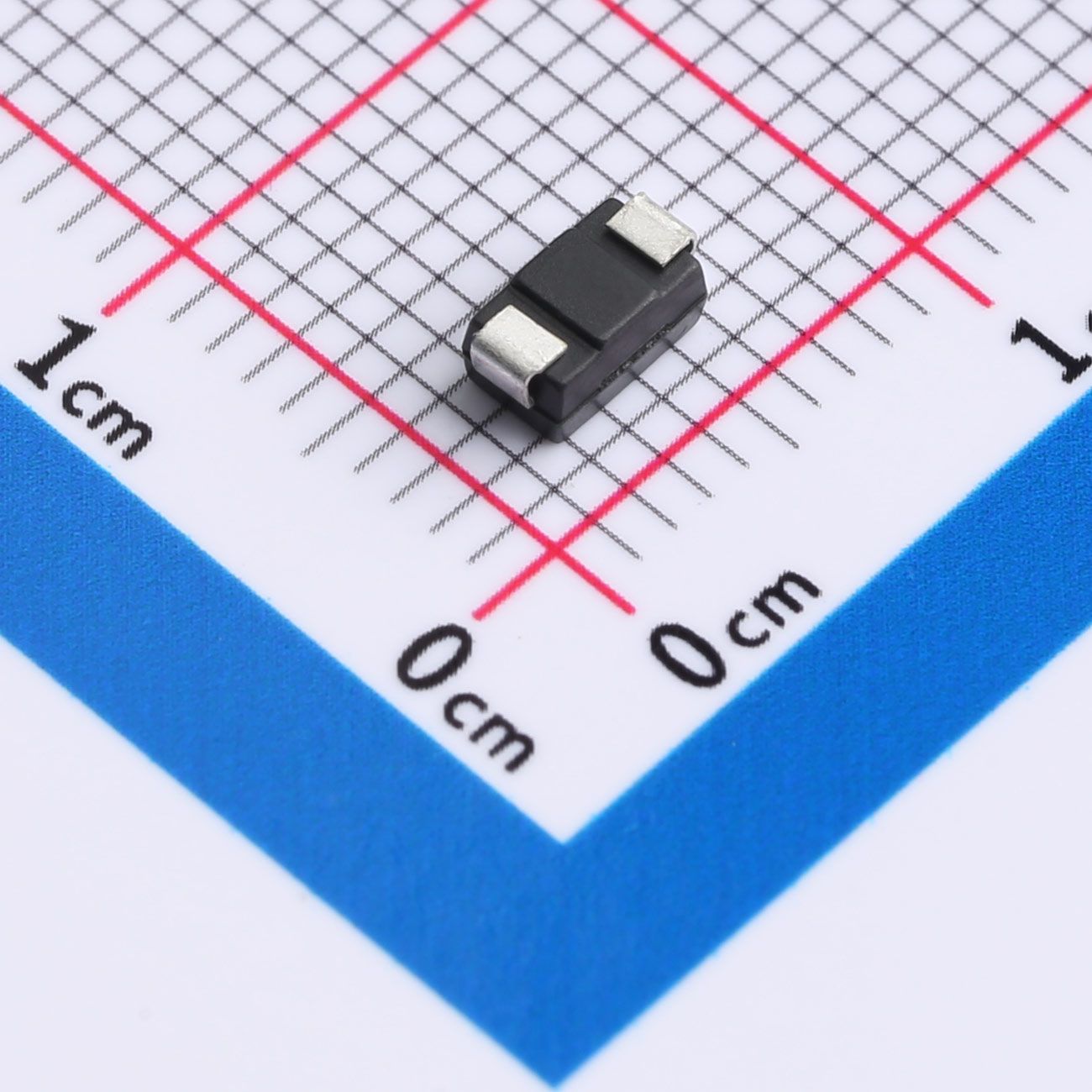

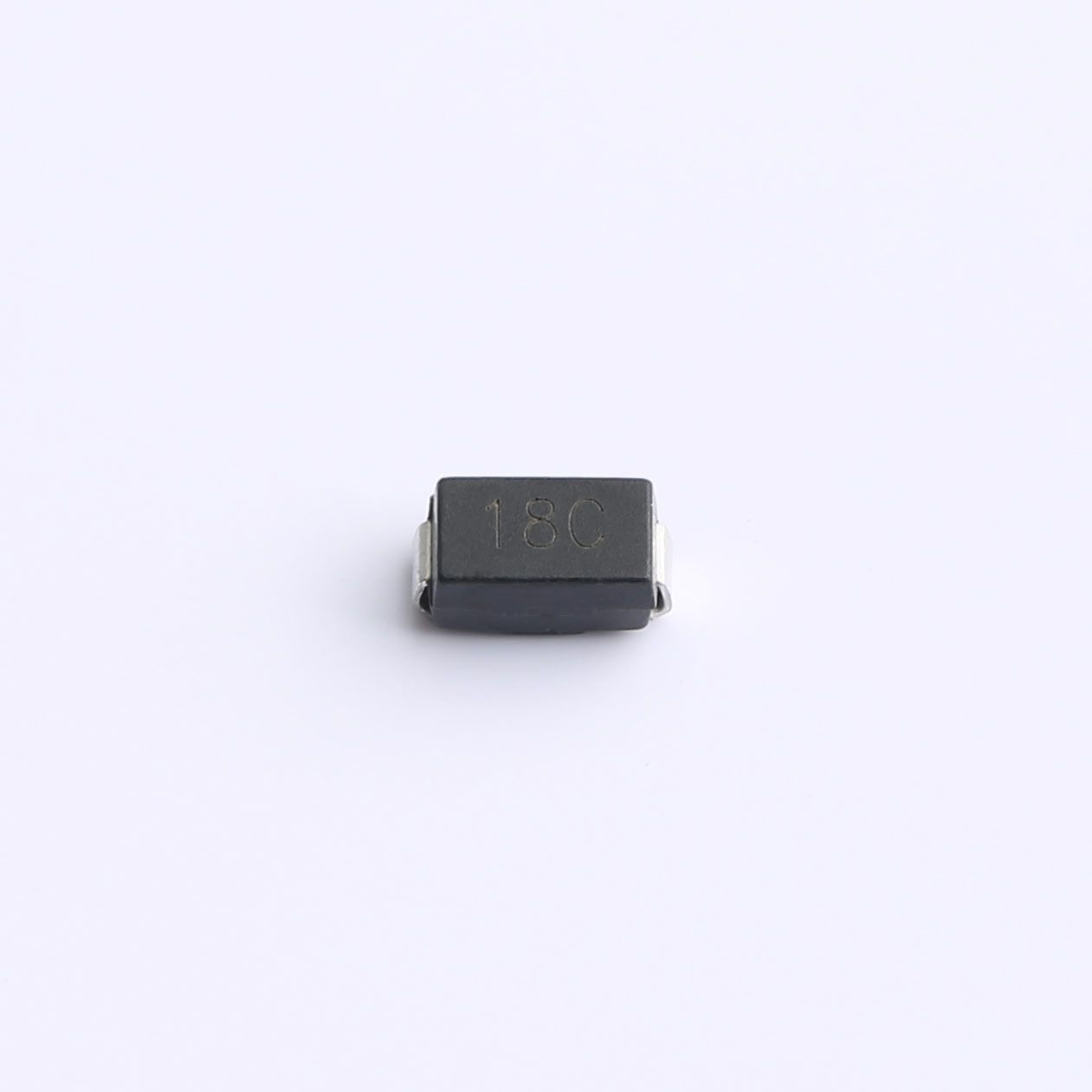

P4SMA18CA TVS Diode SMA(DO-214AC)
P4SMA18CA is a bidirectional 400W surface mount TVS diode housed in SMA (DO-214AC) package. It protects sensitive electronic circuits against positive and negative ESD, surge and transient overvoltage across various electronic equipment.
Description
P4SMA18CA is a bidirectional 400W surface mount TVS diode housed in SMA (DO-214AC) package. It protects sensitive electronic circuits against positive and negative ESD, surge and transient overvoltage across various electronic equipment.
Features
- Bidirectional protection, peak pulse power: 400W @10/1000μs
- VRWM:15.3V; VBR:17.1V~18.9V@1mA; IR≤1μ[email protected]; [email protected]
- Glass passivated or planar chip, response time <1ps
- Excellent clamping performance, low inductance small outline
- High temperature soldering available at 260℃/10s
Our advantages
- Bidirectional design absorbs both positive and negative surges
- High 400W surge capacity offers robust circuit protection
- Ultra-fast response instantly clamp abnormal voltage spikes
- Tiny leakage reduces idle power consumption effectively
- Low inductance avoids signal distortion for signal circuits
- Standard SMA package fits automated SMT production
Mechanical Data
- Package: SMA/DO-214AC, green flame-retardant plastic body
- Bidirectional type without cathode color band marking
- Single unit weight: approx 0.07g
- Temp range: -55℃ ~ +150℃; packed with 12mm tape & reel
Applications
Automotive electronics, consumer devices, industrial controls, telecom equipment, aerospace products, AC/DC power modules, I/O ports and RS232/RS485 signal lines.
