Description

The Polar Unidirectional TVS Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes and surges in one direction. Featuring a V_RWM (Working Peak Reverse Voltage) of 30V, this diode is optimized for unidirectional transient voltage suppression applications. It operates within a V_BR (Breakdown Voltage) range from 33.3V (minimum) to 36.8V (maximum), effectively clamping voltages that exceed these thresholds in the specified direction. With an ultra-low I_r (Reverse Leakage Current) of 1μA, it ensures minimal standby power consumption while offering robust protection. The diode can handle peak pulse currents (I_pp) of up to 4.1A for 10/1000μs pulses, and features a low V_C (Clamping Voltage) of 48.4V. It boasts a P_pp (Peak Pulse Power) rating of 200W for 10/1000μs pulses, effectively dissipating transient power to safeguard connected electronics.

Features

● For surface mounted applications

● Low profile package

● Low incremental surge resistance, excellent clamping capability

● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%

● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals

Mechanical Data

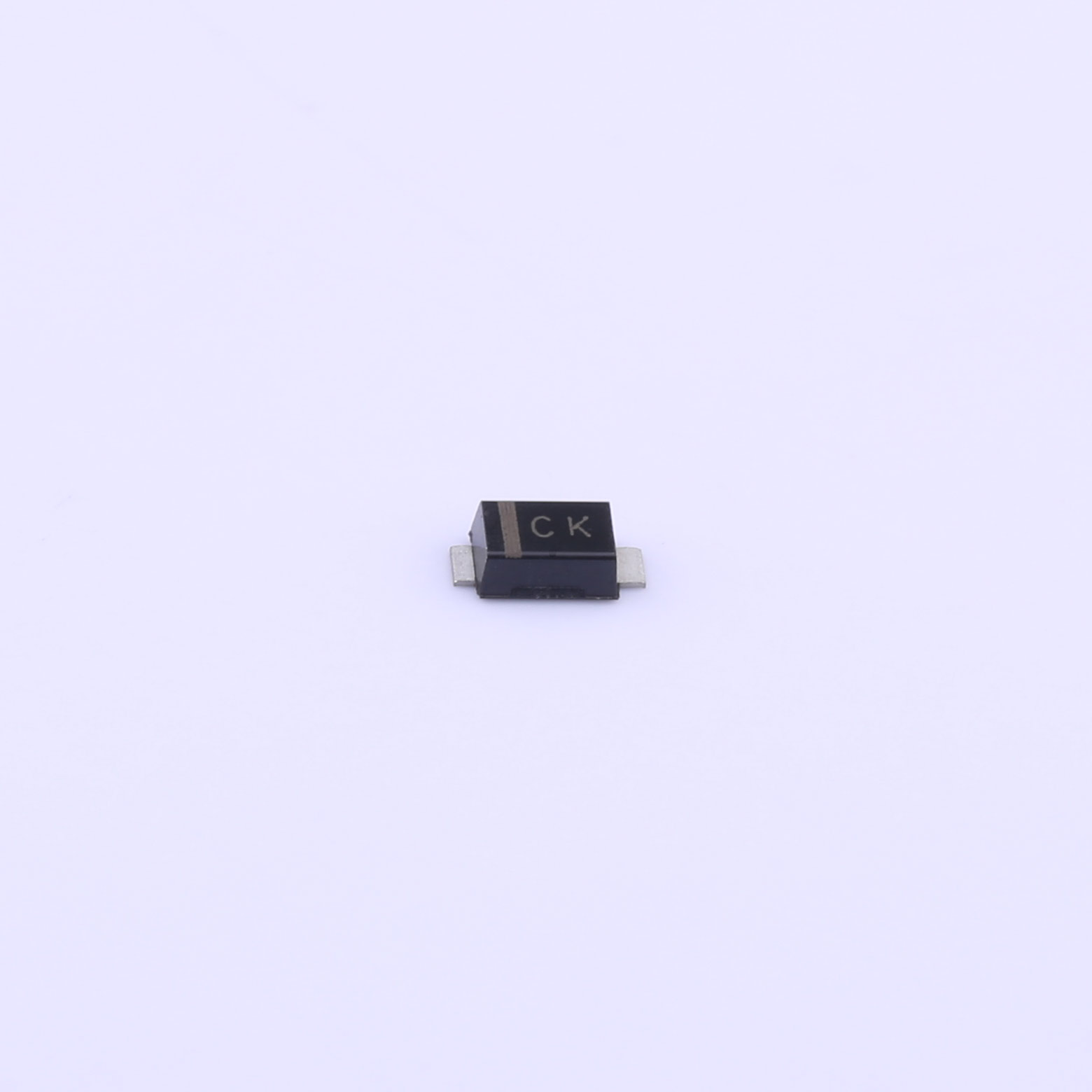

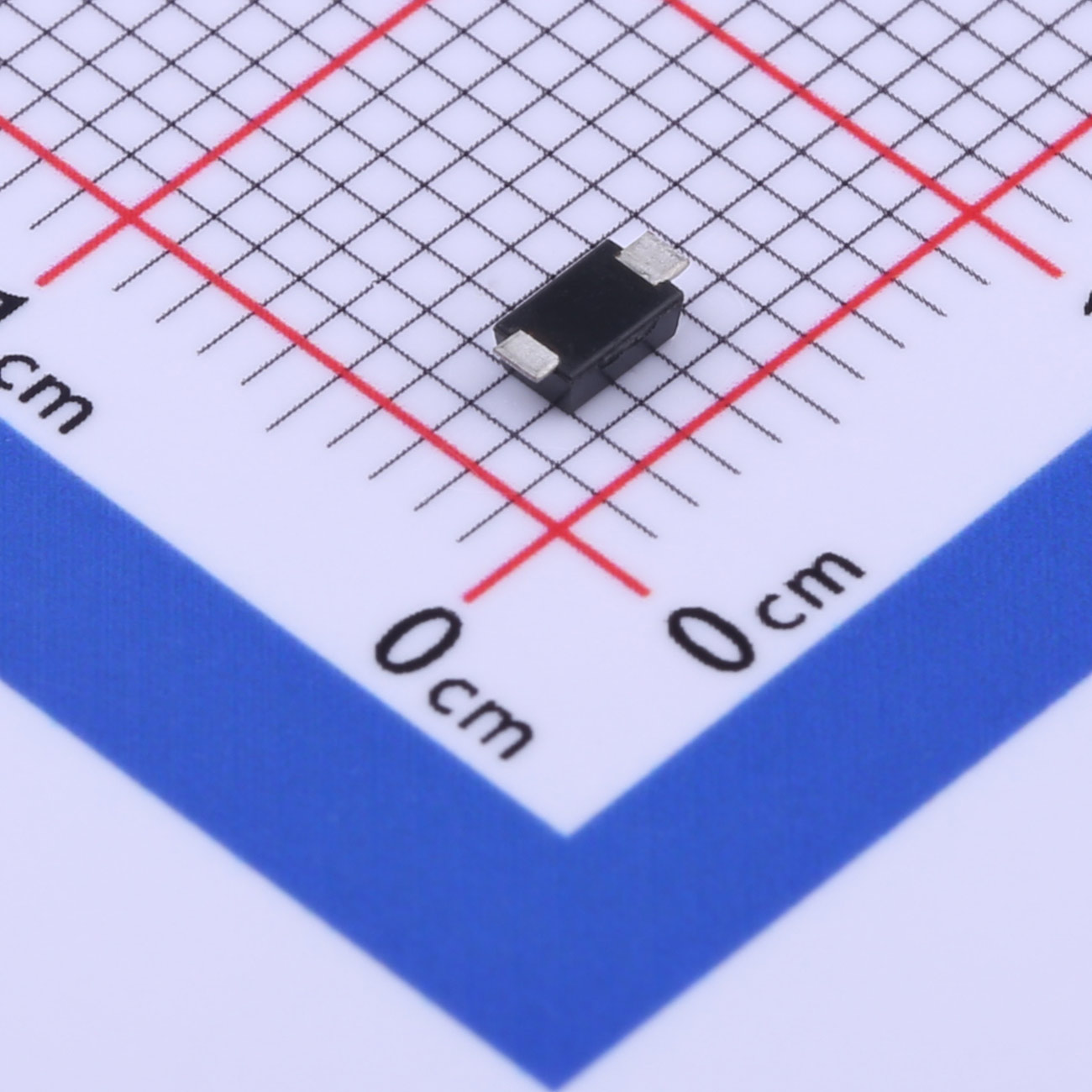

● Case: JEDEC SOD-123FL, molded plastic over passivated chip

● Polarity: Color band denotes positive end ( cathode ) except for bidirectional

● Mounting position: Any

● Weight: 0.006 ounces, 0.02 gram

Applications

● Telecommunications

● Consumer Electronics

● Automotive Electronics

● Industrial Applications

● Power Supplies
