Description

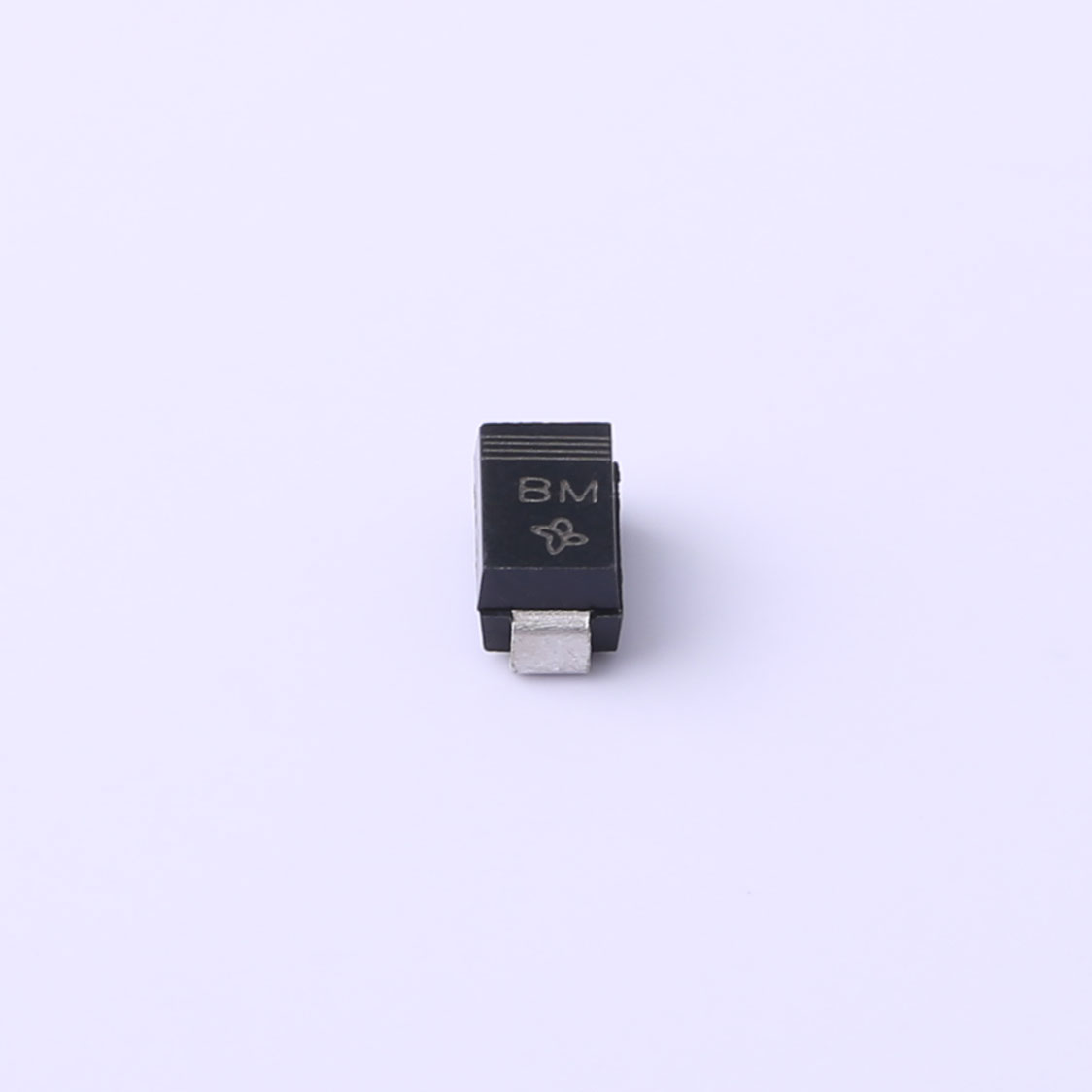

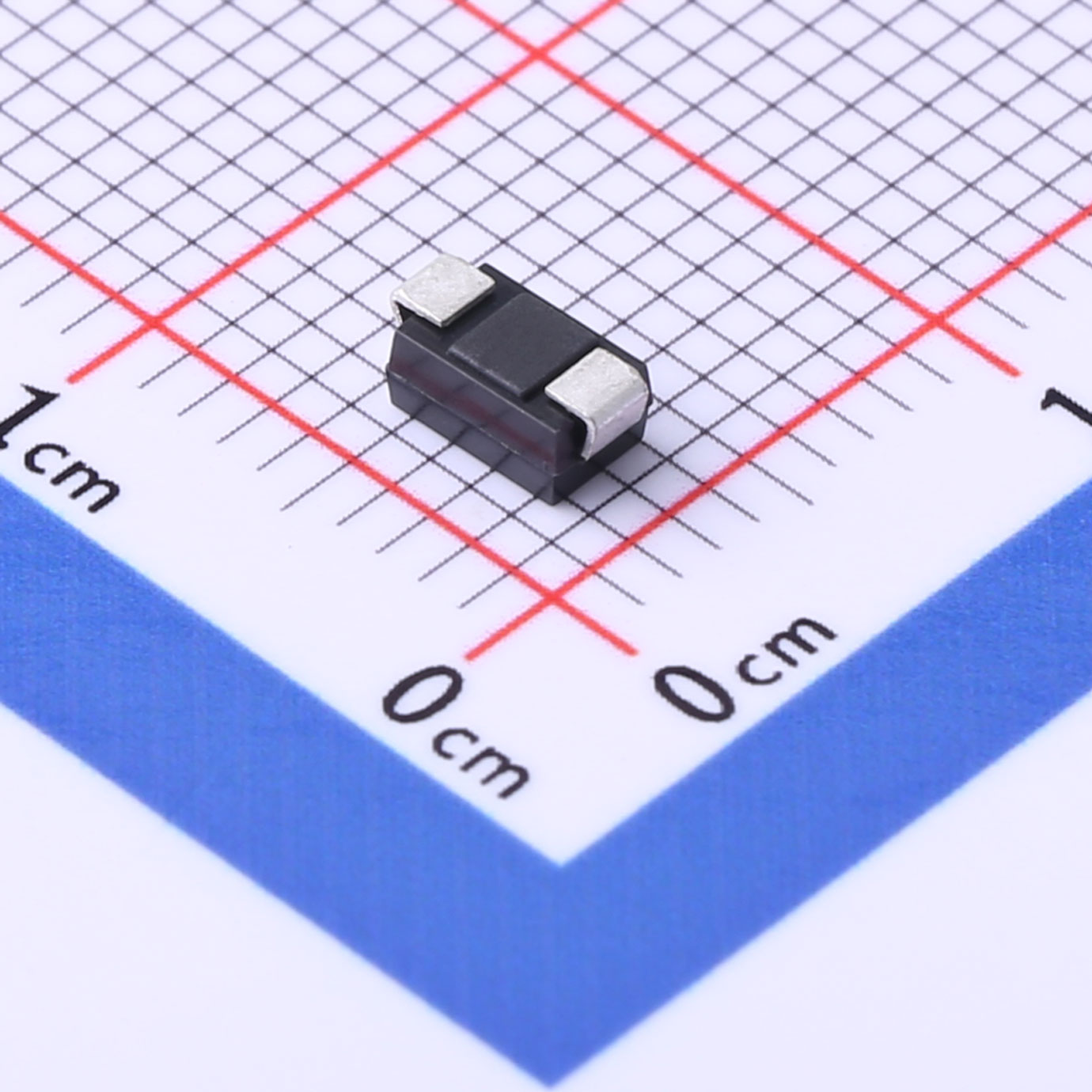

The Polar Unidirectional TVS Diode is a critical component designed to protect electronic circuits from transient voltage spikes and surges. Featuring a robust unidirectional clamping mechanism, this diode efficiently suppresses transient voltages that exceed its specified breakdown voltage range, ensuring reliable operation and longevity of sensitive electronic devices.

Features

● UL Recognized File # E-326243

● For surface mounted application

● Low profile package

● Built-in strain relief

● Glass passivated junction

● Excellent clamping capability

● Fast response time: Typically less than 1.0ps from 0 volt to BV min

● Typical IR less than 1uA above 10V

● High temperature soldering guaranteed: 260℃ / 10 seconds at terminals

● Plastic material used carried Underwriters Laboratory Flammability Classification 94V-0

● 400 watts peak pulse power capability with a 10 / 1000 us waveform (300W above 78V)

Mechanical Data

● Case: Molded plastic

● Terminals: Pure tin plated, lead free

● Polarity: Indicated by cathode band

Applications

● Consumer Electronics

● Telecommunications

● Automotive Electronics

● Industrial Equipment
