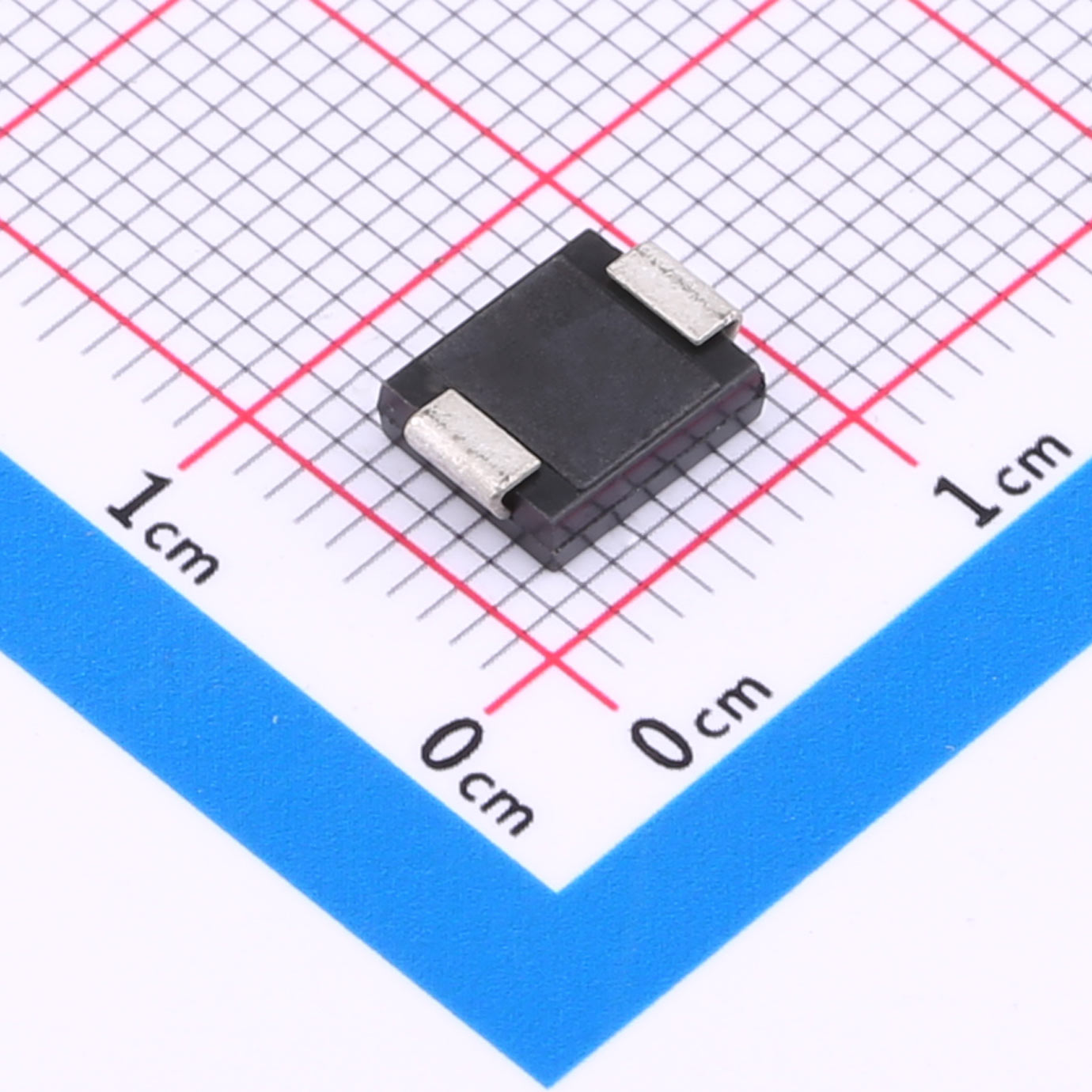

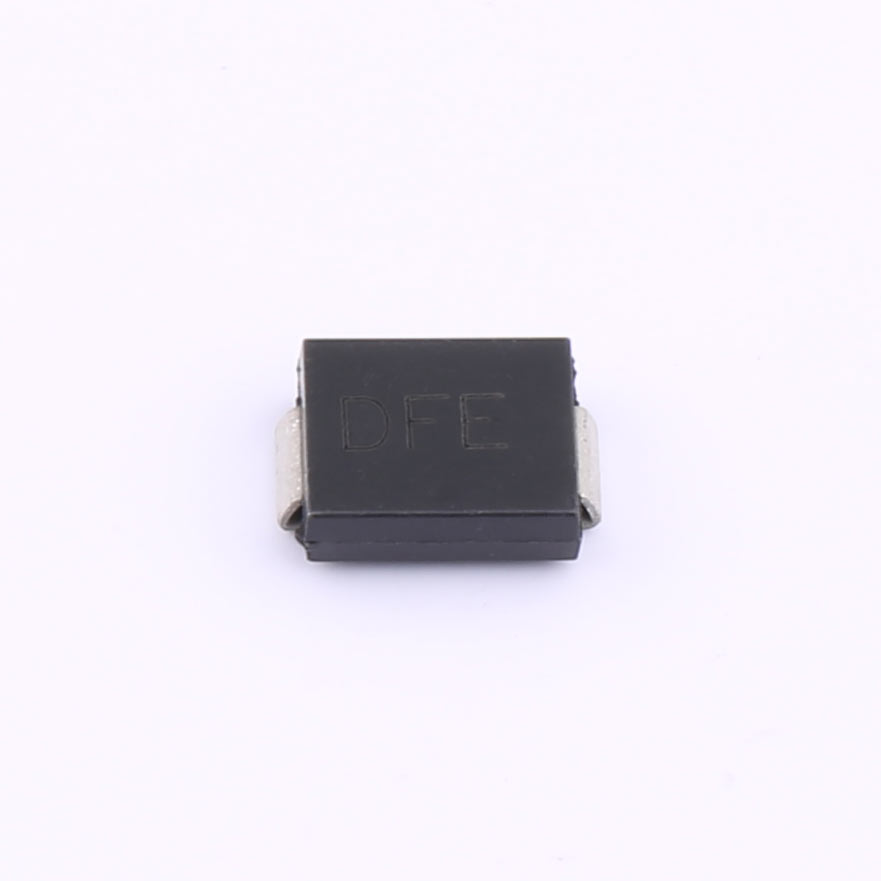

SMDJ26CA Transient Protection Diode
SMDJ26CA Transient Protection Diode
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
● Halogen-Free
● RoHS compliant
● For surface mounted applications in order to optimize board space
● Low profile package
● Built-in strain relief
● Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃ × ΔT
● Glass passivated chip junction
● 3000W peak pulse power capability at lOxlOOOUs waveform, repetition rate {duty cycles):0.01 %
● Fast response time:typically less than l.Ops from OV to BV min
● Excellent clamping capability
● Low incremental surge resistance
● Typical IR less than 2UA above 12V
● High Temperature soldering guaranteed: 260℃/40 seconds at terminals
● Plastic package has Underwriters Laboratory Flammability 94V-O
● Matte Tin Lead-free Plated
Mechanical Data
● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.22g / 0.0077oz
Name
Title
Description

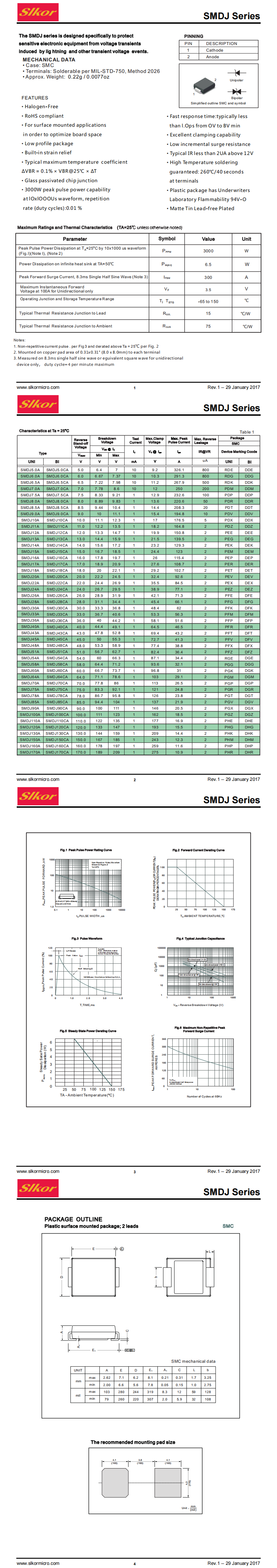

Datasheet
